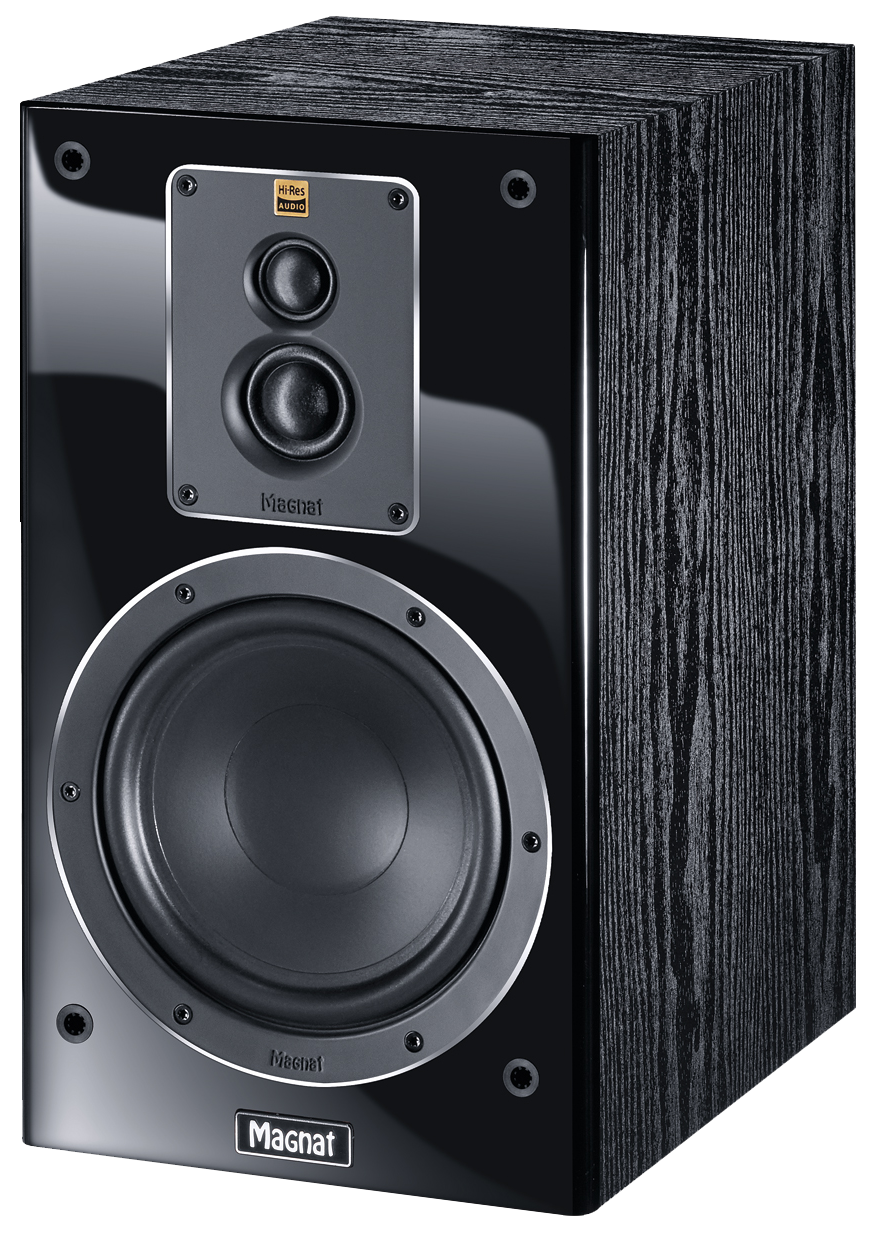

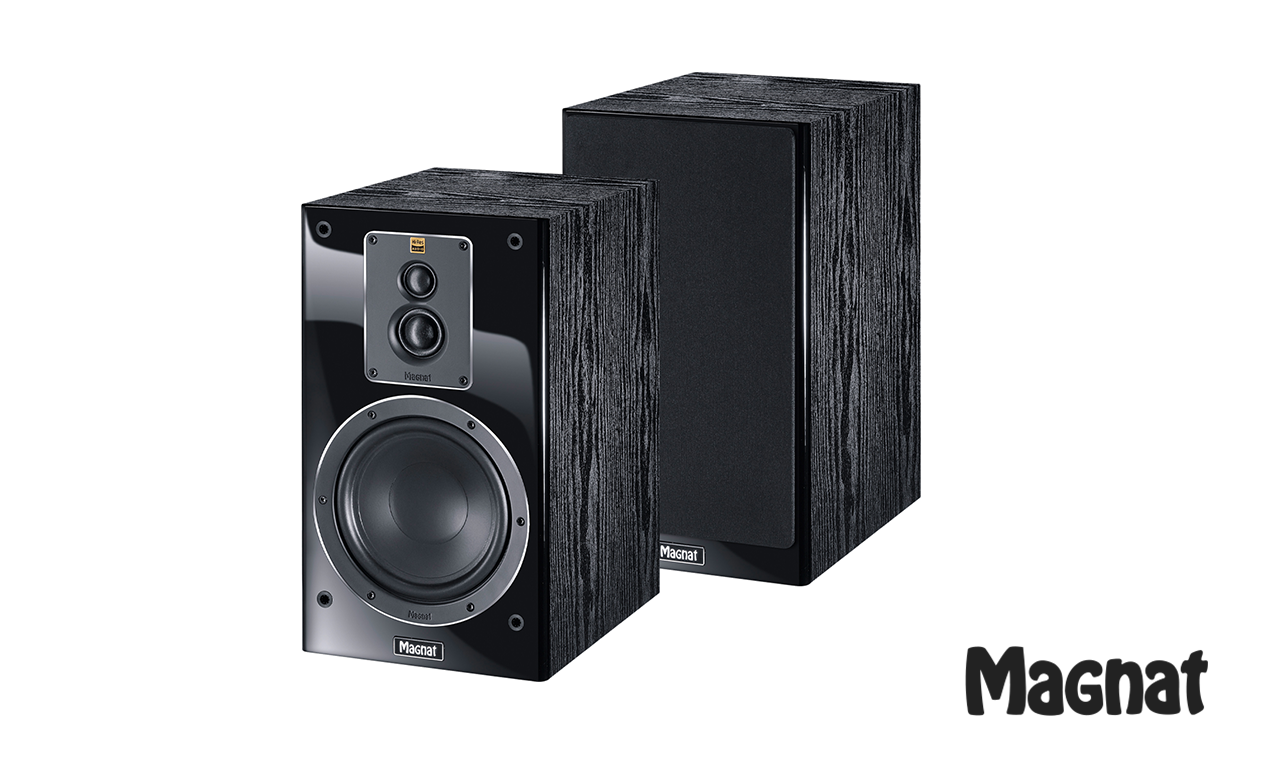

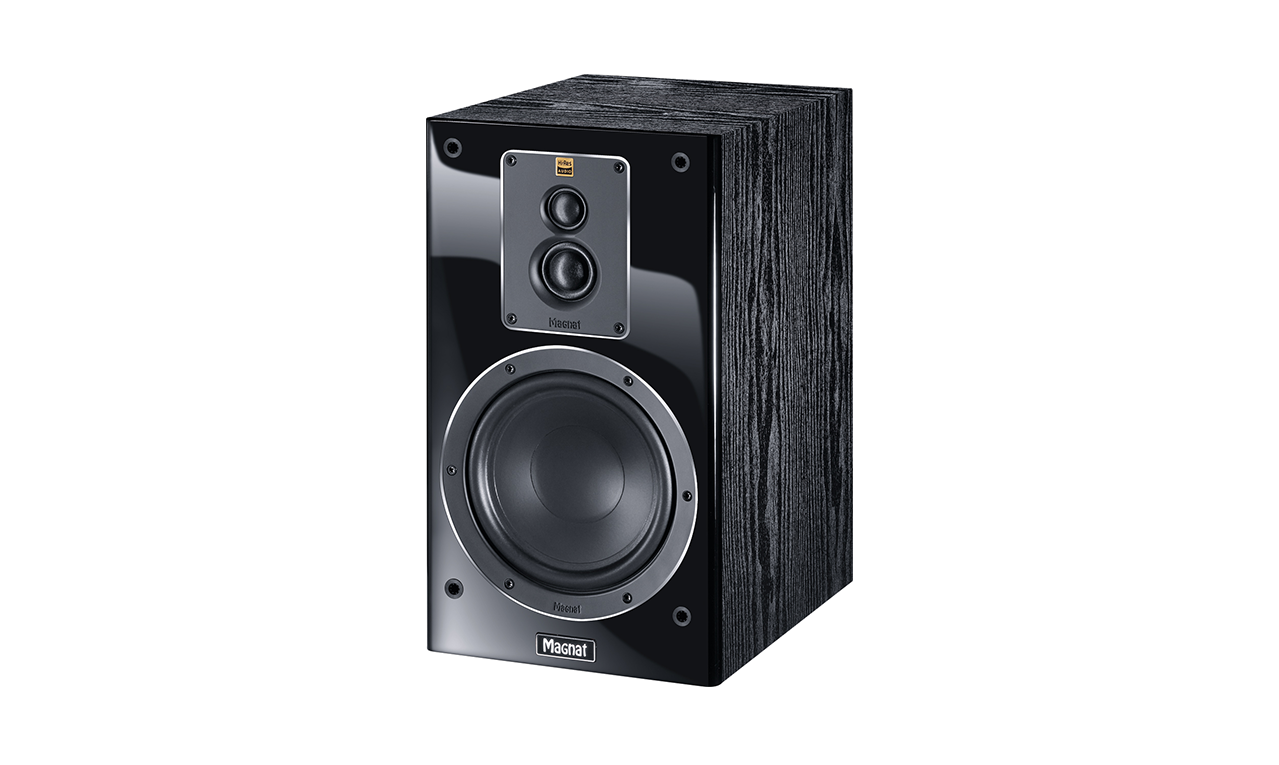

Magnat signature 503

Original price was: €599.Current price is: €499.

In stock

3-WAY SHELF-TOP MODEL FOR ENTRY INTO THE SIGNATURE WORLD

Hi-Res certified dual tweeter module with two fmax domes. Three-way speaker with bass reflex technology. Klippel-optimized bass-midrange unit. Ventilated voice-coil unit for maximum resilience and dynamics.

Price is for a pair.

In stock

Description

3-way shelf-top model for entry into the Signature world

The Signature 503 is, as a shelf-top speaker, the most compact representative of the new 500 range. As a three-way system, it combines the hi-res dual tweeter module with a 17 cm bass-midrange unit. It unites all this in a footprint smaller than an A4 sheet of paper and a height of 365 mm. The sturdy MDF housing is available in two elegant finishes: black ash or mocca.

It is just as practical as a compact stereo solution as it is when using it as a surround sound speaker in a home cinema set-up. Thanks to identical components like the front panel systems, it delivers an absolutely homogeneous soundscape. The Signature 503 is the best proof that perfect sound does not necessarily require huge speakers.

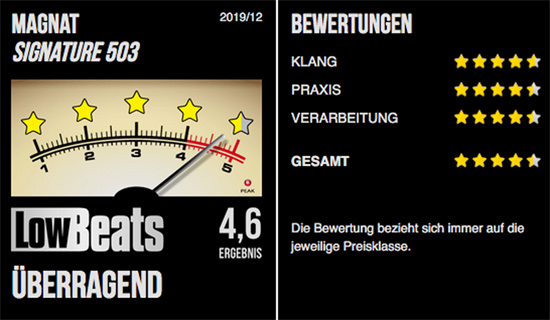

Test Reviews

WHAT DO TRADE MAGAZINES SAY ABOUT THIS PRODUCT?

Highlights

           PRINCIPLE
  • 3 way bass reflex
           CABINET SURFACE
  • Front: Anthracite satin / cabinet: Ash decor mocca
  • Front: Piano black / cabinet: Ash decor black
           TWEETER & SUPER-TWEETER
  • Newly developed high-res tweeter module with two fmax dome tweeters
  • 1.2″ dome tweeter with extra-thick surround for low frequency coupling to the midrange
  • Additional 20 mm super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 50 kHz
  • Powerful neodymium ring magnet systems for best dynamics
  • Front panel with dedicated sound guidance for optimum dispersion properties
  • 30 mm dome tweeter with coupling volume, long-excursion drive and particularly wide surround for especially deep mid-tone coupling
  •
            WOOFER-MIDRANGE
  • Solid decorative rings, fixed by six screws
  • Klippel® optimised construction
  • FE-Dynamics woofer-midrange
  • coated paper cone
  • Ventilated voice-coil unit for maximum capacity
  • Solid metal basket with generous ventilation openings
           CROSSOVER
  • Amplitude and phase-optimised crossover with acoustical 24dB filters and high-quality components
  • Big Bi-Wiring/Bi-Amping connecting terminal with big screw connectors and gold-plated contacts
          CABINET
  • Solid low-resonance cabinet construction using E1-MDF panels
  • Airflex port with rounded reflex opening to minimize annoying resonances
  • Resonance-damping rubber feet included
  • High-gloss lacquered baffle (black version) or satin lacquered baffle (mocca version)

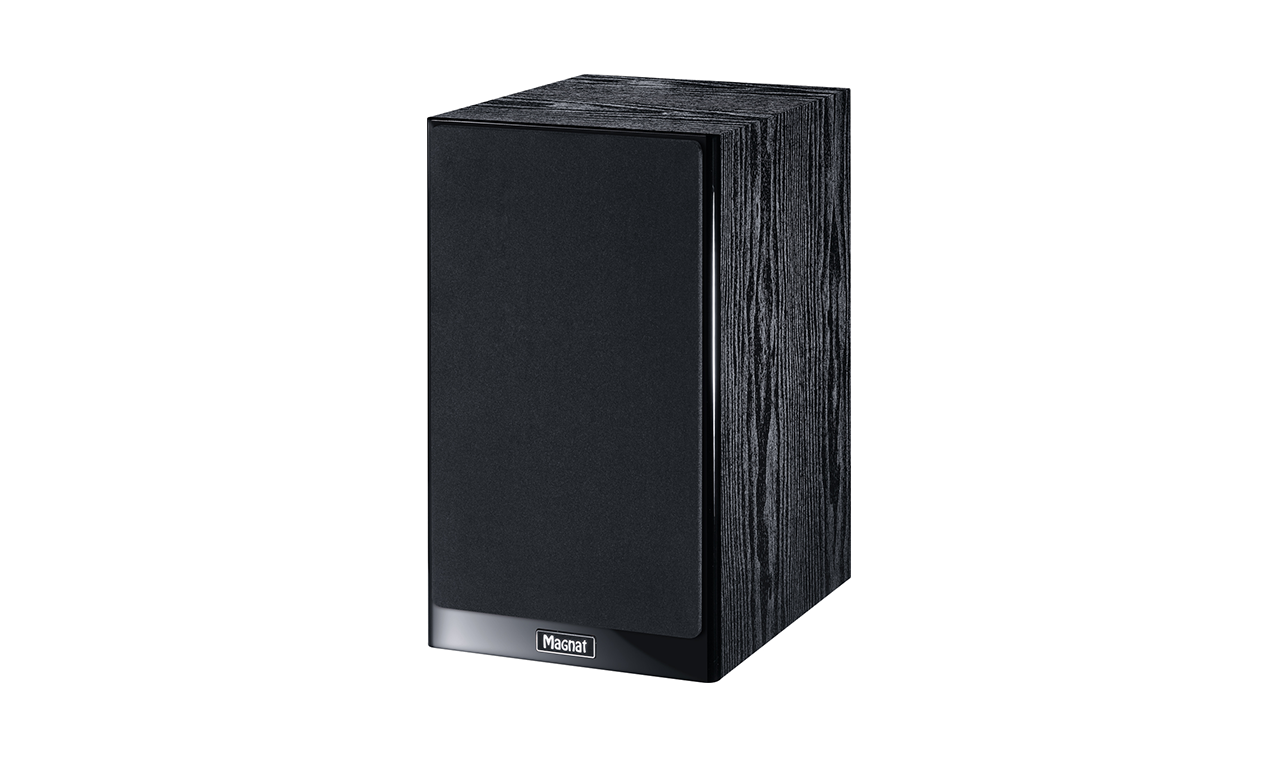

  • Removable cloth grille

Technical specifications

PRINCIPLE
3 way bass reflex
DRIVERS
6.5“ woofer-midrange 1.2″ dome-tweeter 0.75″ super-tweeter
POWER HANDLING (RMS/MAX.)
100 / 170 watts
SENSITIVITY (2.8V/1M)
91 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
32 – 53000 Hz 32 – 53000 Hz
CROSSOVER FREQUENCIES
2800 Hz / 17500 Hz
RECOMMENDED AMPLIFIER OUTPUT
> 20 Watts
DIMENSIONS (WXHXD)
205 x 365 x 282 mm

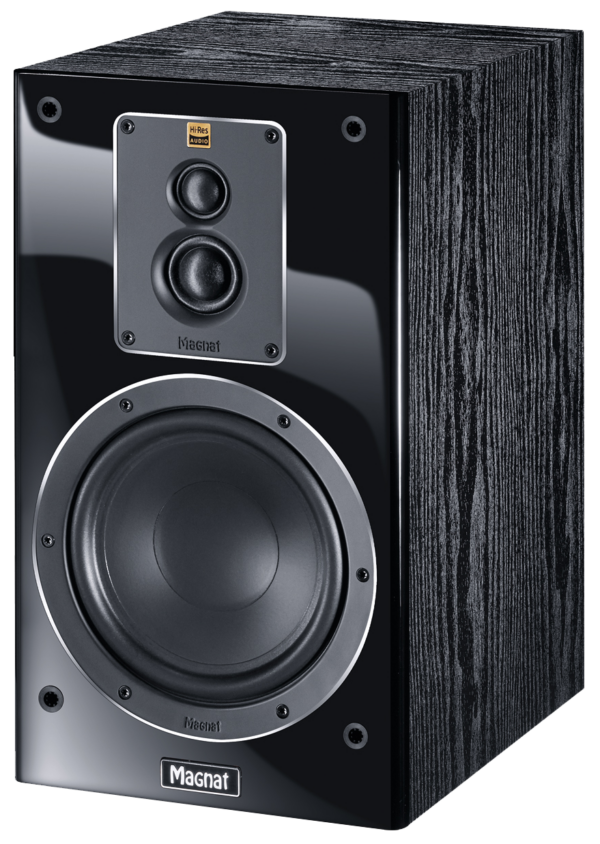

Magnat signature 503 bg

Technical specifications

PRINCIPLE
3 way bass reflex
DRIVERS
6.5“ woofer-midrange 1.2″ dome-tweeter 0.75″ super-tweeter
POWER HANDLING (RMS/MAX.)
100 / 170 watts
SENSITIVITY (2.8V/1M)
91 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
32 – 53000 Hz 32 – 53000 Hz
CROSSOVER FREQUENCIES
2800 Hz / 17500 Hz
RECOMMENDED AMPLIFIER OUTPUT
> 20 Watts
DIMENSIONS (WXHXD)
205 x 365 x 282 mm

Technical specifications

PRINCIPLE
3 way bass reflex
DRIVERS
6.5“ woofer-midrange 1.2″ dome-tweeter 0.75″ super-tweeter
POWER HANDLING (RMS/MAX.)
100 / 170 watts
SENSITIVITY (2.8V/1M)
91 dB
IMPEDANCE
4 – 8 Ohms
FREQUENCY RESPONSE
32 – 53000 Hz 32 – 53000 Hz
CROSSOVER FREQUENCIES
2800 Hz / 17500 Hz
RECOMMENDED AMPLIFIER OUTPUT
> 20 Watts
DIMENSIONS (WXHXD)
205 x 365 x 282 mm

Downloads

Additional information

Brand

Magnat

Speaker Type

Bookshelf / Wall-Mounted
