Magnat MR780 Hybrid Receiver

899

High-end hybrid receiver with tube preamplifier and a high-performance transistor output stage

Description

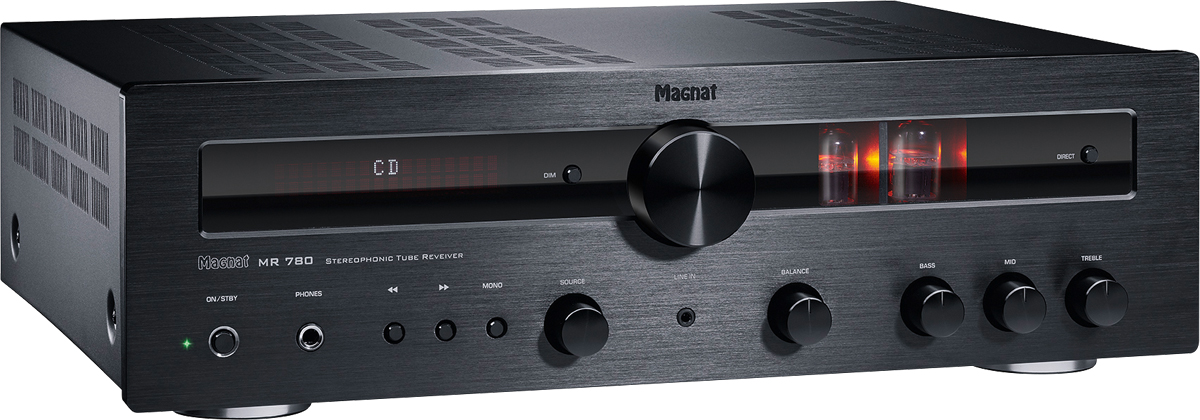

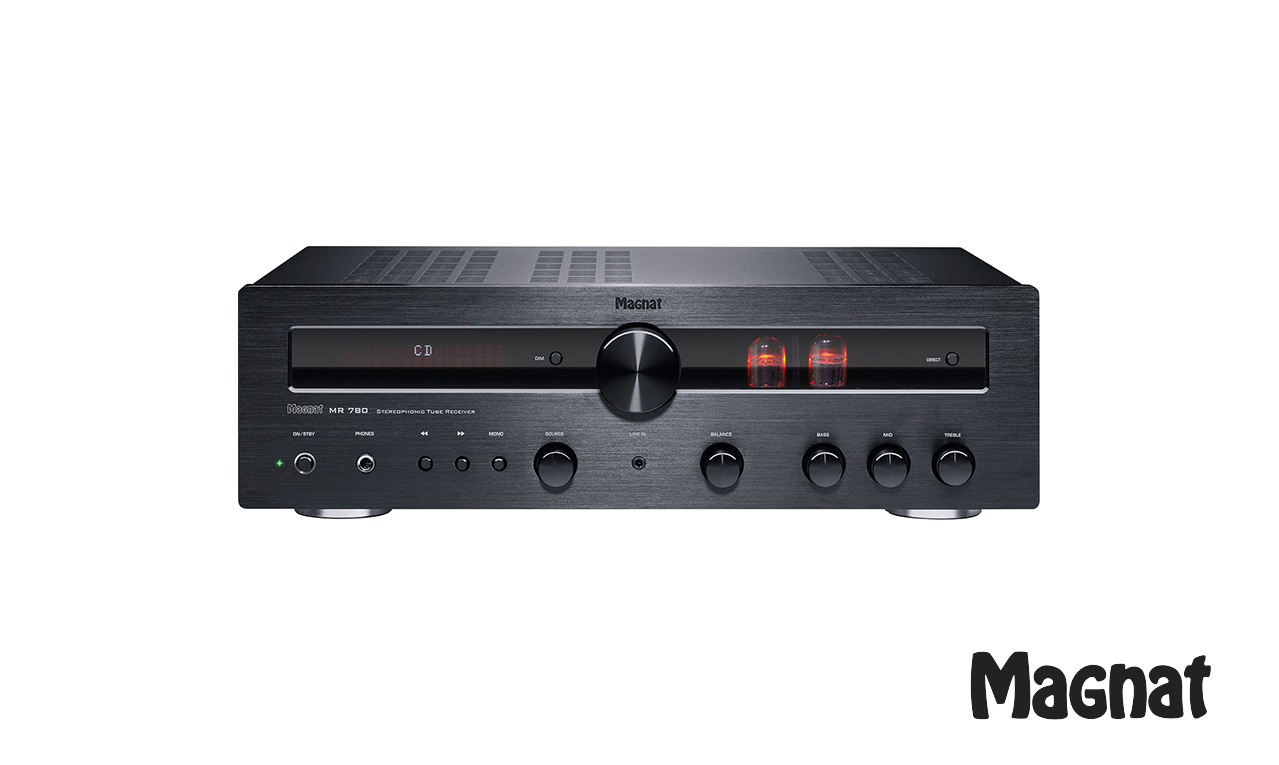

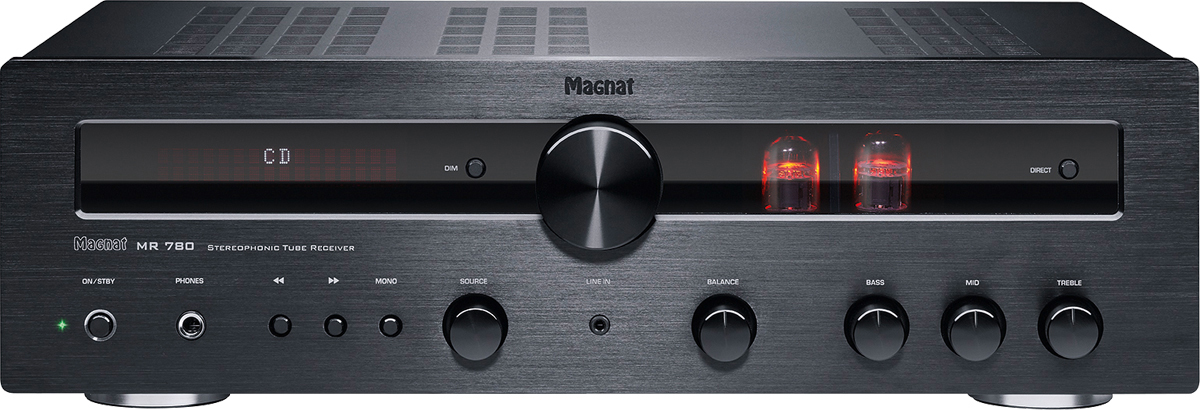

Magnat MR780

  • High-end hybrid receiver with tube preamplifier and a high-performance transistor output stage
  • High-quality DAB+/FM tuner
  • Analogue inputs incl. high-quality MM-phono input
  • Digital input section with 2 optical and 2 coaxial inputs and 1 USB audio input
  • Sturdy full-metal enclosure with solid aluminium front plate and controls
  • Bluetooth 4.0 streaming with high-end audio stanads upard aptX

HIGH-END HYBRID VALVE RECEIVER WITH POWERFUL OUTPUT STAGE AND BLUETOOTH® APTX™

HYBRID RECEIVER WITH TUBE PRE-AMP AND TRANSISTOR OUTPUT STAGE

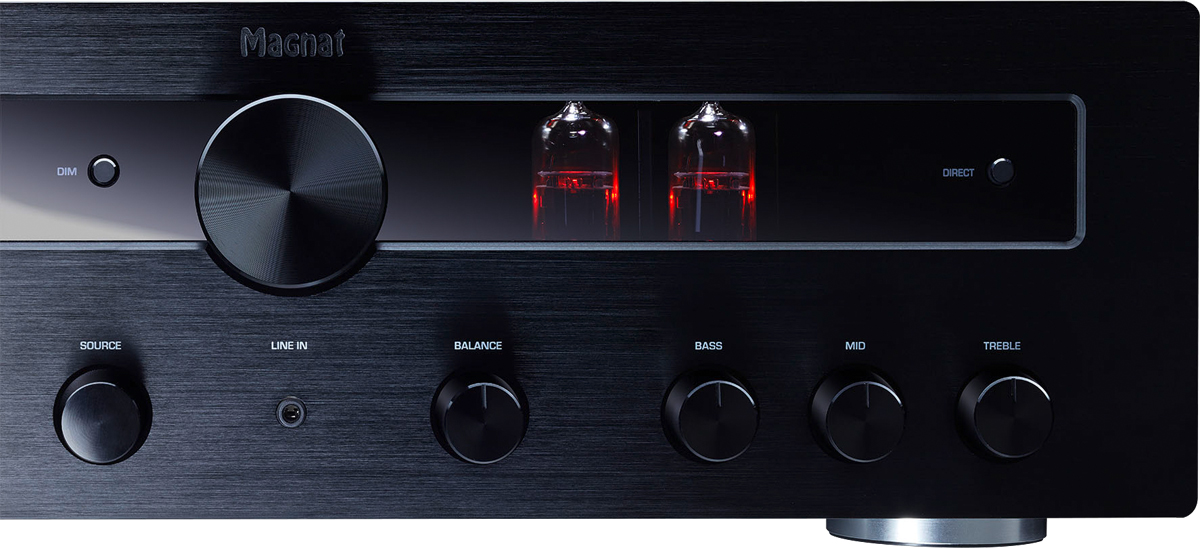

The MR 780 stereo receiver follows the unique Magnat hybrid concept: Operating in the pre-amp stage are two selected, burnt-in ECC 81 valves, which provide the entire system with the warm, audiophile sounds so acclaimed among hi-fi fans. The powerful, discretely designed transistor output stage produces 100 watts of RMS power per channel at 4 ohms. Here, too, the voltages for all the individual circuits have been elaborately stabilized. In this way, the MR 780 combines perfect sound and maximum power for an optimum overall result and first-class hi-fi sound.

HUGE RANGE OF CONNECTIVITY OPTIONS INCLUDING BLUETOOTH APTX

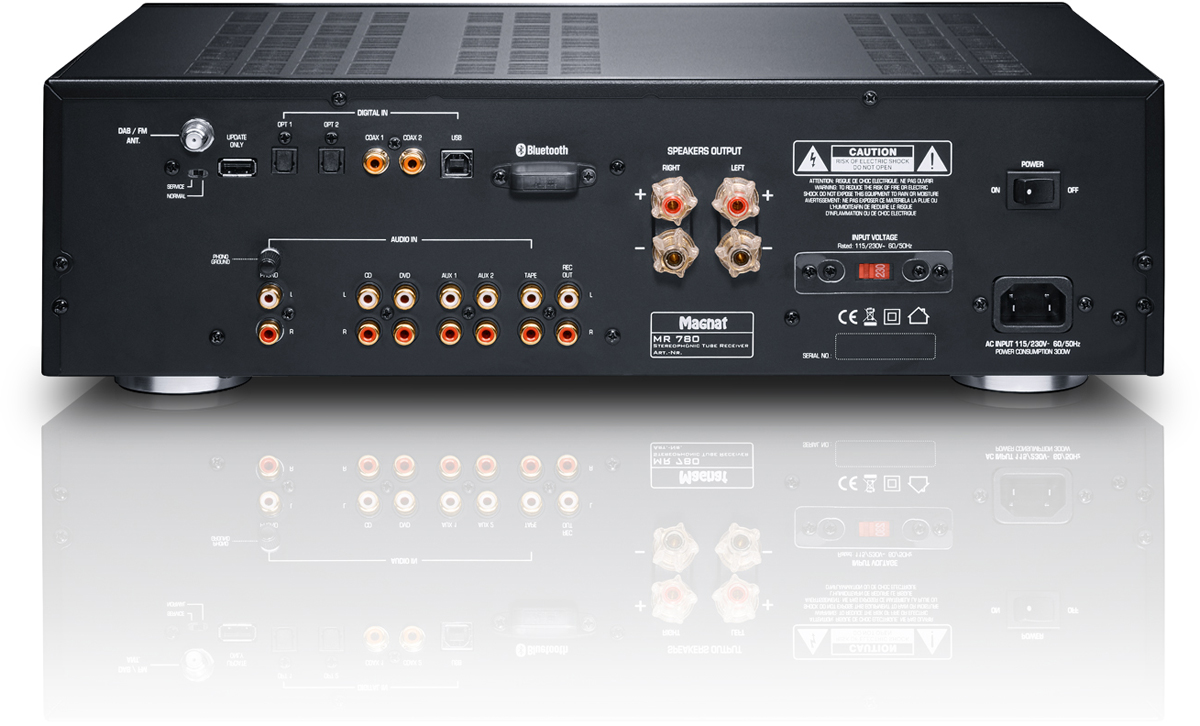

In addition to high-quality amplification, the MR 780 also offers a great deal of convenience and flexibility: Signals are received by the stereo receiver via 5 high-level inputs or 2 optical and 2 coaxial digital inputs. There is also a 3.5 mm jack input available at the front for mobile devices. Even more convenient is the direct wireless connection via Bluetooth 4.0 with aptX. The broad range of connection options on the MR 780 is rounded off by a particularly high-quality phono pre-amp stage for MM systems as well as a USB audio 2.0 input. The conversion of all digital signals up to 24 bits / 192 kHz is taken care of by a high-end D/A converter from Wolfson. The integrated DAB/DAB+ digital tuner as well as the FM receiver with RDS and radio text extend what is already a a broad range of functions even further. Users can find all the important information at all times on a large, two-line display on the front of the receiver.

Technical Specification

Sensitivity FM

-108 dBm

Frequency Range FM

87.5 – 108 MHz

Frequency Range DAB/DAB+

174.928 – 239.2 MHz (Band III)

Power Consumption

s0, 5, Max300 W

Frequency Response

CD/Tuner/Aux/Line/Tape: 6 Hz – 90 kHz (-3,0 dB) 20 Hz – 20 kHz (+/-0,3 dB) Phono: 20 Hz – 20 kHz (+/-0,8 dB) Subsonic Filter : 16 Hz, 18 dB/Oct.

Input Sensitivity

CD/Tuner/Aux/Line/Tape: 470 mV/100 kΩ Phono MM: 5 mV/47 kΩ

Digital Inputs

Supported bit depth: 16/24bits Supported sampling frequencies: 44.1/48/88.2/96/176.4/192kHz USB 2.0, type B connector 2. coaxial (cinch) 1. optical (Toslink™)

Bluetooth Input

Bluetooth® 4.0 / Qualcomm® aptX™

DIMENSIONS (WXHXD)

433 x 132 x 317 mm (360 mm incl. controls and connectors)

Colour

Black

Weight

8.9 kg

Highlights

Amplifier and power supply

  • Discrete high-performance amplifier
  • Separate standby power supply for low power consumption in standby mode
  • Shielded toroidal transformer
  • Elaborate mains adapter with separately stabilised supply voltage for the individual circuits
  • High-capacity filter/electrolytic capacitors

BLUETOOTH® INPUT

  • Bluetooth® 4.0 / Qualcomm® aptX™

FM/DAB tuner

  • FM tuner
  • Station search (DAB)
  • 40 programmable station presets each for DAB/DAB+ and FM
  • Automatic scanning function (FM)
  • RDS/radio text function
  • Digital DAB/DAB+ tuner

Highlights

  • Sturdy full-metal enclosure with solid, brushed aluminium front
  • Stable feet with damping rubber insert
  • Readable, two-line clear text display with adjustable brightness (3 stages)
  • Solid aluminium controls
  • Headphone output with high-quality 6.3 mm jack socket
  • Record Out fixed level output
  • System remote control for all functions

Technologies

FEATURES AND SPECIAL FEATURES OF THIS SERIES

magnat-pictos2017_alu-control-elements

Solid aluminuim control elements

magnat-pictos2017_alu-front

Solid aluminuim front panel

magnat-pictos2017_selected-valves

Low-noise preamplifier tube

magnat-pictos2017_mm

MM Phono Pre-stage

Inputs for MM record players
magnat-pictos2017_power-amp

Discreetly configured power amplifier

Generous performance reserves

Additional information

Brand

Magnat

Product Type

Audio Transmitter/Receiver, Preamplifiers

Amplifier Connectivity

Bluetooth, Aux-In, DAB+, USB, FM
