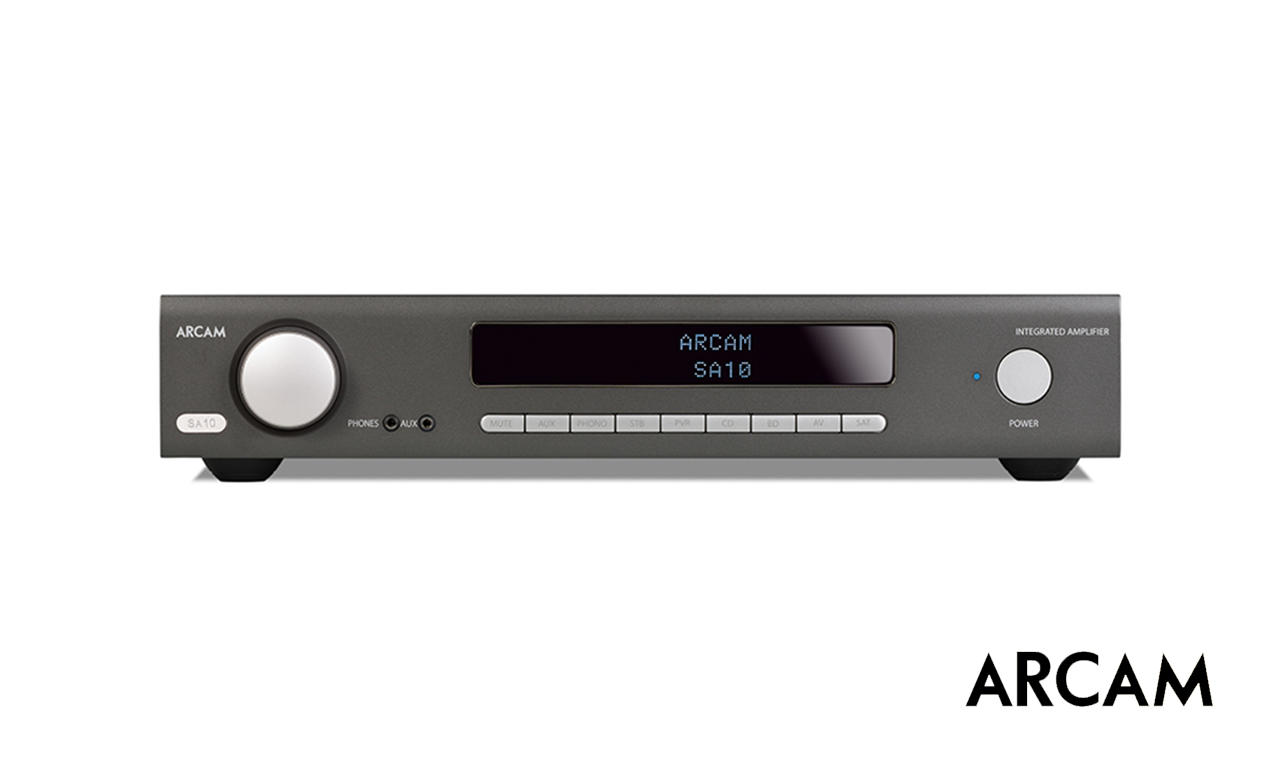

Class AB Integrated Amplifier – Arcam SA10

859

In stock

The SA10 is a Class AB Integrated Amplifier with the most high-quality components. Play it through the SA10, and it’s as close to hearing the artist’s performance as you’re likely to get.

In stock

Description

SA10

Class AB Integrated Amplifier

In any amplifier, the signal path is at the mercy of anything that creates noise within the unit. Thus, we spare no expense in using only the most high-quality components, even if it means the cost of our power supplies overtaking that of everything else.

The result, of course, is worth every penny.

A singer’s sharp intake of breath before hitting the chorus, a guitarist’s fingers sliding against the strings – it’s those seemingly minor details that can bring music to life. Fish out one of your all-time favorite albums and play it through a Bluetooth speaker, and guess what? Its sounds like a Bluetooth speaker. Play it through the SA10, and it’s as close to hearing the artist’s performance as you’re likely to get. There’s always joy in digging out an old recording you haven’t heard in years. With the HDA range, it’ll feel like hearing it for the first time.

PRODUCT DETAILS

  • Extremely efficient class A/B amplification
  • 50W of power per channel
  • 5 analogue inputs including phono
  • 3 digital inputs
  • 32-bit DAC,Sabre ESS9016K2M
  • Full I/P control
  • Total harmonic distortion + noise = 0.003%

SPECIFICATIONS

Continuous power output (0.5% THD), per channel


Both channels, 8Ω, 20Hz—20kHz50W
Both channels, 4Ω, at 1kHz85W
Harmonic distortion, 80% power, 8Ω at 1kHz0.003%



Analogue Inputs


Phono (MM) cartridge:

Input sensitivity at 1kHz5mV
Input impedance47kΩ + 100pF
Frequency response (ref. RIAA curve)20Hz – 20kHz ± 1dB
Signal/Noise ratio (A-wtd) 50W, ref. 5mV input80dB
Overload margin, ref. 5mV at 1kHz21dB


Line Inputs:


Nominal sensitivity1V
Input impedance10kΩ
Maximum input6Vrms
Frequency response

20Hz – 20kHz ± 0.2dB

Signal/Noise ratio (A-wtd) 50W, ref. 1V input106dB

Digital Inputs





DACESS9016K2M
Frequency response

20Hz – 20kHz ± 0.05dB

Total harmonics distortion + Noise0.0007%
Signal/Noise ratio (A-wtd)115dB
Supported sample rates:
Optical
Coaxial

32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit depth16-bit – 24-bit



Pre-amplifier output


Nominal output level630mV
Output impedance230Ω



Headphone output


Maximum output level into 600Ω5Vrms
Output impedance
Load range16Ω – 2kΩ



General


Mains voltage110–120V or 220–240V, 50–60Hz
Maximum power consumption350W
Dimensions W x H x D (including feet, control
knob and speaker terminals)
433x87x310mm
Weight (net)8.4kg
Weight (gross)10.7kg

Supplied accessories



Mains leads
Remote control
2 x AAA batteries

GET THE APP

Control the UPnP audio and basic function of this product with your iPad, iPhone or iPod Touch and the FREE MusicLife App! The Arcam control app is now available on Android.

Additional information

Brand

Arcam

Product Type

Multiroom Amplifier

Amplifier Connectivity

Network Port
