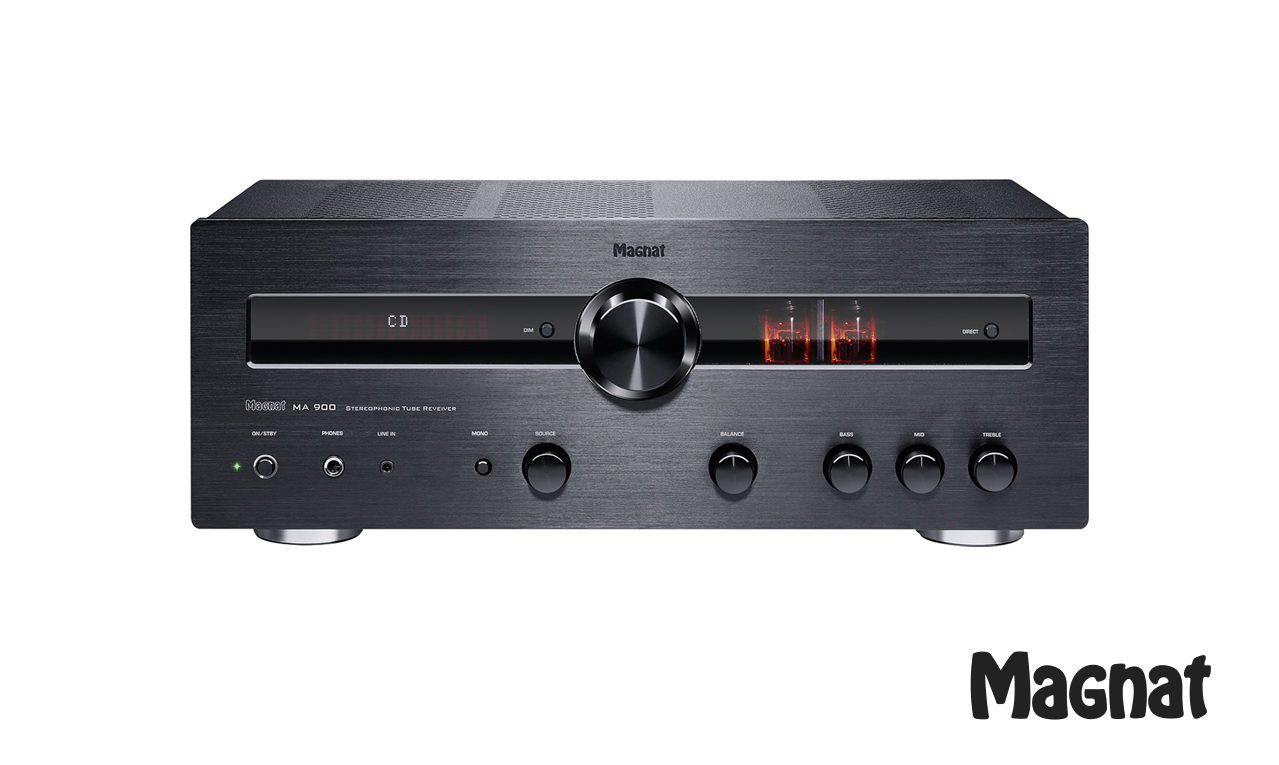

Magnat MA 900 Hybrid Integrated Amplifier

1,099

Magnat High-end Hybrid amplifier with Tube Preamplifier and a High-Performance transistor output stage. 200w x 2

Description

Magnat MA900

STEREO HIGH-END HYBRID INTEGRATED AMPLIFIER

  • Stereo hybrid amplifier with high output power
  • Selected and previously burned-in tubes for optimum sound
  • 2 x 200 watts of sine power, 2 x 320 watts of pulse power
  • Extensive array of connections, including digital, analogue and Bluetooth
  • Individually designated inputs

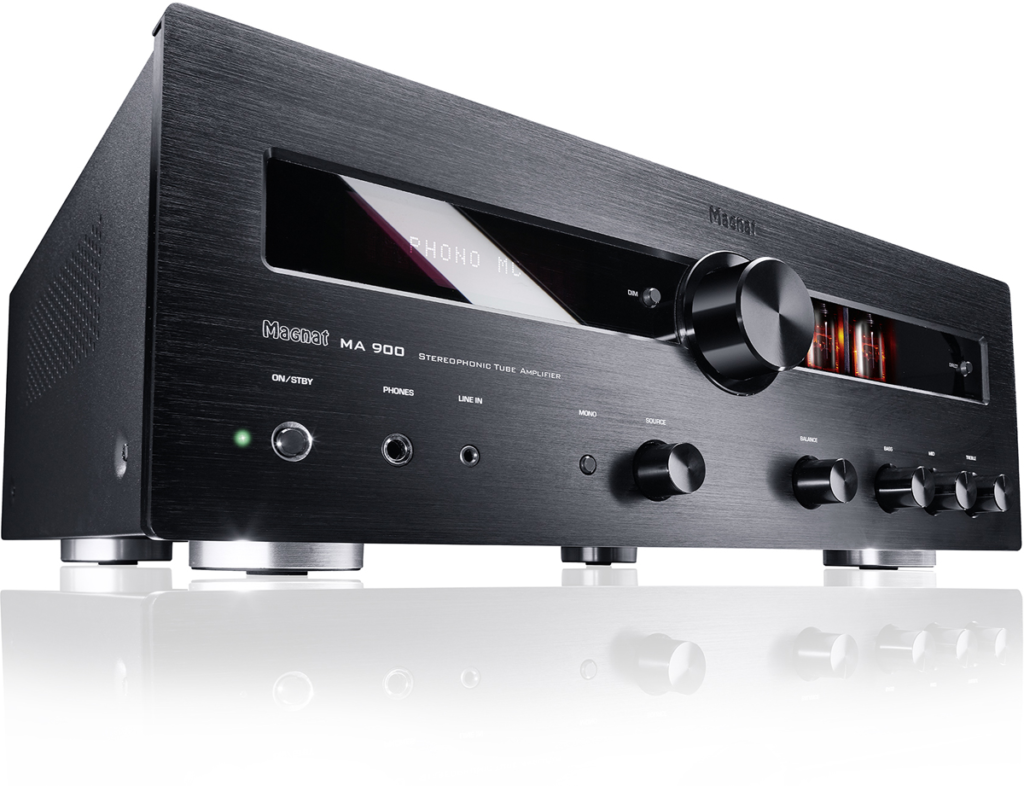

  • Sturdy metal housing with solid aluminum front panel and operating elements

The perfect combination of tube sound and performance

When it comes to amplifiers, there have always been two construction principles: Tubes and transistors. While tubes produce a captivating euphoria, because the technology used enables them to add harmonic overtones to the music signals, transistors deliver brute power to drive even the most demanding speakers. So why not combine both? This is exactly what the Magnat MA 900 does. We have combined two hand-selected audiophile tubes in the preamplifier together with powerful transistors in the power amplifier, thereby creating the symbiosis of sound and power.

MAGNAT MA 900 – TUBE TECHNOLOGY FOR FINESSE, TRANSISTORS FOR PERFORMANCE


Why use tubes anyway? Tube amplifiers, or rather ´tubes´ in the audio sector, have an inherent flaw. This, however, is an extremely pleasant flaw. They produce harmonic overtones. This means that a signal of 1,000 Hz is also reproduced with harmonics of 2,000 Hz, 3,000 Hz and so on. In doing so, the harmonics are naturally much quieter than the actual sound. Our ears perceive these harmonics as being very pleasant. The disadvantage of tubes, however, is that they are neither particularly powerful nor particularly efficient. This means you cannot really coax a lot of output power from them.

This is where the tried and tested transistors come into play. They are able to produce an impressive performance with an unadulterated sound, provided that you choose the right models of course. For these reasons, two ECC 81 tubes are used in the preamplifier of the MA 900. These are selected prior to installation. This ensures every MA 900 is equipped with two tubes that are perfectly identical in terms of their values. In addition, the tubes are also “burned-in” before installation. This is a process that takes several hours, during which the ECC 81 tubes are able to reach their final performance values. This ensures our MA 900 is capable of producing the sound for which our good name stands – as soon as it is unpacked.

Full-power performance – 200 watts x 2
While the selected and burned-in ECC 81 high-end tubes take care of amplifying the fine input signals and generate the inimitable tube sound, the power transistors ensure a solid continuous output of 200 watts of sine power per channel. The pulse power produced is an impressive 320 watts.

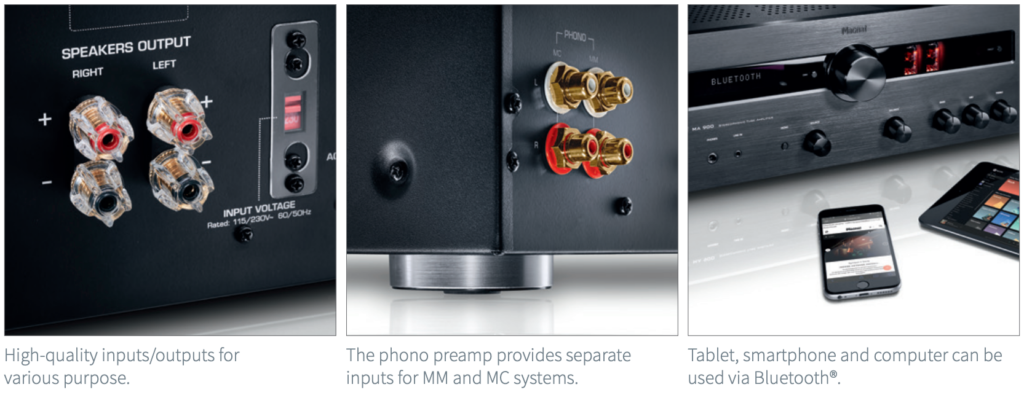

5 analogue low-level inputs and a 3.5 mm jack input at the front of the unit, as well as 4 digital inputs and a phono input for MM and MC systems, all guarantee connectivity for even the most extensive AV systems. Tablets, smartphones and computers can also be connected via Bluetooth with optimum sound quality thanks to the aptX HD standard.

MA 900 – AUDIOPHILE WITH VARIOUS TALENTS


Audiophile qualities are only part of what´s required today. A modern amplifier also needs to be suitable for all of the sources that we want to use at home. 5 analogue low-level inputs and an additional jack input at the front of the unit offer sufficient connection options for all manner of audio equipment. The optical and coaxial digital inputs also support high-res audio with a sampling rate of up to 192 kHz and 24 bit. In addition, the MA 900 also comes complete with Bluetooth functionality. The state-of-the-art chip supports Bluetooth 5.0 and the high-end audio standard aptX®HD, thereby enabling optimum quality audio transmission from smartphones, tablets and laptops.

Vinyl is by no means neglected either. The phono preamplifier, which offers separate inputs for MM and MC systems, has been constructed with extremely high-quality operational amplifiers from Texas Instruments. The “Source Gain” function allows all of the inputs to be increased or decreased in terms of level by up to 6 dB, so that jumps in volume can be avoided when switching inputs. In addition, the inputs can be individually named by using the “Source Rename” function, meaning that the days of cryptic abbreviations are a thing of the past.

CLASSIC DIMENSIONS – OPTIMUM WORKMANSHIP


The MA 900 naturally has typical grid dimensions and measures 433 mm wide, which enables it to be perfectly combined with our other components. The sturdy solid metal housing provides a robust framework for the high-quality electronic components. The solid aluminum front panel and operating elements are made to last and convey the feeling of quality with every touch.

This is also reflected by the components inside the unit. An elaborate power supply unit, generously dimensioned capacitors and a low-leakage toroidal transformer, together with the rest of the electronics, add up to a weight of almost 12 kilograms.

Test Reviews

WHAT DO TRADE MAGAZINES SAY ABOUT THIS PRODUCT?

Magnat amp MA900

The combination of tube and transistor technology has a long tradition at Magnat. After all, it combines an optimum sound with an impressive performance. The MA 900 is no different. It scores highly with its impressive technical values, extensive configuration and optimum workmanship, as well as its minimalist design.

Full-power performance – 200 watts x 2
While the selected and burned-in ECC 81 high-end tubes take care of amplifying the fine input signals and generate the inimitable tube sound, the power transistors ensure a solid continuous output of 200 watts of sine power per channel. The pulse power produced is an impressive 320 watts.

5 analogue low-level inputs and a 3.5 mm jack input at the front of the unit, as well as 4 digital inputs and a phono input for MM and MC systems, all guarantee connectivity for even the most extensive AV systems. Tablets, smartphones and computers can also be connected via Bluetooth with optimum sound quality thanks to the aptX HD standard.

MAGNAT MA 900 – TRADITION MEETS MODERNITY

The combination of melodious tubes in the preamplifier unit together with powerful transistors turns the MA 900 into a hybrid amplifier; a product category that is rare but has a long tradition at Magnat. The tubes, which have already been burned-in for a perfect sound, are selected prior to assembly to ensure that a pair with perfectly compatible values is used.

A LOOK THAT WILL LAST FOREVER

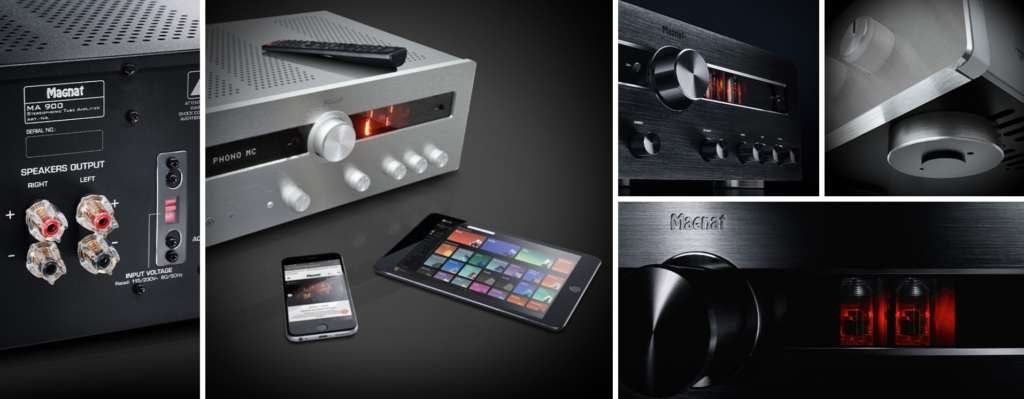

All of this is packed in a sturdy metal housing with a front panel and operating elements that are made of solid aluminum. Every touch is a pleasure. In addition, the unique concept of the MA 900 is visually emphasized by the individually selected designations lighting up in the clear dual line display on one side of the unit when selecting the input, and the tubes emitting their soft glow on the other. Of course, all of this can also be controlled with the system remote control that is supplied.

PREAMPLIFIER

  • Low-noise tube preamplifier with 2 x ECC 81 tubes
  • Preselected and burned-in tubes
  • MM and MC phono preamplifier with ultra-low noise operational amplifiers from Texas Instruments incl. subsonic filter
  • Five analogue low-level inputs
  • Additional 3.5 mm audio input on the front panel for connecting portable devices
  • Digital inputs (2 x optical and 2 x coaxial) for sampling frequencies up to 192kHz/24bits
  • Bluetooth® input (5.0) supports the high-end audio standard Qualcomm aptX®HD
  • Cyrrus Logic® digital-to-analogue converter
  • SOURCE GAIN function allows the volume to be adjusted by +/- 6dB for every source
  • SOURCE RENAME function allows you to freely specify the names of individual sources (14 digits)

POWER AMPLIFIER AND POWER SUPPLY

  • Discrete Class A/B power amplifier
  • Power output: 200 watts of sine power per channel at 4 ohms and 2 x 320 watts of maximum pulse power
  • Elaborate mains adapter with separately stabilised supply voltage for the individual circuits
  • High-capacity filter/electrolytic capacitors
  • Shielded toroidal transformer
  • Standby power supply for low power consumption in standby mode < 0,5 watts

MISCELLANEOUS

  • Sturdy full-metal enclosure with solid, brushed aluminium front
  • Solid aluminium controls
  • Speaker terminal with solid, insulated screw terminals that are capable of accommodating large cable cross-sections
  • Stable feet with damping rubber insert
  • Mono switch (for analog sources)
  • Record Out fixed level output
  • Headphone output with high-quality 6.3 mm jack socket
  • Readable, two-line clear text display with adjustable brightness (3 stages)
  • System remote control for all functions

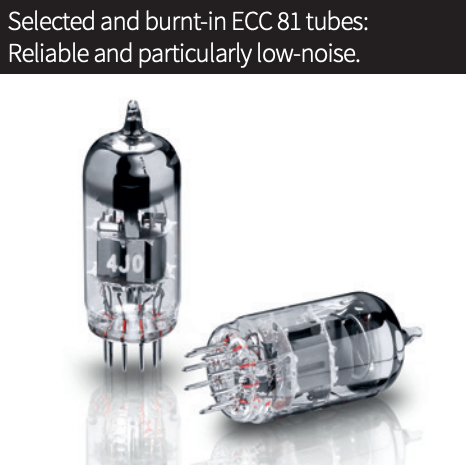

Selected and burnt-in ECC 81 tubes: Reliable and particularly low-noise.

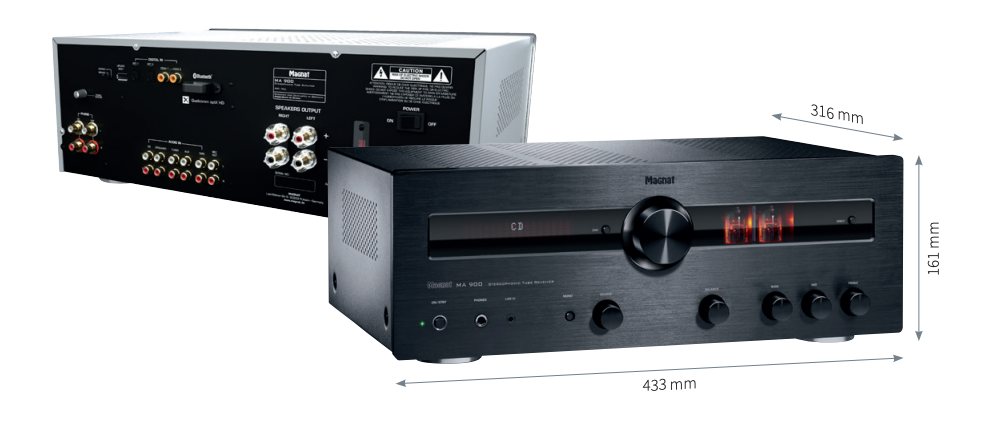

Magnat amp MA900 dimensions

Technical specifications

OUTPUT POWER
Nominal power:

20 Hz – 20 kHz, THD < 1.0%, 4 ohms 2 x 200 watts
20 Hz – 20 kHz, THD < 1.0%, 8 ohms 2 x 130 watts
Peak power: 1 kHz, 4 ohms

FREQUENCY RESPONSE
CD/Streamer/Aux/Line/Tape/Tuner:

6 Hz – 100 kHz (-3 dB)
20 Hz – 20 kHz (+/- 0.2 dB)

Phono: 20 Hz – 20 kHz (+/- 0.3 dB)
Subsonic Filter: 16 Hz, 18 dB/Oct.

S/N RATIO
CD/Streamer/Aux/Line/Tape/Tuner/

Digital inputs: 105 dB (A)
Phono: MM 85 dB (A)
Phono: MC 74 dB (A)

INPUT SENSITIVITY
CD/Streamer/Aux/Line/Tape/Tuner 470 mV/100 kΩ
Phono: MM 5 mV/47 kΩ
Phone: MC 0.5 mV/470 Ω

DIGITAL INPUTS
2x optical (Toslink™)
2x coaxial (cinch)
Supported sampling frequencies: 44.1/48/88.2/96/176.4/192kHz
Supported bit depths: 16/24bits

BLUETOOTH® INPUT
Bluetooth® 5.0 / Qualcomm aptX® HD

OPERATING FREQUENCY
2402 – 2480 MHz

MAXIMUM EMITTED POWER ACCORDING TO EN 62479
1.77 dBm MAX.

POWER CONSUMPTION
Maximum 700 watts Standby <0.5 watts

PREAMPLIFIER FITTED WITH
2x ECC 81 / 12AT7

AVAILABLE COLOURS
Black Silver

DIMENSIONS (WxHxD)
Main unit: 433 x 162 x 316 mm
Incl. controls and connectors: 433 x 162 x 362 mm
Remote control: 45 x 175 x 20 mm

WEIGHT
11.7 kg

Additional information

Brand

Magnat

Product Type

Stereo Amplifier

Amplifier Connectivity

Bluetooth, Optical, Aux-In, 2 Channel
