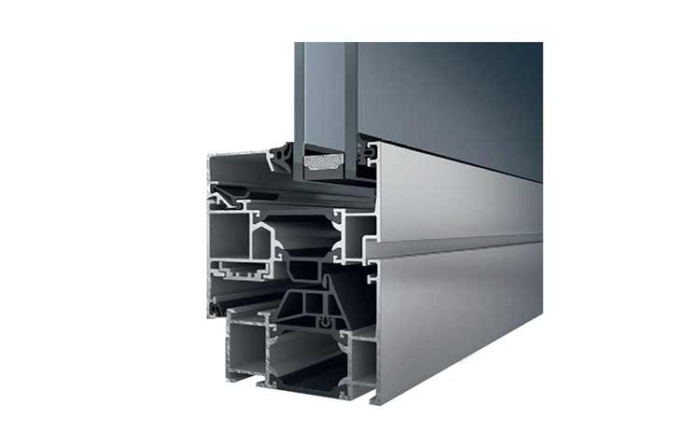

Aluminium Framed Glass Apertures

Call for price

High insulation thermal break window system, with total face width of 71mm, featuring high wind pressure resistance, air and water permeability.

Minimum order is for 5 apertures.

SEND EMAIL QUERY
Category:

Description

This Section is currently Project-Based.
Minimum order is for 5 Apertures

Schüco AWS 65

Aluminum Frame, Inward/Outward Opening

High insulation thermal break window system, with total face width of 107mm.

A strong aluminum construction with high wind pressure resistance, air and water permeability. The extended thermal insulation zone with the specially designed thermal break chambers ensure top energy-saving performance.

TECHNICAL CHARACTERISTICS

Dimensions:
Frame profile depth: 65 mm
Frame face width: 75 mm
Maximum glass thickness: 5-45mm casement 15-55mm sheet mm
Sheet profile depth: 75 mm
Sheet face width: 78mm

CHARACTERISTICS

Schüco TipTronic installation option.
Mechanism: SCHÜCO Simply Smart mechanism and basic security category
EPDM sealing gaskets
Profiles have straight form.

SPECIFICATIONS

Thermal Insulation: Uf  1,9-2,5 W/m2K in accordance with DIN EN ISO 10077-2
Soundproofing up to Rw=47dB in accordance with DIN EN ISO 140-3
Burglar resistance up to RC3 in accordance with DIN V ENV 1627
Air permeability in accordance with DIN EN 12207 Class: 4
Water permeability in accordance with DIN EN 12208 Class: 9A
Wind pressure resistance in accordance with DIN EN 12210: Class: C5 / B5
Mechanical strength in accordance with DIN EN 13115 Class: 4
Functionality over time in accordance with DIN EN 12400 Class: 3

Datasheet
Colour Chart

Schüco AWS 70.BS.HI

Aluminum Frame, Inward/Outward Opening

High insulation thermal break window system, with total face width of 71mm.

The extended thermal insulation zone with the specially designed thermal break chambers with foam ensure top energy-saving performance and minimise heat loss. This system’s energy profiles is complemented by top sealing performance, featuring high wind pressure resistance, air and water permeability.

TECHNICAL CHARACTERISTICS

Dimensions:
Frame profile depth: 70 mm
Frame face width: 66,5 mm
Maximum glass thickness: 17-41 mm casement 21-39 mm sheet mm
Sheet profile depth: 80 mm
Sheet face width: 50mm

CHARACTERISTICS
Mechanism: SCHÜCO Simply Smart mechanism and basic security category
Extended thermal insulation zone with thermal breaks and chambers with foam
EPDM sealing gaskets
Profiles have straight form
Coplanar casement and sheet

SPECIFICATIONS
Thermal Insulation: Uf  1.6 W/m2K in accordance with DIN EN ISO 10077-2
Soundproofing up to Rw=45dB in accordance with DIN EN ISO 140-3
Burglar resistance up to RC3 in accordance with DIN V ENV 1627
Air permeability in accordance with DIN EN 12207 Class: 4
Water permeability in accordance with DIN EN 12208 Class: 9a
Wind pressure resistance in accordance with DIN EN 12210: Class:C5 / B5
Mechanical strength in accordance with DIN EN 13115 Class: 4
Functionality over time in accordance with DIN EN 12400 Class: 3

Datasheet
Colour Chart

Schüco AWS 75 SI

Aluminum Frame, Inward/Outward Opening

High insulation thermal break window system, with total face width of 107 mm.

The extended thermal insulation zone with the specially designed thermal break chambers with foam ensure top energy-saving performance and minimise heat loss. This system’s energy profiles is complemented by top sealing performance, featuring high wind pressure resistance, air and water permeability.

TECHNICAL CHARACTERISTICS

Dimensions:
Frame profile depth: 75 mm
Frame face width: 59 mm
Maximum glass thickness: 18-52 mm casement 18-61 mm sheet mm
Sheet profile depth: 85 mm
Sheet face width: 78 mm

CHARACTERISTICS
Triple glass pane option
Schüco TipTronic installation option.
Mechanism: SCHÜCO SimplySmart mechanism and basic security category
Extended thermal insulation zone with thermal breaks and chambers with foam
EPDM sealing gaskets
Profiles have straight form

SPECIFICATIONS
Thermal Insulation: Up to Uf 0,92  W/m2K in accordance with DIN EN ISO 10077-2
Soundproofing up to Rw=48dB in accordance with DIN EN ISO 140-3
Burglar resistance up to RC3 in accordance with DIN V ENV 1627
Air permeability in accordance with DIN EN 12207 Class: 4
Water permeability in accordance with DIN EN 12208 Class: 9a
Wind pressure resistance in accordance with DIN EN 12210: Class: C5 / B5
Mechanical strength in accordance with DIN EN 13115 Class: 4
Functionality over time in accordance with DIN EN 12400 Class: 3

Datasheet
Colour Chart

Schüco AWS 90 SI

Aluminum Frame, Inward/Outward Opening

High insulation thermal break window system, with total face width of 90mm.

The extended thermal insulation zone with the specially designed thermal break chambers with foam ensure top energy-saving performance and minimise heat loss. This system’s energy profiles is complemented by top sealing performance, featuring high wind pressure resistance, air and water permeability; it is an excellent solution for upgrading a place to Passive House.

TECHNICAL CHARACTERISTICS

Dimensions:
Frame profile depth: 90 mm
Frame face width: 56 mm
Maximum glass thickness: 28-63mm casement 28-68 mm sheet mm
Sheet profile depth: 100 mm
Sheet face width: 83 mm

CHARACTERISTICS
Schüco TipTronic installation option and sheet weight 160kg
Mechanism: SCHÜCO Simply Smart mechanism up to 250kg
Extended thermal insulation zone with reinforced thermal breaks and foam at the glass chambers
EPDM sealing gaskets
Profiles have straight form
Uw 0.8W/(m2K) option with the use of triple glass pane and thermal gaps.

SPECIFICATIONS
Thermal Insulation: Up to Uf 0,71  W/m2K in accordance with DIN EN ISO 10077-2
Soundproofing up to Rw=47dB in accordance with DIN EN ISO 140-3
Burglar resistance up to RC3 in accordance with DIN V ENV 1627
Air permeability in accordance with DIN EN 12207 Class: 4
Water permeability in accordance with DIN EN 12208 Class: 9a
Wind pressure resistance in accordance with DIN EN 12210: Class: C5 / B5
Mechanical strength in accordance with DIN EN 13115 Class: 4
Functionality over time in accordance with DIN EN 12400 Class: 3

Datasheet
Colour Chart
