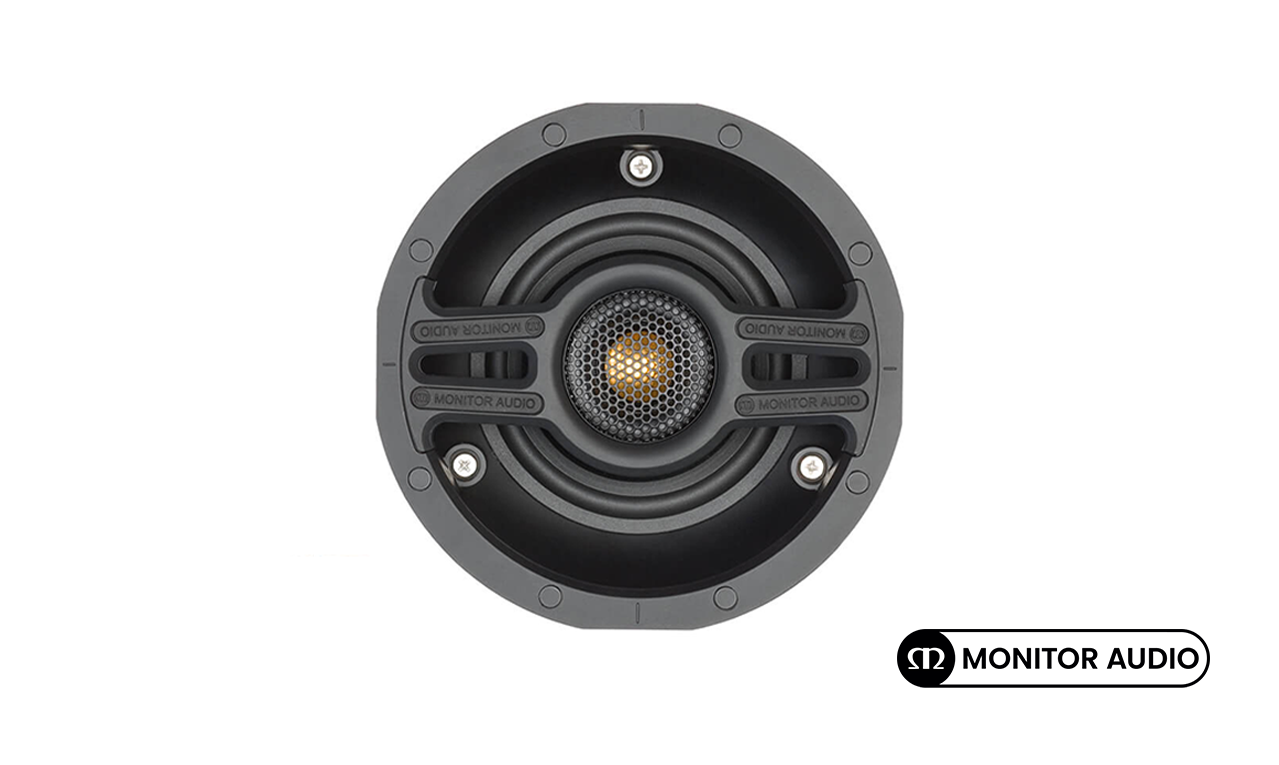

Monitor Audio CS140S Ceiling Speaker with square grille

180

In stock

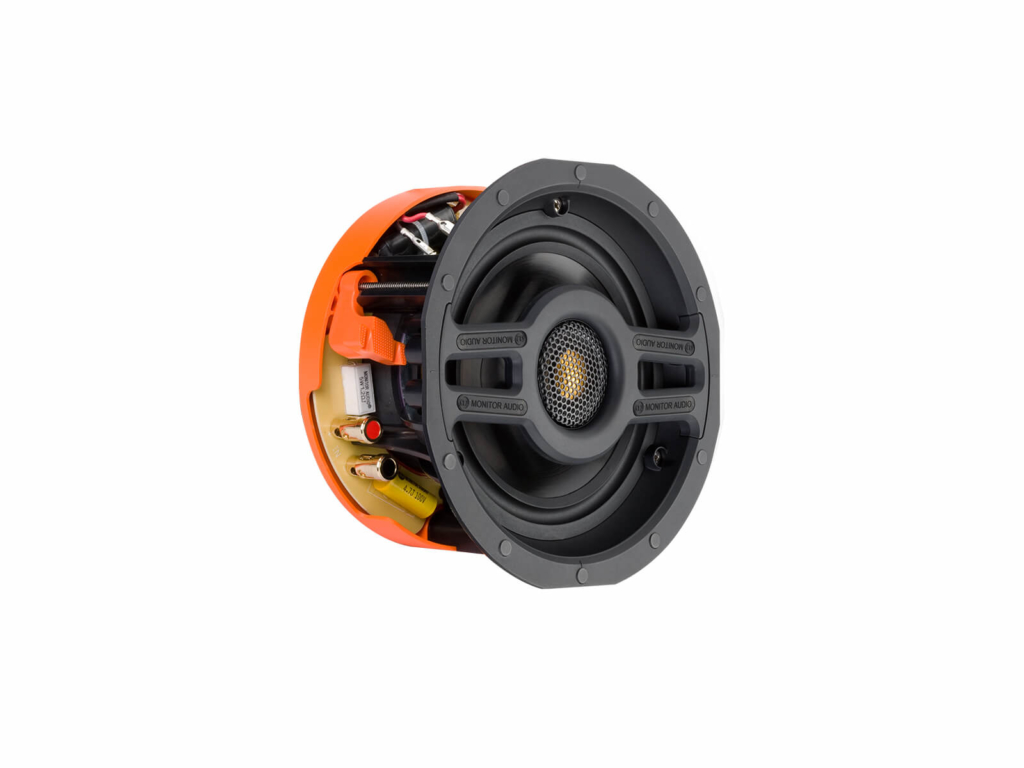

The CS140 in-ceiling model features a proprietary 4-inch MMP II cone and a pivoting version of our acclaimed C-CAM Gold Dome tweeter.

In stock

Description

Monitor Audio CS140 Ceiling Speaker

Engineered for excellent detail resolution and complete with either round or square grilles, the CS140 will deliver great sound with super-discreet aesthetics.

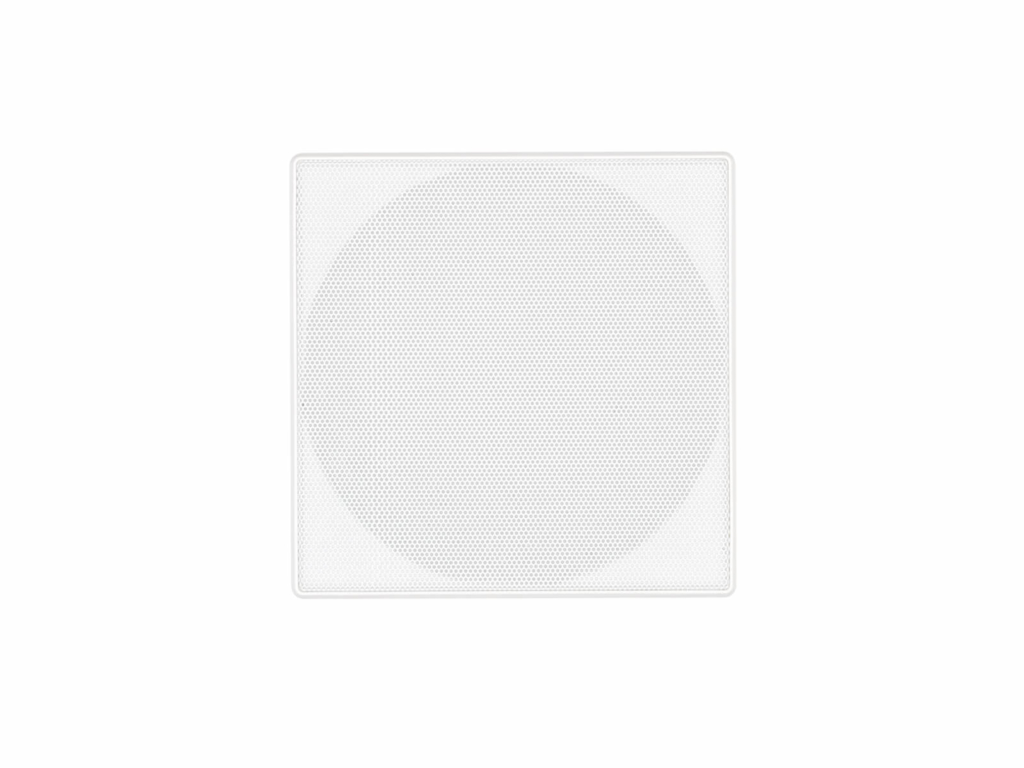

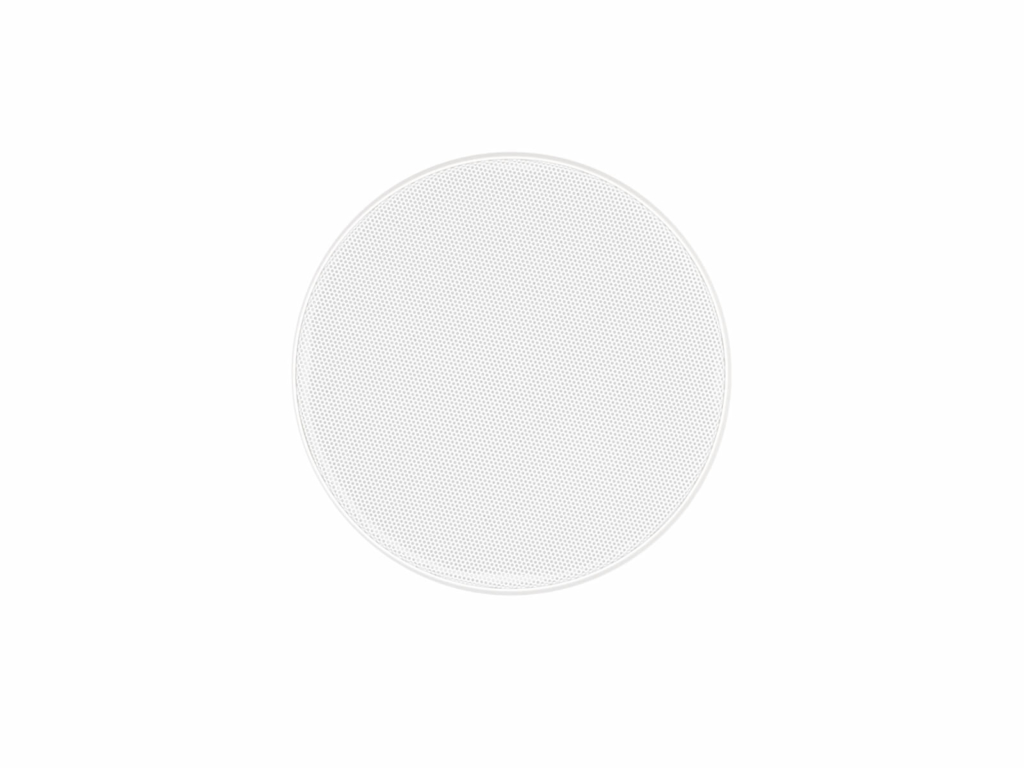

Please specify a round or square grille option when ordering.

Specifications

Frequency Response
75 Hz – 30 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
85 dB

Maximum SPL
102.8 dBA

Power Handling (RMS)
50 W

Recommended Amplifier
10 – 50 W

Drive Unit Complement
1 x 4″ MMP II cone bass driver.
1 x 1″ (25 mm) C-CAM pivoting Gold Dome tweeter

Acoustic Configuration
2-way

Overall Dimensions (Including Grille (H x W))
Round: 180.2 mm (71/8“)
Square: 176.7 x 176.7 mm (615/16 x 615/16“)

Mounting Depth
99 mm (37/8“)

Cut-Out Hole Diameter
149 mm (57/8“)

Fixing Type
3 position Tri-Grip dog fixings

Connection
Gold plated ‘push’ type terminals

Grille Attachment
Magnetic

Construction Material
Mineral filled ABS, RoHS compliant

Weight
1.18 kg (2 lb 10 oz)

Pre-Construction Bracket
CB4 Pre-Construction Bracket (Pink)

Back Box
CCBOX-R

Sold As
Single Unit

Additional information

Brand

Monitor Audio

Speaker Type

Ceiling
