Delivering great imaging and dynamics from a brilliantly compact design, The CS180 has an 8-inch MMP II driver with the CWT family’s pivoting C-CAM Gold Dome tweeter.

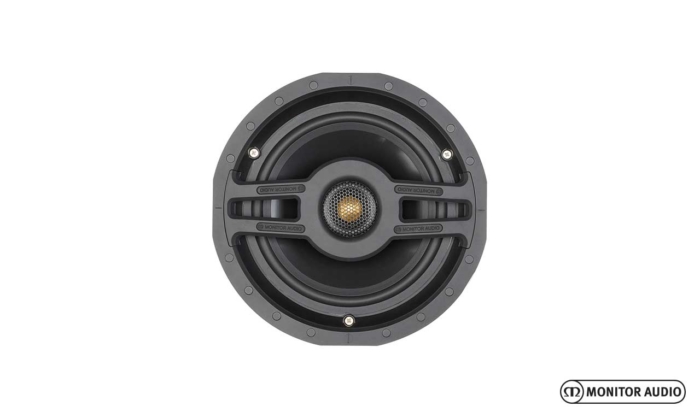

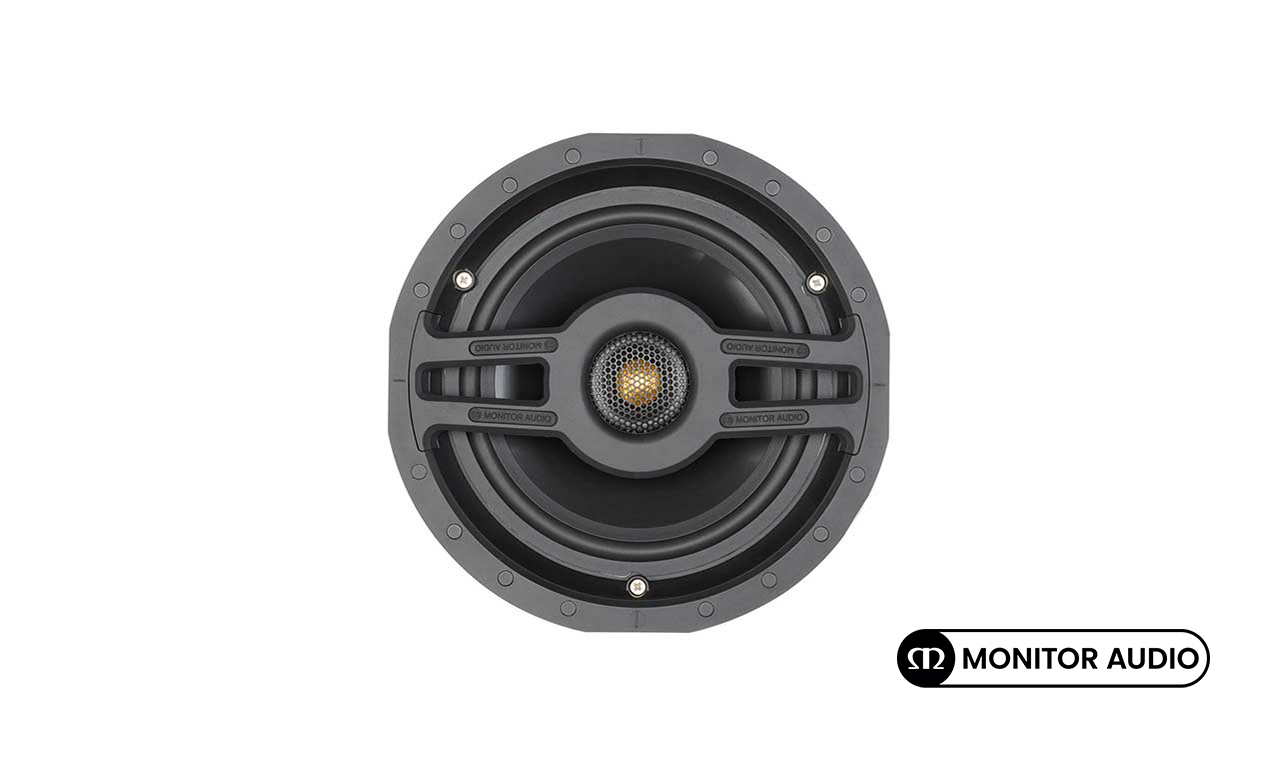

Monitor Audio CS180 ceiling speaker
€265
In stock
In stock
Description
CS180 Slim Ceiling Speaker
Offering superlative dynamic delivery in a super-discreet format, the CS180 will deliver fabulous full-range sound with stealthy versatility.
The CS180 in-ceiling model marries our 8-inch MMP II driver with the CWT family’s pivoting C-CAM Gold Dome tweeter.
Please specify a round or square grille option when ordering.
This product is now available to use with home theatre design software, The CEDIA Designer.
Specifications
Frequency Response
48 Hz – 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
110.6 dBA
Power Handling (RMS)
120 W
Recommended Amplifier Requirements
30 – 120 W
Drive Unit Complement
1 x 8″ MMP II cone bass driver.
1 x 1″ (25 mm) C-CAM pivoting Gold Dome tweeter
Acoustic Configuration
2-way
Overall Dimensions (Including Grille (H x W))
Round: 251.7 mm (915/16″)
Square: 246.7 x 246.7 mm (911/16 x 911/16″)
Mounting Depth
99.4 mm (315/16”)
Cut-Out Hole Diameter
213 mm (83/8”)
Fixing Type
3 position Tri-Grip dog fixings
Connection
Gold plated ‘push’ type terminals
Grille Attachment
Magnetic
Construction Material
Mineral filled ABS, RoHS compliant
Weight
2.72 kg (6 lb)
Pre-Construction Bracket
CB6 Pre-Construction Bracket (Purple)
Back Box
CCBOX-R | CMBOX-R
Sold As
Single Unit
Additional information
| Brand | Monitor Audio |
|---|---|
| Speaker Type | Ceiling |
