Monitor Audio C180 IN-CEILING 8″

300

In stock

Quick and easily installed Monitor Audio C180 speaker. Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

In stock

Description

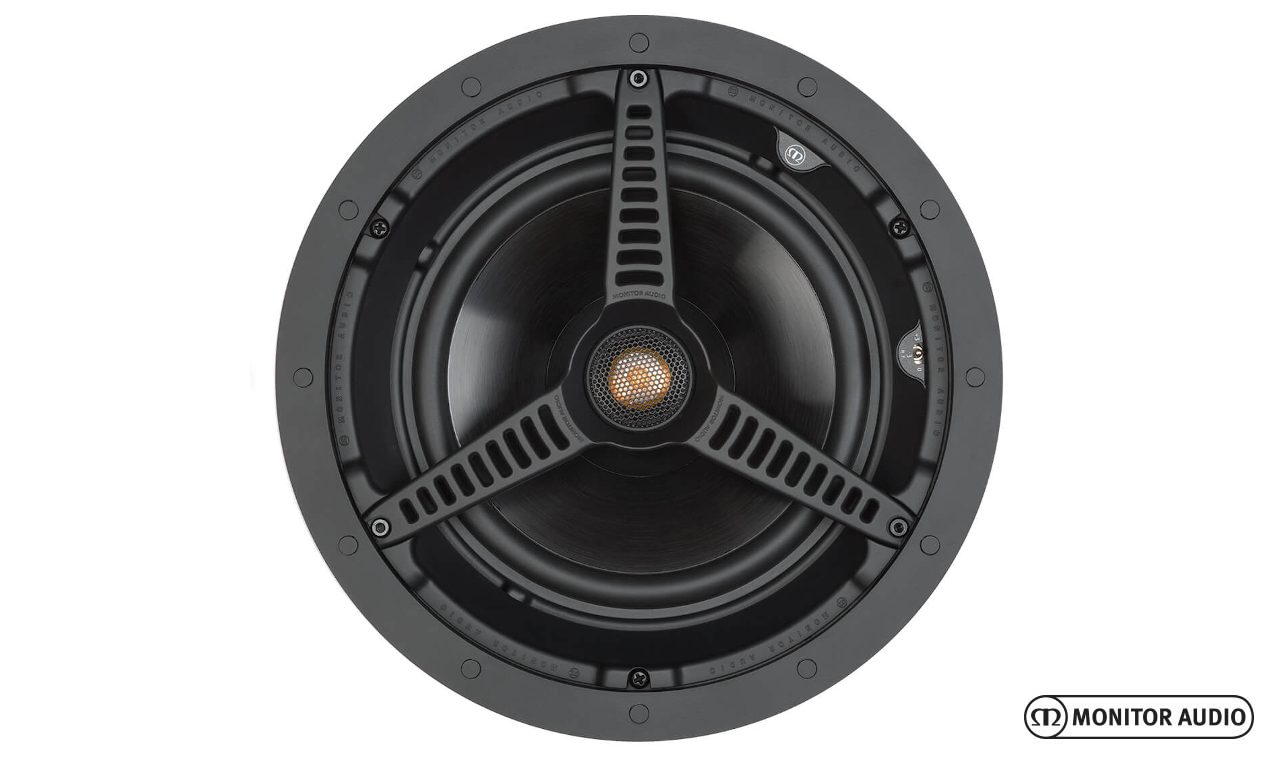

Monitor Audio C180 Ceiling Stereo Speaker

Incorporating an 8-inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

SPECIFICATIONS

Frequency Response:
50 Hz – 25 kHz

Nominal Impedance:
6 ohms

Sensitivity (1W@1M):
90 dB

Maximum SPL:
111.6 dBA

Power Handling (RMS):
120 W

Recommended Amplifier Requirements:
30 – 120 W

Drive Unit Complement:
8″ MMP II cone bass driver
1″ C-CAM pivoting Gold Dome tweeter

Adjustment Controls:
HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Diameter (Including Grille):
285 mm (111/4″)

Overall Depth (Including Grille):
126 mm (415/16″)

Mounting Depth:
122 mm (413/16″)

Cut-Out Hole Diameter:
247 mm (93/4″)

Fixing Type:
3 position Tri-Grip dog fixings

Optional Square Grille – Outer Dimensions:
285 x 285 mm (111/4″)

Construction Material:
Mineral filled ABS, RoHS compliant

Weight:
2.72 kg (6 lb)

Pre-Construction Bracket:
CB8 Pre-Construction Bracket (Green)

Back Box:
CCBOX-R / CMBOX-R

Sold As: Single Unit

Additional information

Brand

Monitor Audio

Speaker Type

Ceiling

Title
