Magnat Monitor S80 ATM – Floor-standing with built-in Atmos surround speaker

Name: Magnat Monitor S80 ATM - Floor-standing with built-in Atmos surround speaker
SKU: D144806-
Availability: InStock

€349

In stock

price is each, not per pair – Floor-standing speakers with built in Dolby Atmos module for the best surround sound. Separate connection terminals for the Atmos module. Use as a hi-fi speaker or as a front speaker in the home cinema.

In stock

Description
Additional information

Description

Magnat Monitor S80 ATM

Floorstanding speaker with double bass and integrated Dolby Atmos height / Surround channel speaker

The Monitor S 80 ATM is one of the technological highlights of the series. This is of course due to the Dolby Atmos module integrated into the top. This coaxial loudspeaker, specially developed according to Dolby’s guidelines, consists of a 100 mm bass-midrange speaker and a 20 mm dome tweeter. By radiating upwards, the Atmos signals reach the listeners via the reflection on the ceiling. This eliminates the need for additional speakers.

The Atmos modules have their own connection terminals and are wired to the corresponding outputs of an amplifier or receiver. If you don’t have one yet, you can first use the S 80 ATM as a classic front speaker and then simply upgrade to Atmos later with new electronics.

The “traditional” hi-fi part of the S 80 features two 170 mm woofers, a 110 mm midrange driver and a 28 mm dome tweeter. This is enough for a frequency spectrum from 26 to 38,000 Hz. With the Atmos module, by the way, it’s also an impressive 26 to 28,000 Hz.

At 86 cm high, the S 80 has perfect dimensions, both acoustically and visually. With its cabinet in black or walnut, there is a suitable version for every living environment. The baffle has a black finish and the removable front cover made of acoustic fabric rounds off the appearance.

Highlights

Drivers Dolby Atmos Module

Coaxial loudspeaker specially designed according to Atmos guidelines
20 mm tweeter with fabric dome and neodymium drive
100 mm bass-midrange driver with lightweight, specially coated paper cone
Stable, coated metal basket

Drivers Main Speaker

Newly developed 28 mm tweeter with fabric composite dome tweeter, front panel with radiation-optimised sound path and powerful ferrite drive for excellent dynamics

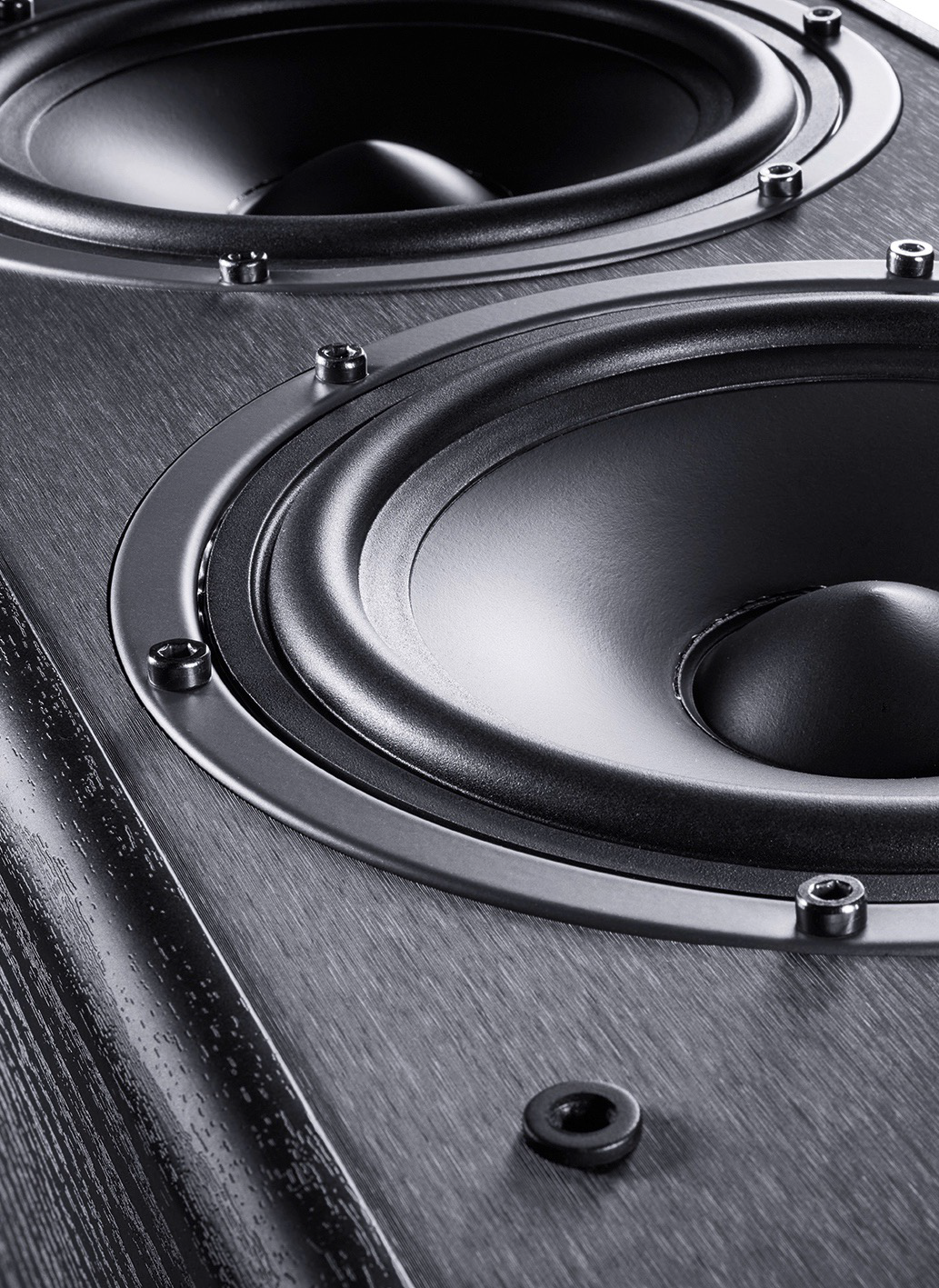

FE-Dynamics woofers and mid-bass drivers with low partial vibration, coated paper cones, new phase-optimised dust domes and linearised magnet systems.
Woofer and midrange drivers with sturdy, coated metal baskets

Principle

2 ½-way bass reflex floorstanding speaker and integrated 2-way Dolby Atmos module
2-way coaxial

Crossover

Phase- and amplitude-optimized crossover
Separate connection terminal for the Dolby Atmos module
Connection terminal with gold-plated and encapsulated screw terminals

Cabinet

Airflex port with rounded reflex opening for reducing wind noises
Resonance-damping rubber feed
Detachable front cover with acoustic cloth
Solid low-resonance cabinet construction using E1-MDF panels

Technical specifications

Principle:	2 ½-way bass reflex floorstanding speaker and integrated 2-way Dolby Atmos module 2-way coaxial
Drivers:	1.1″ dome-tweeter 1 x 4.5″ coaxial speaker 2 x 6.5“ woofer-midrange
Power Handling (rms/max.):	Main speaker: 160/300 watts Dolby Atmos speaker: 40/80 watts
Sensitivity:	Main speaker: 90 dB Dolby Atmos speaker: 87 dB
Impedance:	Main speaker: 4 ohms Dolby Atmos speaker: 4 ohms
Crossover Frequencies:	Main speaker: 500 Hz, 3.000 Hz Dolby Atmos speaker: 7.000
Recommended amplifier output:	Main speaker: 30 – 300 watts Dolby Atmos speaker: 15 – 80 watts
Dimensions:	215 x 860 x 270 mm
Weight:	13.4 kg

Additional information

Brand	Magnat
Speaker Type	Floorstanding
