7.2 or 5.2.2 for the heart-pounding thrills of Dolby Atmos®. With DTS:X®, Height Virtualizer and DTS Virtual:X®, Easy Bluetooth® wireless streaming and more.

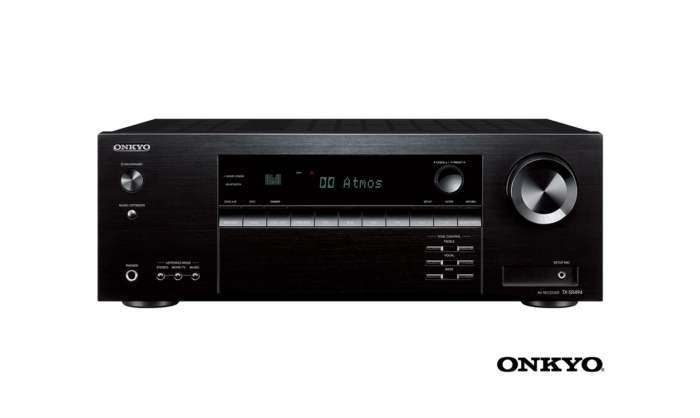

Onkyo TX-SR494 – 7.2 Channel Atmos AV Receiver
€549
In stock
In stock
Description
From easy Bluetooth® wireless streaming to the heart-pounding thrills of Dolby Atmos® and DTS:X® soundtracks, the TX-SR494 deepens enjoyment of daily life with great sound and smart features. Seven channels of high-current power give you freedom to choose a speaker layout that suits. Dolby Atmos Height Virtualizer* or DTS Virtual:X® place sound overhead or behind if you don’t want height or surround speakers and both Dolby Surround® and DTS Neural:X® are on board.
From easy Bluetooth® wireless streaming to the heart-pounding thrills of Dolby Atmos® and DTS:X® soundtracks, the TX-SR494 deepens enjoyment of daily life with great sound and smart features. Seven channels of high-current power give you freedom to choose a speaker layout that suits.
Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision®, and BT.2020. The 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.2 compliant.
Dolby Atmos Height Virtualizer
When playing any Dolby® format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
Features
| # Channels | 7.2 |
| Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) | 80 Watts, 0.08% THD |
| Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven, FTC) | 160 Watts, 10% THD |
| Dynamic Audio Amplification | – |
| H.C.P.S. (High Current Power Supply) | ✓ |
| Non-Phase Shift Amplifier | – |
| THX Certified | – |
| Certified 4 Ohms Performance | ✓ |
| Discrete Output Stage Circuitry | ✓ |
| Amplifier Design | – |
| Independent Block Construction (Amp/Preprocessor) | – |
| Bi-amp Capability For Front | ✓ |
| Dolby Atmos | ✓(5.2.2) |
| 32-Bit Digital Signal Processing Engine | ✓ |
| Dolby Atmos Height Virtualizer | ✓ |
| Dolby Surround® upmixing | ✓ |
| Dolby Decoder | Dolby Atmos, Dolby True HD |
| DTS:X | ✓(5.2.2) |
| DTS Virtual:X | ✓ |
| DTS Neural:X upmixing | ✓ |
| DTS Decoder | DTS:X, DTS-HD Master Audio |
| Dolby® Pro Logic IIz upmixing for stereo and multichannel soundtracks | – |
| ONKYO GAME Surround Modes | – |
| VLSC for Noiseless Audio Processing | – |
| THX Processing Mode | – |
| CinemaFILTER | ✓ |
| AccuEQ Room Calibration | ✓(w/ AccuReflex) |
| Phase-Matching Bass Boost | – |
| Direct/Pure Mode | ✓/- |
| Pure Direct Analog Path Mode | – |
| Advanced Music Optimizer | ✓ |
| 384K/32 Bit DACs | ✓ |
| 192K/24 Bit DACs | – |
| Analog Audio IN | 3 |
| Phono Input | – |
| Digital Audio IN (OPT/COAX) | 1 / 1 |
| Composite Video I/O | – |
| Component Video I/O | – |
| Front Panel HDMI | – |
| Front-Panel A/V | – |
| USB Input | ✓ |
| HDMI I/O | 4 / 1 |
| HDMI 4K/60 Hz- Capable HDMI Terminals | ✓ |
| HDCP 2.3 Copy-Protection Compatibility | ✓ |
| HDMI Support for High Dynamic Range | ✓ |
| HDMI Support for 3D, Audio Return Channel and CEC | ✓ |
| BT.2020 Support | ✓ |
| HDMI Support for Deep Color, x.v.Color, LipSync | ✓ |
| HDMI Support for DVD-Audio, SACD, Multichannel PCM | ✓ |
| Analog To HDMI Upconversion | – |
| 1080p to 4K Upscaling | ✓ |
| 4K Passthrough | ✓ |
| Analog Pre-Outs | Dual Subwoofer |
| Speaker A/+B | – |
| Powered Zone 2 | – |
| Powered Zone 3 | – |
| Zone B Line Out | ✓ |
| Zone 2 Line Out | – |
| Zone 2 Video Out | – |
| Zone 2 Digital to Analog Audio Conversion | – |
| Zone 3 Line Out | – |
| Whole House Mode | – |
| FlareConnect Multi-room Audio | – |
| Airplay | – |
| Google Cast | – |
| Supports Onkyo Remote App | – |
| Internet Radio Capable | – |
| Spotify Connect Support | – |
| Tidal | – |
| Streaming Audio From PC / Network | – |
| Hi-Res Streaming Audio Formats | – |
| Streaming Audio From USB memory | – |
| Wireless Network | – |
| Bluetooth | ✓ |
| RS-232 | – |
| IR Input | – |
| IR Output | – |
| Ethernet | – |
| ONKYO-RI System Control | – |
| RIHD (Remote Interactive Over HDMI) | – |
| 12V Trigger |
| Pre-Pro/Learning Remote | -/- |
| On Screen Remote Programming | – |
| Hybrid Standby Function | – |
| Smart Grid-Ready | – |
| Auto Speaker Calibration W/Mic. | AccuEQ |
| OSD Out | ✓ |
| Solid Aluminum Front | – |
| Transparent High-Grade Speaker Terminals | – |
| Detachable AC Cord | – |
Specs
| All Channels | 80 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven, FTC) 160 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven) |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz, 8 Ohms, 1 Channel Driven, 80 W) |
| Input Sensitivity and Impedance | 200 mV / 47k Ohms (Line) |
| Frequency Response | 10 Hz–100 kHz /+ 1 dB, -3 dB (Direct Mode) |
| Tone Control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio | 109 dB (Line, IHF-A) |
| Speaker Impedance | 4 ohms–16 ohms |
| Video | 1.0 Vp–p ±5% / 75 Ohms (Composite) |
| FM/AM/DAB+ | |
| FM/AM Preset Memory | 40 stations |
| Power Supply | AC 120 V~, 60 Hz |
| Power Consumption | 490 W |
| Standby Power Consumption | 0.1 W |
| Dimensions (W x H x D) | 17 1/8″ x 6 5/8″ x 12 15/16″ (435 x 160 x 328 mm) |
| Weight | 18.1 lbs (8.2 kg) |
| Dimensions (W x H x D) | 20 11/16″ x 9 7/16″ x 15 15/16″ (525 x 240 x 405 mm) |
| Weight | 23.1 lbs. (10.5 kg) |
| (B) | 889951002871 |
Downloads
Additional information
| Brand | Onkyo |
|---|---|
| Colour | Black |
| Amplifier Connectivity | Bluetooth, HDMI, Sub Pre-Out, DAB+, Dolby Atmos |
