Magnat Cinema Ultra RD 200-THX

949

In stock

Pair of wall-mounted surround speakers with high-power performance and great spatial representation

In stock

Description

Cinema_Ultra_THX_RD-200-no-fabric

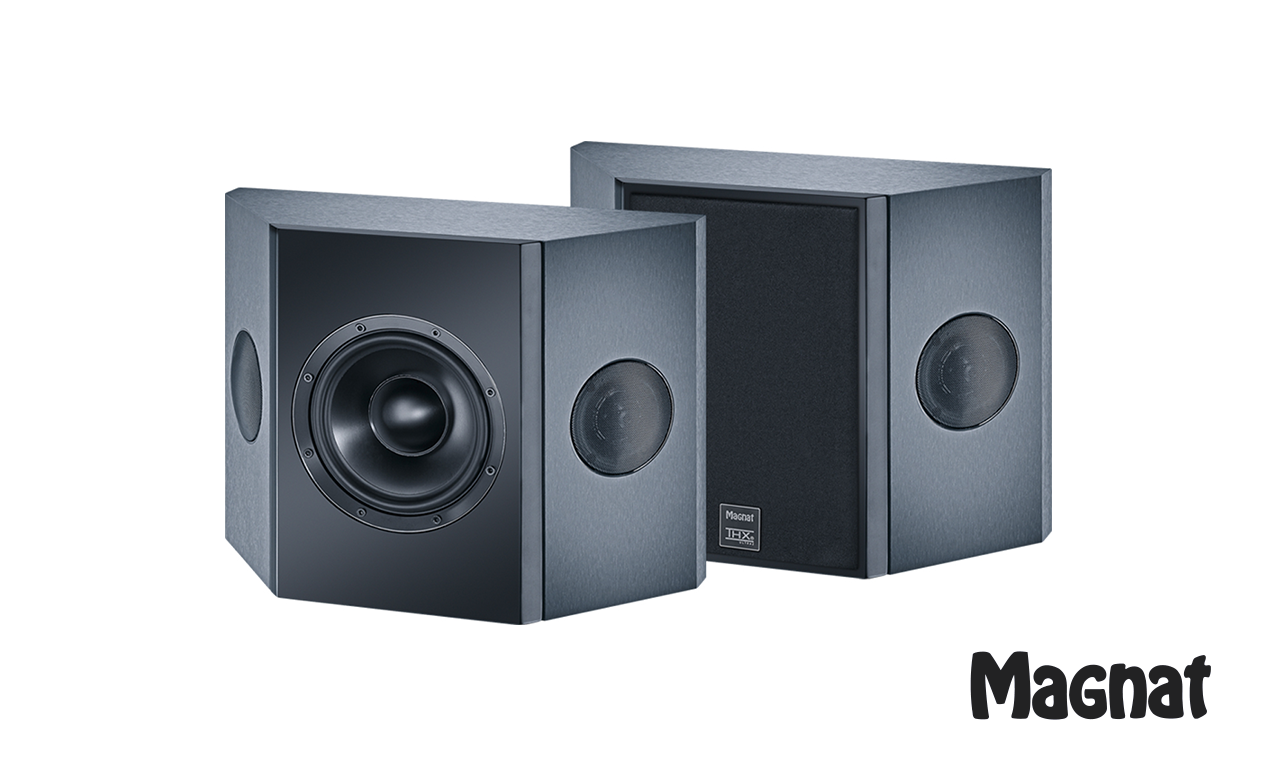

Magnat Cinema Ultra RD 200-THX Speaker

HIGH POWER PERFORMANCE WITH GREAT SPATIAL REPRESENTATION

  • Outstanding surround sound in cinema quality thanks to the dipole design
  • Outstanding surround sound in cinema quality thanks to the dipole design
  • Two high-performance 42 mm dome tweeters in dipole configuration for authentic surround sound
  • Extremely powerful 17 cm woofer for punchy, dynamic surround sound reproduction
  • Flat trapezoid cabinet for practical wall mounting

High power performance with great spatial representation

One of the 42 mm tweeter cones is located on each sloping side at the centre of the powerful 17 cm subwoofers: The Cinema Ultra RD 200-THX follows the ideal structure of classic dipole speakers. The two tweeters are – as stipulated by THX® – connected together with reversed polarity to produce a diffuse, very three-dimensional soundscape. Because our cone operates in an extremely wide band, the Cinema Ultra RD 200-THX creates this desired diffuse sound field from as low as 1500 hertz. Despite its small size and

 moderate overall depth of just 16 centimetres, the effect speaker is capable of impressive sound levels – an important factor for the best cinema sound. And optimum installation is also child´s play thanks to the large number of wall-mounting options, including VESA brackets.

Test Reviews

WHAT DO TRADE MAGAZINES SAY ABOUT THIS PRODUCT?

areadvd.de

07/2016

“The Cinema Ultra 5.1.2 set from Magnat performs superbly well in the
Champions League of speakers – all at a refreshingly reasonable price”

SFT

05/2016

THE CINEMA ULTRA COMES UNDER THE
CATEGORY OF THE PREMIUM CLASS OF ALL
PREMIUM CLASSES …”

lowbeats.de

04/2016 (5.1.2)

With the Magnat Cinema Ultra, the developers have created a loudspeaker set that is fun in the truest sense of the word. The concept and finish are consistent and coherent, from the well thought-out details like the VESA brackets to the add-on speaker that can serve as a Dolby Atmos enabled speaker and be switched over for wall or ceiling use.

audiovision 04/2016

(Set 5.1)

“With its Cinema Ultra set, Magnat translates its comprehensive technical expertise into a fascinating sound quality both for movie soundtracks and, what is somewhat unusual for THX sets, for music as well.”

video 04/2016

(Set 5.1.2)

“IT’S AMONG THE BEST
WE’VE EVER HEARD”

Identical drivers

The loudspeaker chassis in the front, centre and surround sound speakers are all absolutely identical, ensuring maximum acoustic homogeneity in the overall soundscape.

Serienslider_CinemaUltra

Very spatial soundscape

The Magnat Cinema Ultra RD 200-THX is the ideal rear speaker. Extremely powerful sound and high efficiency. The loudspeaker generates a wide band and spatial sound field.

Serienslider_CinemaUltra-22

Identical drivers

The loudspeaker chassis in the front, centre and surround sound speakers are all absolutely identical, ensuring maximum acoustic homogeneity in the overall soundscape.

Very spatial soundscape

The Magnat Cinema Ultra RD 200-THX is the ideal rear speaker: Extremely powerful sound and high efficiency The loudspeaker generates a wide band and spatial sound field.

Technical Specifications

Principle

THX Ultra2-certified dipole surround Speaker 2 way, sealed

Drivers

2 x 1.65″ dome-tweeter 6.5“ woofer-midrange

Power Handling (RMS/MAX.)

150 / 240 watts

Sensitivity

89dB

Impedance

4 – 8 Ohms

Frequency Response

80 – 27.000 Hz

Crossover Frequencies

1.550 Hz

Recommended Amplifier Output

> 40 Watts

Dimensions

400 x 300 x 160 mm

Weight

7.6 kg

Highlights

High-Performance Dipole Surround Loudspeaker

• THX Ultra2-certified dipole surround Speaker
• All of the chassis have been specially developed for the Cimema Ultra set in order to meet the very strict requirements of the THX Ultra2 standard
• Enveloping surround soundscape without speaker localisation due to the special chassis layout
• Specially tuned crossover for optimally diffuse sound emission according to the strict requirements of the THX Ultra2 standard
• Top acoustic performance through individual components developed for high performance in all details
• Markedly compact and flat enclosure for easy and unobtrusive integration into every home cinema system
• Various wall-mounting options
• Can also be used according to the THX Ultra2 guidelines as a rear surround dipole loudspeaker

Woofer-Midrange

• 8 screw fixings for firm anchoring in the baffle
• Metal-Core-Technology
• Rigid ceramic/aluminum sandwich cone and dust cap for optimum precision
• Flow-optimised, highly stable die-cast aluminium cage to avoid compression effects and resonances

Tweeter

• Fine mesh cover grille for a dscreet look
• Extremely large 42 mm high-performance polyfibre-compound cone
• Solid die-cast aluminium enclosure with large pole piece hole
• Multiple damped coupling volume for particularly low resonance frequency
• Highly resilient precision voice coil on a ventilated aluminium support
• Computer-optimised Waveguide front panel with integrated diffusor for optimum dispersion characteristics according to the strict THX Ultra2 standard
• Extremely powerful neodymium annular magnet system for the highest efficiency and outstanding broadband capability

Crossover

• Single-wiring connection terminal with gold-plated, acrylic sealed terminals
• Amplitude and phase-optimised crossover to meet the strict THX Ultra2 standard

Cabinet

• Cinema Ultra stealth design comprising: o offset baffle in a high-quality deep black silk matt lacquer finish o durable brushed-metal textured film in anthracite on the body o front panel and trim rings in matt black with a black chrome gloss ring o magnetically held cloth cover on a thin MDF frame o low-reflection metal logo in brushed titanium look
• Removable fabric protection grille with optimum sound transmission and invisible magnet attachment
• Closed housing for reproduction absolutely free of background noise at high levels according to the THX Ultra2 standard
• Very stable, braced MDF enclosure with particularly low-resonance, 30 mm thick baffle
• Sophisticated mounting system with numerous variations
• Wall-fixing mountings according to the widespread VESA standard, hole pattern 100x200mm M4;
• Stable metal brackets for wall mounting with silicone spacers;”

Cabinet Surface

• Front: black silk matt / body: textured film – anthracite

Additional information

Brand

Magnat

Speaker Type

Bookshelf / Wall-Mounted
