Multi Award winning 9.2-Channel THX Certified AV Receiver -HDMI 2.1 with 8K, Wi-Fi, Dirac Live room correction license included, Bluetooth®, AirPlay 2, Spotify Connect, Dolby Atmos® and DTS:X®. The Acclaimed TX-RZ50 delivers enormous power on-demand to highlight every nuance of the music, movies and love.

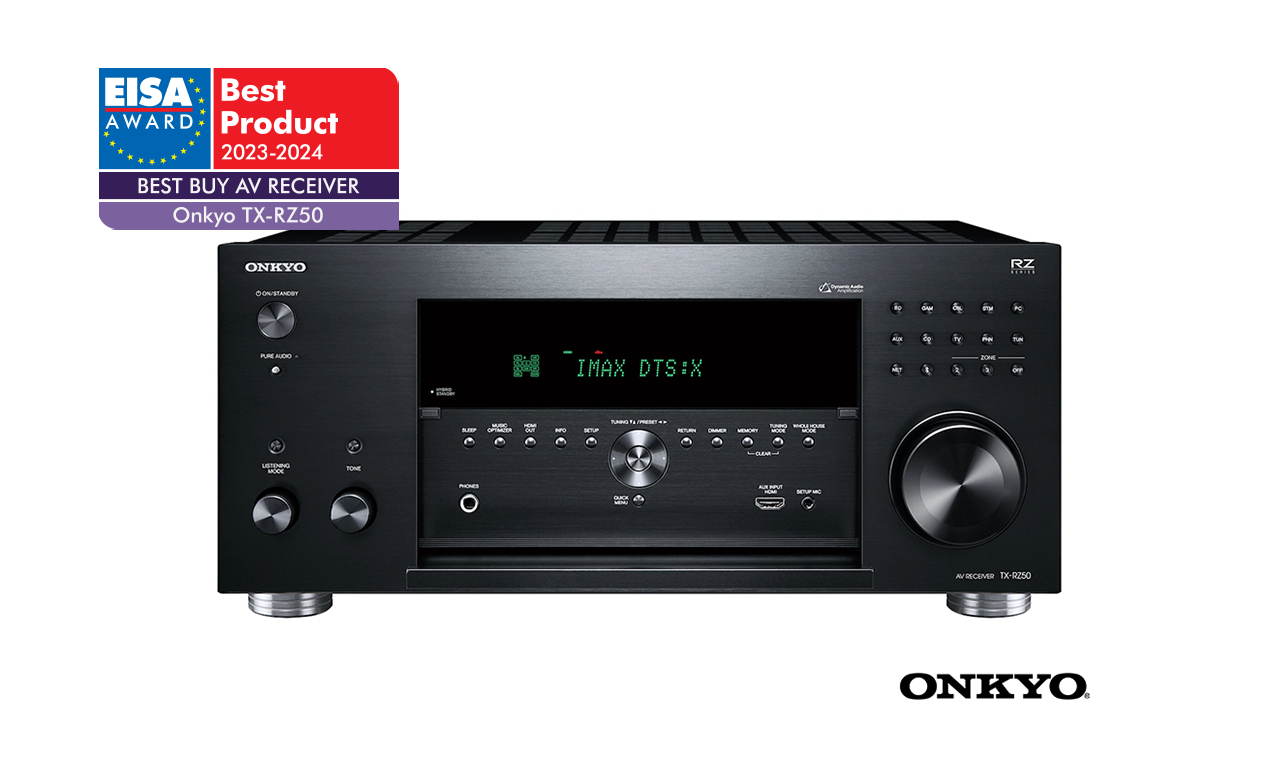

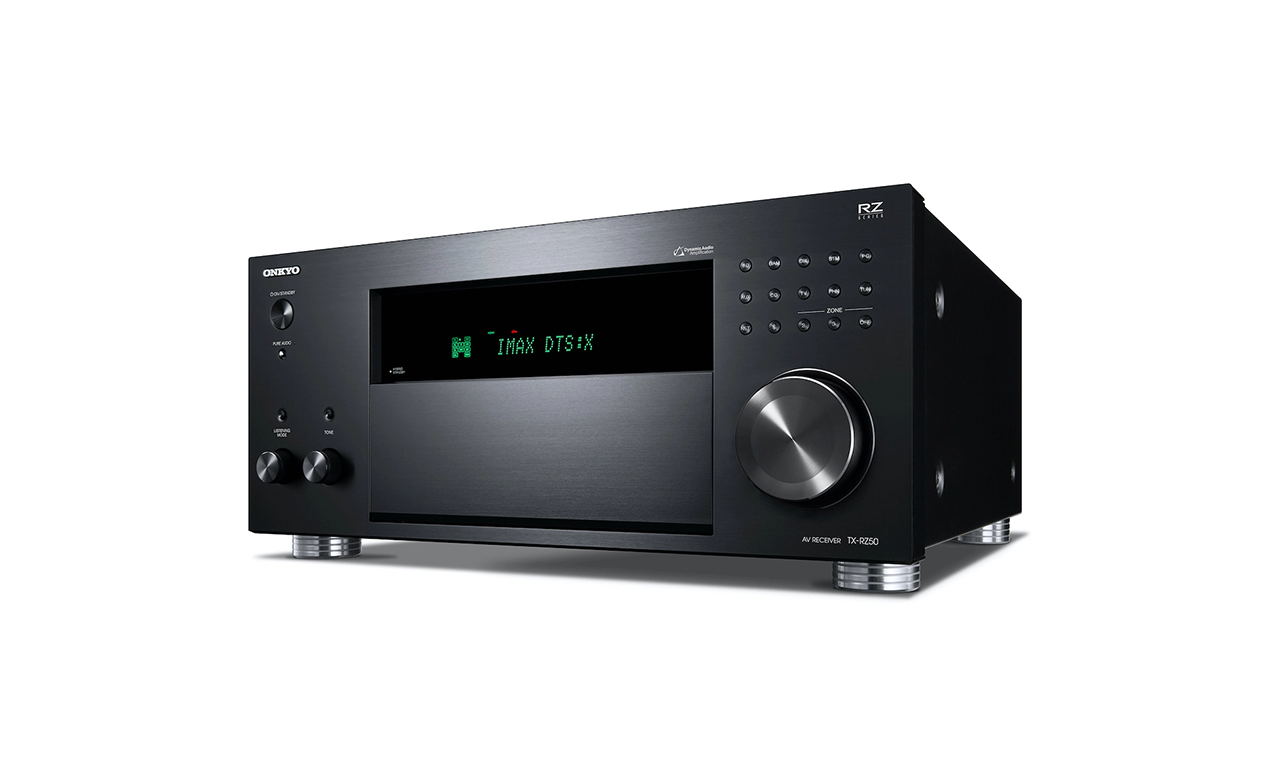

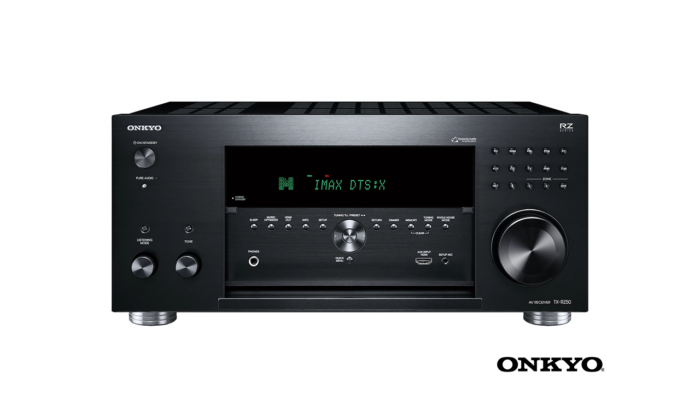

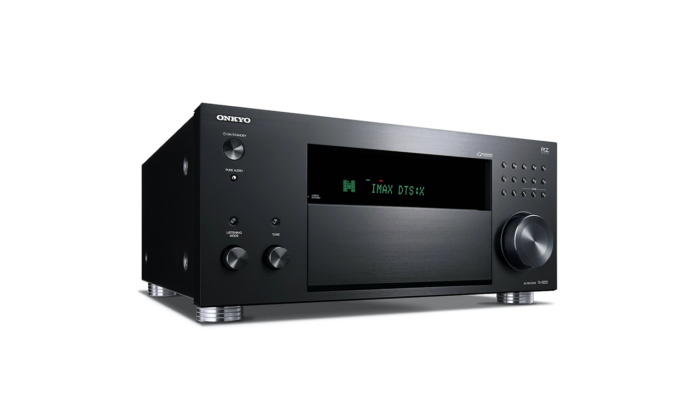

Onkyo TX-RZ50 – 9.2 Channel THX Certified AV Receiver
€1,599
Description
Thanks to an extensive feature set, including full-bandwidth Dirac Live for in-depth calibration, Onkyo’s TX-RZ50 receiver offers impressive value for money. Even better, it backs this up with a gutsy, immersive performance that wrings every last detail from Dolby Atmos and DTS:X movie soundtracks. Ample power from its nine-channel Dynamic Audio Amplification output stage ensures a dynamic, bass-rich presentation, while 11-channel processing allows for system expansion. Music playback isn’t ignored either: two-way Bluetooth and a DAB+ tuner join forces with Apple AirPlay 2, Chromecast, and DTS Play-Fi multiroom to cover all bases. Rounding out a complete package is Onkyo’s slick Controller app, plus an app option for Dirac, which makes operation a breeze.
Start your new entertainment life in the media room, where the RZ50 passes 8K HDR video to your display via HDMI®—optimized for lag-free gameplay— and feeds Dolby Atmos® or DTS:X® sound to your 5.2.4-ch speaker system with high-current power behind it.
Take the room out of the equation
State-of-the-art Dirac Live Room Correction technology unlocks your loudspeakers’ full potential, improving audio performance across the full frequency band without additional upgrades. Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic or virtually wireless with the Dirac Live PC or MacOS* application and a 3rd party USB mic (not included). Now, you’ll get a more accurate measurement of your surround sound system’s positioning to be more precise and balanced, providing a better result with the increased upper limit of delay time from 20 to 50 milliseconds.
*Device must be connected to the internet and the same network as your AVR

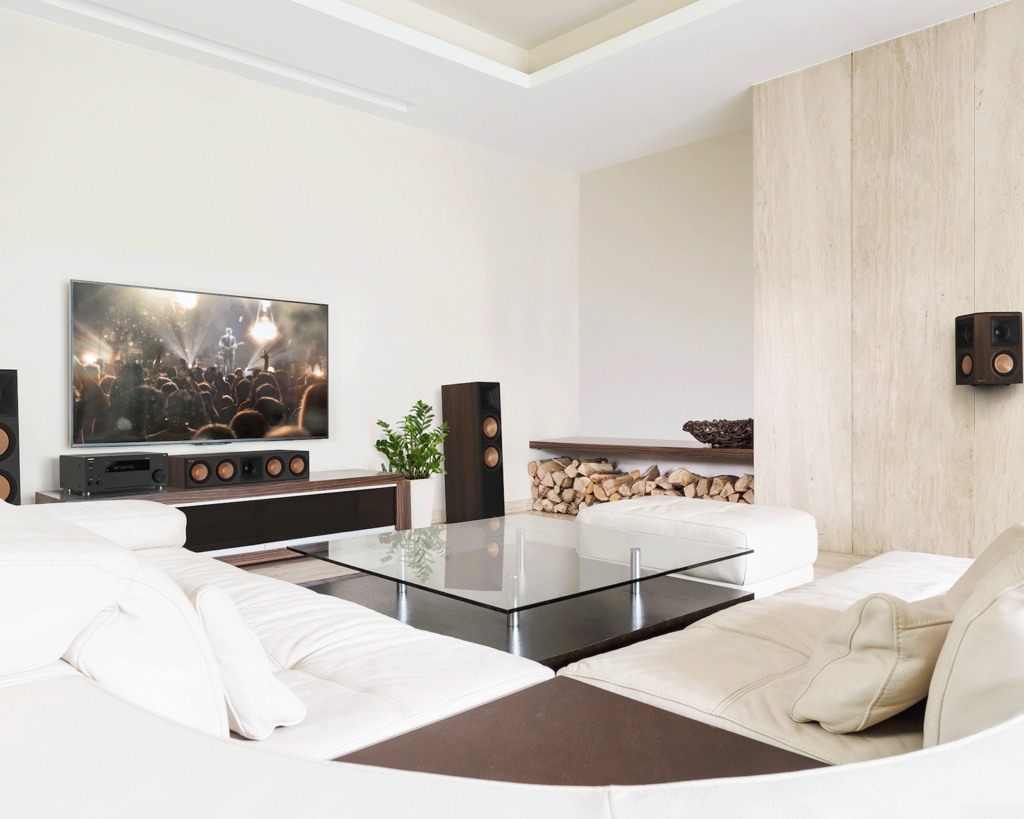

11.2-Channel Processing
Additional Features and Benefits
4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. The TX-RZ50 supports higher performance from streaming devices like the latest Apple TV.
This Onkyo receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port* This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app*. The TX-RZ50 can work with up to three Sonos Ports—one for each of three independent zones—each playing a completely different streaming service from Sonos Radio.
In 1993, Onkyo became the first consumer home theater electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-RZ50 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.
DISCRETE ZONE 2 HDMI SWITCHING
Set up different Ultra High-Definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.*
*8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used.
BUILT-IN STREAMING SERVICES
Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.
BUILT-IN MULTI-ZONE STREAMING AND VOICE CONTROL
The Onkyo TX-RZ50 9.2-Channel THX® Certified AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can stream your favorites wherever you want in your home with up to 8K60 resolution.**
*A third-party AI device is required for voice commands – sold separately
***8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.
This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.
DOLBY ATMOS® HEIGHT VIRTUALIZER
When playing any Dolby® format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
Klipsch Optimize Mode
Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.
HDMI 2.1 with 8K
Features
| 250 W/Ch THX® Certified Select RZ Series Dynamic Audio Amplification | ✓ |
| IMAX® Enhanced certified for immersive signature sound by DTS:X® | ✓ |
| 11.2-ch processing and pre-outs for 7.2.4 layouts | ✓ |
| Supports Dirac Live® Room Correction | 20Hz to 20kHz |
| AccuReflex phase-matching solution for Atmos-enabled speakers | ✓ |
| SMART AV Receiver™ | Works with Sonos, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Pandora®, TIDAL, Deezer, and TuneIn streaming services |
| Works with Hey Google or Alexa | Sold separately |
| Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard | ✓ |
| HDMI® inputs | Inputs 1-3 and Main/Sub out support 8K/60AB and 4K/120AB. Inputs 4-6 support 8K/60B and 4K/120AB. Front HDMI Input supports up to 4K/60 (HDMI 2.0). |
| HDMI 2.1 | HDMI 2.1 features that are supported on HDMI inputs 1–6, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out). |
| HDMI Sub/Zone 2 Out for media transmission to a second display | ✓ |
| Send or receive audio via Bluetooth® wireless technology | RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD |
| Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines | ✓ |
| 5.2-ch Main + Powered Zone 2 + Powered Zone 3 speakers support synced/independent D/A audio playback | ✓ |
| Zone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks | ✓ |
Specs
| Power output (All channels) | 250 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven) 120 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, FTC) |
| Dynamic power | 250 W (3 ohms, Front) 220 W (4 ohms, Front) 130 W (8 ohms, Front) |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz, half power) |
| Input sensitivity and impedance | 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM) |
| Rated RCA output level and impedance | 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out) |
| Frequency response | 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode) |
| Tone control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-noise ratio | 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A) |
| Speaker impedance | 4–16 ohms |
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM preset memory | 40 stations |
| Power supply | AC 120 V~, 60 Hz |
| Power consumption (operating) | 850 W |
| Power consumption (idle) | 75 W |
| Power consumption (standby) | 0.1 W |
| Dimensions (W x H x D) | 17 1/8˝ x 7 15/16˝ x 15 11/16˝ (435 x 201.5 x 398 mm) |
| Weight | 30.9 lbs. (14.0 kg) |
| (B) | 889951003687 |
| Dimensions (W x H x D) | 22 7/16˝ x 13 3/16˝ x 19 5/16˝ (570 x 335 x 490 mm) |
| Weight | 37.5 lbs. (17.0 kg) |
| Power cord | ✓ |
| Indoor FM antenna | ✓ |
| AM loop antenna | ✓ |
| Speaker setup microphone | ✓ |
| Quick Start Guide | ✓ |
| Remote control | ✓ |
| Two AAA (R03) batteries | ✓ |
Downloads
Additional information
| Brand | Onkyo |
|---|---|
| Colour | Black |
| Amplifier Connectivity | Optical, HDMI, Network Port, DAB+, USB |
