THX® certified with 18Hz bass for home cinemas. World’s smallest THX Ultra 2-certified subwoofer. 32 cm high-performance woofer with dual passive membranes. 550W RMS integrated Class D amplifier, 1,100W max power. Sturdy MDF cabinet, 45mm solid baffle.

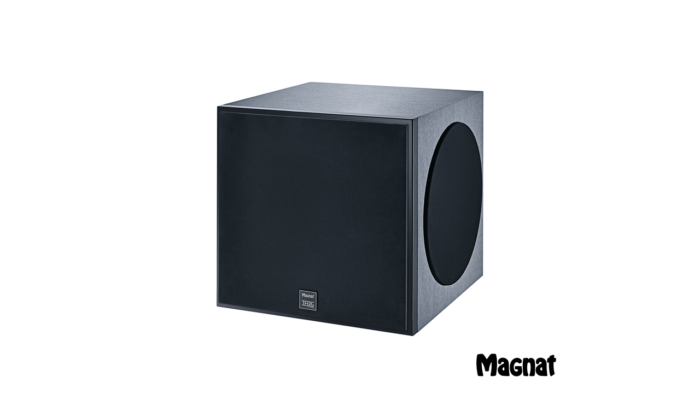

Magnat Cinema Ultra Sub 300-THX Subwoofer
€1,499
Description
18 hertz and no end of acoustic pressure Certified by THX®
The Cinema Ultra Sub 300-THX subwoofer also amazed the THX engineers: It is the smallest woofer so far to have been awarded THX Ultra2™ certification. Here, too, the basis for the record is the very latest technology. The 32 cm high-performance driver is optimized for a large stroke and minimal distortions. For power right from the bottom – the Cinema Ultra Sub 300-THX goes all the way down to 18 Hertz! – the
subwoofer is supported by two passive radiators of the same size and appearance. Together with the newly developed 550 watt Class D power amp, they are located in a compact, extremely sturdy enclosure where the baffle alone, made of 45 mm thick MDF, effectively suppresses a lot of vibrations
Reviews
WHAT DO TRADE MAGAZINES SAY ABOUT THIS PRODUCT?
areadvd.de
07/2016
SFT 05/2016
lowbeats.de
04/2016 (5.1.2 SET)
Video 04/2016 (5.1.2)
Technical Specifications
PRINCIPLE
THX Ultra2-certified active high-performance subwoofer Dual passive radiator
DRIVERS
320 mm Woofer 2 x 320 mm passive radiator
OUTPUT POWER (RMS/MAX.)
550 / 1100 watts
FREQUENCY RESPONSE
18 – 200Hz
CROSSOVER FREQUENCIES
18 – 200Hz
PHASE
0° to 180° continuously variable
DIMENSIONS (WXHXD)
468 x 461 x 460 mm 468 x 461 x 478 mm (incl. amplifier)
WEIGHT
32,5 kg
CABINET SURFACE
Front: black silk matt / body: textured film – anthracite
Highlights
- 30 cm high-performance long-stroke woofer, 30 cm long-stroke passive diaphragms with selber Membran
- Flow-optimized, highly stable die-cast aluminium cage to avoid compression effects and resonances
- Double-magnet high-power drive system with inductivity control ring for extremely low distortion
- Extremely large linear hub for maximum signal purity with large deflections
- Multiple-ventilated high-performance voice coil for high resilience
- Multiple coated paper diaphragm and dust cap for ideal rigidit
- Low-loss rubber surrounds for woofer and passive diaphragms
- 8 screw fixings for firm anchoring in the baffle
- THX Ultra2-certifed subwoofer for the Magnat Cinema Ultra set
- All of the chassis have been specially developed for the Cimema Ultra set in order to meet the very strict requirements of the THX Ultra2 standard
- Top acoustic performance through individual components developed for high performance in all details
- Non-ventilated design to eliminate any air-flow noise at high levels
- Two long-stroke passive diaphragms adapted to the woofer and enclosure volume ensure deep extended bass without any background noise
- Very stable, braced MDF enclosure with particularly low-resonance, 45 mm thick baffle
- Front: black silk matt / body: textured film – anthracite
- Active frequency range equalisation according to the strict THX Ultra2 guidelines
- THX input and stereo inputs for flexible use in any surroundings
- Adjustable volume, phase and crossover frequency (in stereo mode)
- Auto stand-by and automtic switch-on for high user convenience
- Low stand-by power consumption < 1 Watt
- Class D high-performance amplifier specially developed for this subwoofer
- Class D technology and a switch mode power supply ensure low heating and compact dimensions despite extemely high-efficiency performance
- Real-time limiter minimises distortions and prevents overloading
Additional information
| Brand | Magnat |
|---|---|
| Speaker Type | Subwoofer |
