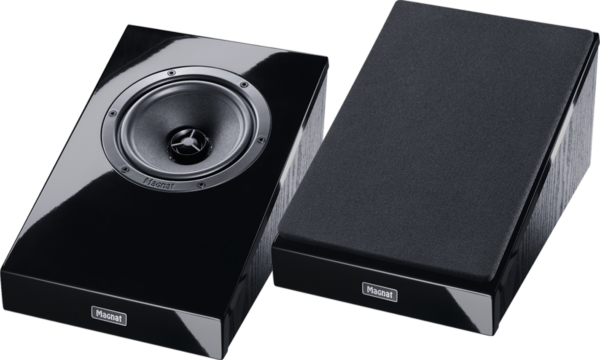

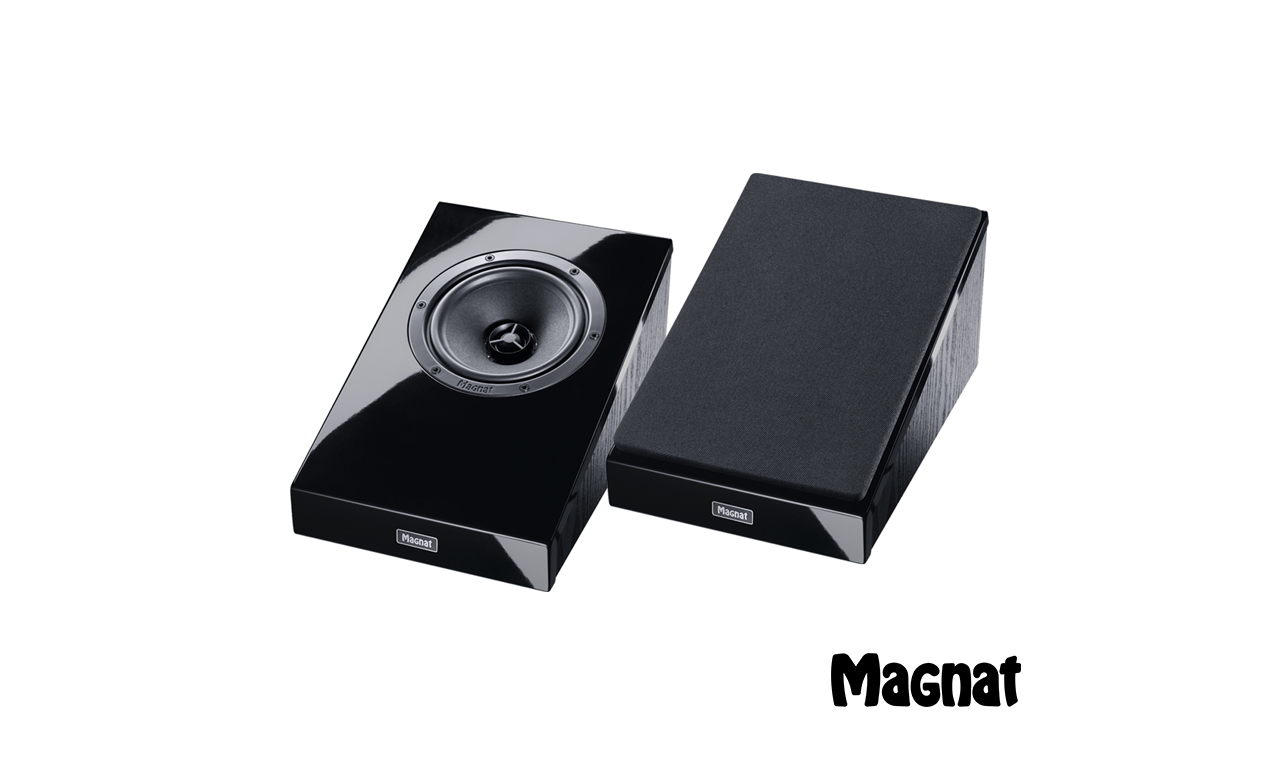

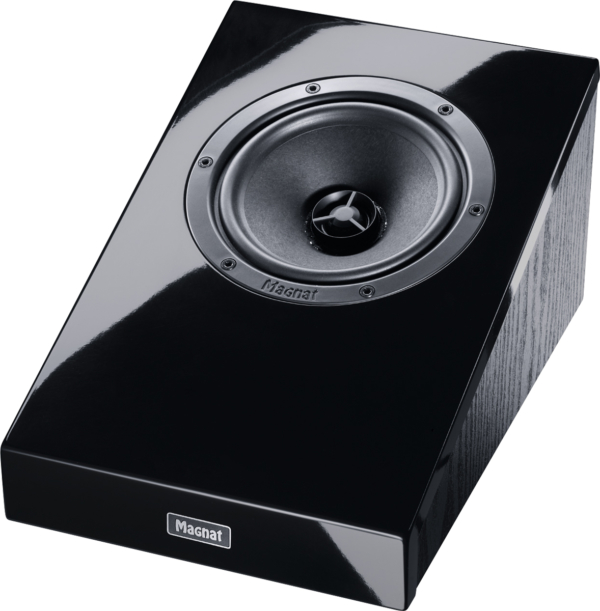

Magnat ATM 202 (Signature Atmos Speaker)


Call for availability

Pair of Atmos Surround speakers suitable for use as add-ons or wall-mounted speakers to fill more sound information from above. These can be combined with a variety of home cinema systems from Magnat. Licensed strictly in accordance with Dolby Atmos specifications.

Call for availability



ATM 202 (Signature Atmos Speaker)

  • Additional speakers to add sound information from above to existing home cinema setups
  • Licensed in accordance with the stringent Dolby Atmos specifications
  • Suitable for use as add-on or wall-mounted speakers
  • Specially coordinated chassis and crossovers
  • Can be combined with a wide range of home cinema systems from Magnat

Additional speakers for Dolby Atmos

Surround formats such as Dolby Atmos, which contain additional height information, raise the sound of a home cinema setup to a whole new level. The ATM 202 additional speakers allow you to add this audio dimension to existing home cinema systems. The ATM 202 units are perfectly suited to all of our speaker series and can be positioned on top of the main speakers or mounted on a wall.


The coaxial speaker, which has been specially developed according to Atmos guidelines, combines a 20 mm tweeter with a 130 mm bass-midrange driver. The tweeter features a fabric dome and a powerful neodymium drive. The bass-midrange driver is equipped with a lightweight, specially coated paper cone and a highly resilient voice coil. All of this is accommodated in a sturdy metal basket, which is concealed at the front of the unit by an elegant trim that is secured in place by 6 screws. The recommended amplifier power rating is between 20 and 100 watts. The ATM 202 is thereby suitable for use with a wide range of available electronics.

The solid housing is available in a black or white high-gloss finish and blends in perfectly with existing speakers or integrates harmoniously into a room when mounted on a wall. The crossover has been optimized in terms of amplitude and phase to fulfill the demanding Dolby Atmos specifications. A generously dimensioned terminal area with solid screw terminals ensures even the highest quality speaker cables are securely accommodated with optimum contact.

Technical Specifications


2-way sealed


1×5″ coaxial speaker

Power Handling (RMS/MAX.)

50 / 100 Watts

Sensitivity (2.8V/1M)



6 Ohms

Frequency Response

50 – 36000 Hz

Crossover Frequencies

8500 Hz

Recommended Amplifier Output

20-100 Watts

Dimensions (WxHxD)



3.2 kg



2-way sealed


  • 130 mm woofer-midrange with light, specially-coated paper cone and high-performance voice-coil
  • 20 mm tweeter with fabric dome and neodymium drive
  • Solid metal basket with generous ventilation openings and with high-quality trim ring secured with six screws
  • Coaxial loudspeaker specially developed in accordance with the strict Atmos guidelines


  • Home cinema add-on loudspeaker with Dolby® Atmos certification
  • Loudspeaker system licensed in accordance with the stringent Dolby® Atmos guidelines
  • The ATM 202 can be combined with a large number of home cinema speakers
  • Compact and universal cabinet design
  • Ready for wall-mounting


  • Phase- and amplitude-optimized crossover

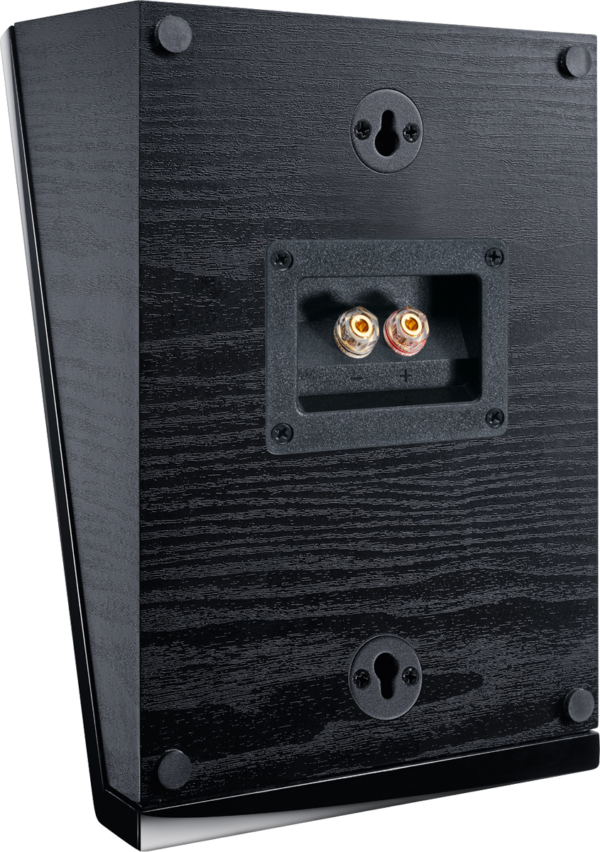

  • Large connection panel with generously dimensioned screw terminals and gold-plated contacts


  • Solid and attractive enclosure in console form with baffle and front in gloss lacquer finish
  • Removable protective covering with optimum sound transmissivity and concealed magnet fastenings
  • Integrated wall brackets on the bottom for optional wall mounting
  • Resonance-damping rubber feet

Cabinet Surface

Piano black / Ash decor black

Additional information



Speaker Type

Bookshelf / Wall-Mounted, Dolby Atmos Speakers, Surround Speaker, Foreground/Fill Speakers
