Plastered in-wall Subwoofer – JBL Conceal C82W


Call for availability

Invisible Subwoofer System. Dual-panel, Dual 8-inch (200mm) . High-performance 2-panel design built around a patented compression molded baffle and paintable outer skin.

Call for availability

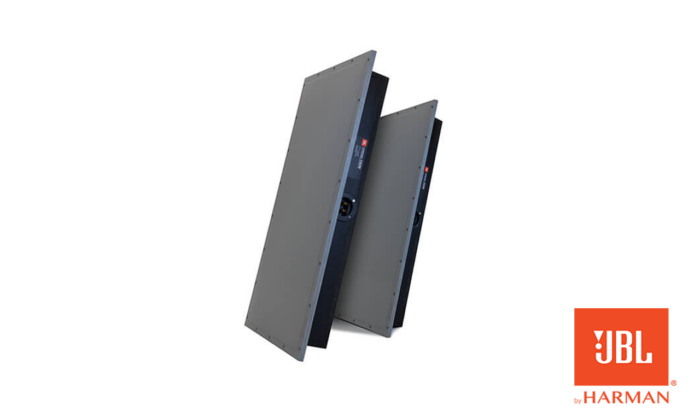

JBL Conceal C82W

Dual-panel, Dual 8-inch (200mm) Invisible Subwoofer System

The JBL Conceal C82W Invisible Subwoofer System is a high-performance 2-panel design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. Each panel contains a pair of acoustically coupled 8-inch drivers. The finished loudspeaker panels install easily and disappear completely into the surrounding walls and ceiling, allowing optimal placement virtually anywhere in a house. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.


  • Dual-panel design each with dual 8-inch (200mm) LF drivers transducers.
  • Proprietary FidelityGlass™ acoustic panel and compression-moulded baffle.
  • Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces.
  • Loudspeaker System Installs like a standard Drywall Patch
  • Paintable Surface can be custom finished for complete Invisibility


TypeIn-Wall/In-Ceiling subwoofer system
Low-Frequency Drivers8-inch (203mm) woofers with 1.5-inch (38mm) voice coil (2 per panel)
Recommended Amplifier Power60 – 100 WRMS (per panel)
ImpedanceSelectable 4 Ohm or 16 Ohm (each panel)
Loudspeaker Sensitivity86 dB/1W/1m measured in-room
Frequency Response30 Hz – 300 Hz (-6 dB) measured in-room
Crossover FrequencyN/A (requires an amplifier with HPF and LPF)
Enclosure TypeSealed, with wooden back-box
ProtectionN/A (requires an amplifier with limiter)
Input TypeDual gold-plated spring-loaded binding posts
Warranty5 Years
Panel Dimensions30″ H x 15-7/8″ W x 3-7/8″ D (762mm H x 403mm W x 98mm D)
Cut-out Dimensions30-1/8” H x 16” W (765mm H x 406mm W)
Mounting Depth3-3/8-inches (86mm)
Product Weight59.8 lbs (27.1 kg)
Shipping Weight67.4 lbs (30.6kg)

Additional information



Speaker Type

Invisible / Plastered & Painted
