Plastered in-wall speaker – JBL Conceal C86


Call for availability

Invisible Loudspeaker – 8″ (200mm) 6-element . Flagship high-performance. 3-way with a separate LF panel. Patented compression moulded baffle with paintable outer skin. price is each

Call for availability

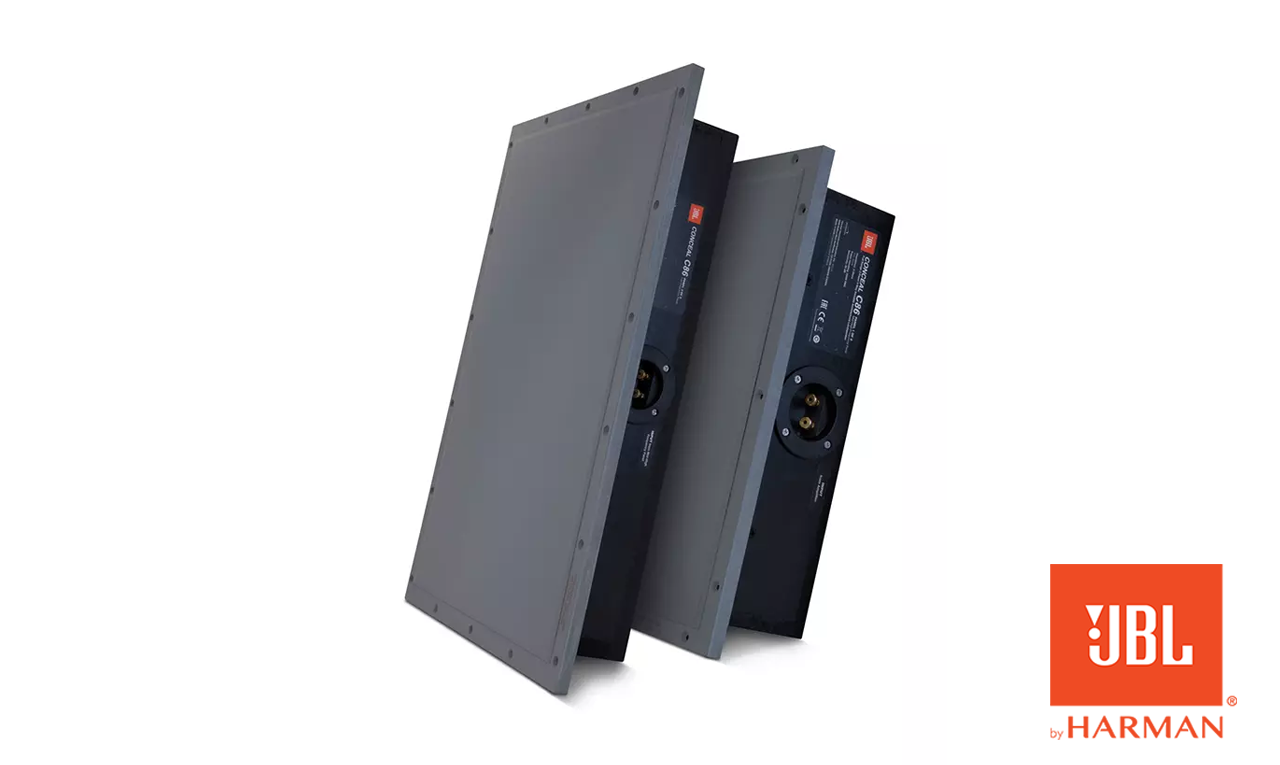

JBL Conceal C86

8-inch (200mm) 6-element, Dual Panel Invisible Loudspeaker

The flagship of the Series, the JBL Conceal C86 Invisible Loudspeaker is a 3-way, dual panel design, with a separate LF panel and a 5-driver 2-way MF/HF panel. Built around a patented compression moulded baffle and paintable Fidelity Glass™ outer skin, the finished loudspeaker panels install easily and disappear completely into the surrounding walls, allowing optimal placement virtually anywhere in a room. The JBL C86 is the ultimate solution for high-performance architectural audio.


  • Two-piece design with 8-inch (200mm) LF panel and separate five-element MF/HF panel.
  • Proprietary FidelityGlass™ acoustic panel and compression-moulded baffle.
  • Custom-designed transducers with JBL premium acoustic crossover network.
  • Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces.
  • Loudspeaker System Installs like a standard Drywall Patch.
  • Paintable Surface can be custom finished for complete Invisibility


Type3-way In-Wall/In-Ceiling loudspeaker
Low-Frequency Driver8-inch (203mm) woofer with 1.5-inch (38mm) voice coil
Mid-Frequency DriverFour 1.18-inch (30mm) voice coil transducers with neodymium magnets
High-Frequency Driver1-inch (25mm) voice coil transducer with neodymium magnet
Recommended Amplifier Power50 – 200 WRMS
Impedance4 Ohm
Loudspeaker Sensitivity84 dB/1W/1m measured in-room
Frequency Response45 Hz – 20 kHz (-6 dB) measured in-room
Crossover Frequencies600 Hz; 10 kHz
Enclosure TypeSealed, with wooden back-box
ProtectionThree independent self-resetting devices (LF, MF and HF)
Input TypeDual gold-plated spring-loaded binding posts
Warranty5 Years
Mid-High Frequency Panel Dimensions11-7/8″ H x 15 -7/8″ W x 3-7/8″ D (302mm H x 403mm W x 98mm D)
MF/HF Panel Cut-out Dimensions12” H x 16” W (305mm H x 406mm W)
MF/HF Panel Mounting Depth3-3/8-inches (86mm)
Low-Frequency Panel Dimensions22″ H x 15-7/8″ W x 3-7/8″ D (559mm H x 403mm W x 98mm D)
LF Panel Cut-out Dimensions22-1/8” H x 16” W (562mm H x 406mm W)
LF Panel Mounting Depth3-3/8-inches (86mm)
Product Weight (MF/HF Panel)12.9 lbs (5.9kg)
Product Weight (LF Panel)20.0 lbs (9.1kg)
Shipping Weight41.5 lbs (18.8kg)

Additional information



Speaker Type

Invisible / Plastered & Painted
