Plastered in-wall speaker – JBL Conceal C83

1,199

Call for availability

Invisible Loudspeaker – 8″ (200mm) 3-element . High-performance 2-way design. patented compression moulded baffle and paintable outer skin. price is each

Call for availability

Description

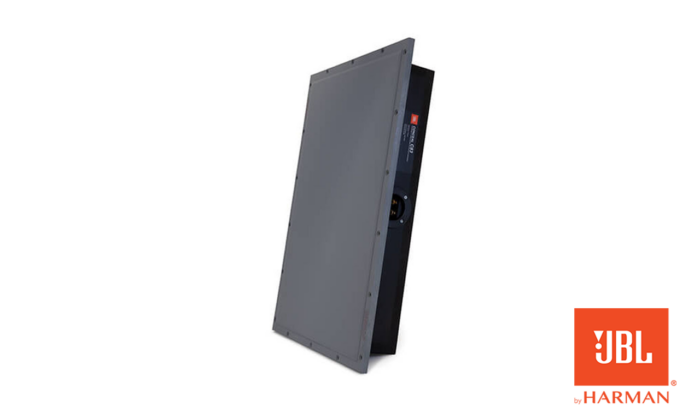

JBL Conceal C83

8-inch (200mm) 3-element Invisible Loudspeaker

The JBL Conceal C83 Invisible Loudspeaker is a high-performance 3-element design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. The finished loudspeaker panel installs easily and disappears completely into the surrounding walls or ceiling, allowing optimal placement virtually anywhere in a home. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.

JBL Conceal C83 HIGHLIGHTS

  • One-piece design with 8-inch (200mm) LF driver and duel-element MF/HF driver.
  • Proprietary FidelityGlass™ acoustic panel and compression-moulded baffle.
  • Custom-designed transducers with JBL premium acoustic crossover network.
  • Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces.
  • Loudspeaker System Installs like a standard Drywall Patch
  • Paintable Surface can be custom finished for complete Invisibility

Specs

Type3-way In-Wall/In-Ceiling loudspeaker
Low-Frequency Drivers8-inch (203mm) woofer with 1.5-inch (38mm) voice coil
Mid-Frequency Driver1.18-inch (30mm) voice coil transducer with neodymium magnet
High-Frequency Driver1-inch (25mm) voice coil transducer with neodymium magnet
Recommended Amplifier Power50 – 160 WRMS
Impedance4 Ohm
Loudspeaker Sensitivity84 dB/1W/1m measured in-room
Frequency Response45 Hz – 20 kHz (-6 dB) measured in-room
Crossover Frequency500 Hz
Enclosure TypeSealed, with wooden back-box
ProtectionTwo independent self-resetting devices (LF and MF/HF)
Input TypeFive-way gold-plated spring-loaded binding posts
Warranty5 Years
Dimensions
Panel Dimensions22″ H x 15-7/8″ W x 3-7/8″ D (559mm H x 403mm W x 98mm D)
Cut-out Dimensions22-1/8” H x 16” W (562mm H x 406mm W)
Mounting Depth3-3/8-inches (86mm)
Product Weight21.8 lbs (9.9kg)
Shipping Weight25.5 lbs (11.5kg)

Additional information

Brand

JBL

Speaker Type

Invisible / Plastered & Painted
