The “A” in ARCAM represents our expertise in amplification. The A5, our latest product, continues our 45-year legacy in amplifier design, dating back to the A&R Cambridge A60 in 1976. We’ve thoroughly examined and upgraded components and materials to deliver exceptional sound quality.

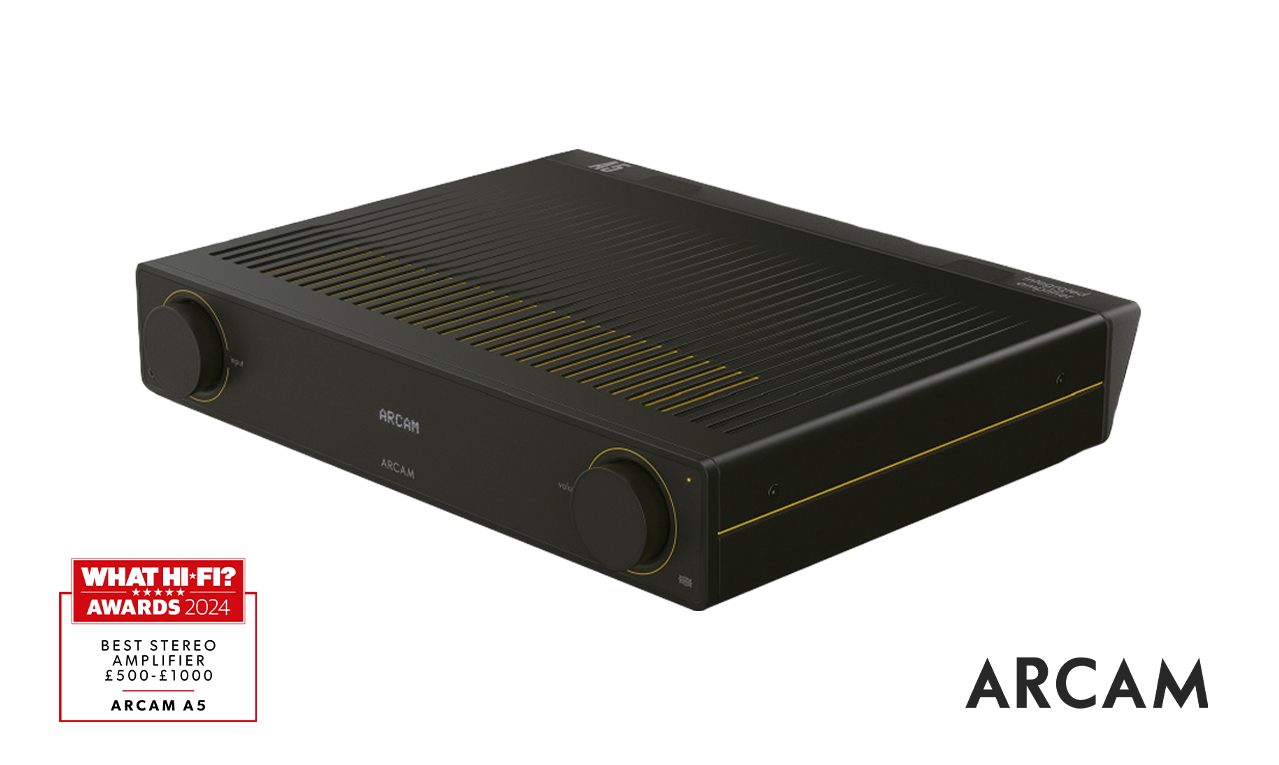

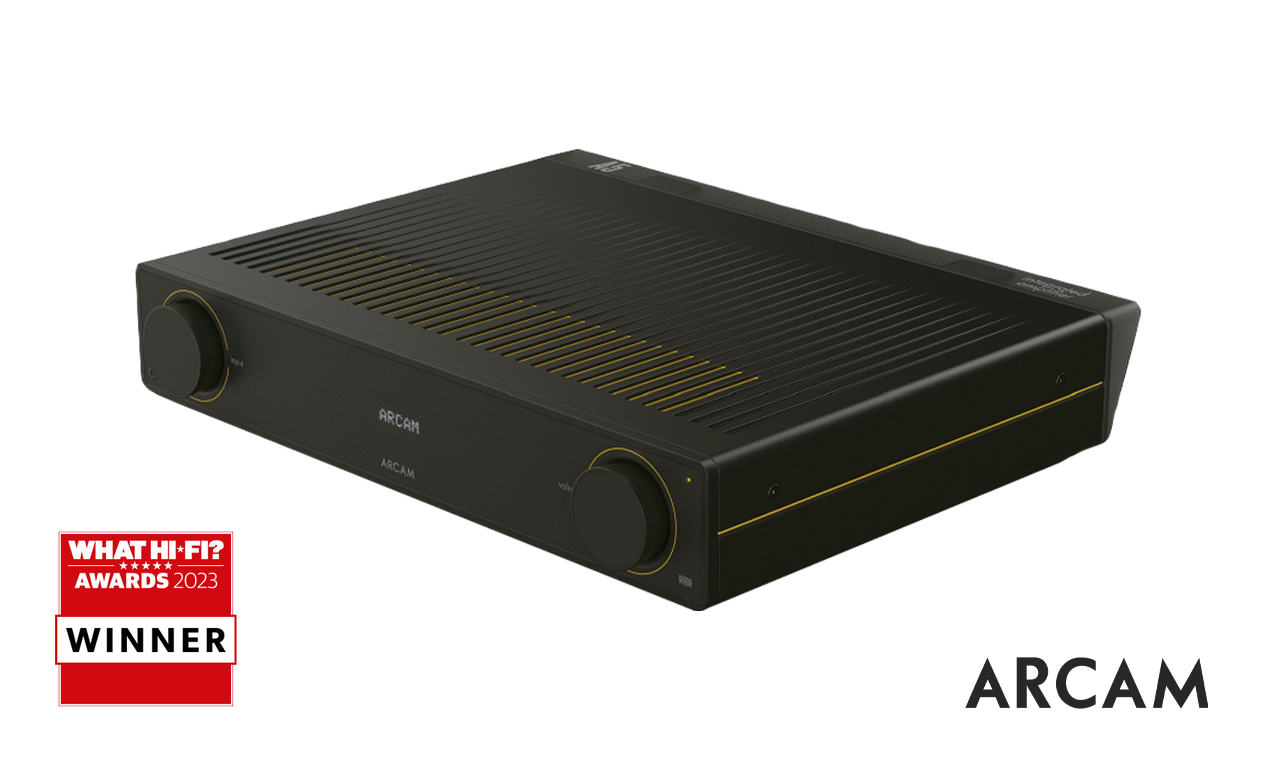

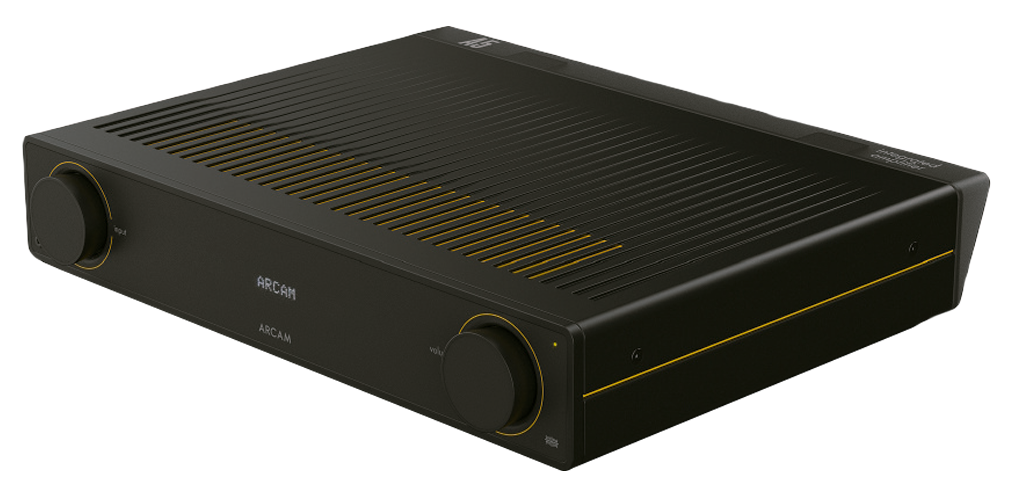

Arcam A5 – Class AB Amplifier
Quality + Connectivity = Accessible Hi-Fi
The ARCAM A5 is for those intimate listening experiences with your favourite music.
The “A” in ARCAM stands for Amplifi cation – this is our core competance. The A5 is the latest in more than 45 years of amplifi er design and manufacture, going back to our fi rst product in 1976 – the A&R Cambridge A60 amplifi er. New components and materials have been painstakingly analysed and reviewed to ensure brilliant sound quality.
So you can play music straight out of the box, the ARCAM A5 includes a Bluetooth solution with Qualcomm AptX Adaptive technology. This provides up to 24-bit HD audio for the best
sound quality from your phone or tablet, no matter what you are playing. It can also connect to Bluetooth headphones so your listening experience can continue sensitively after dark.
Hi-res audio is included with high resolution digital audio inputs included.
Like any good ARCAM integrated amplifi er, we pay particular attention to the built in phono stage to ensure your records sound as lush and engaging as possible.
• 2x 75 Watts per channel into 4 ohms
• Bluetooth 5.2 with AptX Adpative
• Connect wired or wireless headphones
• Hi-res audio digital inputs
• ESS ES9018 DAC
• Class AB amplifi cation
• Solid aluminium dials
• Aluminium front, top, sides and rear panels
• Compact Remote Control
Continuous power output (0.5% THD), per channel
2 channels driven, 20Hz – 20kHz, 8Ω 50W
2 channels driven, 1kHz, 4Ω 75W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.003%
Number of inputs 3 (RCA pairs)
Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB
Frequency response 20Hz—20kHz ± 0.2dB
Phono (MM) Input
Input impedance 47kΩ + 100pF
Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB
Supported Sample Rates (kHz) Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1
Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1
Bit depths (bit) 24, 16
Frequency response (fi lter 1) 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB
Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V
Load range 16Ω – 2kΩ
Mains voltage 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 350W
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet)
431 x 344 x 83mm
Weight (net) 8kg
Weight (packed) 11kg
Supplied accessories Mains lead(s)
Remote control with 2 x AAA batteries
Quick Start Guide
Important Safety Instruction
