12 channel power amplifier – Monitor Audio IA60-12

1,755

Call for availability

Powers up to 12 channels (6 stereo pairs) at 60w per channel at 4 ohm or 45w per channel at 8 ohm. Each pair can also be bridged to give 100w at 8 ohm. Ideal for multiroom systems.

Call for availability

SEND EMAIL QUERY

Description

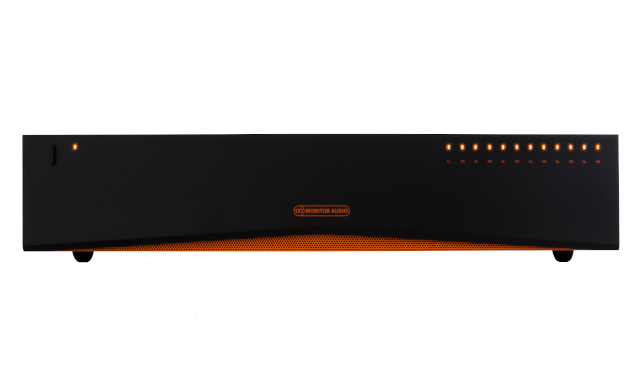

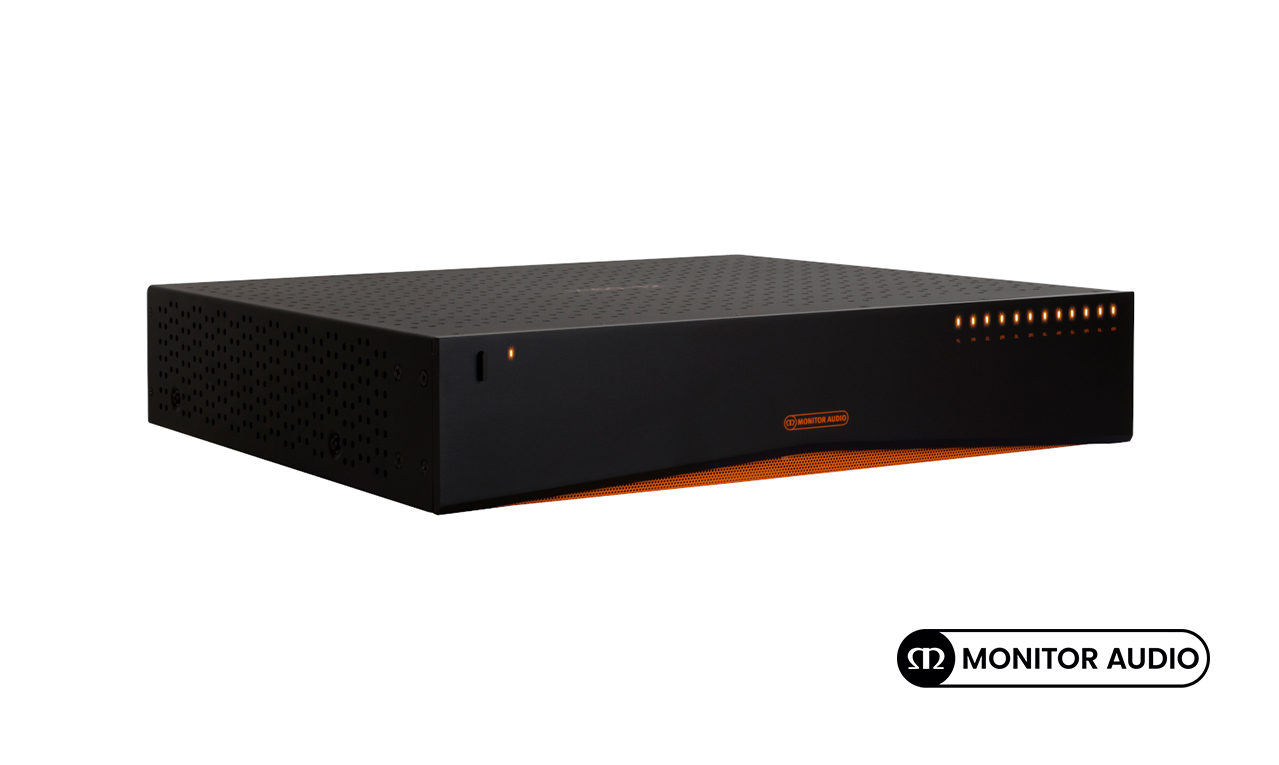

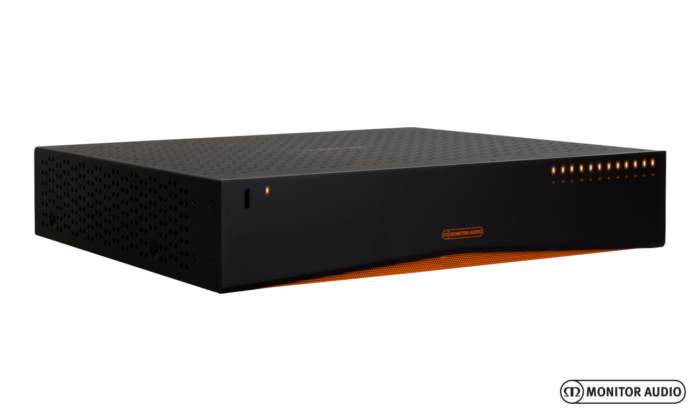

Monitor Audio IA60-12 Power Amplifier

From Monitor Audios’ line of distribution amplifiers, meticulously designed to satisfy the customer and the installer, the IA60-12 powers up to 12 channels (six stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology housed in a 2U case, we front-mount the power switch and the trigger input (– 3 – 30 V AC or DC) provides signal for additional amplifiers or other equipment.

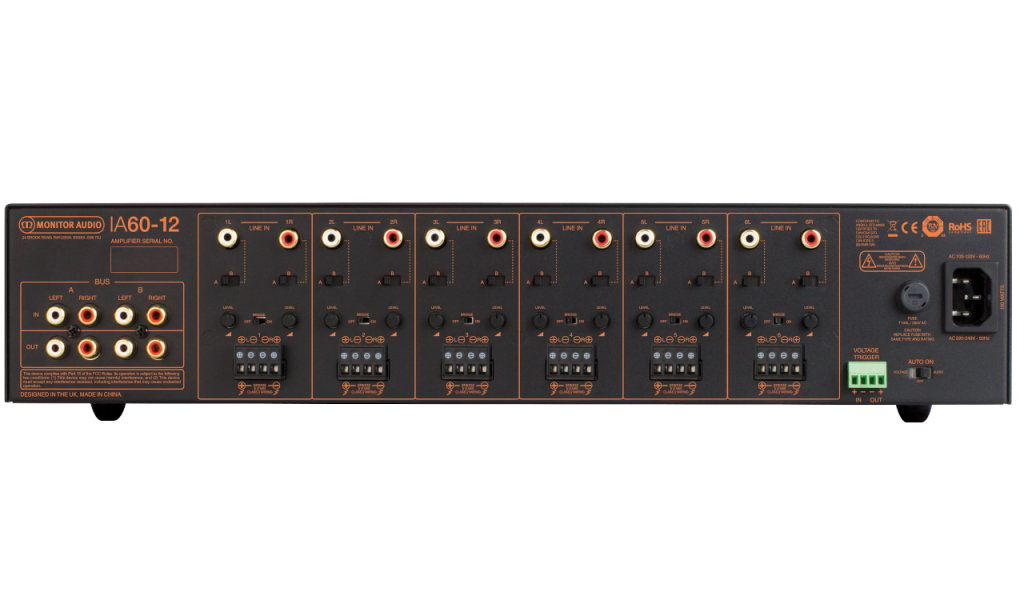

This model offers Buss Inputs and A/B Loop Outputs – the Loop outputs are non-buffered, meaning that the maximum number of amplifiers that can be looped together will depend on the output capability of your source component. Smoothly delivering 60 watts per channel at 4 ohms, the IA60-12 lets you trust in Monitor Audio and delivers an audio engine ready to excel.



Technical Specifications

‘Connect’ IP Control N/A

Channel Number 12 (6 Stereo Pairs)

Power (W / Channel) | 4 ohms 60 W

Power (W / Channel) | 8 ohms 45 W

Power (W / Channel) | Bridge (8 ohms) 100 W (6CH)

Power (W / Channel) | 70V N/A

Input Impedance 20 K ohms

Output Impedance (Loop RCA) 600 ohms

Input Sensitivity 100 mV / 1 W, 700 mV – Full power

Maximum Input Voltage 2.9 V

Signal to Noise (SN:R) -100 dB (20 Hz – 20 kHz)

Frequency Response 5 Hz – 50 kHz

Total Harmonic Distortion THD + N@1 KHz 0.03%

Rack Height 2U

Dimensions (Excluding Feet (H x W x D)) 86.8 x 438 x 427 mm (37/16 x 171/4 x 1613/16″)

Dimensions (Including Feet (H x W x D)) 97.2 x 438 x 427 mm (313/16 x 171/4 x 1613/16″)

Width (including rack brackets) 482 mm (19″)

IP Communication N/A

Mains Operating Voltage 100 –120 V @ 60 Hz 220 – 240 V @ 50 Hz

Fuse Rating 10 A (T10AL ~ 250VAC)

Standby Power Consumption <0.5 W (green mode)

Networked Standby Power Consumption N/A

Weight 7.34 kg (16 lb 2 oz)

Sold As Single Unit



Additional information

Brand

Monitor Audio

Colour

Black

Product Type

Multiroom Amplifier, Power Amplifier

Amplifier Connectivity

Multiroom, 12 Channel
