Stream music to 4 rooms. Allows streaming of Lossless music – MQA authentication. AirPlay II & Alexa. Integrates with home automation. Controllable using app for iOS, Android, MacOS and Windows.

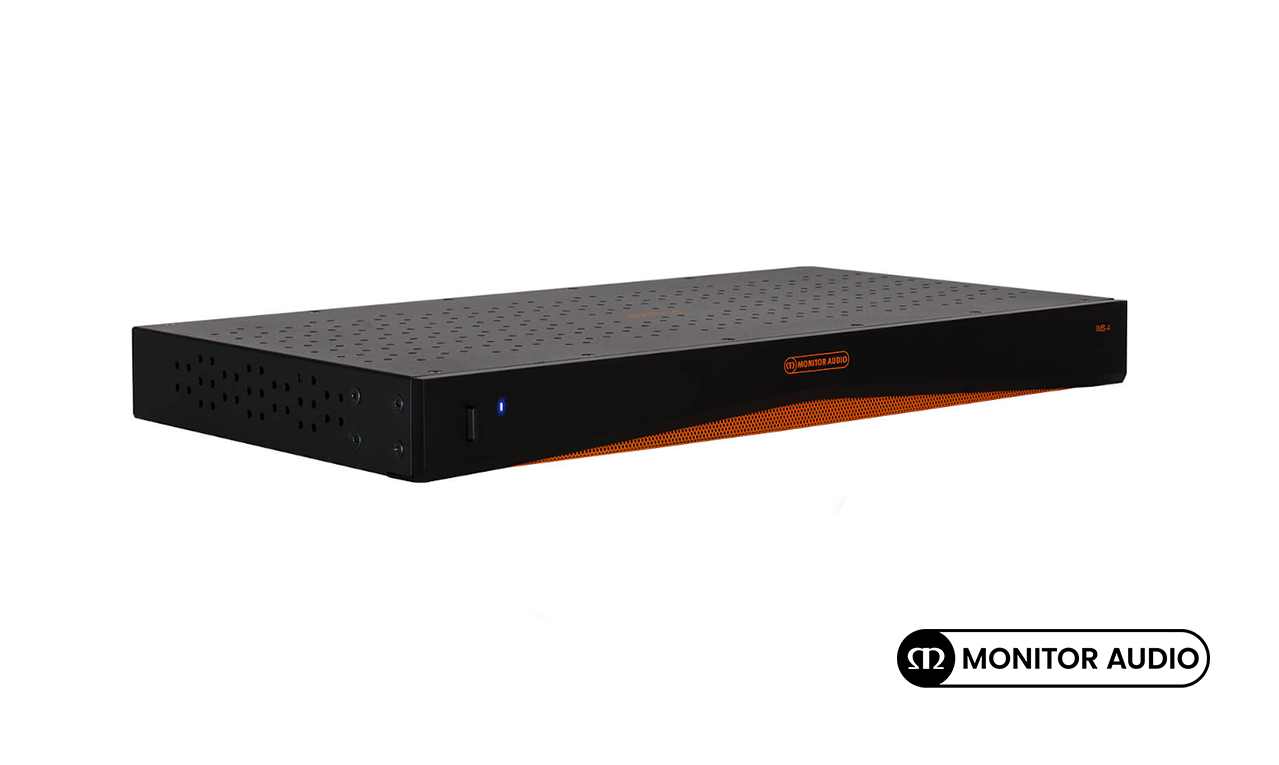

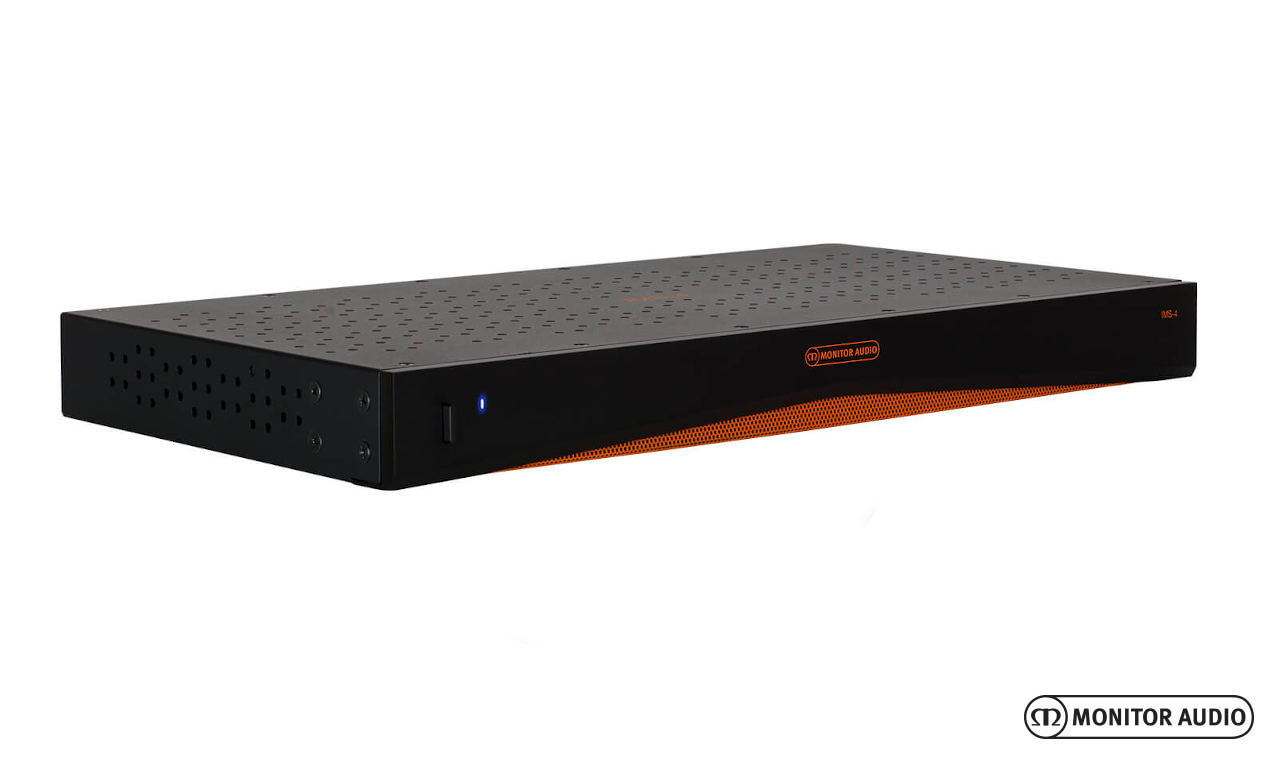

Four Zone Music Streamer – Monitor Audio IMS-4
Stream lossless music as the artist intended
The IMS-4 music streamer is the latest addition to Monitor Audio’s range of superior custom install solutions. Its BluOS™ technology and controller app allow easy access to music libraries, streaming services and voice control using Alexa or Google Assistant.
The IMS-4 music streamer’s discreet design allows it to be easily incorporated into any custom installation project. And, its slimline form ensures that it occupies just 1U of rack space.
BluOS allows the IMS-4 to stream lossless music at a quality of up to 24-bit/192khz to 4 zones in a home network. Accessed through the app, or one of the many supported integrated control systems, the multiple IMS-4 streamers can be combined to provide up to 64 zones, with each zone able to play together in perfect sync.
It can also simultaneously play different streams to separate zones.
The IMS-4 can access millions of Master Quality Authenticated (MQA) recordings using BluOS technology to allow music to be heard exactly as the artist intended, anywhere in the home.
To power the music, the IMS-4 should be partnered with an installation amplifier such as our IA150-8C.

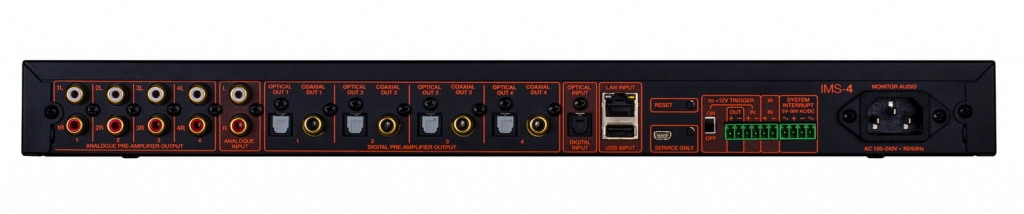

The IMS-4 can be integrated with Crestron, Control4 and RTI and is compatible with other BluOS enabled devices. Analogue and digital inputs allow the addition of a cable box or other non-network sources and to make them available in every zone.
The IMS-4 even includes a system interrupt to let doorbells and fire alarms be heard.
- Featuring BluOS™ multi-room streaming technology
- With four separate zones, different music can be streamed to four different rooms or areas
- Allows streaming of Lossless music with MQA authentication
- Integration with home automation services such as Crestron, Control4, RTI and other BluOS™ devices
- Controllable using the BluOS™ Controller app for iOS, Android, MacOS and Windows
- Compatible with Apple AirPlay 2
IP Control BluOSTM
Channel Number / Rooms 4 Rooms
Maximum Input Voltage (RMS) 2.2 V
Signal to Noise Ratio 110 dBA
Rack Height 1U
Dimensions (Without Feet (H x W x D)) 43.1 x 438 x 236.1 mm (111/16 x 171/4 x 95/16″) Height (with feet) 45.1 mm (113/16″) Width (including rack brackets) 482 mm (19″)
Weight 2.8 kg (6 lb 3 oz)
IP Communication TCP/IP (RJ-45 10/1000 Base T)
Mains Operating Voltage 100 – 240 V 50/60 Hz
Standby Power Consumption <1 W
Networked Standby Power Consumption <6 W
Sold As Single Unit
Optical, Multiroom, Network Port, USB, 8 Channel
