5.1 channel home cinema package with AV receiver, subwoofer and compact front, centre and surround speakers. Dolby Atmos – DTS:X – DTS Virtual:X* – Bluetooth® – Ultra HD Upscaling (1080p to 4K) – DAB+
PIONEER HTP-076D-B HT 5.1 DAB+ SYSTEM
€699
In stock
In stock
Description

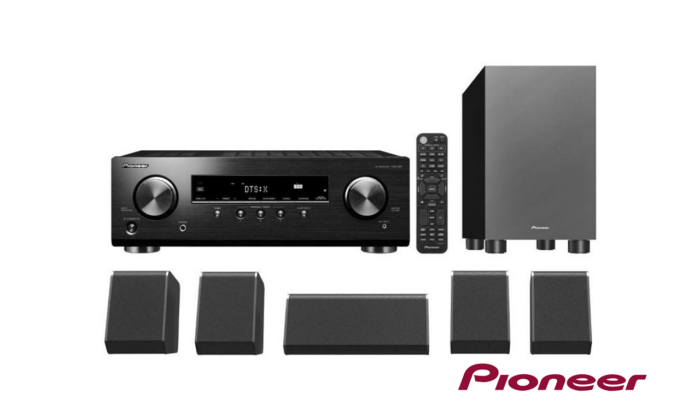

Pioneer HTP-076 5.1 channel home theater package
Features
Get more excitement out of your music, movies, or games with this convenient package for creating a 5.1-channel home theatre. Consisting of an AV receiver, subwoofer, and compact front, center, and surround speakers, the HTP-076 can be easily hooked up with your Blu-ray Disc™ player or other devices. Dolby Atmos® and DTS:X® audio formats offer enveloping sound, and even without height speakers, you can still enjoy virtual 3D surround effects with Dolby Atmos Height Virtualizer* and DTS Virtual:X. The AV receiver is compatible with Ultra HD, HDR10, HLG, and Dolby Vision™ with support for HDCP 2.2. Other features include Bluetooth® Wireless Technology, Personal Preset, and Dialog Enhancement.
Dolby Atmos
You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers.
DTS:X
Can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required.
Dolby Atmos Height Virtualization
Creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
DTS Virtual:X*
With DTS Virtual:X, you can enjoy a three-dimensional immersive sound similar to DTS:X, without the need of height or rear speakers. The technology supports 2 to 7.1.4-channel input source, for delivery on 2 to 5.1 or even 7.1-channel speaker layout. DTS Virtual:X works with all DTS codecs, including DTS:X.
Synchronized Sound with Phase Control
Phase Control compensates for the delayed bass to improve sound synchronization.
Reflex Optimizer
Using the phase control technology adjusts the shift, and improves the localization of the sound image by aligning the frequencies with those of the floor speakers.
Ready for 4K HDR entertainment
Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision®, and BT.2020. The 4:4:4 colour space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.2 compliant.
Smooth and easy Bluetooth streaming
Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.
Zone B Output for Wireless Headphones
You can listen to the sound playing in the living room via wireless headphones.
Personal Preset
Just press the Personal Preset button on the front panel for three seconds, and your current settings such as volume level and listening mode can be saved. Up to three presets can be registered and easily called up from the front panel button or the remote control.
Dialogue Enhancement
Make volume adjustments to the range including dialogues in films, with the up/down key on the remote control.
Specifications
Amplification
- Channels: 6ch (5 + SW)
- Amplification Type: Direct Energy
- 150 W/ch (6 ohms, 1 kHz, 10 % THD, 1ch Driven) x 5ch, 120 W (6 ohms, 100 Hz, 10 % THD) Subwoofer (Passive)
- 135 W/ch (6 ohms, 1 kHz, 1 % THD, 1ch Driven IEC) x 5ch, 100 W (6 ohms, 100 Hz, 1 % THD IEC) Subwoofer (Passive)
Audio Features
- Dolby Amos, Dolby Surround Upmixer
- DTS:X®, DTS Neural:X® Upmixer
- Reflex Optimizer
- Dolby Atmos Height Virtualizer*
- DTS Virtual:X
- Dolby® TrueHD, Dolby Digital Plus
- DTS-HD Master Audio, DTS-HD High-Resolution Audio, DTS 96/24, DTS-ES, DTS Express
- DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch)
- Digital Quad-Core 32-bit DSP (Cirrus Logic)
- 384 kHz/32-bit D/A Conversion with AK4438 (AKM)
- Audio Return Channel (ARC) on HDMI
- Phase Control
- Advanced Sound Retriever (2ch)
- Advanced Surround Modes
Classical, Unplugged, Entertainment Show, Drama, Extended Stereo, Extended Mono, Front Stage Surround Advance.
Video Features
- Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
- HDR10, HLG and BT.2020 Wide Colour Gamut Signal Pass-through
- Dolby Vision Compatible
- Ultra HD Upscaling (1080p to 4K)
- 3D Ready (Blu-ray Disc™, Broadcast, and Games)
- Deep Colour (36-bit), “x.v. Colour”
Convenience Features
- Personal Preset
- Dialogue Enhancement
- Bluetooth® Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
- User-Friendly GUI with System Setup Menu
- On-Screen Information for Audio/Video Status
- Auto Power Off in HDMI Standby Through
- AM/FM Tuner 40 Presets
- Sleep Timer
- User-Friendly Simple Remote Control
5.1-CH SPEAKER SYSTEM S-13A
- Front: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W)
- Center: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W)
- Surround: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W)
- Subwoofer: 16 cm Cone, Bass-Reflex Type (120 W)
Front Terminals
- AUX In
- Phones 1 Out
- Rear Terminals
- HDMI 4 In (4 Assignable)
- HDMI 1 Out
- USB 1 in for Streaming Dongle
- Audio 3 In (Assignable)
- Digital Coaxial 1 In (Assignable)
- Digital Optical 1 In (Assignable)
- Subwoofer 2 Pre Out
- ZONE B Line Out for Wireless Headphones
- Speaker 6 ch (5 + SW) Out
- AM Loop Antenna 1 In
- FM Unbalanced Antenna 1 In
Specifications
- Power Requirements: AC 220-240 V, 50/60 Hz
- Power Consumption/Standby: 465 W/0.2 W
- Dimensions (W x H x D)/Weight:
- AV Receiver: 435 x 148 x 321 mm/8.0 kg
- Front Speaker: 90 x 131.5 x 108.5 mm/0.5 kg
- Centre Speaker: 220 x 97 x 100 mm/0.6 kg
- Surround Speaker: 90 x 131.5 x 108.5 mm/0.5 kg
- Subwoofer: 230 x 393 x 331 mm/4.6 kg
Downloadable Documents
Additional information
| Brand | Pioneer |
|---|---|
| Amplifier Connectivity | Bluetooth, Optical, HDMI, Sub Pre-Out, DAB+, Dolby Atmos, USB |
| System Configuration | 5.1 Surround |
