Full-scale audio fidelity from compact, stylish speakers and a discreet subwoofer, MASS combines all Monitor Audio’s award-winning expertise with sophisticated looks.

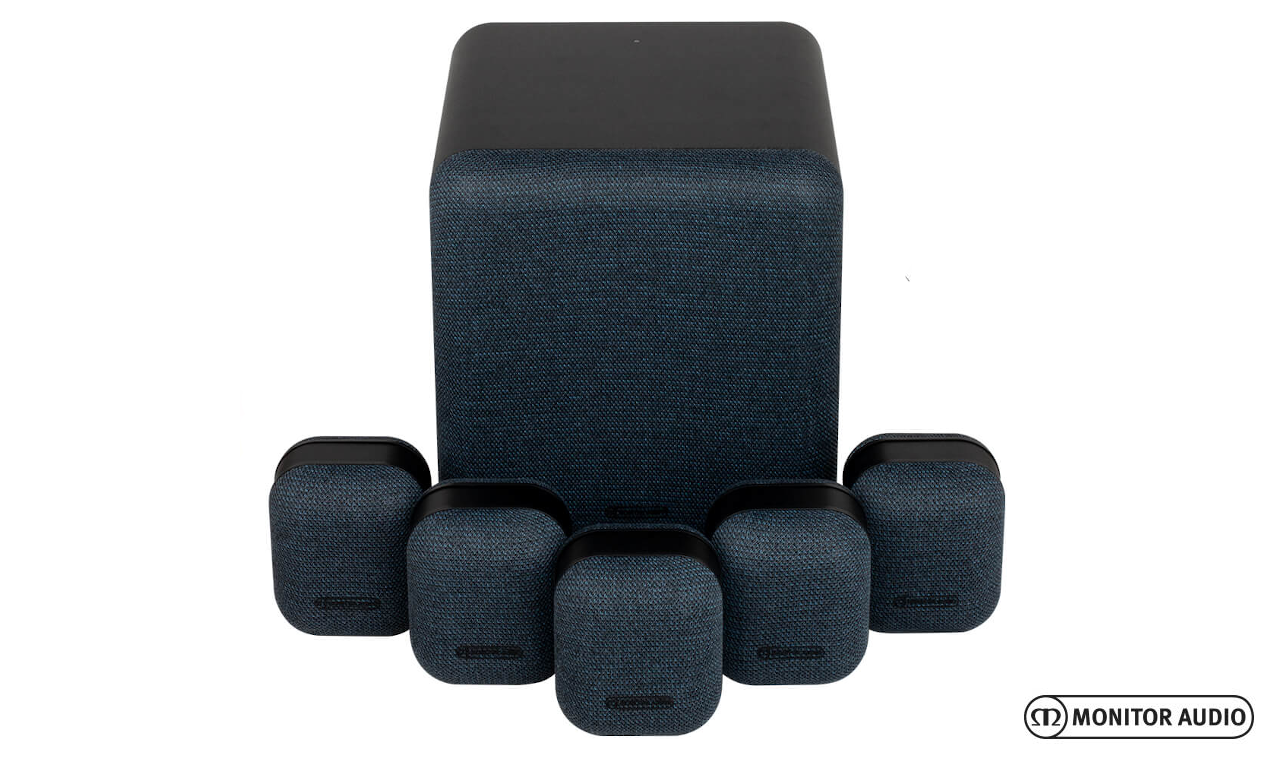

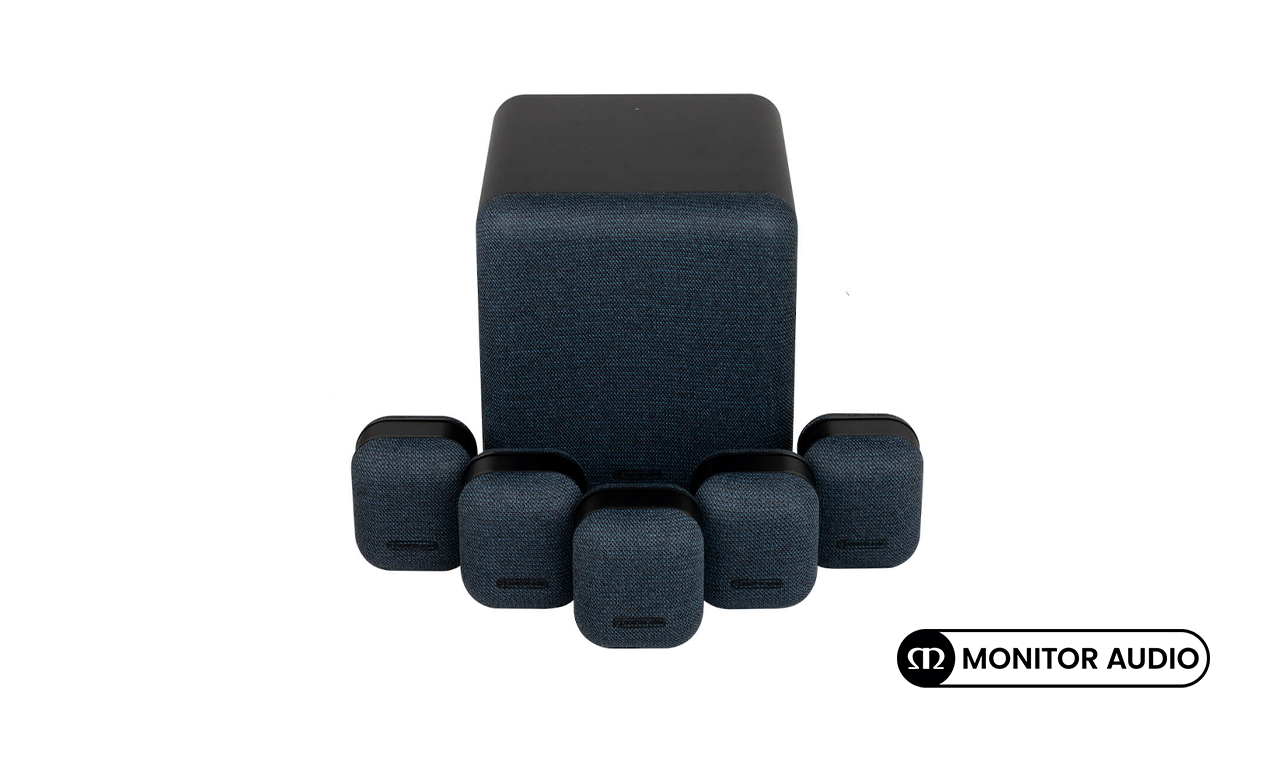

Monitor Audio MASS 5.1 Surround speaker package – Midnight Blue / Black
Designed to deliver full-scale audio fidelity from compact, stylish speakers and a discreet subwoofer, MASS combines all Monitor Audio’s award-winning expertise with sophisticated looks. The result is a new level of performance for music, gaming and movie sound alike.
MASS is quick and easy to set up and delivers genuinely enthralling surround sound excitement in a compact design, making any room feel like a state-of-the-art concert hall or cinema. Music lovers, movie fans and gamers will all revel MASS’s ability to put them in the middle of the action, bringing incredible levels of immersion to their favourite songs, films and games. All the clarity, all the drama, all the 360-degree thrills – and a new acoustic experience – are there to be enjoyed.
Hollywood knows its soundtracks are just as big a part of the cinema experience as its pictures – and, thanks to MASS, you can enjoy your own full-on home cinema surround sound experience without breaking the bank or compromising the look of your room. Despite its size, MASS is capable of dynamic, room-filling sound with all the punch and drive the biggest Hollywood blockbusters demand. With perfect clarity to build the tension in quieter scenes, hair-raising attack when the going gets explosive, and incredible effects placement to keep you at the heart of the story, MASS brings you the authentic cinema experience.
If you want to properly immerse yourself in your gaming experience, there’s no better way than MASS to put you right in the thick of the action. Gaming is hugely enhanced by accurate placement of effects, seamless panning right around the 360-degree soundfield and, thanks to the Subwoofer, incredible low-frequency presence. No matter if your favourite games rely on the roar of the crowd, the rattle of the guns or the tension-packed near-silence of a spooky alien planet, MASS gives you more of what you need. Enjoy every gaming scenario like never before and take your experience to an entirely different level.
Whether you like to listen in stereo or prefer a multi-channel mix, MASS has the talent to bring your favourite music to life. Thanks to the beautifully engineered integration between the Satellites and the Subwoofer, MASS is a thrilling listen from the deepest bass notes to the crispest treble. Incredible stereo imaging puts your favourite singer on the centre of the stage, while the combination of MMP II driver technology and soft dome tweeter in each Satellite gives each instrument extraordinarily faithful and convincing tonality. Fast, controlled and, above all, deep bass from the Subwoofer makes MASS as powerful and punchy a listen as it is subtle and detailed. It’s the speaker system your music has been waiting for.
Two-way, sealed cabinet, tuned for wide dispersion and optimal integration with MASS Subwoofer Rigid, braced and fibre-reinforced cabinet Custom-weave cloth finish, unique to Monitor Audio Compact design, with point-source acoustic alignment for precise audio focus and response 31/2″ (89 mm) Mid-Bass driver featuring; – MMP II (Metal Matrix Polymer) cone technology – Advanced FEA simulation used to optimise the cone & motor unit performance 3/4″ (19 mm) soft dome tweeter with thermal protection Integrated stand-mount point and wall bracket (compatible with MASM bracket) Rear cover concealing binding posts
Compact, sealed enclosure with braced 15 mm MDF construction and rigid 18 mm MDF baffle Custom-weave cloth finish grille 8″ (203 mm) long-throw driver with MMP II cone 120 W Class-D amplification for efficient, powerful performance Digital Sound Processing DSP providing accurate filter characteristics Advanced limiters guarantee controlled, authentic sound 3 pre-set modes (‘Music’, ‘Movie’, ‘Impact’) for superlative acoustics

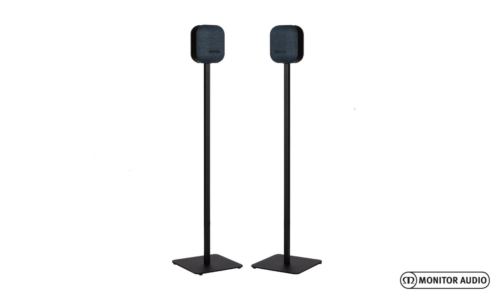

MASS Stand (Optional)
The new MASS stand is designed to reinforce the contemporary look of the MASS range and enable the MASS Satellite to perform at the perfect height. It features a precision-cut steel base and pole, an integrated bracket to allow easy speaker attachment, and a cable management system to conceal the speaker cable. .
System Format 2-Way
Frequency Response (-6 dB) 105 – 34,000 Hz
Sensitivity (1W@1M) 80 dB
Nominal Impedance 8 ohms
Minimum Impedance 4.4 ohms @ 300 Hz
Maximum SPL 98 dB (Pair)
Power Handling (RMS) 30 W
Power Handling (RMS) With Amplifier Crossover (150 Hz) 70 W
Recommended Amplifier Requirements 25 – 100 W
Bass Alignment Sealed Enclosure
Crossover Frequency 3.0 kHz
Drive Unit Complement 1 x 31/2″ (89 mm)
MMP II Mid-Bass Driver 1 x 3/4″ (19 mm)
Soft Dome Tweeter
External Dimensions (Including Grille and Terminals (H x W x D)) 147 x 122 x 107 mm (513/16 x 413/16 x 43/16″)
Weight (each) 1.12 kg (2 lb 8 oz)
Sold As Single Unit
System Format Sealed cabinet, 15 mm MDF construction with 18 mm base and front baffle Internally braced with sealed amplifier compartment
Lower Frequency Limit -3 dB @ 35 Hz / -10 dB @ 30 Hz (Free Field)
Default preset: Music, -3 dB @ 34 Hz / -10 dB @ 25 Hz (In Room)
Upper Frequency Limit -6 dB @ 150 Hz
Drive Unit Complement 1 x 8″ (200 mm)
MMP II subwoofer driver featuring a 2″ long throw voice coil
Linear Driver Excursion 15 mm Peak to Peak
Amplifier Output 120 W
Amplifier Classification Class D with high current Switch mode power supply (SMPSU)
Phase Control 0 Degrees & 180 Degree pure Invert
Low Pass Filter Alignment 2nd order (12 dB/Octave), from 50 Hz to 150 Hz
Auto Sensing Input Requirements Line Level >3 mV
Auto Standby feature after 20 minutes
Audio Input/Outputs LFE unbalanced input RCA Stereo unbalanced inputs RCA
Connection 12 V
Trigger in (3.5 mm mono mini-jack, 4v threshold)
Electrical Certifications CE / CB/ ETL / Fcc / CCC/ ErP (Energy saving compliant)
Mains Input Voltage 100 – 240 Vac, 50/60 Hz
Power Consumption Maximum 130 W, Standby <0.5 W (ErP compliance)
Fuse Type 20 mm T8AL 250VAC
External Dimensions (Including Amp, Drivers and Terminals (H x W x D)) 340 x 320 x 350 mm (133/8 x 125/8 x 133/4″)
External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D)) 359 x 320 x 350 mm (141/8 x 125/8 x 133/4″)
Weight (unpacked) 10.2 kg (22 lb 8 oz)
