7.2-Channel Dolby Atmos 8K AV Receiver. Includes Wi-Fi, Bluetooth®, AirPlay 2, Spotify Connect, DTS:X

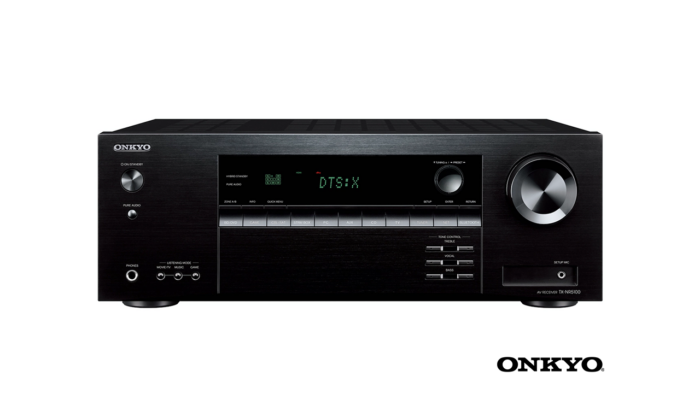

Onkyo TX-NR5100 – 7.2 Channel Atmos 8K Network AV Receiver
Original price was: €899.€699Current price is: €699.
In stock
In stock
Description
Unlock 8K/60p video passthrough via HDMI® 2.1-specifi ed HDMI terminals and enjoy HDR10+ or Dolby Vision™ HDR formats with eARC supporting amplifi cation of encoded multichannel audio from your compatible TV’s video-streaming apps, tuner, or connected media players. Enhancements to HDMI eliminate latency for smooth, lag-free gameplay. With discrete high-thrust amps developing 150W/Ch, Dolby Atmos® and DTS:X® soundtracks are played with thrilling dynamism while Dolby Atmos Height Virtualizer and DTS Virtual:X™ can work 3D magic on almost any audio played through any speaker layout.
With discrete high-thrust amps developing 150W/Ch, Dolby Atmos® and DTS:X® soundtracks are played with thrilling dynamism while Dolby Atmos Height Virtualizer and DTS Virtual:X™ can work 3D magic on almost any audio played through any speaker layout.
Additional Features
Dolby Atmos® and DTS:X® formats allow engineers to map sound anywhere in 3D space, effects moving from speaker to speaker all around the room and wrapping your audience in the latest films and games. You can also enjoy your 3D speaker layout with classic titles. Dolby Surround® and DTS® Neural:X find overhead cues in legacy soundtracks and upmix for awesome spatial realism.
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.
AccuEQ streamlines the initial setup of your home theater system and ensures your receiver and speakers are properly calibrated for the best performance in your listening space. AccuEQ calculates speaker distance from the listening position, adjusts speaker sound pressure level, and sets the speaker crossover. The latter selects the correct point to roll off low-frequency sound to the subwoofer. The result is clear and balanced full-spectrum surround sound.
DOLBY ATMOS® HEIGHT VIRTUALIZER
When playing any Dolby® format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port.* This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app*.
BUILT-IN STREAMING SERVICES
Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.

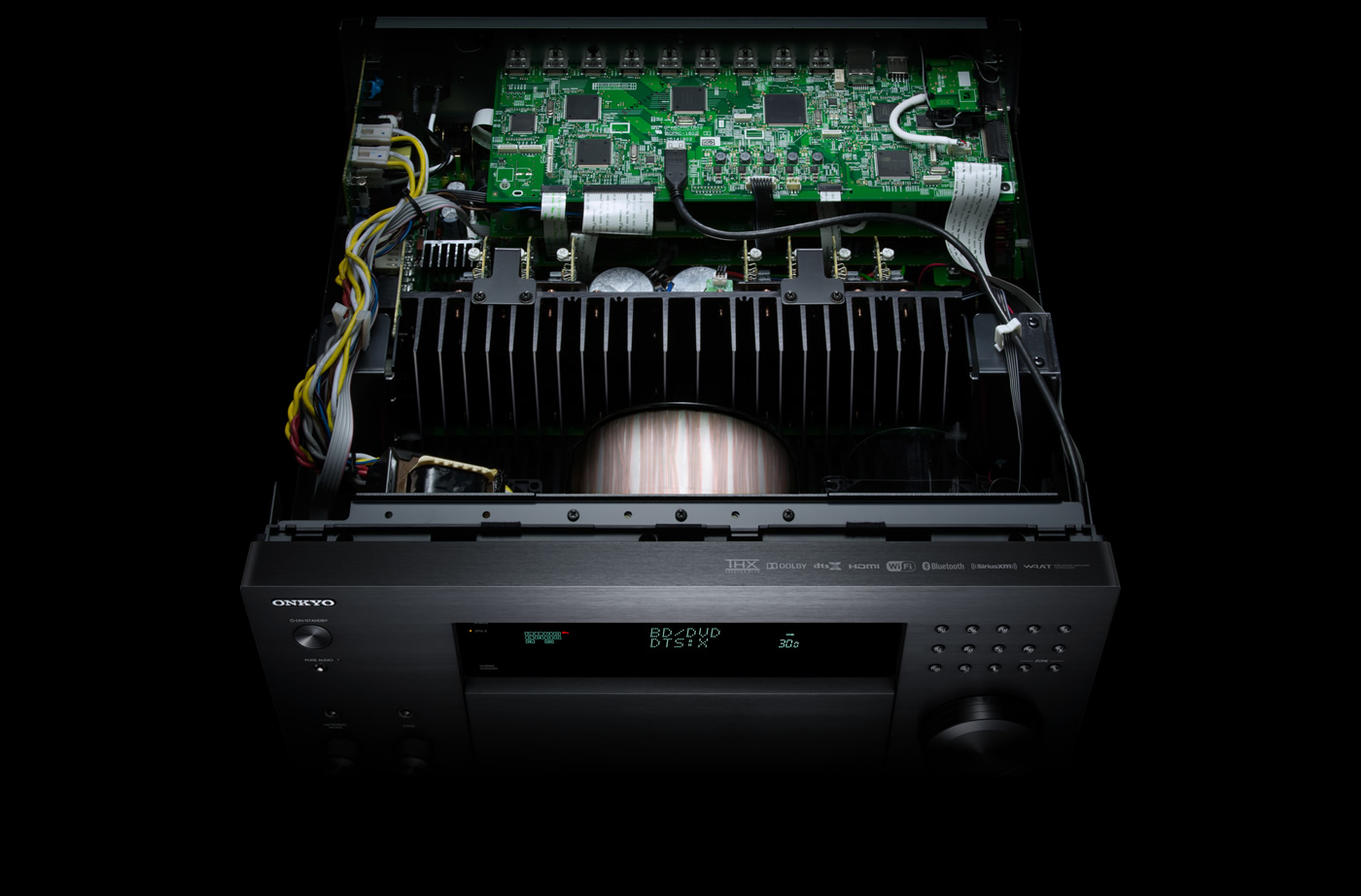

Refined over 70 years to deliver emotion in high fidelity, DAA features a custom High-Current Low-Noise Power Transformer, customized capacitors, and discrete amp output stages. Unique topology prevents phase-shift while high current improves speaker control for true dynamic speed. Driving 4-ohm loads through all channels, DAA has power to move.
HDMI® 2.1 with 8K
Ultimate 4K Gaming Experience
Klipsch Optimize Mode
Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you’ll be using for each individual channel, and the optimized crossover setting will be automatically applied.
Smart Home Compatible with Voice Control
The Onkyo TX-NR5100 7.2-Channel 8K SMART AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem.*
Features
| 165 watts x 7 channels | ✓ |
| 5.2.2-ch Dolby Atmos® and DTS: X® playback | ✓ |
| Dolby Atmos Height Virtualizer and DTS Virtual:X™ 3D sound virtualization technologies | ✓ |
| SMART AV Receiver™ | Works with Sonos (sold separately), Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Alexa, Pandora®, TIDAL, Deezer, and TuneIn streaming services |
| Works with Hey Google or Alexa* | Digital Voice Assistant Sold Separately |
| Stream Capability | 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard |
| HDMI® 2.1 | Supports: 4K120AB and 8K60B, HDR10+, Dolby Vision and BT.2020 color; VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport); eARC (Main Out), and HDCP 2.3 |
| HDMI Sub Out | For media transmission to a projector, gaming monitor, or TV |
| Send or receive audio via Bluetooth® wireless technology (RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD) | ✓ |
| Zone B pre-/line-out plays MAIN Zone audio to a compatible headphone dock | ✓ |
| Vocal Enhancer, media info and playback status display, and one-touch volume memory-preset functions | ✓ |
| AccuEQ with AccuReflex™ and subwoofer EQ | ✓ |
Specs
| Power output (All channels) | 165 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven) 80 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC) |
| Dynamic power | 160W (3 ohms, Front) 125W (4 ohms, Front) 85W (8 ohms, Front) |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz) |
| Input sensitivity and impedance | 200mVrms/32k-ohms (Line) |
| Rated RCA output level and impedance | 1Vrms 200m Vrms/2.2k-ohms（Zone B PreLine-out） |
| Frequency response | 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio) |
| Tone control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-noise ratio | 106 dB (Line, IHF-A) |
| Speaker impedance | 4–16 ohms |
| Power supply | AC 120 V~, 60 Hz |
| Power consumption (operating) | 490 W |
| Power consumption (idle) | 45 W |
| Power consumption (standby) | 0.1 W |
| Dimensions (W x H x D) | 17 1/8˝ x 6 5/16˝ x 12 15/16˝ (435 x 160 x 328 mm) |
| Weight | 18.5 lbs. (8.4 kg) |

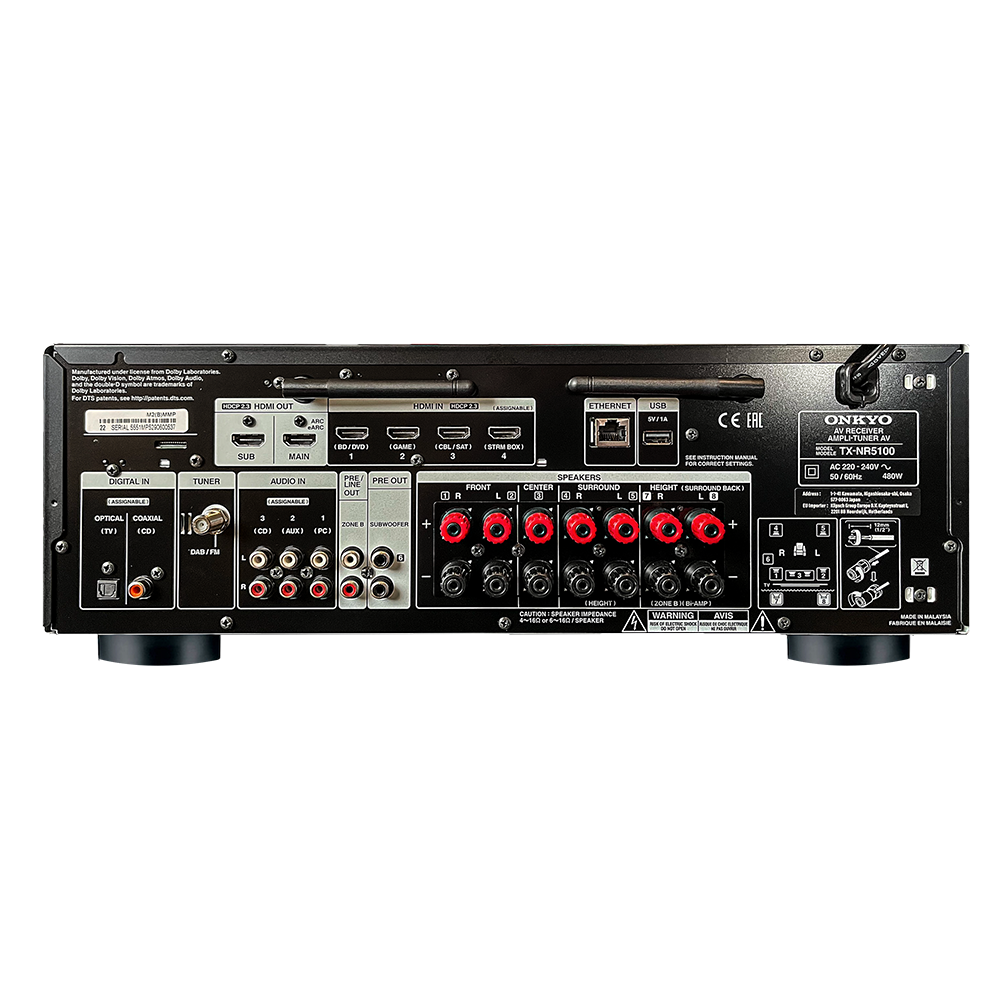

| 4 HDMI inputs and 2 outputs ( Main Out , Sub Out ) | |
| 2 digital audio inputs ( optical and coaxial, assignable ) | |
| 3 analog RCA audio inputs ( assignable ) | |
| 3.5 mm mic input for AccuEQ setup | |
| 6.35 mm headphone jack | |
| 2 subwoofer pre-outs | |
| Zone B analog RCA pre / line-level out | |
| Banana-plug-ready ( Front L/R / C/SL/SR/HL/HR ) speaker posts | |
| 10BASE-T/100BASE-TX Ethernet terminal for network connection | |
| USB input ( DC5 V / 1A ) for audio playback ( rear ) |
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM preset memory | 40 stations |
| DAB+ | 174.928 MHz–239.2 MHz |
| (B) | 889951003564 |
| Dimensions (W x H x D) | 20 11/16˝ x 9 7/16˝ x 15 15/16˝ (525 x 240 x 405 mm) |
| Weight | 23.1 lbs (10.5kg) |
| Indoor FM antenna | ✓ |
| AM loop antenna | ✓ |
| Speaker setup microphone | ✓ |
| Quick Start Guide | ✓ |

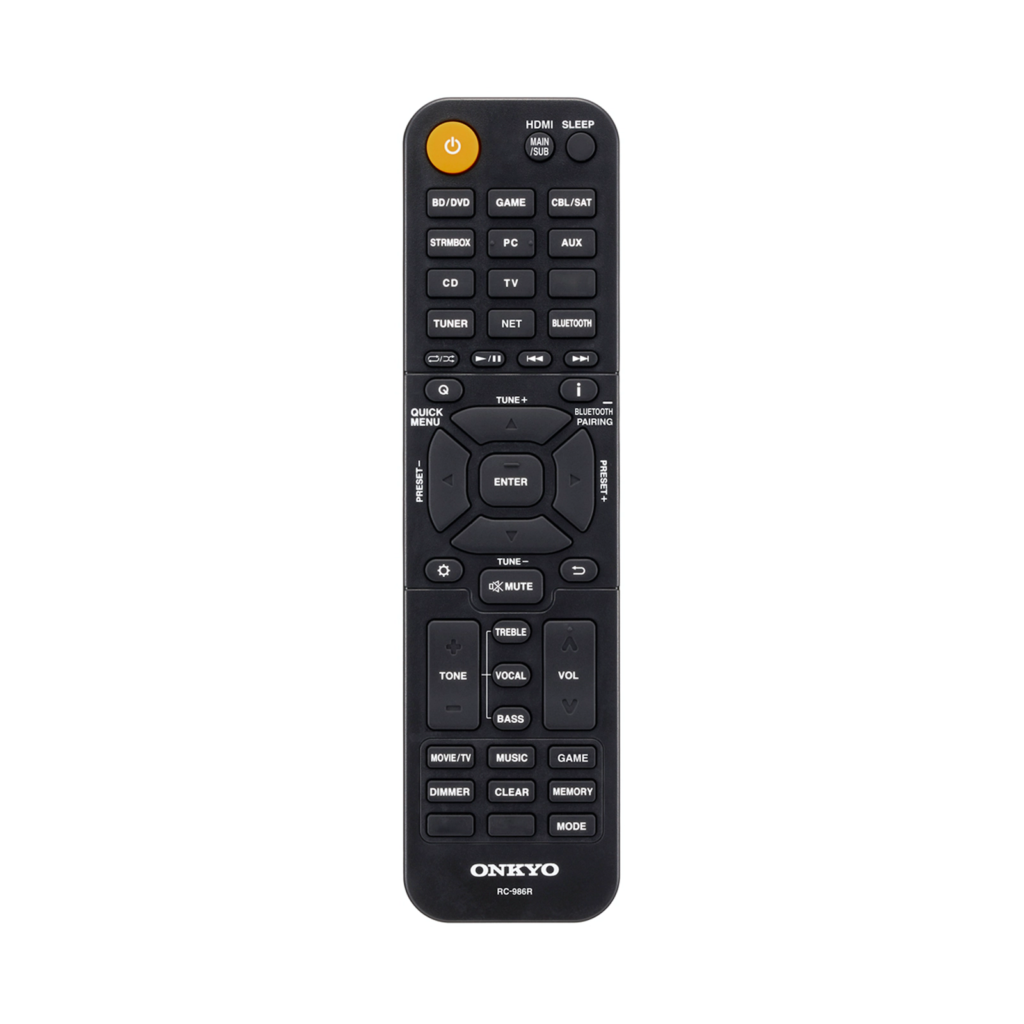

| Remote control | ✓ |
| Two AAA (R03) batteries | ✓ |
Downloads
Additional information
| Brand | Onkyo |
|---|---|
| Colour | Black |
| Amplifier Connectivity | 7 Channel, Optical, HDMI, Network Port, Dolby Atmos |
