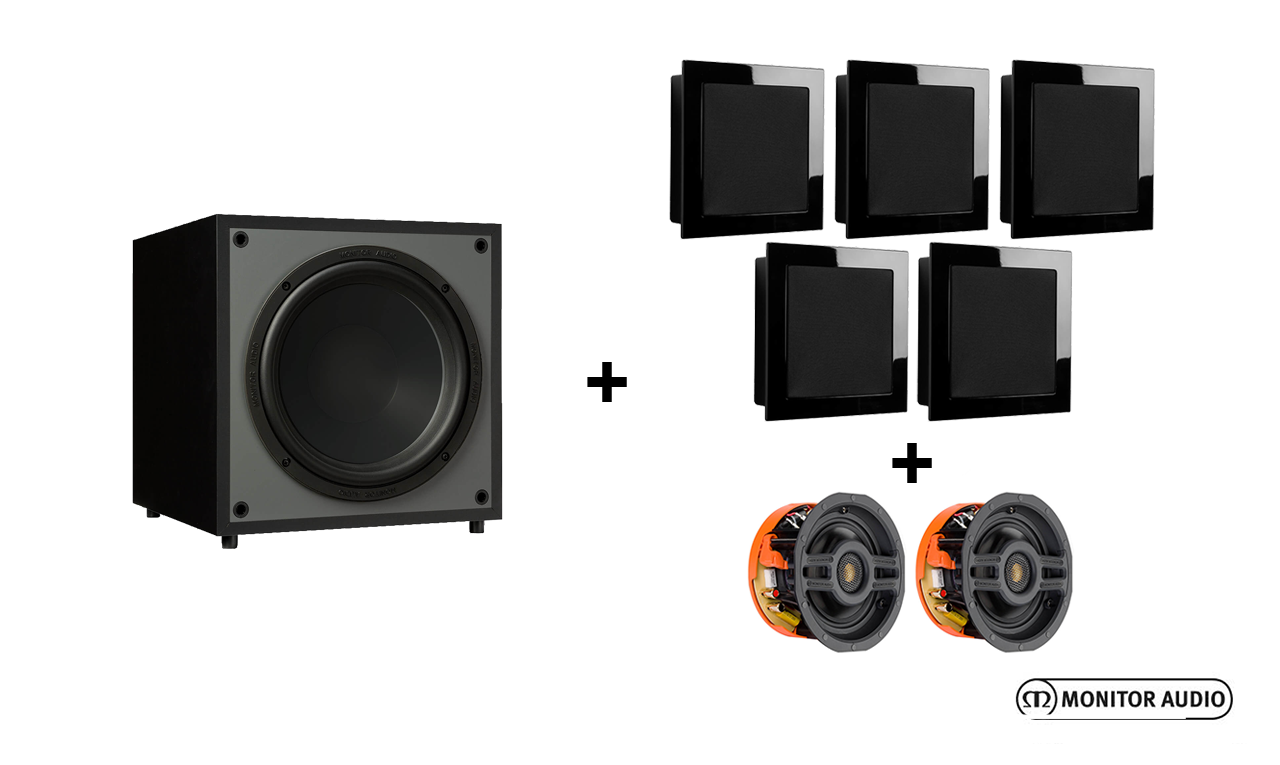

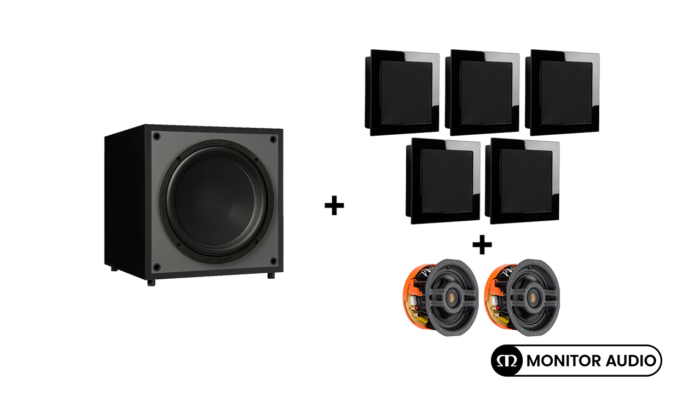

5.1.2 Atmos Speaker Package – Monitor Audio SoundFrame 3, CS140S & MRW-10 Sub – Black

2,628

Five ultra slim, award winning wall mounting speakers for left, centre, right and surround and two ceiling speakers for Atmos. Combined with a powerful yet compact 10″ subwoofer.

SEND EMAIL QUERY

Description

SoundFrame 3 On-Wall. "Picture Frame" Speakers

The SoundFrame series consists of three sizes of speakers that complement any room. SoundFrame 3 On-Wall is the most compact speaker of the three. The SoundFrame series are supplied in black or white with a high gloss finish frame and plain speaker cloth grille. the grilles can be replaced with an optional picture grille. The picture can be custom printed, turning these speakers into beautiful picture frames.

The SoundFrame 3 On-Wall has a pivoting 1-inch tweeter module and a 4-inch C-CAM driver. The pivoting tweeter allows you to place the left right and center speakers above the TV and aim the tweeters downwards towards the seated listener.

This model is currently available on demonstration at our showroom. You are welcome to visit us for an audition of this amazing speaker. Our showroom staff will gladly assist with more information and guidance on speaker placement.

Full SoundFrame Series Brochure​

SoundFrame 3 On-Wall Features

Key Features

  • Quick and easy installation.
  • Slender 87 mm (3.5″) cabinet depth.
  • Choice of high gloss white or black lacquer frames.
  • SoundFrame 3: 2-way configuration: a pivoting 1-inch tweeter module with a 4-inch C-CAM driver.
  • High frequency attenuation +- 3 dB.
  • Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.
SoundFrrame3_ProductImage

CS140

The CS140 in-ceiling model features a proprietary 4-inch MMP II cone and a pivoting version of our acclaimed C-CAM Gold Dome tweeter.

Engineered for excellent detail resolution and complete with square or round grilles, the CS140S will deliver great sound with super-discreet aesthetics.

Mounting Depth –  99mm

Please specify a round or square grille option when ordering.

Monitor MRW-10
Subwoofer

The Monitor MRW-10’s rigid cabinet is made from 18 mm thick MDF and accommodates a 10″ long-throw MMP II bass driver and a rear port that allows optimal output from the powerful onboard 100 W class D power amplifier.

The Monitor MRW-10 boasts an array of features dedicated to optimizing a home theatre system. There are three pre-set EQ mode settings (Music, Movie, Impact) to offer a level of adjustment for all rooms and tastes, and the controls use an advanced DSP based architecture to provide the ultimate in audio flexibility

Monitor MRW-10 Key Features

Key Features

  • 10″ MMP II long-throw subwoofer driver
  • Rigid MDF cabinet with rear porting
  • Powerful 100 W Class D power amplifier – high efficiency and punchy bass delivery
  • Switch-mode power supply, designed to deliver high continuous rating and provides the instantaneous delivery of high current when required
  • DSP processing with all control features and crossover performed in the digital domain
  • Three pre-set EQ mode settings. Music / Movie / Impact
  • 12 V trigger – provides switching control from AV amp, processor, or home automation control system
  • 18 mm thick MDF construction

Specifications

SoundFrame 3 On-Wall

Frequency Response
75 Hz — 35 kHz

Sensitivity (1W@1M)
86 dB

System Configuration
2-Way

Drive Unit Complement
1 x 4″ C-CAM mid-range driver
1 x 1″ pivoting Gold Dome tweeter

Power Handling (RMS)
50 W

Maximum SPL
102.5 dBA

Recommended Amplifier Requirements
25 — 50 W

Bass Alignment
Ported Box

Nominal Impedance
8 ohms

Crossover Frequency
3.2 kHz

Dimensions (Including Frame (H x W x D))
289 x 289 x 77.5 mm (113/8 x 113/8 x 3″)

Depth From Wall
77.5 mm (3″)

Weight (packaged)
2.76 kg (6 lbs)

Sold As
Single Unit

CS140

Frequency Response
75 Hz — 30 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
85 dB

Maximum SPL
102.8 dBA

Power Handling (RMS)
50 W

Recommended Amplifier Requirements
10 – 50 W

Drive Unit Complement
1 x 4″ MMP II cone bass driver.
1 x 1″ (25 mm) C-CAM pivoting Gold Dome tweeter

Acoustic Configuration
2-way

Overall Dimensions (Including Grille (H x W))
Round: 180.2 mm (71/8“)
Square: 176.7 x 176.7 mm (615/16 x 615/16“)

Mounting Depth
99 mm (37/8“)

Cut-Out Hole Diameter
149 mm (57/8“)

Fixing Type
3 position Tri-Grip dog fixings

Connection
Gold plated ‘push’ type terminals

Grille Attachment
Magnetic

Construction Material
Mineral filled ABS, RoHS compliant

Weight
1.18 kg (2 lb 10 oz)

Pre-Construction Bracket
CB4 Pre-Construction Bracket (Pink)

Back Box
CCBOX-R

Sold As
Single Unit


Monitor MRW-10

System Format
Rear ported bass reflex cabinet

Lower Frequency Limit
30 Hz (-6 dB)

Upper-Frequency Limit
Variable 50 – 120 Hz @ 24 dB/Octave

Amplifier Output
100 W RMS

Amplifier Classification
Class D with Switch mode PSU

Bass EQ Profiles
Music / Movie / Impact

Phase Control
0 – 180°

Auto-Sensing
>3.5 mV

Input Level Requirements
Standby after approximately 15 minutes if no signal is sensed

Drive Unit Complement
1 x 10″ MMP II long-throw driver

Input Impedance
>20 K ohms

Mains Input Voltage
110 – 120 Vac – 50 – 60 Hz
220 – 240 Vac – 50 – 60 Hz. Selectable

Fuse Specification
110 – 120 VAC – T4AL/250VAC
220 – 240 VAC – T4AL/250VAC

Connection
2 x Stereo RCA, 1 x LFE RCA connection
12 V trigger (3.5 mm mono mini-jack)

External Dimensions (Including Grille and Feet (H x W x D))
336 x 320 x 350.6 mm (131/4 x 125/8 x 1313/16“)

Standby Power Consumption
<0.5 W standby

Weight
10.54 kg (23 lb 4 oz)

Sold As
Single Unit

Full Monitor Series Brochure​

Additional information

Brand

Monitor Audio

System Configuration

5.1.2 Surround

Colour

Black
