Original price was: €399.€329Current price is: €329.
In stock

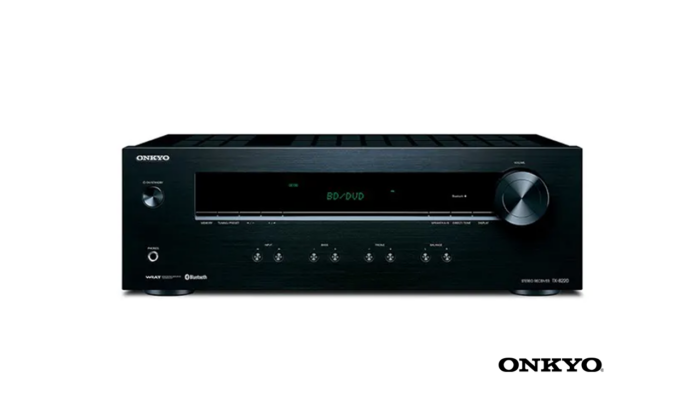

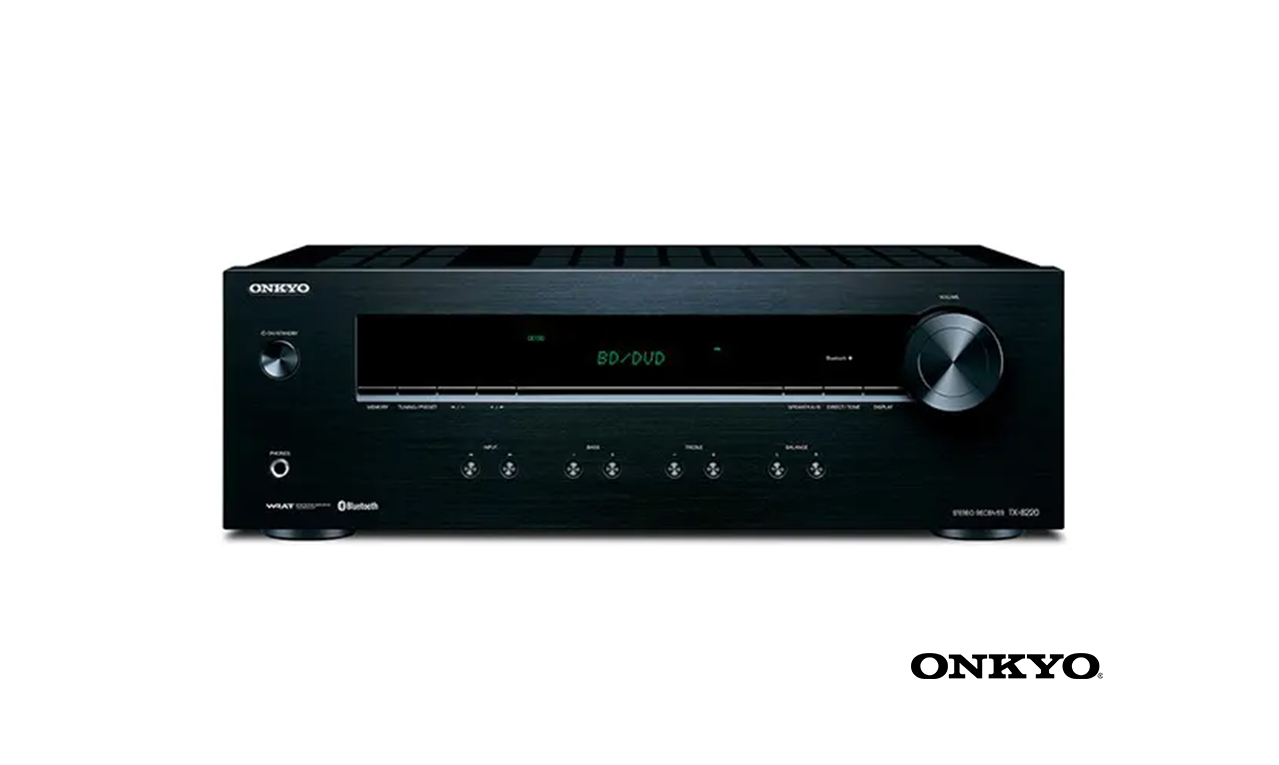

Great sounding powerful stereo receiver – 2 x 45w (into 8 ohms 2 channel driven), Bluetooth, optical input for TV, digital input for CD, DAB+ , built in MM phono equalizer for turntable record player, four analog line-level inputs for everything else, headphones output, remote control.
In stock
Universal connectivity meets pure analog amplification in a simple hub that sounds a whole lot better than its modest price suggests. All the essentials are covered with digital audio inputs for TV and BD/DVD player connection, along with an MM phono equalizer, four analog line-level inputs for CD player and everything else.
Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.
| Power Watts/Ch (6 Ohms 1kHz, 2 Ch Driven, FTC) | 100, 0.10% THD |
| Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) | 45, 0.08% THD |
| Dynamic Power | 140 W (3 Ohms, Front) 120 W (4 Ohms, Front) 80 W (8 Ohms, Front) |
| WRAT (Wide Range Amplifier Technology) | ✓ |
| H.C.P.S. (High Current Power Supply) | – |
| Non-Phase-Shift Amp Design | ✓ (for Realistic Sound Imaging) |
| 6 Ohm Capable | ✓ |
| 4 Ohm Capable | ✓ |
| Direct/Pure Mode | ✓/- |
| 384K/32 Bit DACs | – |
| 192K/24 Bit DACs | ✓(PCM1754)) |

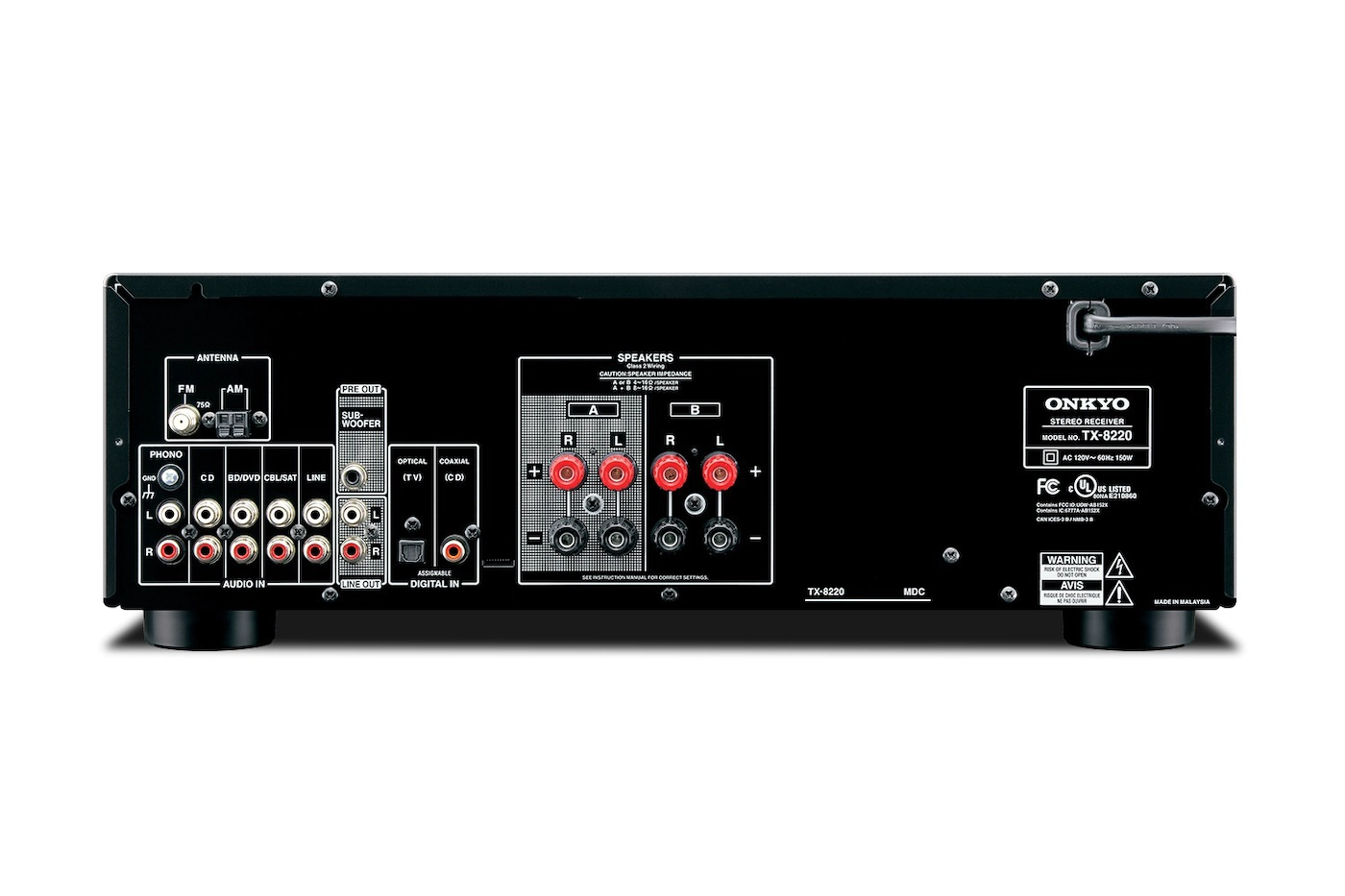

| Audio Input/Output | 4/1 |
| Phono Input | ✓ |
| Digital Audio IN (Opt/Coax) | 1/1 |
| Auto Power On When Signal is Detected | – |
| Zone 2 Line Out | – |
| Zone 2 Digital to Analog Audio Conversion | – |
| Speaker A/+B | ✓ |
| Subwoofer Pre-out | ✓ |
| Headphone Jack | ✓ |
| Bluetooth | ✓ (Version 4.1, A2DP/AVRCP) |
| Internet Radio Capable | – |
| Spotify Connect Support | – |
| Streaming Audio From PC / Network | – |
| Hi-Res Streaming Audio Formats | – |
| Supports Onkyo Remote App | – |
| Wireless Network | – |
| USB Input | – |
| AirPlay | – |
| Firmware Updates via Network/USB | ✓ |
| Quick Access BGM Presets | – |
| Number of AM/FM Presets | 40 |
| Preset Station Naming | ✓ |
| Direct Access Tuning | ✓ |
| Automatic/Manual Tuning | ✓ |
| Sleep Timer | ✓ |
| IR Input | – |
| IR Output | – |

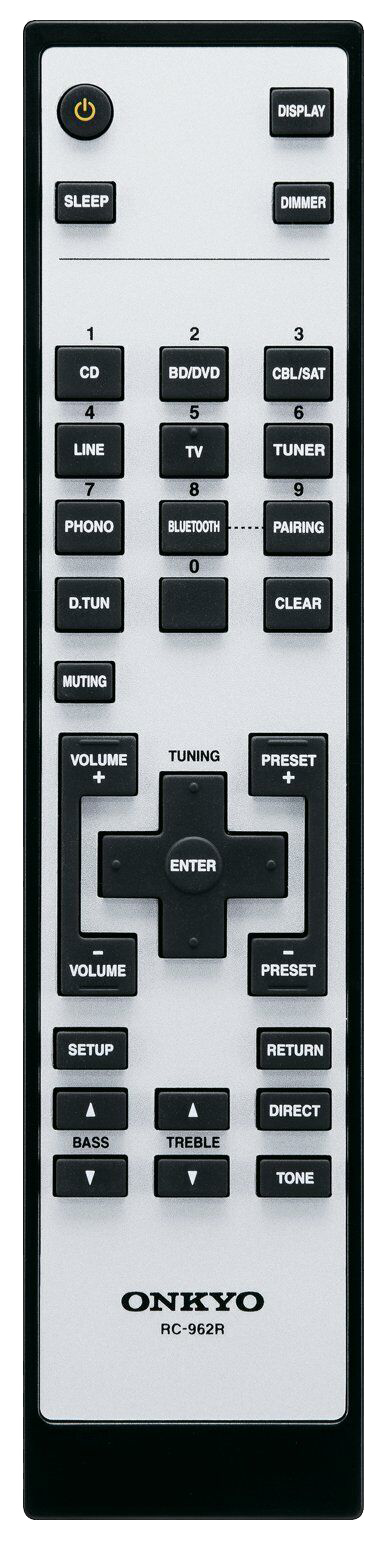

| RI-Compatible Remote Control | ✓ |
| Warranty | 2 YEARS |
(W x H x D) 17 1/8″ x 5 7/8″ x 12 15/16″ (435 x 149 x 328 mm)
| Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) | 45, 0.08% THD |
| Power Watts/Ch (6 Ohms 1kHz, 2 Channel Driven) | 100, 10% THD |
| Dynamic Power | 140 W (3 Ohms, Front) 120 W (4 Ohms, Front) 80 W (8 Ohms, Front) |
| THD + Noise | 0.08 % (20hz-20kHz, Half power) |
| Frequency Response | 10 Hz-100 kHz (+ 1 dB, -3 dB) (Direct Mode) |
| S/N Ratio | 100 dB (IHF-A, Line In, Speaker Out) 93 dB (IHF-A, Phono In, Speaker Out) |
| Phono Overload (1 kHz) | 40 mV (MM, 1 kHz, 0.5%) |
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM Preset Memory | 40 Stations |
| Power Supply | AC 120 V˜, 60 Hz |
| Power Consumption | 2.7 A |
| Standby Power Consumption | 0.4 W |
| No-Sound Power Consumption | 20 W |
| Network Standby Power Consumption | 2.9 W |
| Dimensions (W x H x D) | 17 1/8″ x 5 7/8″ x 12 15/16″ (435 x 149 x 328 mm) |
| Weight | 15.0 lbs. (6.8 kg) |
| Colour | Black |
|---|---|
| Brand | Onkyo |
| Amplifier Connectivity | Bluetooth, Optical, HDMI, Aux-In, Network Port, Wi-Fi, USB |
