Plays Audio CD, CD-R, CD-RW, MP3 CD, & WMA CD, Wolfson 192 kHz/24-Bit DAC, VLSC (Vector Linear Shaping Circuitry)

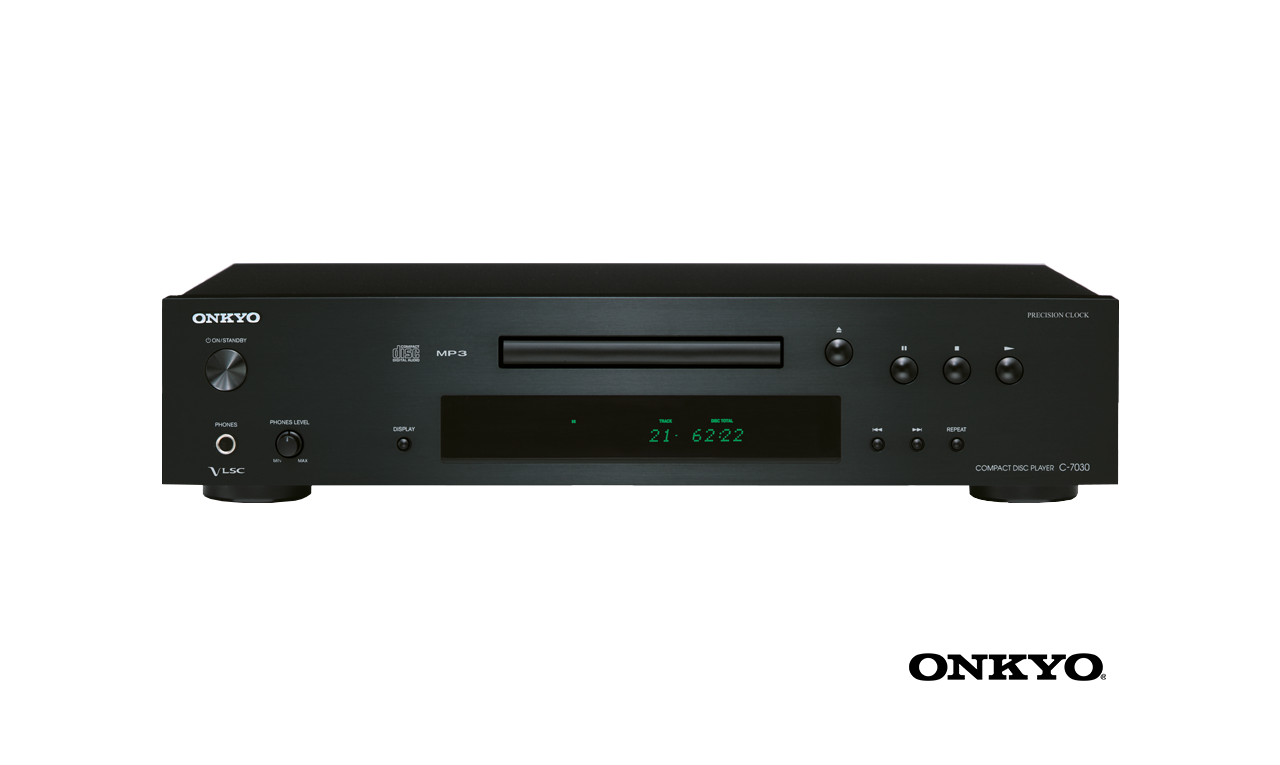

Onkyo C-7030 Compact Disc Player
Stunning Fidelity from a Stylish and Affordable CD Player
For music lovers who enjoy the tangible experience of playing a physical format, the CD retains its enduring appeal. The pleasure comes not just from browsing a collection of discs and reading the liner notes.
It also comes from enjoying your music in superior fidelity. By combining high-quality components and decades of Onkyo audioknow-how, the C-7030 CD player delivers a superb playback experience.
The key lies in keeping the audio signal clean and free from interference, all the way to the output stage. To achieve this, we employ a new high-precision clock to dramatically reduce timing errors, along with our original VLSC™ to reduce pulse noise. Driving the system is a massive, custom-built transformer that provides a clean and stable power supply.
Given how affordable the C-7030 is, build quality is exceptional. A 1.6 mm-thick flat chassis base helps reduce unwanted vibrations,while the sleek aluminum front panel provides an elegant finish.
VLSC (Vector Linear Shaping Circuitry)
In conventional digital-to-analog conversion methods, it’s impossible to completely remove noise. This noise taints the analog signal and ultimately degrades the sound emitted from your speakers. With Onkyo’s VLSC, though, data is continuously sampled between two discrete points—via a signal comparison generator—and the difference is joined with analog vectors in real time to produce a smooth output waveform. The VLSC digital-to-analog conversion method results in an accurate, virtually pulse noise-free audio signal that faithfully reproduces the acoustic detail and subtle nuances of all your audio sources, and breathes life into digital media.
The C-7030 boasts a precise clocking mechanism that controls and coordinates the timing of all digital signal processes—rather like how a conductor directs and coordinates the individual instruments of an orchestra. The C-7030 uses a state-of-the-art crystal oscillator that achieves a frequency deviation of ±10 ppm—much lower than with a conventional oscillator.
Wolfson 192 kHz/24-Bit DAC
A high-quality Wolfson digital-to-analog converter works to optimize audio performance on the C-7030. This DAC performs advanced 24-bit signal processing and supports sampling rates of up to 192 kHz, while displaying high resistance to clock jitter. With this DAC on board, the C-7030 delivers a pristine conversion of digital signals into analog audio output.
Fully Flat Anti-Vibration Chassis
When it comes to parts and construction, it’s not in Onkyo’s DNA to cut any corners. The C-7030 is no exception. Build quality starts from the ground up with a highly rigid, 1.6 mm-thick, fully flat chassis that provides excellent protection against shelf-borne vibrations.
- Frequency Response 4 Hz–20 kHz/+1 dB, -3 dB (DSP bypass)
- THD (Total Harmonic Distortion)0.0029%
- Signal-to-Noise Ratio 107 dB
- Audio Dynamic Range 100 dB
- Audio Output/Impedance
- Optical -22.5 dBm
- Coaxial 0.5 Vp-p/75 Ω
- Analog 2 V (rms)/600 Ω
- Power Supply AC 220−240 V~, 50/60 Hz
- Power Consumption 12 W
- Dimensions (W x H x D) 435 x 101 x 306 mm
- Weight 5.3 kg
- Dimensions (W x H x D) 564 x 200 x 413 mm
- Weight 7.2 kg
- Instruction manual
- RCA audio cable
- Remote controller
- AAA (R03) batteries x 2
