Audiophile level multi channel amp 110W x 8Ch @ 4 Ohm 55W x 8Ch @ 8 Ohm, input 8 x RCA, Output 8 x five-way binding posts

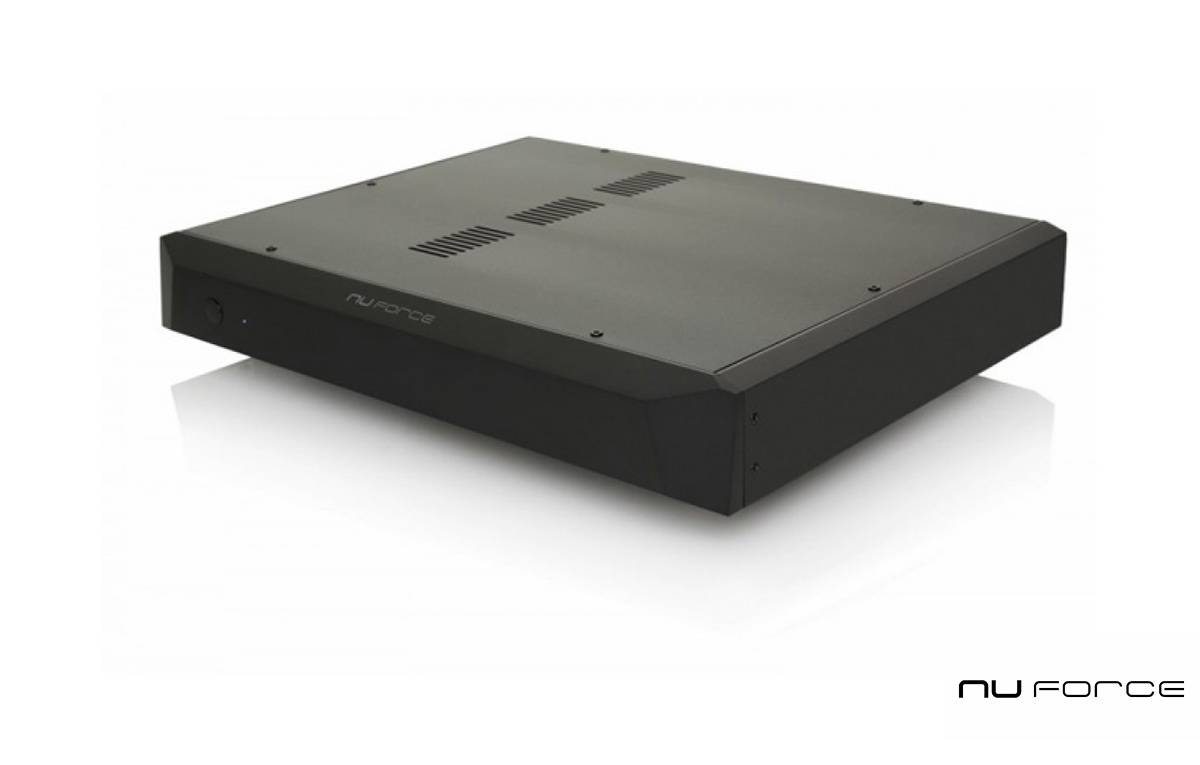

8 channel power amplifier – NuForce MCA18
MCA18 Audiophile multi channel amp – Doneo Malta
The MCA18 multi-channel amplifier offers the audio enthusiast eight channels of premium NuForce sound. Developed as an audiophile-grade alternative to the plethora of consumer-grade amps being offered for Home Cinema applications the MCA20 and MCA18 redresses the balance for those serious about Home Cinema audio quality.
- Premium NuForce amplification
- Ideal partner for the AVP18 digital AV preamp
- 110 Watts per channel (4 Ohms)
- Total 880 Watts of power
The MCA18 multi-channel amplifier offers the audio enthusiast eight channels of premium NuForce sound. Developed as an audiophile-grade alternative to the plethora of consumer-grade amps being offered for home Cinema applications, the MCA18 redresses the balance for those serious about Home Cinema audio quality.
Power and heritage
Designed with the legendary NuForce amplifier heritage and capable of delivering 110 Watts (4 Ohms) to each speaker, the MCA18 will render your movie soundtracks with astounding accuracy. A remarkable combined 880 Watts ensures effortless power delivery to handle the explosive dynamics and the quietest of details.
Tech info MCA18
Utilising high efficiency switching circuitry, a proprietary negative feedback circuit forms the cornerstone of the MCA18’s remarkable sound. A self-resonant design, the 400 kHz PWM high frequency switching constantly adjusts to the input signal, output current demands, and loudspeaker impedance variations, resulting in superb speed and accuracy.
Power output 110W x 8Ch @ 4 Ohm 55W x 8Ch @ 8 Ohm
Peak power output 150W x 8Ch @ 4 Ohm 80W x 8Ch @ 8 Ohm
Input impedance 25k Ohm
Output impedance 2.2K ohm
Gain 23 dB
Frequency response 10Hz – 50kHz
Sensitivity 0.89 V to rated power
Signal to noise ratio > 91 dB
Total harmonic distortion 0.01%
Power supply US 110V. Japan 100V. Canada 220V. EU 230V
Power consumption .44 Watts (Standby) 600W (Maximum)
Output voltage 0dB, 1kHz: RCA 4.0Vrms
Nominal input level 1.38V
Connections input 8 x RCA
Connections output 8 x five-way binding posts
Connections control Trigger
Weight and dimensions
Weight (kg) 6.7
Dimensions (W x D x H) (mm) 432 x 341 x 80
Basic user’s manual
