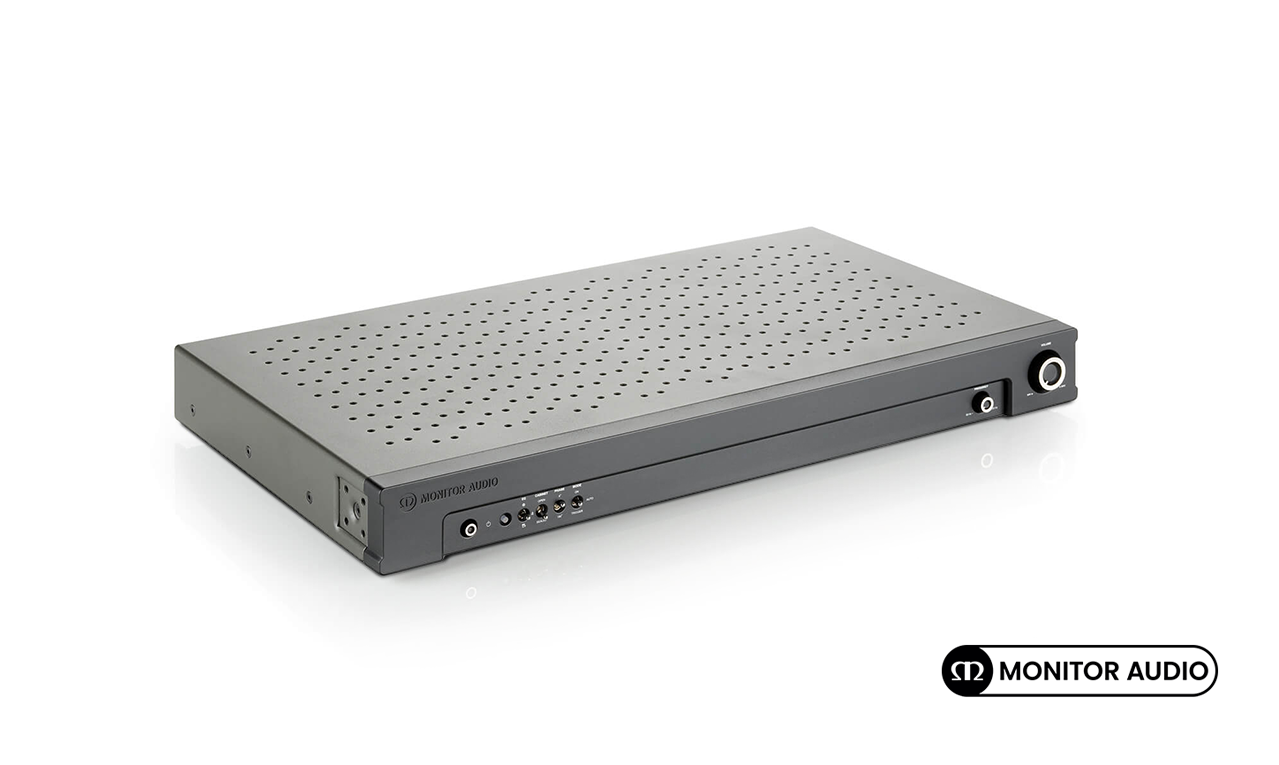

Monitor Audio – IWA-250 – Subwoofer Amplifier

Original price was: €605.Current price is: €499.

In stock

Delivering up to 250 watts into 4 ohms, a single IWA-250 will power single or dual IWS-10’s to provide higher power levels for larger rooms or to meet customer demands.

In stock

Description

IWA-250 - Technology

  • Rigid, high quality steel case
  • Switch mode power supply
  • Class D power amplifier delivering up to 250 watts into 4 ohms (dual IWS-10 drivers)
  • High efficiency design resulting in cool running – low thermal output
  • DSP controlled with advanced limiters
  • <0.5watt standby power consumption (ErP certified)
  • DC short circuit protection, over-current and thermal protection

Technical specifications

System Format
Active sub-woofer amplifier

Lower Frequency Limit
25 Hz

Upper Frequency Limit

Variable 40 – 120 Hz @ 24 dB/Octave

Amplifier Outpu
250 W @ < 1% THD+N

Drive Unit Complement
4 – 8 ohms

Amplifier Classification
Class D amplifier with Switch mode power supply (SMPSU)

Cabinet Suppor
For use when using the dedicated back box

EQ
Music/ Movie/ Impact

Phase Contr
0 & 180 degree

Auto Sensing
Line Level > 3.5mV

Input Level Requirement
Standby after approximately 15 minutes if no signal sensed

Input Impedance
> 20K ohms
Mains Input Voltag
AC 110 – 120 V ~ 50/60Hz AC 220 – 240 V ~ 50/60Hz (Factory Region Preset)

Dimensions (H x W x D)
43.7 x 432 x 263 mm (13/4 x 17 x 103/8)

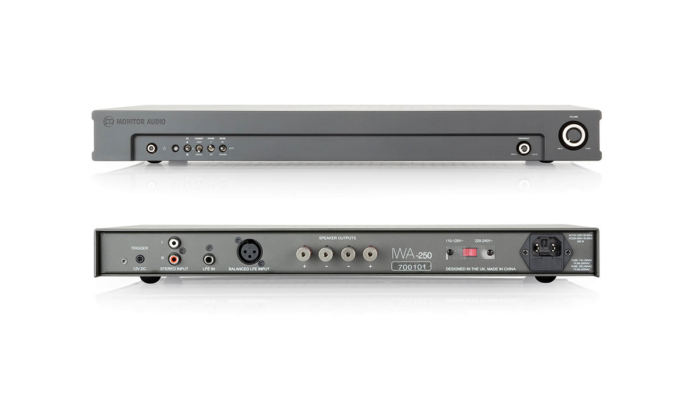

Connection
LFE in (Stereo RCA and Balanced), 12v Trigger in (3.5 mm mono mini-jack), left and right speaker output


Trigger Input
5 – 12v via 3.5 mm mono mini-jack socket
Power Consumptio
Standby: < 0.5 W (ErP approved) Typical Idle: < 10 W Max Rated: 200 W

Weight (unpacked)
4 kg (8 lb 12 oz)

Sold As
Single Unit
System Format
Active sub-woofer amplifier

Lower Frequency Limit
25 Hz


Upper Frequency Limit

Variable 40 – 120 Hz @ 24 dB/Octave

Amplifier Outpu
250 W @ < 1% THD+N



Drive Unit Complement
4 – 8 ohms

Amplifier Classification
Class D amplifier with Switch mode power supply (SMPSU)

Cabinet Suppor
For use when using the dedicated back box
EQ
Music/ Movie/ Impact



Phase Contr
0 & 180 degree



Auto Sensing
Line Level > 3.5mV



Input Level Requirement
Standby after approximately 15 minutes if no signal sensed

Input Impedance
> 20K ohms

Mains Input Voltag
AC 110 – 120 V ~ 50/60Hz AC 220 – 240 V ~ 50/60Hz (Factory Region Preset)

Dimensions (H x W x D)
43.7 x 432 x 263 mm (13/4 x 17 x 103/8)

Connection
LFE in (Stereo RCA and Balanced), 12v Trigger in (3.5 mm mono mini-jack), left and right speaker output

Trigger Input
5 – 12v via 3.5 mm mono mini-jack socket

Power Consumptio
Standby: < 0.5 W (ErP approved) Typical Idle: < 10 W Max Rated: 200 W

Weight (unpacked)
4 kg (8 lb 12 oz)

Sold As
Single Unit


Additional information

Brand

Magnat

Product Type

Power Amplifier
