Monitor Audio Creator Series C1M in-ceiling Medium

375

In stock

The Tier 1 in-ceiling speaker has a C-CAM mid-bass driver and tweeter. It’s 212 mm wide, and comes with a Quik-Link speaker cable connector, and Tri-Grip II for simpl and, strong installation.

In stock

Description

C1M

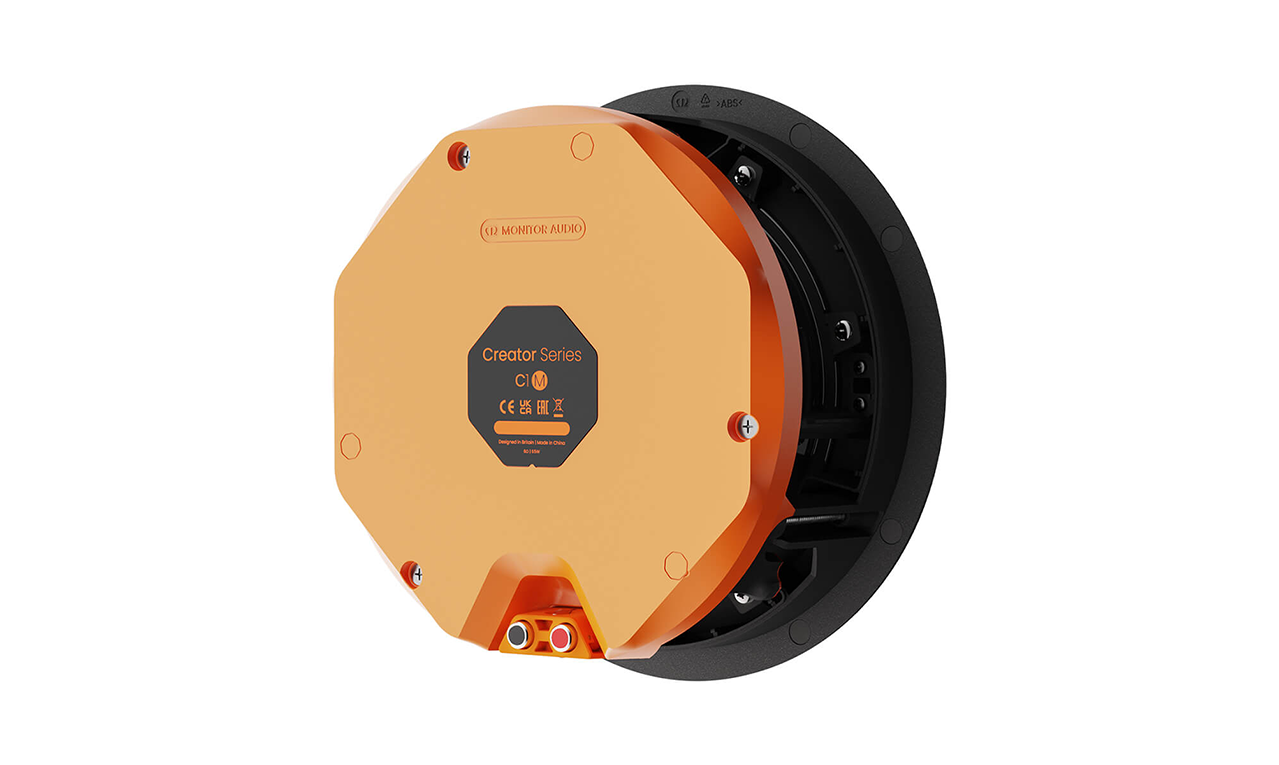

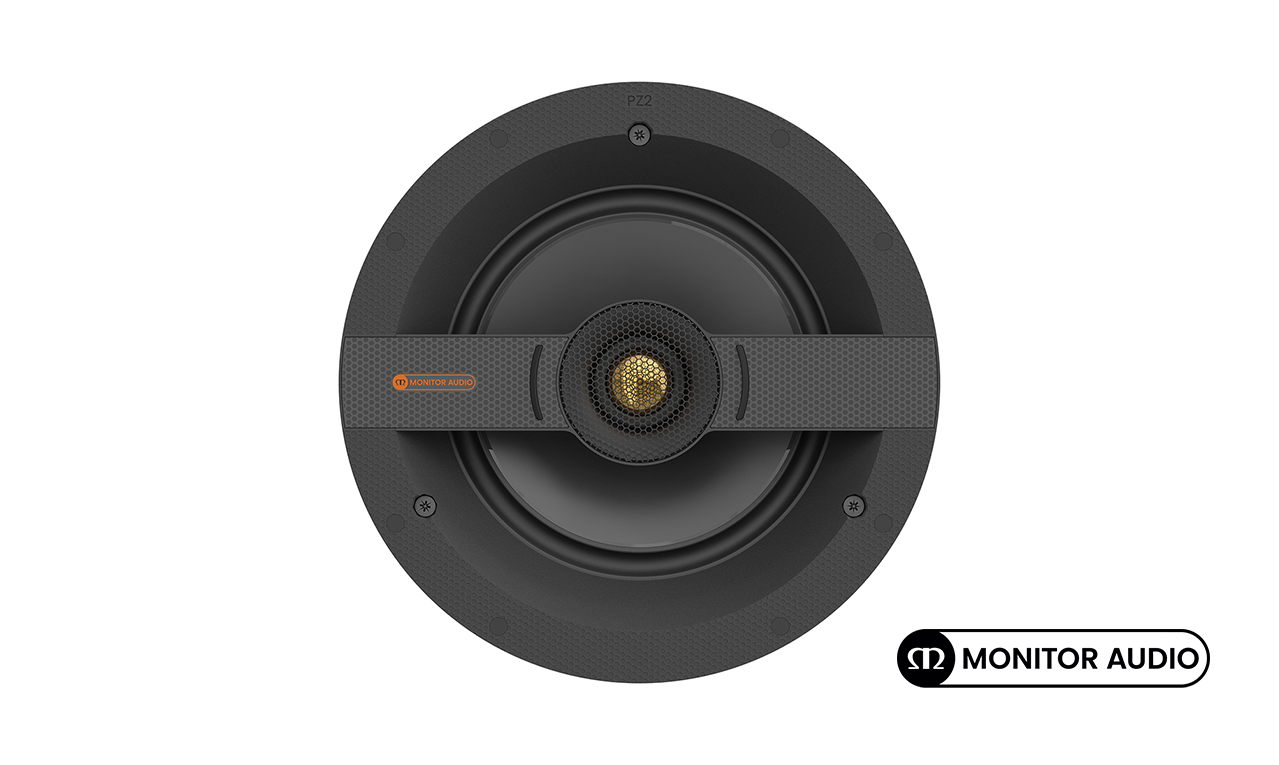

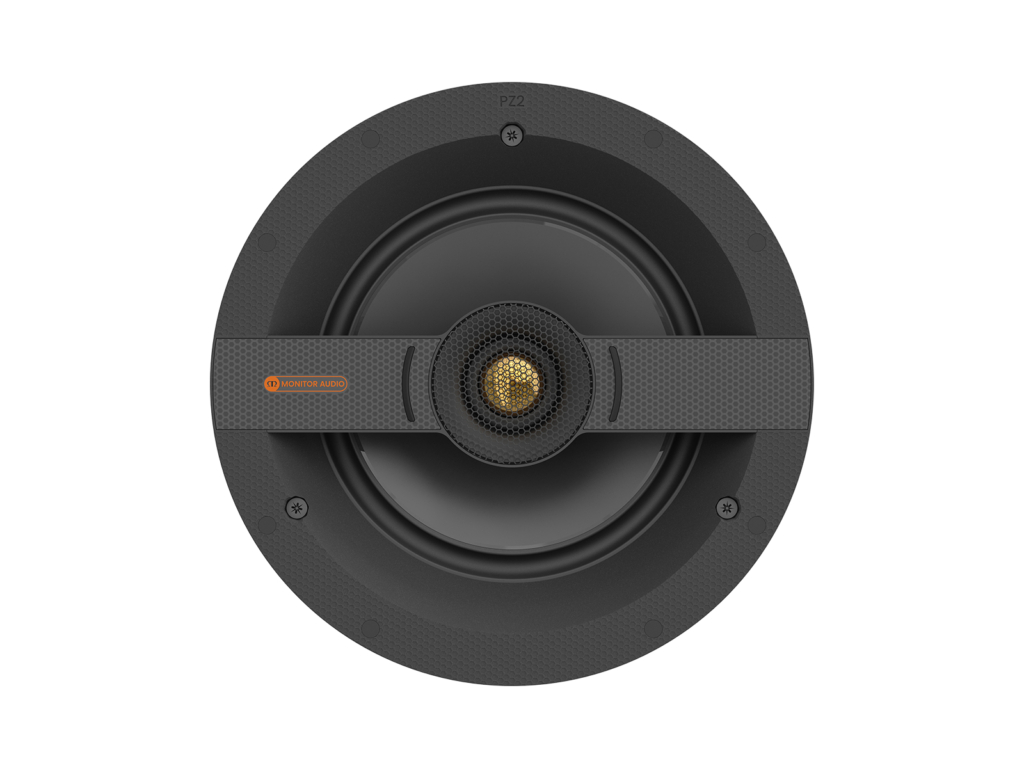

This medium Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 212 mm, a revolutionary patented Quik-Link speaker cable connector, and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

Previous slide
Next slide

This medium-sized Tier 1 in-ceiling loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance are required. It is a two-way model featuring a C-CAM mid-bass driver and a C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 212 mm and uses the patented Quik-Link speaker cable connecter, which revolutionizes the ease and speed of speaker installation. Tri-Grip has also evolved for simple, reliable, and strong fitment.

Optional square or premium grille can be used with this model.

Specification

System Format
2–Way

Channels
1

Frequency Response, Installed (-6dB)
35 Hz – 30 kHz​

Nominal Impedance
8 ohm

Minimum Impedance (20Hz to 20kHz)
6.5 Ohm @ 150 Hz

Sensitivity (2.83Vrms@1m, Installed)
86 dB

Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
113 dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
65 W

Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
35 – 130 W

Drive Unit Complement
1 x 7″ (178 mm) C-CAM mid-bass driver
1 x 1″ (25 mm) C-CAM tweeter

Crossover Frequency
LF/HF: 2 kHz

Mounting Depth
99 mm (37/8″)

Cut-Out Hole Diameter
212 mm (83/8″)

External Dimensions (Including Grille (H x W x D))
242 x 242 x 103​ mm (91/2 x 91/2 x 44/16″)

Weight (each)
1.9 kg (4 lb 3 oz)

Pre-Construction Bracket
CM-B

Cabinet Finish
Matt black & Orange​

Sold As
Single Unit

Additional information

Brand

Monitor Audio

Speaker Type

Ceiling
