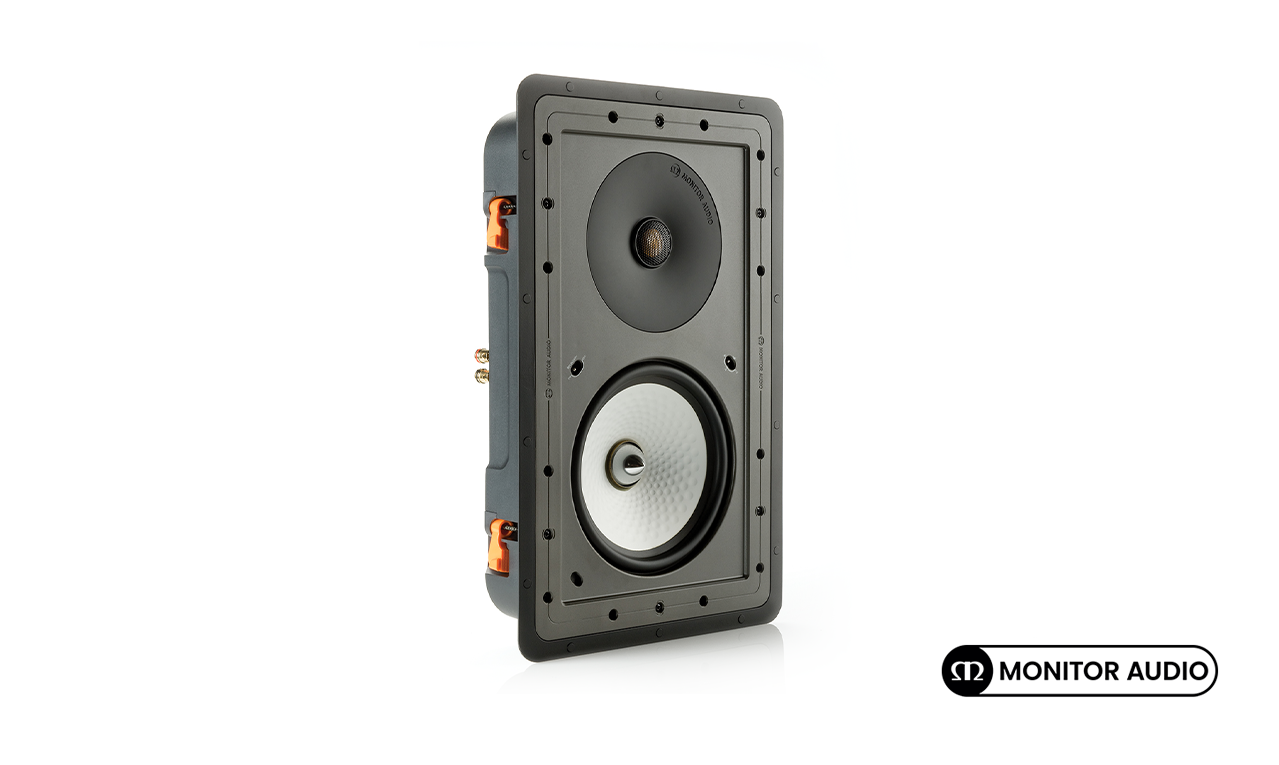

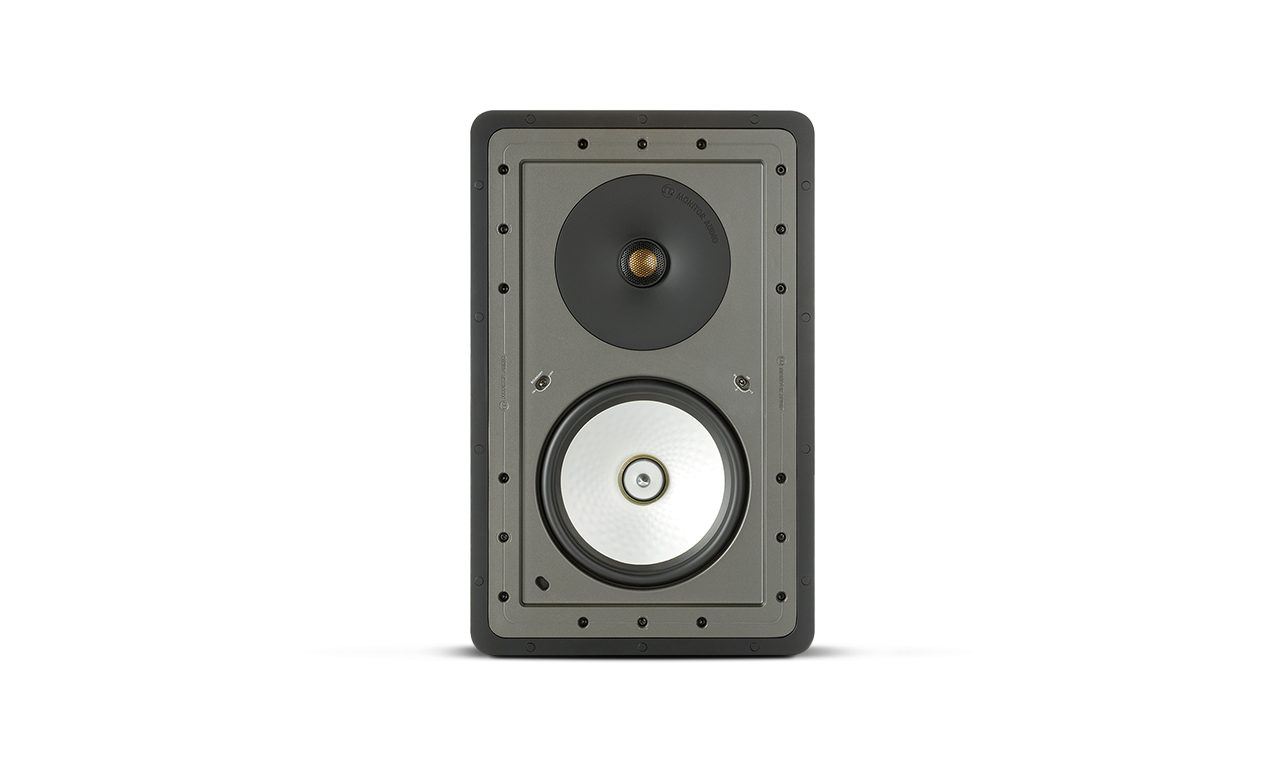

Alongside a pivoting C-CAM tweeter, the CP-WT380 model introduces a powerful 8″ C-CAM bass driver featuring the Rigid Surface Technology (RST) cone surface employed by our range-topping home audio speaker systems.
Monitor Audio – CP-WT380 – IN WALL SPEAKER
Original price was: €605.€399Current price is: €399.
In stock
In stock
Description
CP-WT380 - Technology

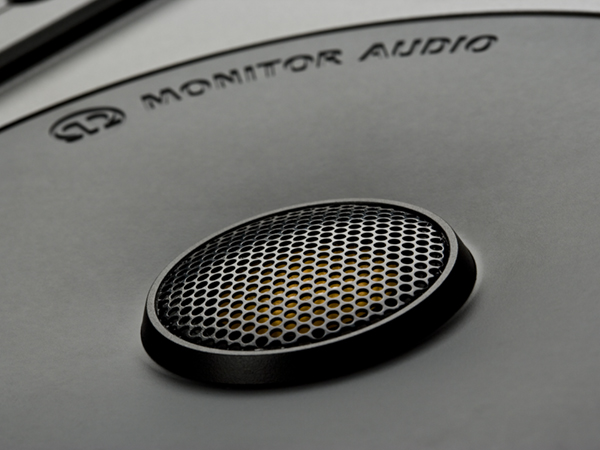

- Pivoting C-CAM Gold Dome tweeter.
- C-CAM bass driver featuring Rigid Surface Technology (RST).
- High overall efficiency.
- High frequency level adjustment (+/-3 dB).
- Boundary compensation controls.

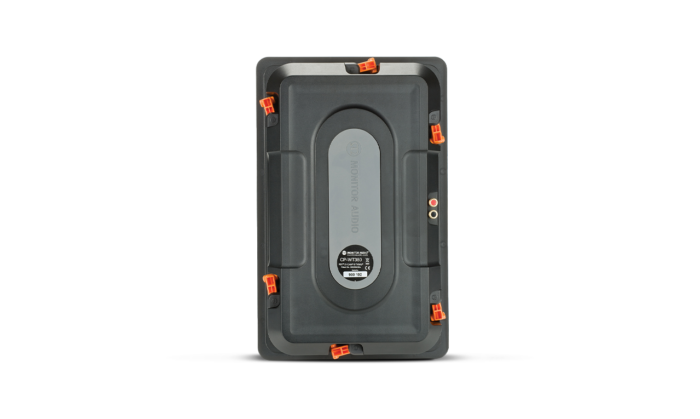

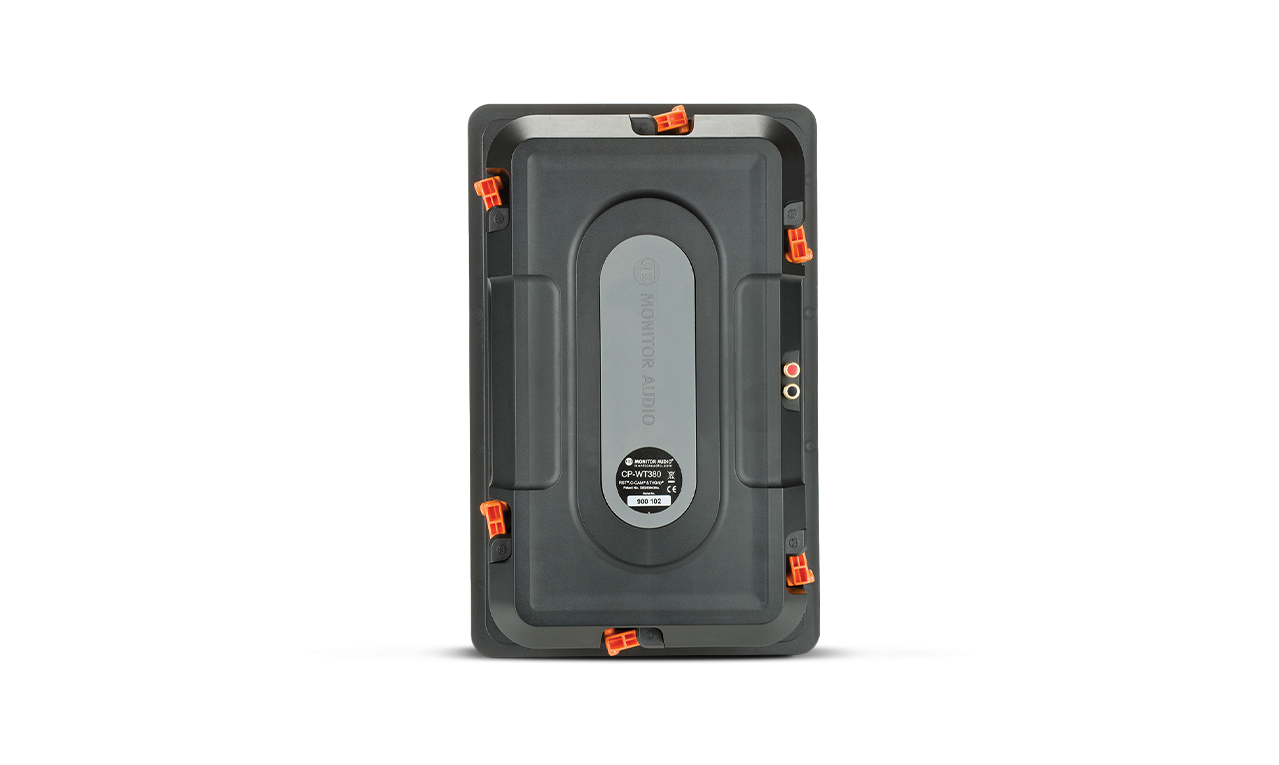

- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

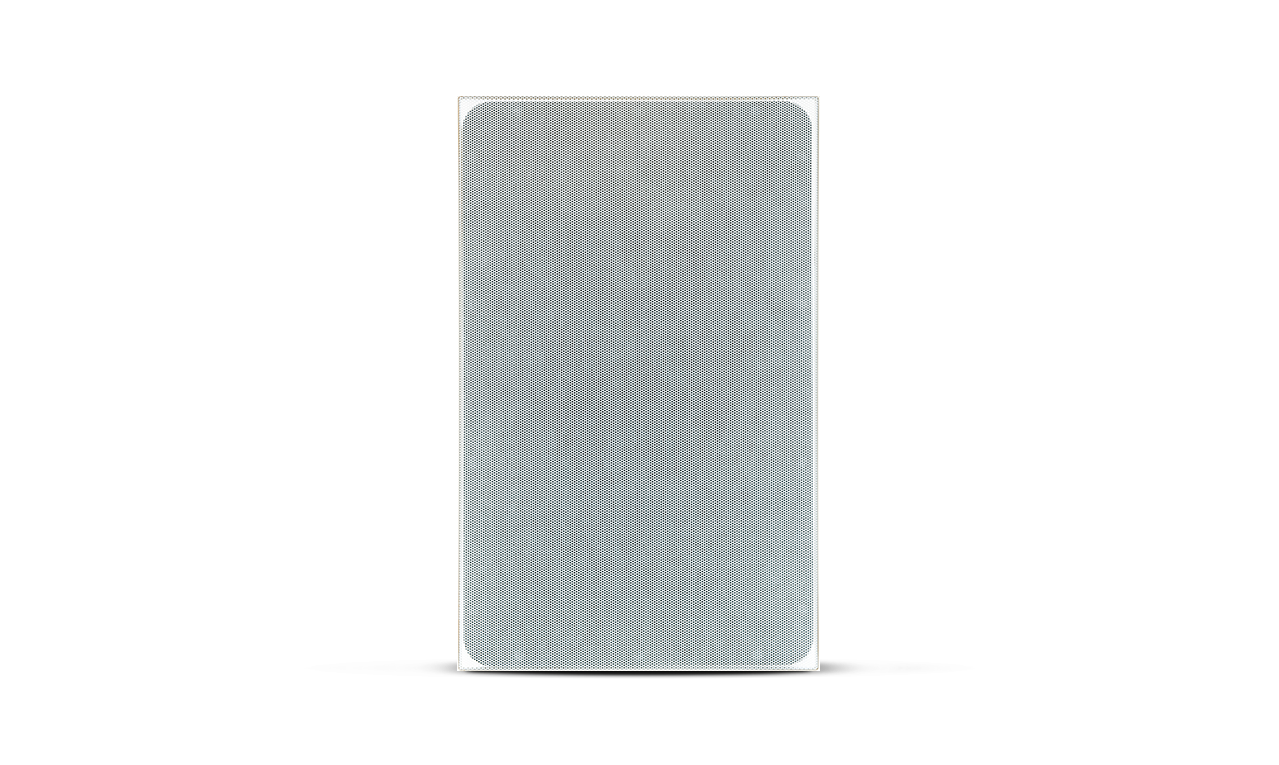

- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Technical specifications
Frequency Response
50 Hz – 25 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
89 dB
Maximum SPL
109.6 dBA
Power Handling (RMS)
120 W
Recommended Amplifier Requirements
30 – 120 W
Crossover Frequency
2.5 kHz @ 12 dB / Octave
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Dimensions (H x W x D)
472.5 x 303.5 mm (185/8 x 1115/16“)
Overall Depth (Including Grille)
106 mm (43/16“)
Cut-Out Dimensions
438 x 269 mm (171/4 x 109/16“)
Mounting Depth
99 mm (37/8“)
Fixing Type
6 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled ABS Plastic (RoHS2 Compliant)
Weight
4.95 kg (10 lb 14 oz)
Pre-Construction Bracket
WB10 Pre-Construction Bracket (Light Brown)
Sold As
Single Unit
Additional information
| Brand | Monitor Audio |
|---|---|
| Speaker Type | In-Wall |
