True 3-way design features an 8-inch C-CAM bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.

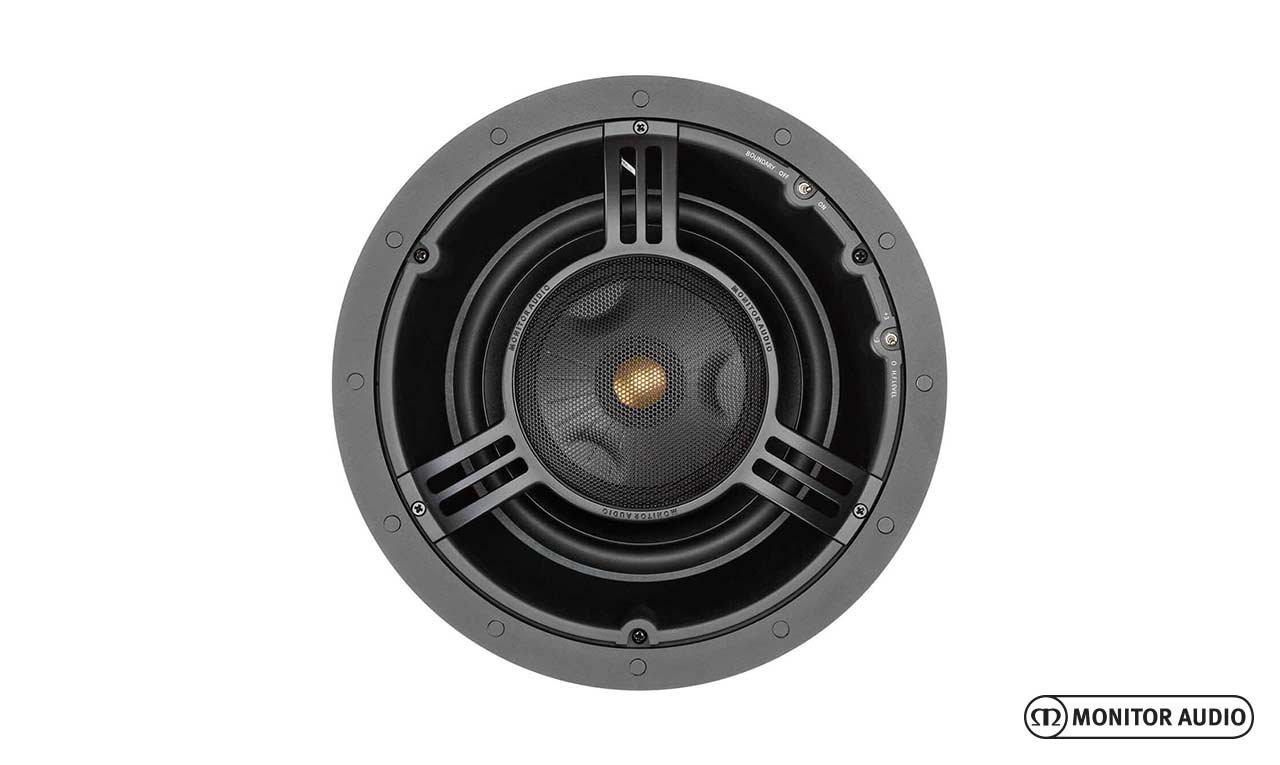

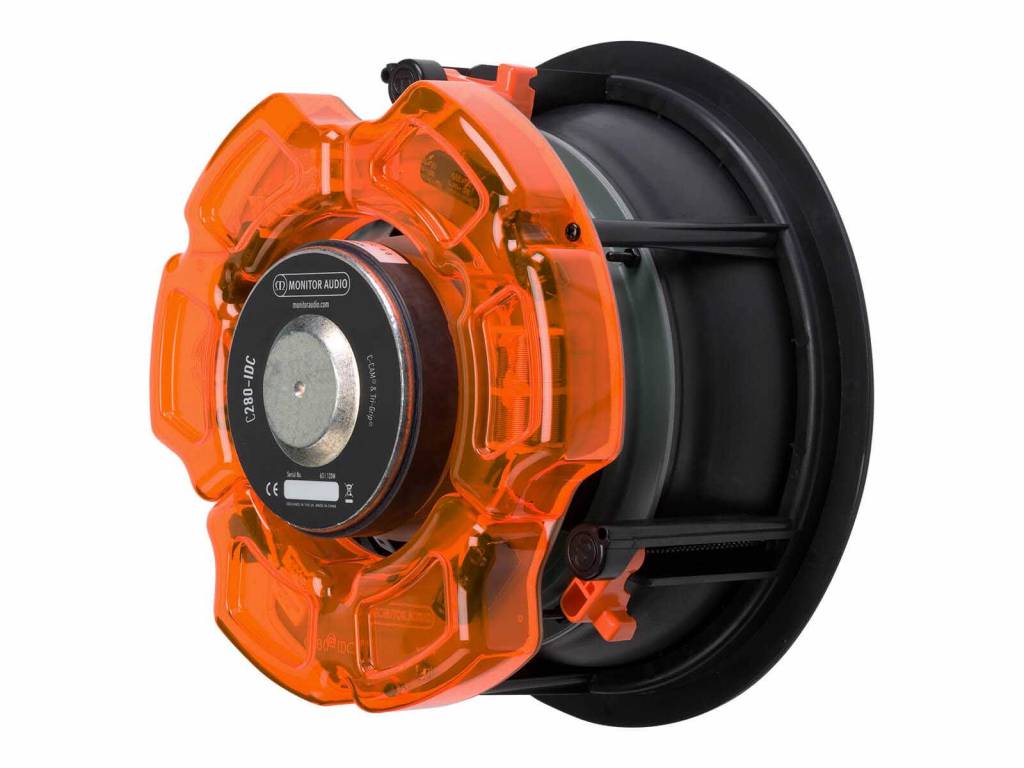

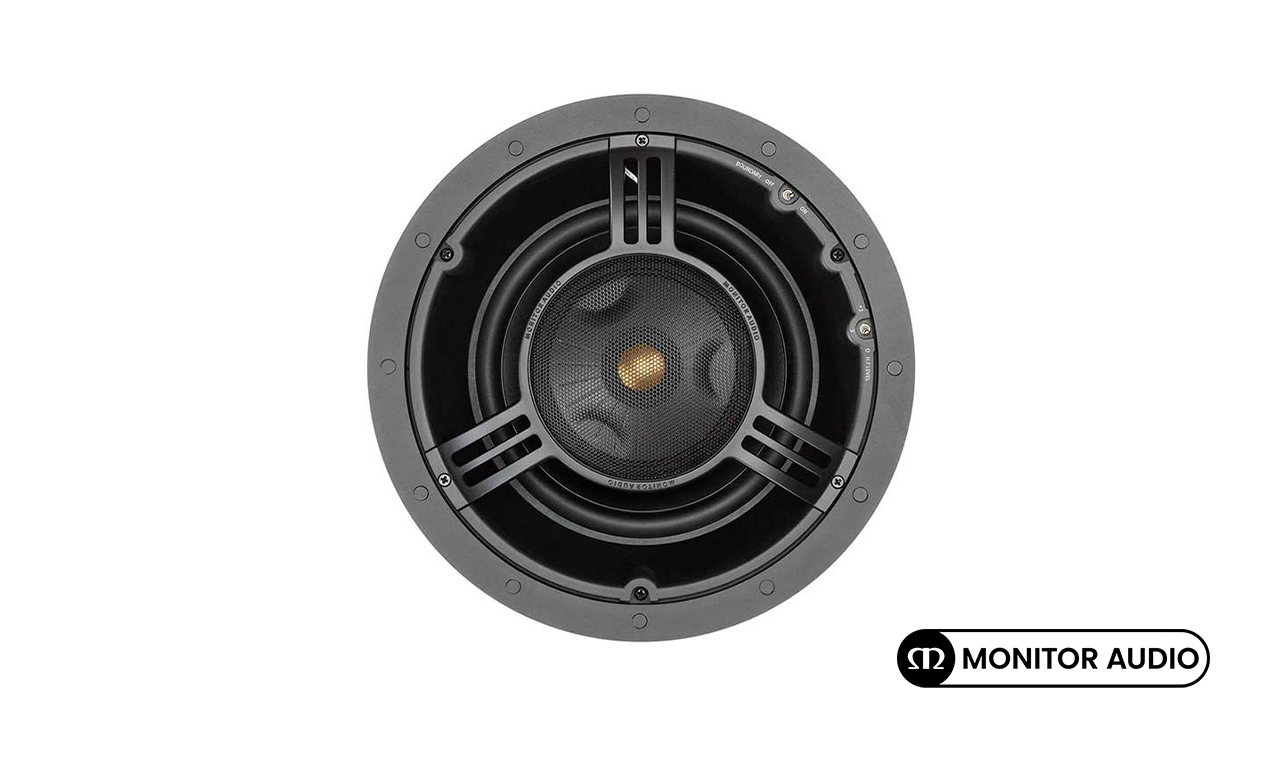

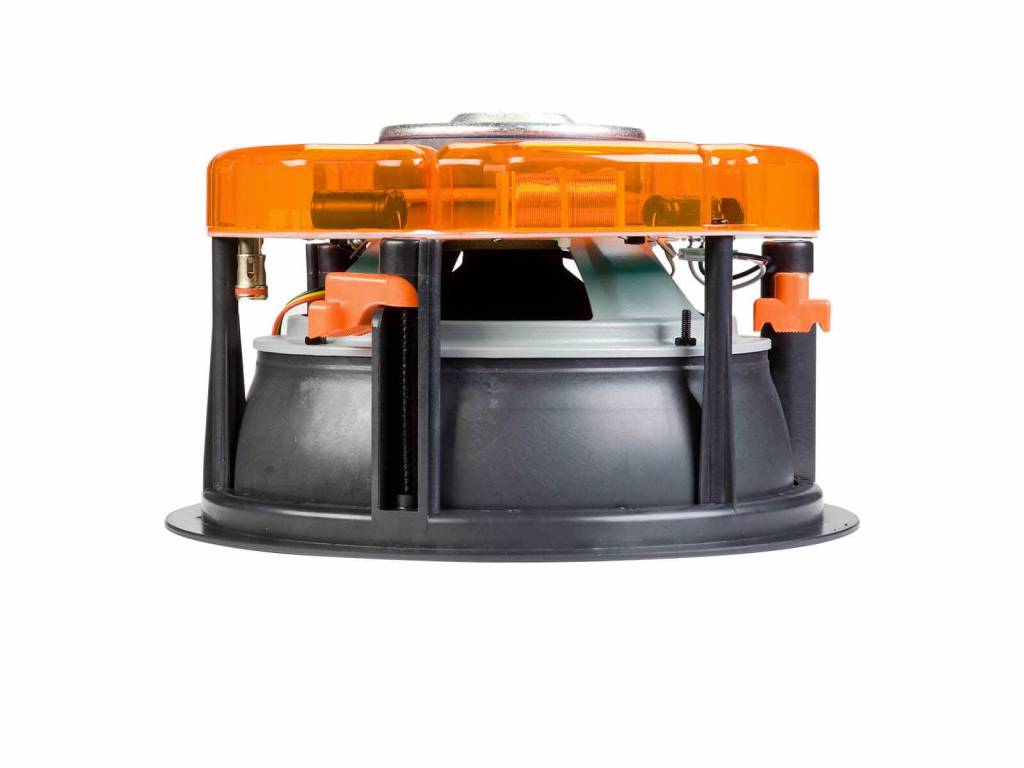

Monitor Audio C280-IDC ceiling speaker
€435
In stock
In stock
Description
C280-IDC Ceiling Speaker
Features an 8-inch C-CAM bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.
True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation. Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.
Optional square grille can be used with this model.
This product is now available to use with home theatre design software, The CEDIA Designer.
Specifications
Frequency Response
50 Hz – 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
111.6 dBA
Power Handling (RMS)
120 W
Recommended Amplifier Requirements
30 – 120 W
Drive Unit Complement
8” C-CAM cone bass driver, pivoting IDC module housing:
4” C-CAM RST inverted mid range driver
1” C-CAM Gold Dome tweeter
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Diameter (Including Grille)
285 mm (111/4″)
Overall Depth (Including Grille)
161 mm (65/16″)
Mounting Depth
157 mm (63/16″)
Cut-Out Hole Diameter
247 mm (93/4″)
Optional Square Grille – Outer Dimensions
285 x 285 mm (111/4″)
Fixing Type
3 position Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
3.42 kg (7 lb 8 oz)
Pre-Construction Bracket
CB8 Pre-Construction Bracket (Green)
Back Box
CMBOX-R
Sold As
Single Unit
Additional information
| Brand | Monitor Audio |
|---|---|
| Speaker Type | Ceiling |
