Magnat MR750 Hybrid Tube Stereo Receiver


In stock

Stereo High-End hybrid receiver with transistor and Low-noise tube preamplifier with ECC 81 valve, Optical & HDMI input for TV, Bluetooth, High-quality DAB+/FM tuner, 2 x 70 watts RMS output, 250 watts system output.

In stock

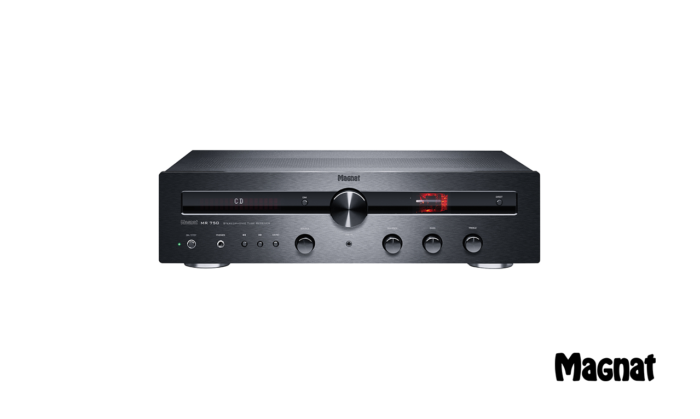

Magnat MR 750

Stereo High-End Hybrid Receiver

  • Stereo hybrid receiver with transistor and tube technology
  • HDMI input for seamless integration of TV and all connected sources
  • Selected and previously burned-in tubes for optimum sound
  • 2 x 70 watts RMS output, 250 watts system output
  • Extensive connections, digital, analogue, MM phono and Bluetooth aptX
  • FM and DAB+ receivers with 40 station presets
  • Solid metal housing with brushed aluminum front panel and controls

Stereo high-end hybrid receiver

The MR 750 finally opens up the combination of tube and transistor technology to all conceivable media. Here you can finally find an all-in-one solution for fans of classic 43 cm components, which can be perfectly combined with Magnat hi-fi components.

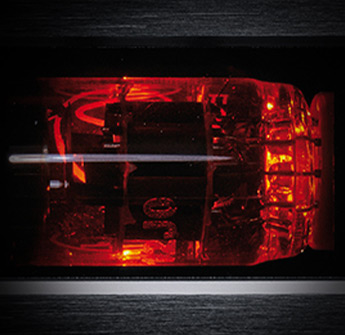

With carefully selected ECC81 tubes already burned in, the MR 750 delivers exactly the sound that connoisseurs appreciate. Thanks to the downstream power transistors, you don’t have to do without an impressive output line.

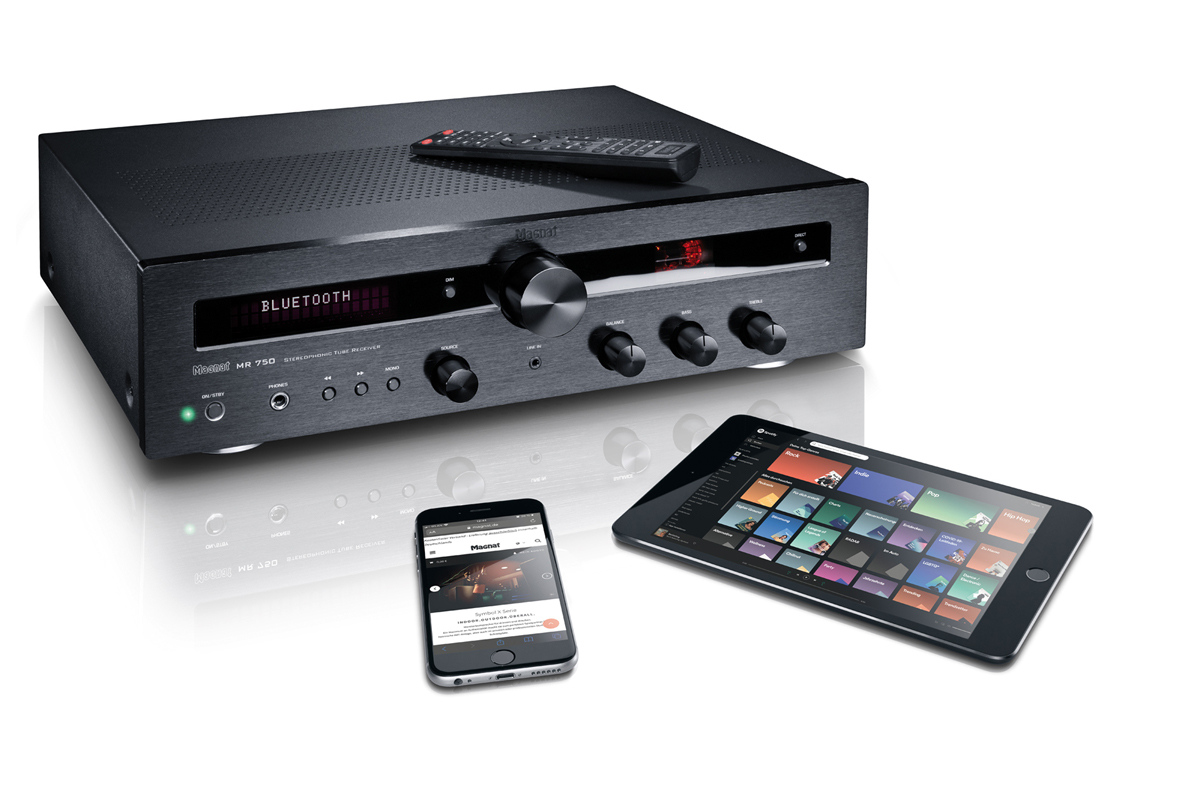

Five analogue high-level inputs, 4 digital inputs plus a phono input for MM systems are the basis for also being able to connect large systems without any difficulty. On top of this, Bluetooth is included with the lossless aptX standard for the best sound from smartphone, tablet or computer. The tuner with FM and DAB+ opens up a whole variety of analogue and digital stations to fans, who can store them on up to 40 station memory locations.


The number of exciting sources for music and sound is growing constantly. You are well equipped for this with the MR 750 because, in addition to a wide range of analogue and digital, it also enables the direct connection of turntables, communicates with smartphones and tablets via Bluetooth and creates a seamless connection to the TV set and all connected sources via HDMI. With the latter, the volume can be easily adjusted using the television’s remote control. For all other sources, this is done using the system remote control provided.

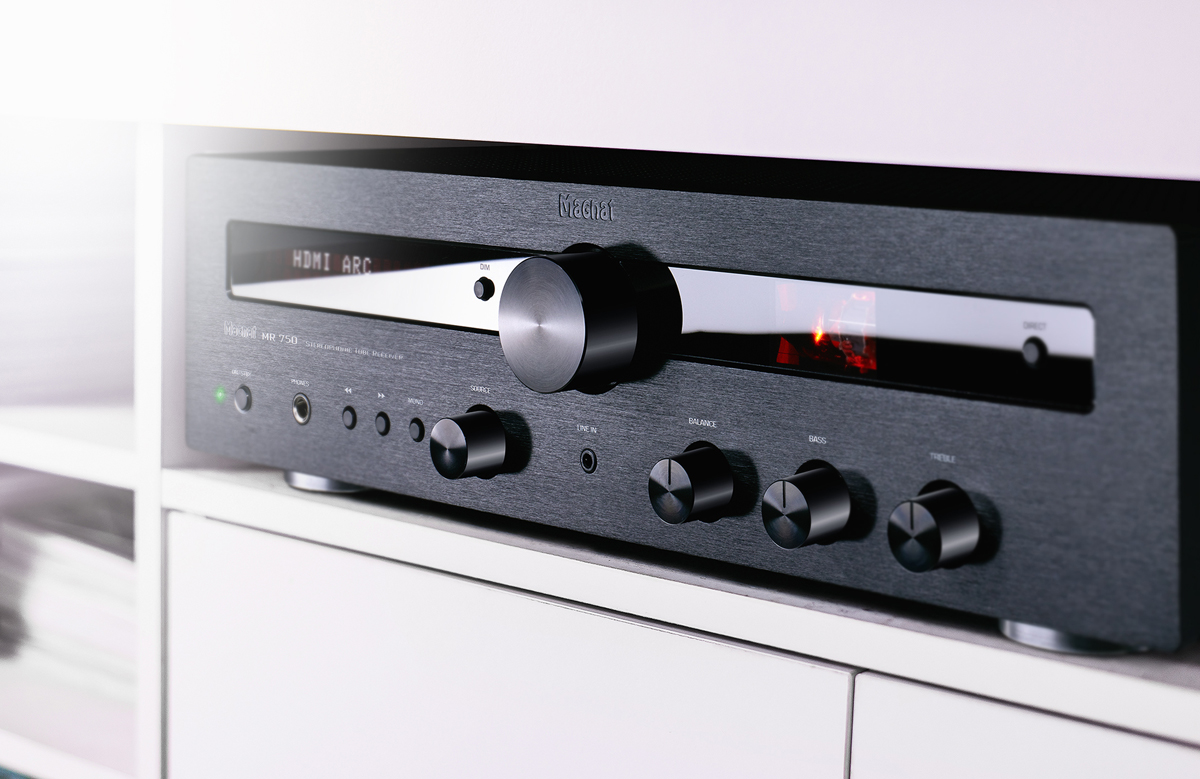

A metal housing and a solid aluminum front panel and controls speak for themselves every time you touch them and give you a feel for what acoustic delights the MR 750 has to offer. The elegant display announces input sources and station names. Apart from that, simply let yourself be captivated by the irresistible glow of the tubes, while enjoying music, films and other media from almost any source in previously unimaginable quality.


Technical Specification

Output Power / Nominal


Frequency Range DAB/DAB+

174.928 – 239.2 MHz (Band III)


1 kHz, 4 Ohm 2 x 125 W

Frequency Response

CD/Tuner/Aux/Line/Tape: 6 Hz – 90 kHz (-3,0 dB) 20 Hz – 20 kHz (+/-0,3 dB) Phono: 20 Hz – 20 kHz (+/-0,8 dB) Subsonic Filter : 16 Hz, 18 dB/Oct.

Frequency Range FM

87.5 – 108 MHz

Digital Inputs

Supported sampling frequencies: 44.1/48/88.2/96/176.4/192kHz, Supported bit depth: 16/24bits , coaxial (cinch), optical (Toslink™)

Bluetooth Input

Bluetooth® 5.0 / Qualcomm® aptX™

Mains Voltage

230 VAC / 50 Hz

S/N Ratio

CD/Streamer/Aux/Line 102 dB (A), Phono MM 82 dB (A)


Main unit: 433 x 116 x 300 mm




7.6 kg


Amplifier and power supply

  • Power output: 70 watts of sine power per channel at 4 ohms and 250 watts of maximum pulse power
  • Shielded toroidal transformer
  • Elaborate mains adapter with separately stabilised supply voltage for the individual circuits
  • High-capacity filter/electrolytic capacitors
  • Standby power supply for low power consumption in standby mode < 0,5 watts
  • Discrete Class A/B power amplifier
  • Standby power supply for low power consumption in standby mode


  • Bluetooth® 5.0 / Qualcomm® aptX™

FM/DAB tuner

  • FM tuner
  • Digital DAB/DAB+ tuner
  • Station search (DAB)
  • Automatic scanning function (FM)
  • RDS/radio text function
  • 40 programmable station presets each for DAB/DAB+ and FM

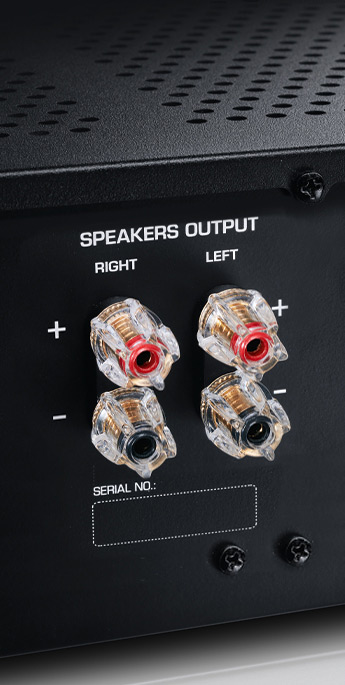

  • Speaker terminal with solid, insulated screw terminals that are capable of accommodating large cable cross-sections
  • Headphone output with high-quality 6.3 mm jack socket
  • Stable feet with damping rubber insert
  • Solid aluminium controls
  • Sturdy full-metal enclosure with solid, brushed aluminium front
  • Readable, two-line clear text display with adjustable brightness (3 stages)
  • System remote control for all functions


  • Record Out fixed level output
  • High/low tone control, can be switched off via a direct function
  • Sub out connecting for use of an external active subwoofer
  • Bluetooth® input (5.0) supports the high-end audio standard Qualcomm aptX®
  • High quality digital-to-analogue converter
  • Low-noise tube preamplifier with ECC 81 tube
  • Four analogue high-level inputs
  • Two digital inputs for sampling frequencies up to 192kHz/24bits
  • HDMI® with ARC and CEC function (volume can be controlled via TV remote control)
  • Preselected and burned-in tubes
  • Additional 3.5 mm audio input on the front panel for connecting portable devices
  • MM-phono preamplifier with low-noise operational amplifiers and subsonic filters


  • Stable feet with damping rubber insert
  • Solid aluminium control elements
  • Sturdy full-metal enclosure with solid, brushed aluminium front
