The CS 518, ideal for vinyl enthusiasts, impresses with a precise twin gimbal tonearm and the finest pivot ball bearings. 2M red cartridge and switchable MM phono preamplifier.
Dual CS518 – Black
Original price was: €699.€649Current price is: €649.
In stock
In stock
Description

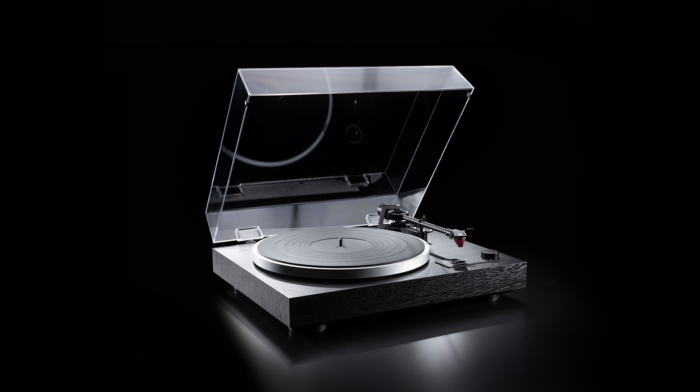

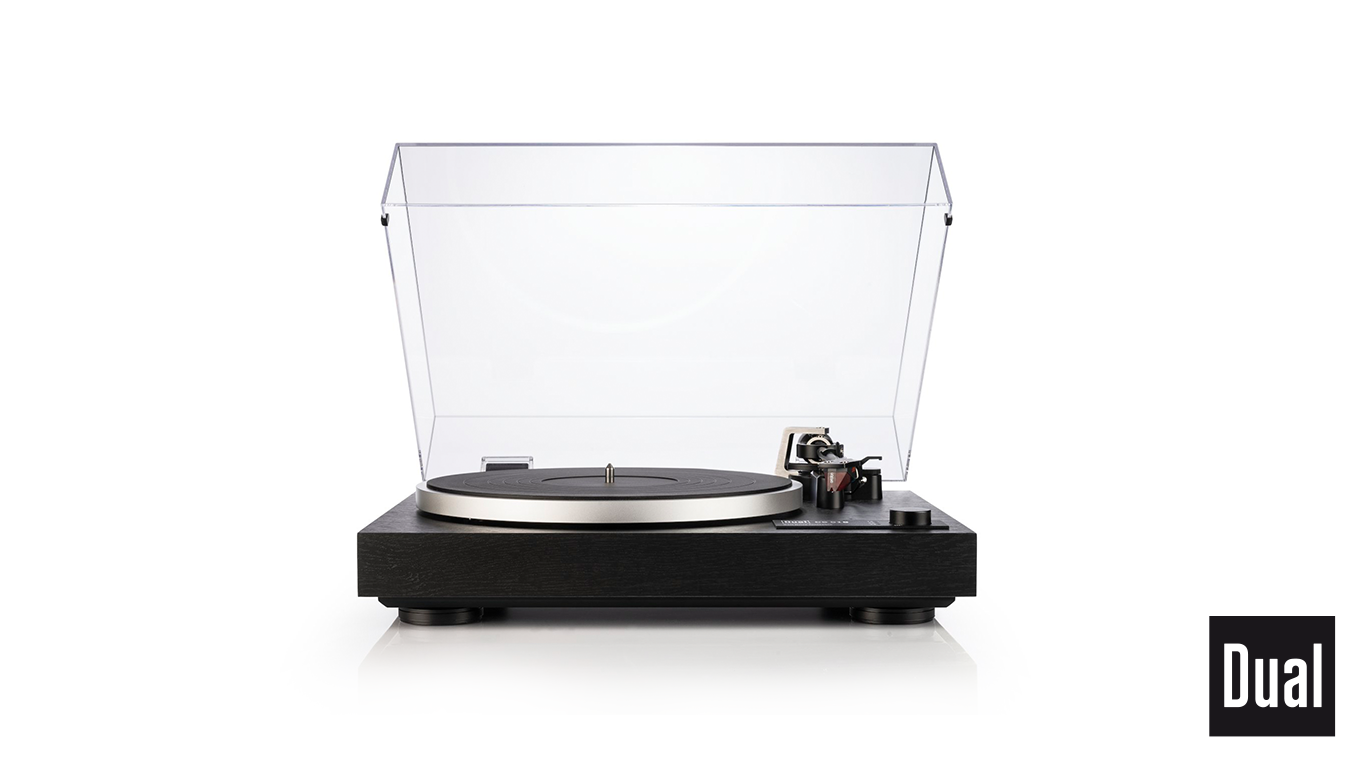

Dual CS 518
The perfect start to the high-end
The CS 518, ideal for vinyl enthusiasts, impresses with a precise twin gimbal tonearm and the finest pivot ball bearings. The classic dual tonearm guides even the most demanding cartridges precisely and safely for a first-class listening experience.
With the Ortofon 2M Red cartridge and switchable MM phono preamplifier, the CS 518 not only offers outstanding value for money, but also a very balanced sound.
Ease of use is guaranteed with the characteristic features of the CS series. The stepless antiskating can be easily adjusted using a rotary knob with a clear scale. The electronic adjustment of the three speeds is conveniently carried out via a rotary switch, while the appropriate pickup can be easily changed using the headshell.
Details
Plinth: Solid MDF
- MDF construction with a black vinyl veneer
- Elastomer vibration absorber inside the feet
- Surface option: Walnut wood veneer
Platter: Aluminium Die-cast
- Aluminium die-cast, long term precision
- Heavy rubber mat for resonance damping
- Hardened steel spindle in a brass bushing

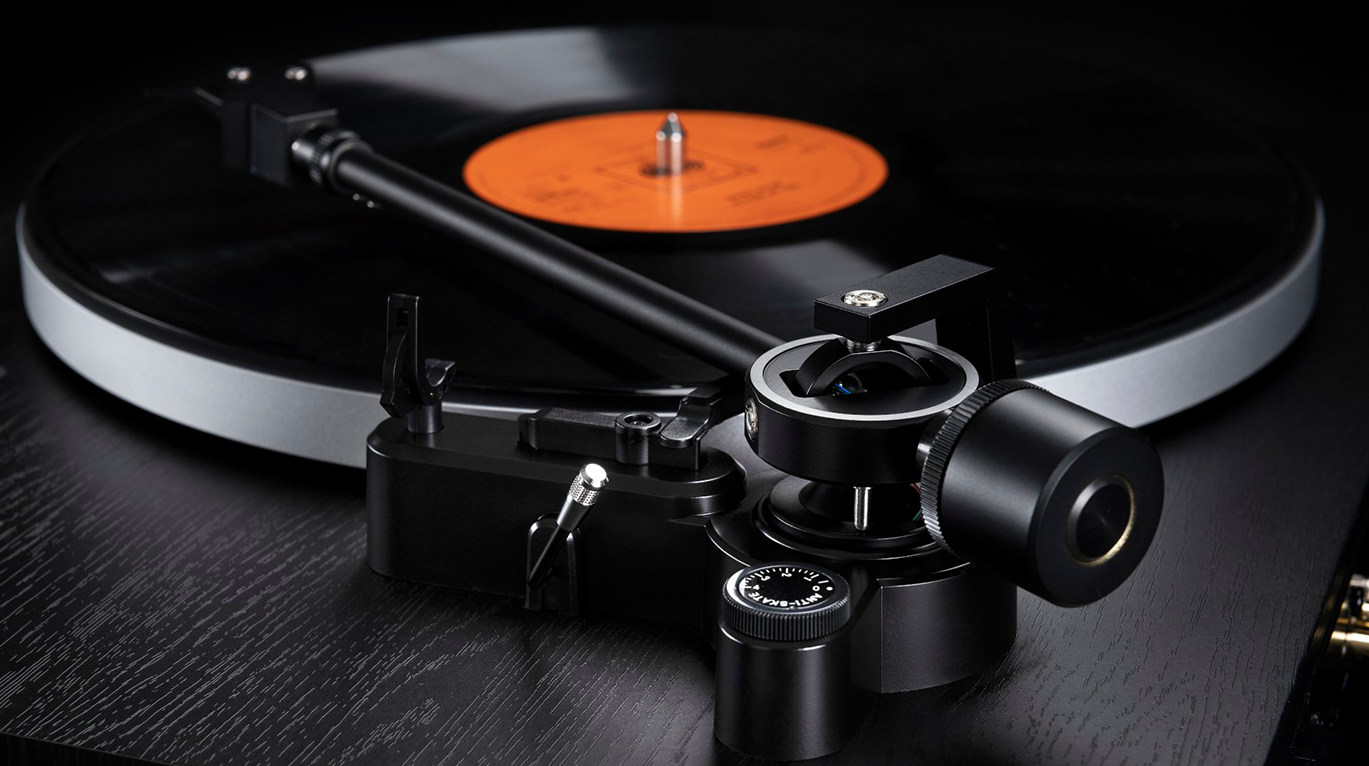

Tonearm: Twin Gimbal
- Accurate spring loaded antiskating
- Solid aluminium gimbal construction
- Four fine pivot ball-bearings
Drive: DC- Motor / Belt
- Selector switch for 33 / 45 / 78
- Rubber mountings for vibration decoupling
- Precision cut belt for lower wow & flutter
Specifications
Drive
Drive: | Belt |
| Speed settings | 33/45/78 |
Wow & Flutter: | < ±0,1 % (DIN rated) |
Platter:
Material: | Aluminium die-cast |
Mat: | Rubber 2,5 mm |
Bearing: | Hardened steel spindle Brass bushing |
| Diameter: | 305 mm |
| Weight (incl. Mat): | 850 g |
Tonearm:
Auto-Start/-Stop-Function: | No |
| Bearing: | 4 x Pivot ball-bearing / twin gimbal mounting |
Effective length: | 221,5 mm |
Offset Angle: | 25,6° |
Overhang: | 19 mm |
Type: | statically balanced |
Stylus Pressure Range: | 0 g to 4 g |
Cartridge Weight Range: | 5 g to 9 g |
Factory installed pick up: | Ortofon 2M Red |
Plinth:
Material: | MDF |
Surface finish: |
|
Feet: | Ø 62 mm / Elastomer |
| Connection: | RCA socket |
| Connection to Phono Input: | Yes |
| Connection to Line Input: | Yes |
| Digital Output: | No |
| Dimension, closed dustcover: | 435 x 367 x 145 mm |
| Dimension, open dustcover: | D: 415 mm / H: 400 mm |
| Weight: | 5,8 kg |
| Power plug AC / DC: | External power supply |
Additional information
| Brand | Dual |
|---|---|
| Turntable Features | Phono / Line-Out, Manual |
| Product Colours | Black |
