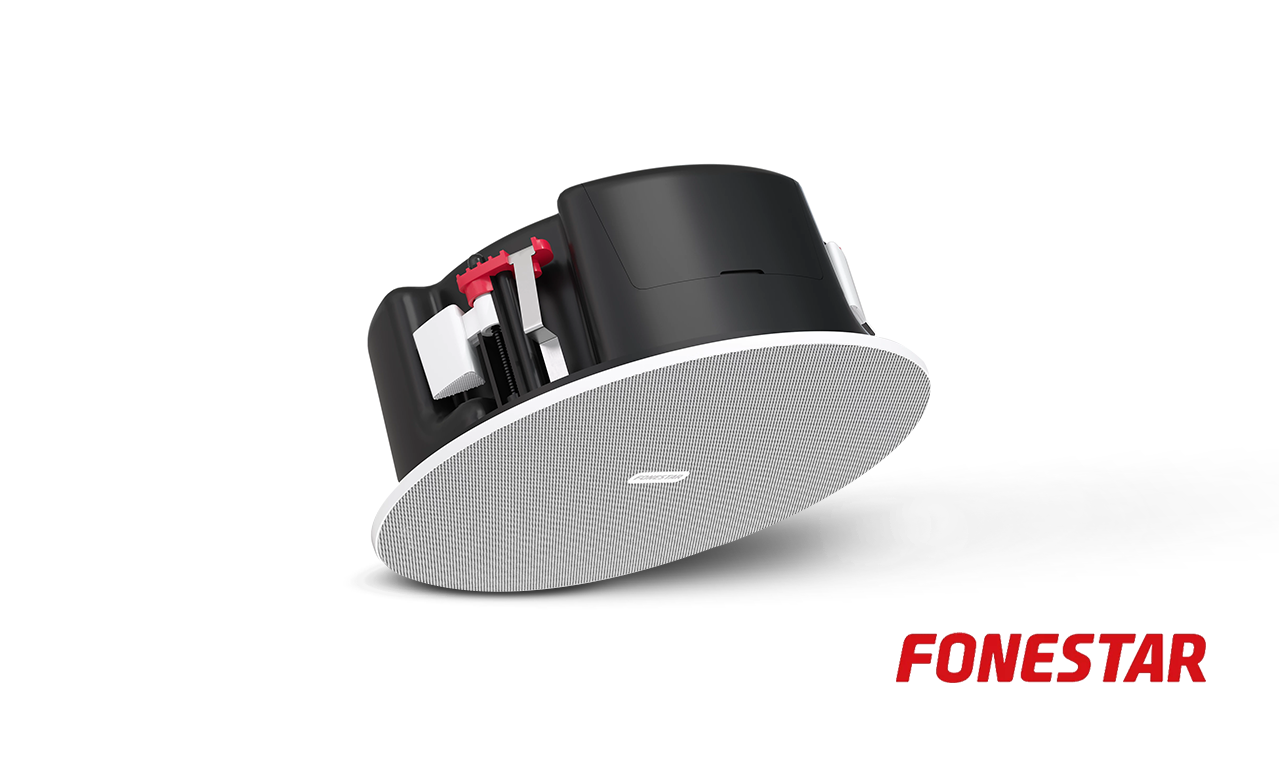

Fonestar Sky-6T Dome Ceiling Speaker

89

In stock

100 V line transformer and low impedance ceiling loudspeaker. two way, with 6” polypropylene woofer and 1” swivelling tweeter. Low profile rear dome cover provides additional protection in humid and dusty environments.

In stock

Description

100 V line transformer and low impedance ceiling loudspeaker.

Design by Fonestar products are born from in-depth research and active customer feedback, turning their needs into competitive solutions.

The innovative SKY series of ceiling loudspeakers is full of details that make them special. The innovative SKY series of ceiling speakers is full of details that make them special. Carefully tailored to reproduce the best sound and meet the needs of audio installations.

We have created the SKY series of ceiling loudspeakers to offer a unique solution. We provide improvements in the installation, a defined sound for background music and sound reinforcement. We have carefully selected the materials and components to obtain the best performance and reliability, with an amazing sound. Rounding up our idea of the best ceiling loudspeaker.
The grille is the only visible part of the loudspeaker once installed in the ceiling, so we have designed it to have minimal visual impact, frameless and a low profile. It is built in aluminium with high resistance liquid paint. No rust stains will appear and it will keep its original appearance. It can be customised by removing the removable logo and it can be painted.

The connection of the cables is made with innovative quick-connect terminals, which offer an instant connection with a secure anchoring system and maximum conductivity.

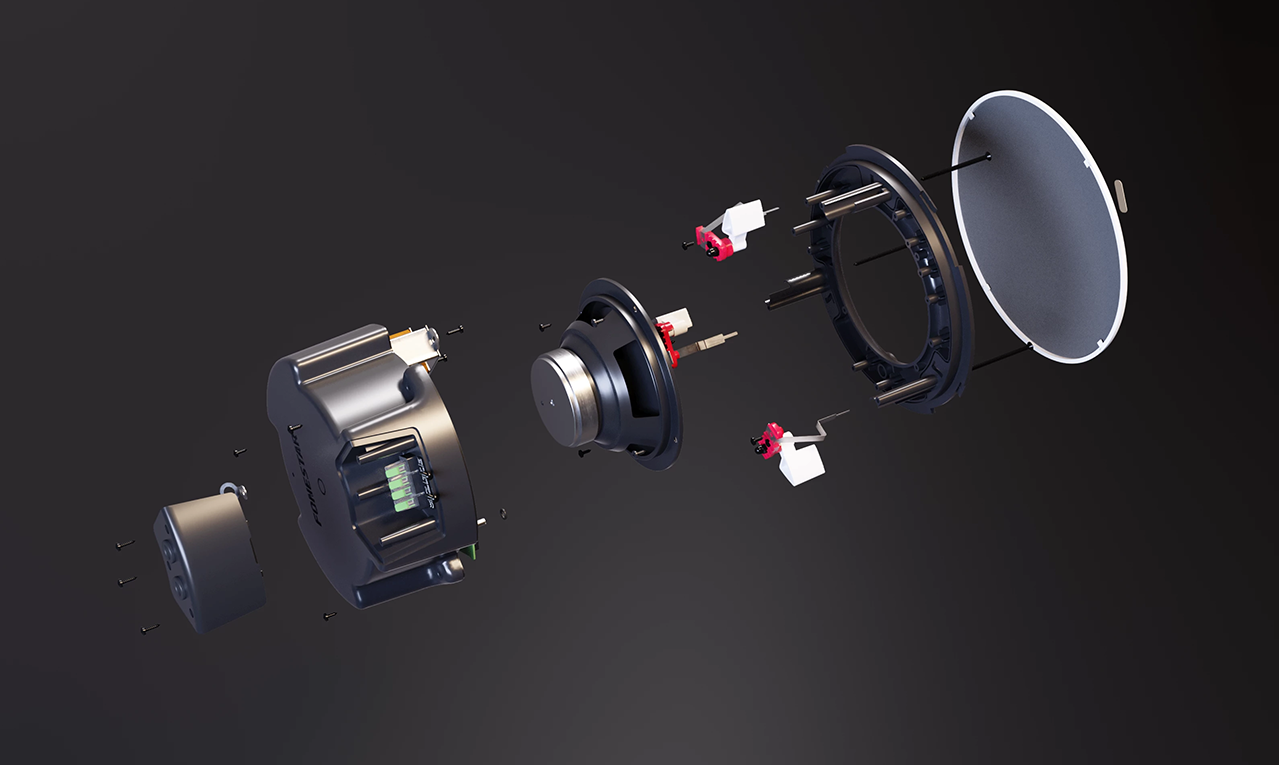

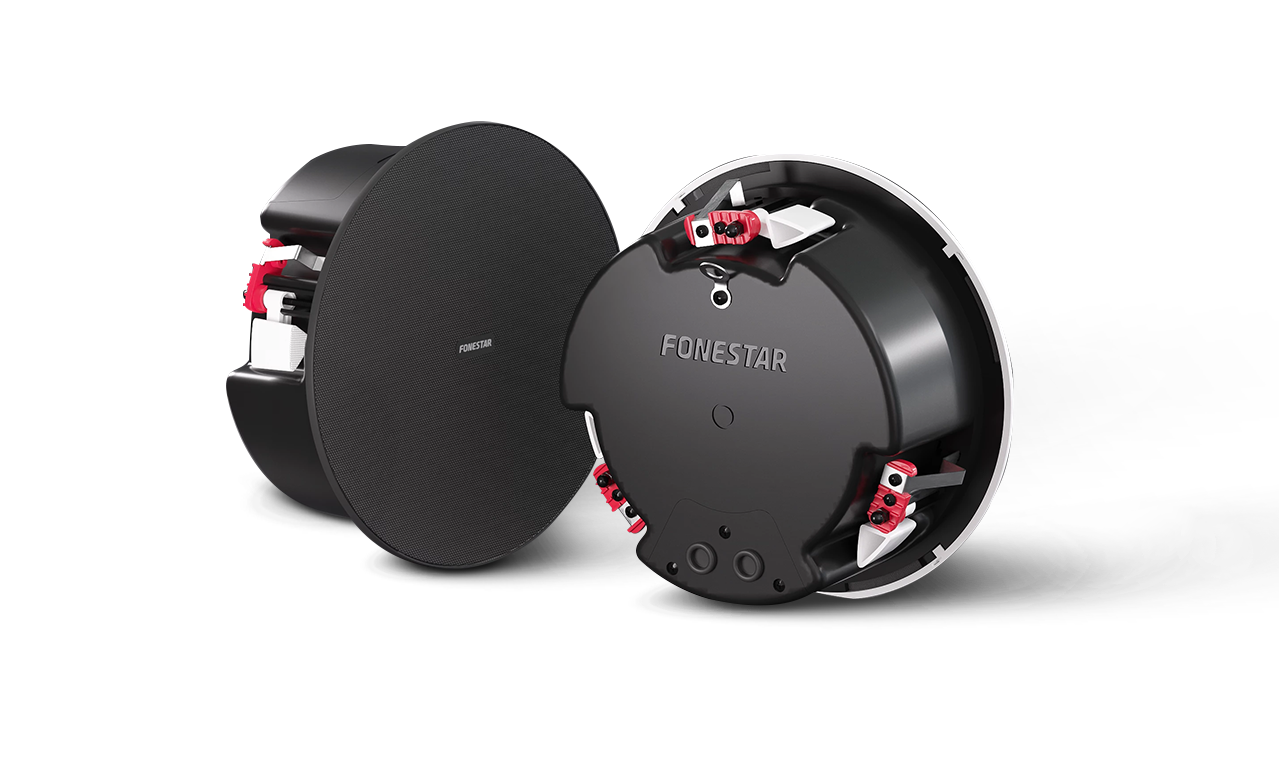

The ceiling loudspeaker has an anti-fall system to aid installation, allowing the loudspeaker to be positioned prior to final installation with the ceiling fixing brackets. In addition, it has a hook for speaker attachment a safety cable. It has a very stable ceiling attachment system with three brackets and a worm screw adjustment system. Installation is quick and easy and provides a firm and secure hold. The main component for sound playback is the coaxial loudspeaker, with a heavy-duty polypropylene diaphragm and a swivelling tweeter that can be steered to improve the sound experience. It has a wide frequency response, with an optimal balance between low and high frequencies.

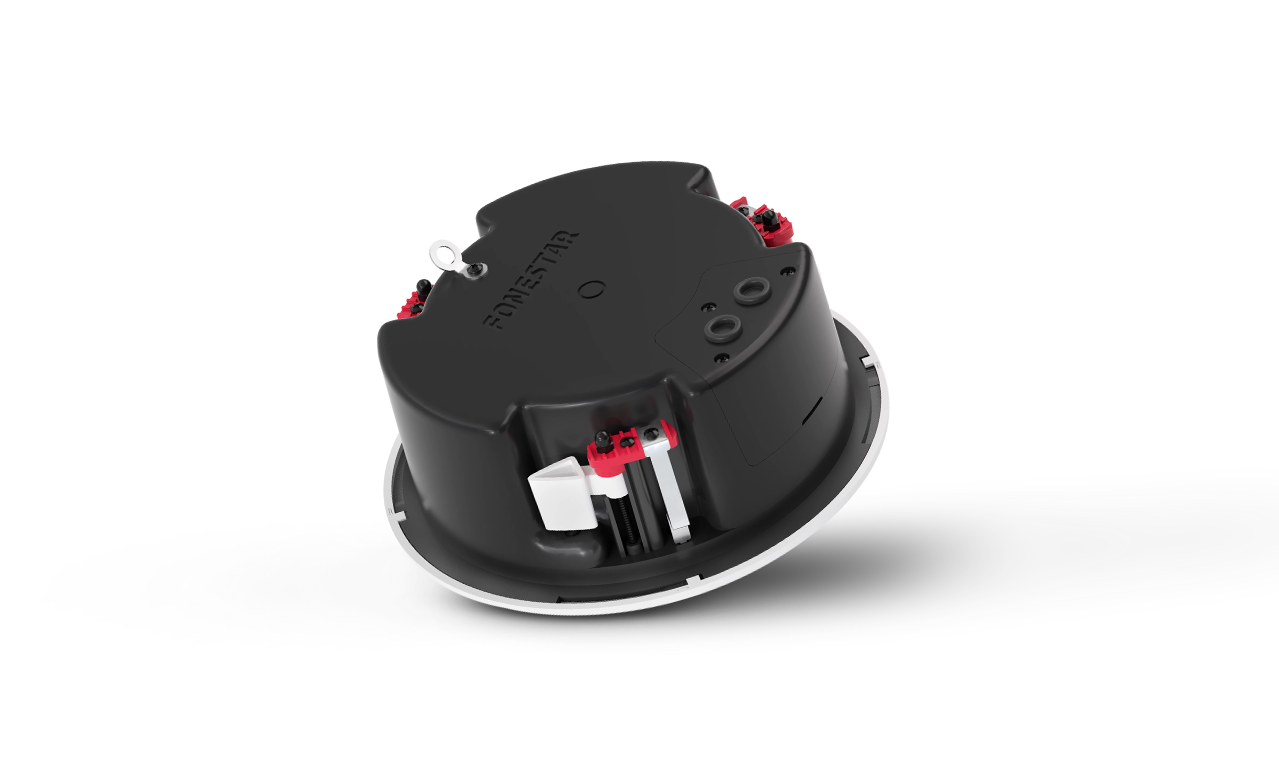

The rear dome cover has a reduced height that allows the loudspeaker to be installed in ceilings with limited space. Provides protection in humid and dusty environments.

The speaker and dome cover have been tuned to provide a rich low-frequency sound, unique in this class of loudspeakers. The loudspeaker has an IP-65 dust and water ingress protection rating. Splashing will not affect the performance of the loudspeaker.

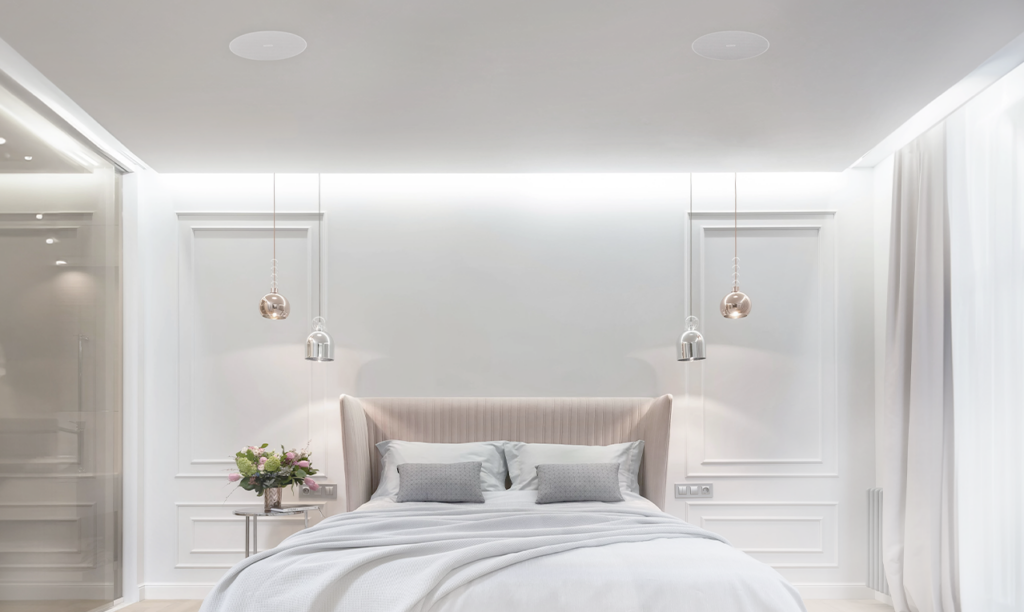

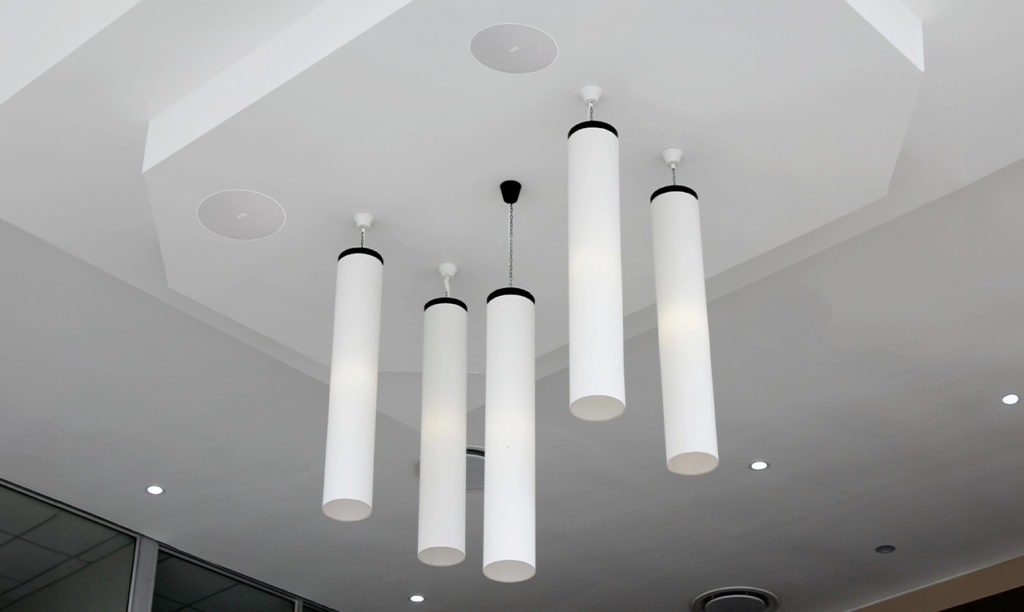

For background music and sound reinforcement systems in shopping centres, shops, hotels, hospitals, business centres, restaurants, etc.

POWER
20 W RMS
25 W RMS

SPEAKER
Coaxial loudspeaker.
6” polypropylene woofer
1” swivelling tweeter

RESPONSE
45-20,000 Hz @ -10 dB
60-20,000 Hz @ -3 dB

IMPEDANCE
20 W RMS@100 V (500 Ω)
10 W RMS@100 V (1,000 Ω)
5 W RMS@100 V (2,000 Ω)
2.5 W RMS@100 V (4.000 Ω)
8 Ω

SENSITIVITY
90 dB @ 1 W/1 m

SOUND PRESSURE:
103 dB @ max. W/1m Continuous
106 dB @ max. W/1m Peak

COVERAGE ANGLE:
V (-6 dB): 125º@500Hz, 150º@1kHz, 60º@2kHz, 60º@4kHz

PROTECTIONS:
IP-65 in compliance with EN 60529
EN ISO 9227:2006 Neutral Salt Spray Test

MATERIAL:

ABS (UV resistant)
Liquid paint aluminium grille


CONNECTORS:

Highly conductive quick-connect terminals
For 0.4 ~ 4 mm² ross section cable
Junction box in the rear cover with inlet and outlet port

SWITCH:
W selector in high Z and 8 Ω.
Accessible from the front.

OPERATION TEMPERATURE:
5ºC ~ 40°C

STORAGE TEMPERATURE:
2ºC ~ 50°C

MAXIMUN HUMIDITY:
0,9

COLOUR:
White (RAL 9003)

DIMENSIONS:
Total loudspeaker: 249 mm Ø x 95 mm height
Grille section: 5 mm
Recessed height: 90 mm
Installation hole: 219 mm Ø
Maximum ceiling thickness: 30 mm

WEIGHT:
1.85 kg

ACCESORIES:
Installation template

Additional information

Brand

Fonestar

Speaker Type

In-Ceiling, Ceiling
