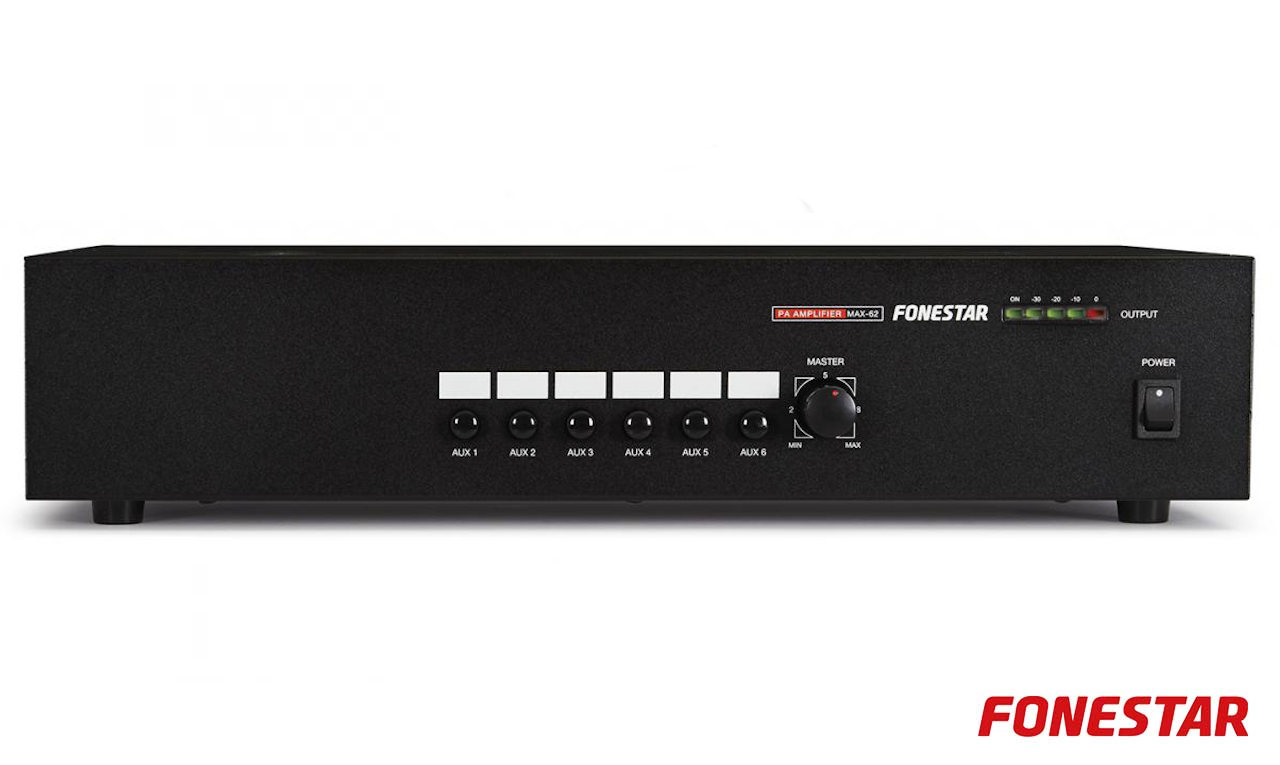

Fonestar MAX-62

339

In stock

60W PA amplifier, 100v output with 6 aux input selector and microphone with priority. Suitable for commercial installations with multiple audio sources and priority paging.

In stock

SKU: MAX62 Categories: , Tags: , ,

Description

FONESTAR MAX-62 PA AMP

PA amplifier with 6 aux input selector and microphone with priority. Suitable for commercial installations with multiple audio sources and priority paging.

CHARACTERISTICS  PA amplifier. Phantom power supply. Priority paging. 6 aux input selector.

POWER  90 W maximum, 60 W RMS

RESPONSE  50-15,000 Hz

INPUTS  1 balanced mic. combo (XLR and 6.3 mm jack), 600 Ω 1 mV 6 aux, 2 x RCA, 47,000 Ω 650 mV 1 amp in, RCA, 47,000 Ω 1 V

OUTPUTS  1 aux, 2 x RCA, 4,700 Ω 1 V 1 pre out, RCA 600 Ω 1 V

CONTROLS  Tones:  Bass:±10 dB to 100 Hz Treble: ±10 dB to 10,000 Hz Volume: Mic. and aux 1 to 6 on rear panel, general volume Earth                                  disconnection GND lift

PHANTOM  16 V in mic. 1, selectable

PRIORITY  Mic. 1 input level priority, selectable

IMPEDANCE  8 Ω and 100 V line, screw terminals

POWER SUPPLY  230 V AC, 160 W

DIMENSIONS  425 x 85 x 275 mm depth. 2 U 19” rack

WEIGHT  6.2 kg

ACCESSORIES  Mounts for assembly in 19” rack

Additional information

Brand

Fonestar

Colour

Black

Amplifier Connectivity

Aux-In, 100V, Microphone In
