Audac CSA506


In stock

Audac professional Low profile ceiling speaker – 100 Volt – 6 Watt transformer

In stock


Audac Low profile ceiling speaker 100 Volt – Doneo Malta

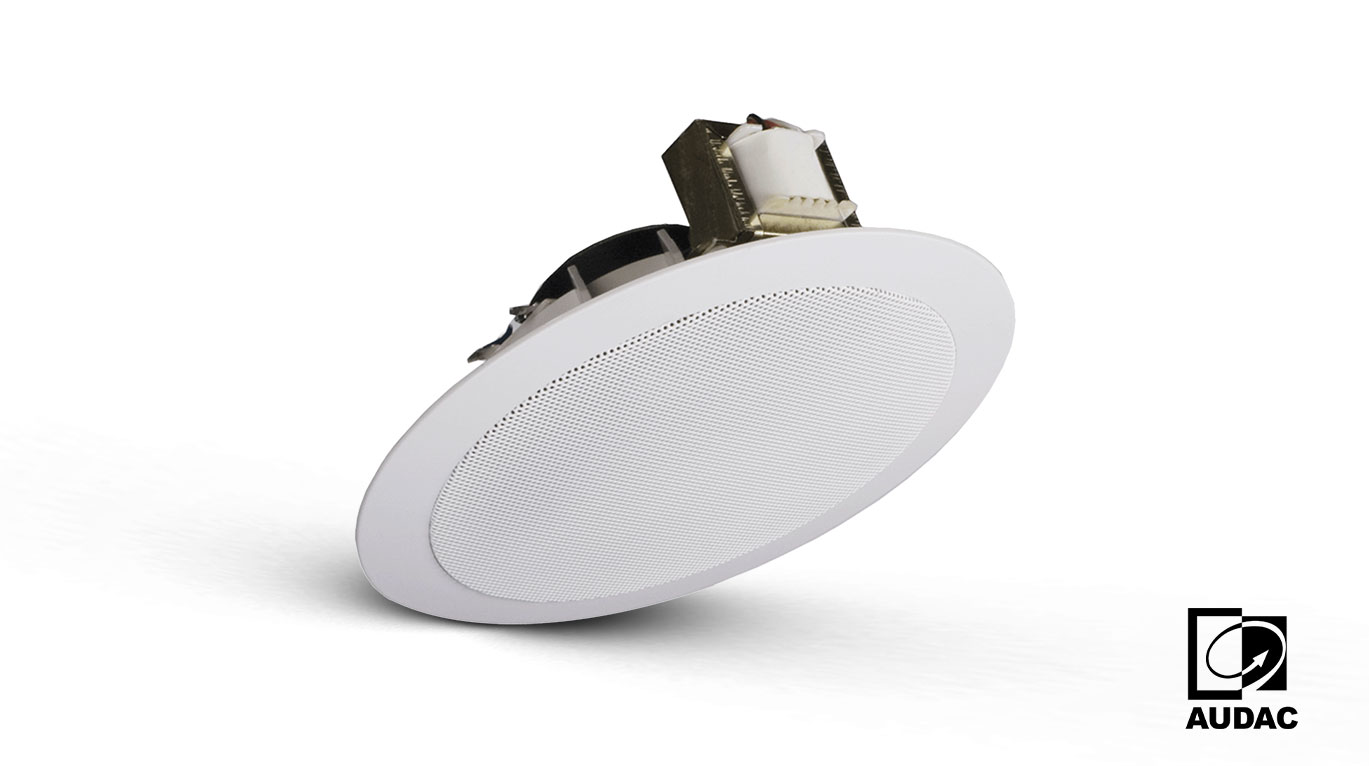

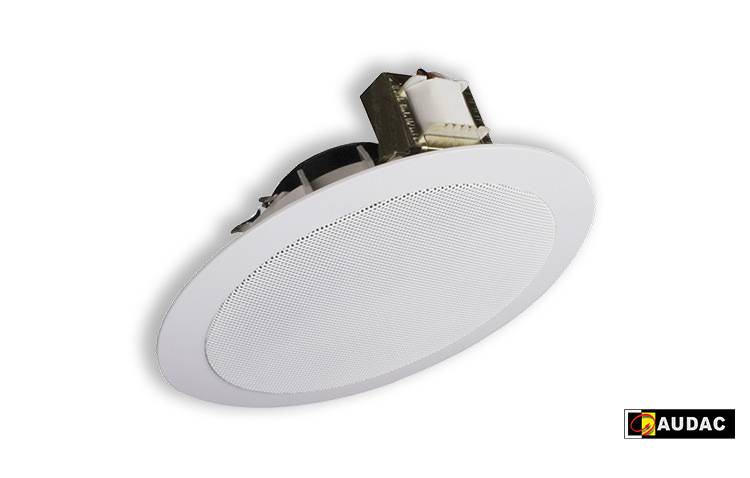

The CSA506 is a budget friendly ceiling speaker with a 5″ cone, capable of producing a power of 6W. It ensures a good reproduction of speech and background music. It is fitted with a 100V line transformer with power taps for 6W and 3W to be used in large 100V PA systems.

The speaker is constructed in a way that the framework is also used as base construction for the speaker cone. Therefore, the speaker’s built-in depth is reduced weight is reduced to 500g. It has Quick mounting clamps.

Max. Power 10 W
RMS Power 6 W
Line Voltage 100 V
Sound Pressure (Max. W/1m) 93 dB
Drivers 5”
Line Transformer Tappings 1 6 W / 1666 Ω
2 3 W / 3333 Ω
Frequency Response (± 3 dB) 100 Hz – 15 kHz
Product features
Dimensions 175 x 60 mm (Ø x D)
Cut-out measurement 150 mm (Ø)
Weight 0.500 kg
Construction ABS
