Audac MTX88

1,410

In stock

Audac professional 8-Zone Audio Matrix System, 2 Mic in with Phantom & Priority, 4 Stereo in, 4 Stereo balanced zone out, integrated web server and mobile control apps.

In stock

Description

Audac MTX88 8-Zone Multi Zone Audio Matrix – Doneo Malta

The MTX88 is the eight-zone version of the MTX series, containing two balanced microphone inputs with priority function, phantom power possibility and three-band tone control.

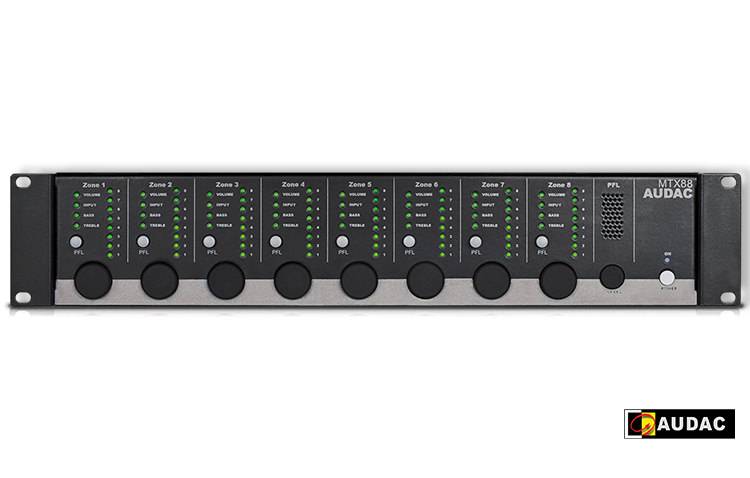

Four stereo line-level inputs are provided where to any line-level music source such as a CD-player, Tuner or MP3 player, … can be connected. The other two inputs of the matrix are the additional wall panel inputs for both line and microphone signals. The MTX can be controlled by means of additional control panels, its fully functional web based interface or the iPhone/ iPad Remote app. The RS232 port makes the MTX compatible with any home & industrial automation systems supporting RS232. The front panel of the MTX shows a rotary button per zone with indication LEDs for accessing controls and settings. A built-in PFL loudspeaker makes it possible to pre-listen every channel without the need for a headphone. The balanced line-level zone output connections are performed using 3-pin Euro-terminal block connectors, each of them accompanied with an RJ45 connector for connecting additional wall panels for that zone.

A 24 volts power connection makes it possible to keep the MTX running on emergency power, even if the main power is shut down.

Crosstalk (@ 1 kHz) -85 dB
Control Front panel
RS-232
TCP/IP (RJ45)
Wall panel (RS-485)
Audac Touch™
Web (HTML5)
Web (Flash)
Outputs Type 8 x Stereo Balanced Line
Connector 3-pin Euro Terminal Block (Pitch – 3.81 mm)
Impedance 51 Ω
Level -70 dB ~ 0 dB
Frequency Response (± 3 dB) 20 Hz – 20 kHz
Power Consumption 12 W
Supply 100 ~ 240 V AC / 50 ~ 60 Hz
24 V DC (emergency Power)
Inputs Balanced Microphone Type 2 x Balanced Microphone
Connector XLR
Sensitivity (1W/1m) 0 dBV ~ -50 dBV
Phantom Power 15 V DC
Signal / Noise > 80 dB
THD+N (@ 1 kHz) < 0.05 dB
Unbalanced Stereo Type 4 x Stereo Unbalanced Line
Connector RCA
Sensitivity (1W/1m) -14 dB ~ +9 dB
Signal / Noise > 100 dB
THD+N (@ 1 kHz) < 0.01 dB
Wall Panel Type 8 x Wall panel input
Connector RJ45
Other Type 1 x Priority mute contact
Outputs EQ Treble ± 14 dB (2.5~20 kHz)
Bass ± 14 dB (100 Hz)
Inputs Balanced Microphone EQ High ± 15 dB (12.5 kHz)
Mid ± 15 dB (2.5 kHz)
Low ± 15 dB (80 Hz)
Product features
Dimensions 482 x 88 x 335 mm (W x H x D)
Weight 4.840 kg
Unit height 2 HE

Additional information

Brand

Audac

Amplifier Connectivity

100V, Microphone In

Product Type

Mixers, Preamplifiers
