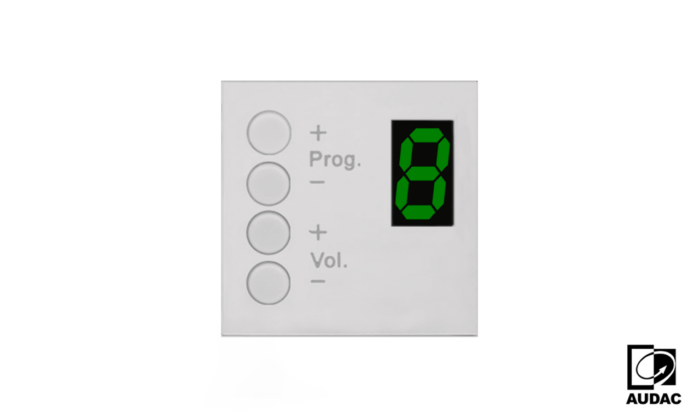

Audac MWX43 – White

63

In stock

Audac professional MTX Wall Panel Controller (bTicino) ideal to use with AMP523 & RM523.

In stock

Description

Audac MWX43 wall panel controllers – Doneo Malta

The MWX43 are wall panel controllers to be used in combination with the AUDAC MTX series multi-zone audio matrix systems and the AUDAC AMP523 & RM523.

It provides the possibility to select the desired audio source and control the volume for one zone. The 7 segment LED display indicates the current selected audio source (1-8) or volume. The connection between the wall panel and the matrix system is achieved by using standard CAT5 UTP cable which should be connected to the terminal block connector on the back side of the wall panel. The wall panels are available in two different sizes: 43 mm (MWX43) and 45 mm (MWX45), depending of the cover plate and installation materials which will be used. The 45 mm version is compatible with Audac, Niko, Legrand and other standard 45 x 45 mm installation materials, while the 43 mm version is designed to be used with bTicino installation materials. Thanks to its slim and good looking design, these wall panel controllers will blend into all kinds of different environments or interiors.

Available in black (/B) and white (/W). There are two different AUDAC cover frames with metal subframe available, for 1 or 2 units, which are also available in black (/B) or white (/W).

Control RS-485
Cabling UTP CAT 5E (Up to 500 meter)
Connectors 4-pin Euro Terminal Block
Power Consumption 0.35 W – 14 mA / 24 V
Product features
Dimensions 43 x 43 x 33 mm (W x H x D)
Weight 0.028 kg
Construction ABS
Finish Soft-touch painting
Mounting 43 x 43 mm (bTicino)
Colours White (RAL9010) (MWX43/W)

Additional information

Brand

Audac

Product Type

Wall Controllers
