A compact Hi-Fi unit from the renowned PianoCraft range. Aluminium front panel and Burr-Brown DACs reflect a commitment to sound quality for all audio sources. Bluetooth, DAB+ / FM, USB and CD player.

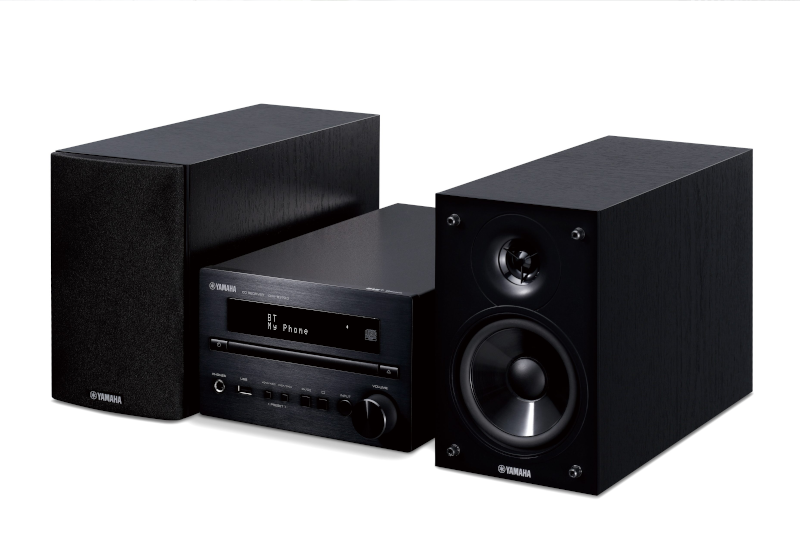

Yamaha Stereo Hi-Fi system – MCR-B270D
Yamaha MCR-B270D Stereo Hi-Fi
Where sound meets stlye
Hi-Fi authenticity in this compact unit systems from the renowned Yamaha PianoCraft range. An aluminium front panel and Burr-Brown DACs reflect a commitment to sound quality for all audio sources.
Bluetooth® wireless audio streaming
Hi-res audio (192 kHz / 24-bit FLAC / WAV) via USB
Authentic Hi-Fi design and tuning
DAB / DAB+ / FM tuner (service availability may vary by region)
Bluetooth Wireless Streaming
Connect wirelessly via Bluetooth for quick and simple audio playback from smartphones and other Bluetooth devices. Whether listening to your favourite music streaming services on your phone or watching videos on your tablet, get the most out of your sound by streaming it to your micro Hi-Fi system.
Hi-res Music from USB
Playback of 192 kHz / 24-bit FLAC and WAV files via USB reflects the Hi-Fi origins of this system. This support offers listeners the ability to experience the best in Hi-Fi listening.

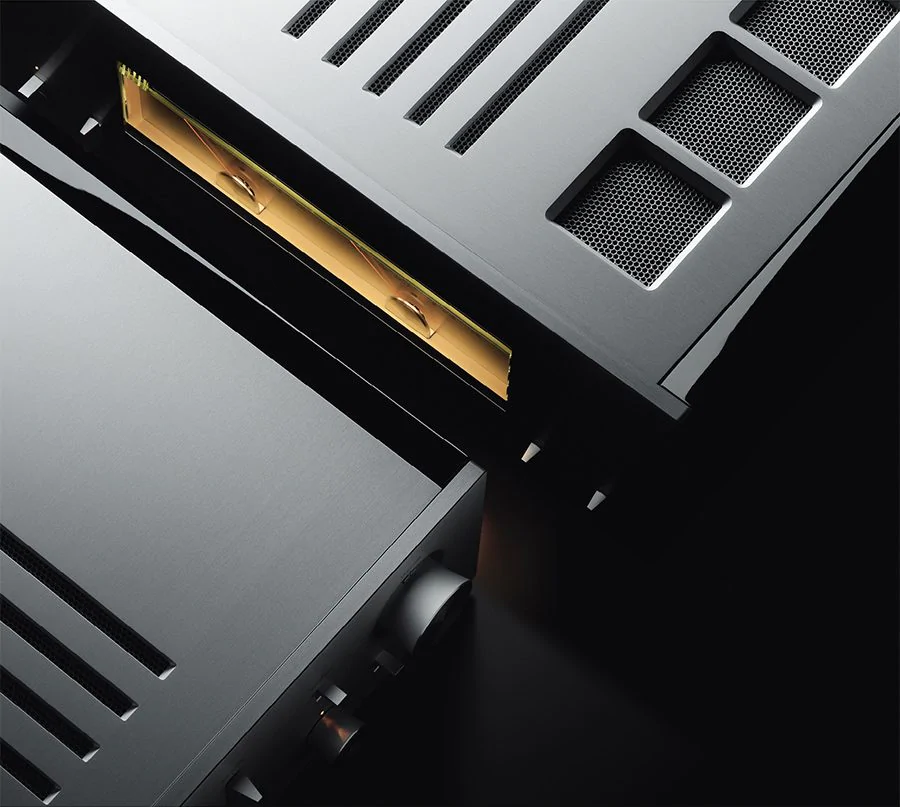

The PianoCraft series has for many years, embodied authentic Hi-Fi performance from a compact unit. Inheriting design philosophies from Yamaha Hi-Fi components ensure quality Hi-Fi performance from any PianoCraft product.

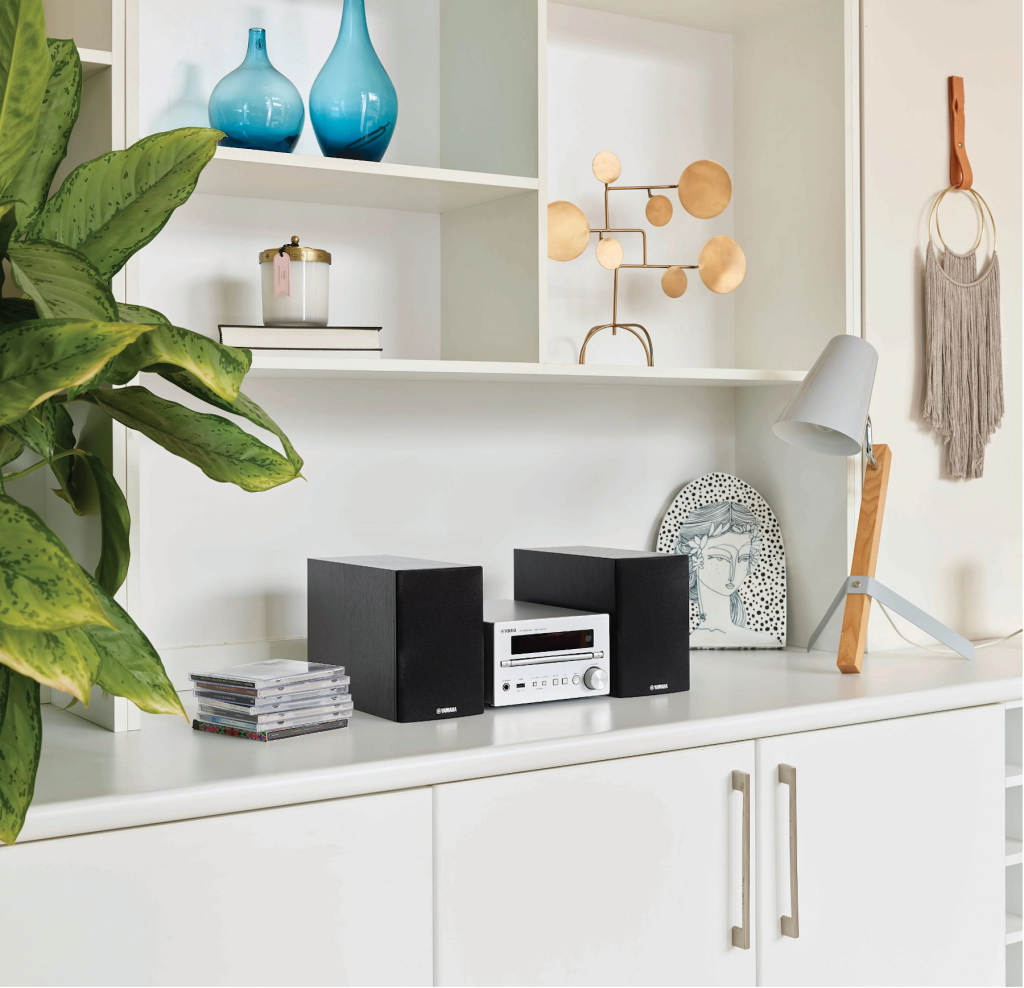

The MCR-B270D maintains the design image of Yamaha Hi-Fi components – presenting an extremely high-class, sophisticated appearance. The centre unit has a front panel made of high-grade aluminium with a hairline finish that looks clean and elegant. Adding this stylish system to your room will enhance not just your listening but your home décor as well.

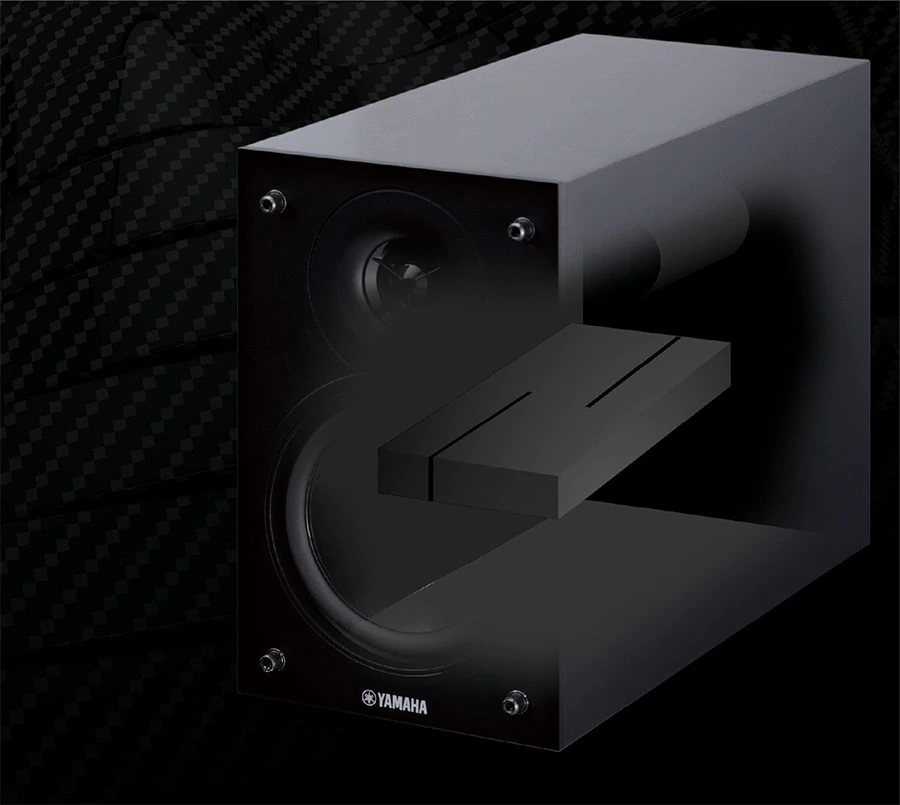

VCCS Vibration Control Cabinet Structure Technology
To prevent unwanted cabinet vibration, Yamaha developed an internal structure called VCCS (Vibration Control Cabinet Structure) that employs strategically placed pieces of a composite material providing excellent vibration isolation performance.
DAB and DAB+ versions* of digital radio offer a large selection of radio stations with high-quality sound. Other benefits include automatic tuning to available stations and display of information such as station name. *Availability of service varies by region.
Bluetooth Version/Profile Ver. 4.2 / A2DP, AVRCP ; SBC, AAC
Bluetooth Maximum Communication Range 10 m / 32.8 ft. 10 in. (without interference)
Disc Type CD, CD-R, CD-RW (Audio CD, MP3, WMA)
File Format MP3, WMA, AAC, WAV(*1), FLAC(*1), AIFF(*1), ALAC(*2) — (*1) 192 kHz / 24-bit; (*2) 48 kHz / 24-bit
Tuner DAB, FM
PreSet Memory DAB x 30, FM x 30
Headphone Jack Yes (6.3mm)
Analog Audio Input Yes (3.5 mm STEREO mini Jack × 1)
Digital Audio Input: Optical Yes
Subwoofer output Yes
Total Harmonic Distortion(CD to Sp Out, 20 Hz-20 kHz) 0.05 %
Output Power/Channel (6 ohms, 1 kHz, 10% THD) 20 W + 20 W
Standby Power Consumption 0.3 W (Eco standby) / 1.3 W (Bluetooth® standby on)
Dimensions (W x H x D) 180 x 118 x 322 mm; 7-1/8” x 4-5/8” x 12-5/8”
Weight 2.7 kg; 5.9 lbs.
Woofer 11 cm (4-3/8″) cone woofer
Tweeter 2.5 cm (1″) dome tweeter
Input Power (Max/Nominal) 30 W (Nominal)
Frequency Response 60 Hz-30 kHz
Sensitivity 84 dB / 2.83 V / 1 m
Crossover Frequency 6 kHz
Impedance 6 ohms
Dimensions (W x H x D) 123 x 192 x 298 mm; 4-7/8” x 7-1/2” x 11-3/4”
Weight 2.2 kg; 4.9 lbs.
Bluetooth, CD Player, DAB+, FM Radio, with Remote Control
Optical, Aux-In, USB
