Integrated amplifier with optical / digital inputs, Turntable phono input – 100w / ch @ 8 ohms, 160w/ch @ 4 ohms
Yamaha A-S701 Stereo Amplifier
Call for availability
Call for availabilitySEND EMAIL QUERY
Extremely pure sound quality and outstanding drive power.An integrated amplifier with the advantage of digital input.
High sound quality circuit design based on the ToP-ART (Total Purity Audio Reproduction Technology) concept
High Quality Parts for Outstanding Audio Performance
Created by Yamaha’s Rich Experience and Tradition, and High Technological Expertise
Yamaha, with a long history of over 125 years as a musical instrument maker, also has a high reputation for HiFi components. The A-S701 is created by taking advantage of this rich experience and high technological expertise. Based on the concept of “Natural Sound”, for reproducing all music as it really sounds, and built with scrupulous care from circuit design to basic sound production, even though an entry model it reproduces high sound quality and musically rich sound.
CD Direct Amplification and Pure Direct Mode for Greater Sound Purity
With a straight connection to the CD input, CD Direct Amplification maximises CD source S/N ratio. Additionally, engaging the Pure Direct mode causes the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.
Continuously Variable Loudness Control
The A-S701 also feature a new analogue loudness control on the front panel that uses electronic volume for higher sound quality, which lets you adjust the loudness effect as desired. Separate from the overall volume, this controls the balance of the low- and high- frequency sounds, providing full tonal range at any volume level, compensating for the natural loss in the human ear of high and low frequencies at soft levels.
Gold-plated terminals ensure a high quality connection that prevents signal loss. The A-S701 have gold-plated speaker terminals and input terminals
Digital Audio Input for TV and/or Blu-ray Player
The A-S701 is equipped for digital audio input with both optical and coaxial terminals. The optical is for receiving audio from a TV, and the coaxial for receiving audio from a Blu-ray player. The audio stays in the digital domain, giving you pure, pristine dynamic sound for all your entertainment sources, from sports and other programmes to movies and concerts.
Connection for YBA-11 Bluetooth Wireless Adapter
With the YBA-11, you’ll be able to stream music wirelessly from a Bluetooth capable mobile phone or a PC to the Network receiver. Thanks to the digital connection and aptX® audio coding algorithm, you’ll enjoy wireless music streaming with optimum sound quality. You can also conveniently power the YBA-11 via the DC-out connection on the rear panel of the amplifier.

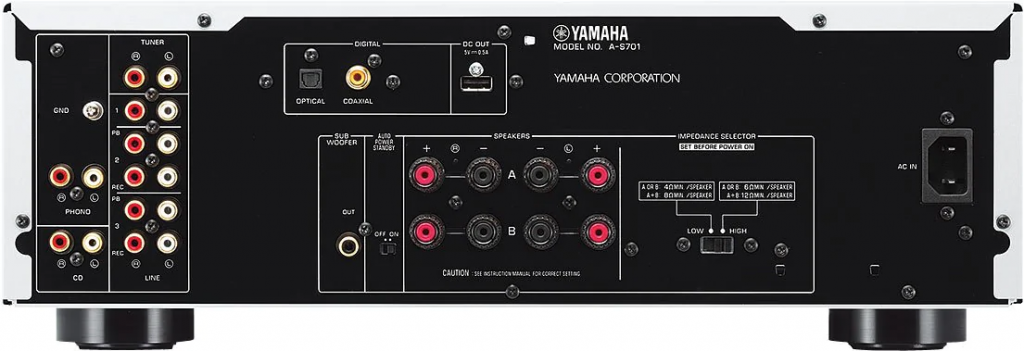

Speaker A, B or A+B Selection and Speaker Terminals for Two Systems
You can connect two separate speaker systems in different rooms and switch between them, or have them both playing at the same time. There are four terminals, so by just pushing a button, you can switch speakers to match the sound source.
A terminal for connecting a subwoofer is provided, allowing you to increase the bass output of your system for a more powerful sound with better overall sound quality.
Phono MM Terminal

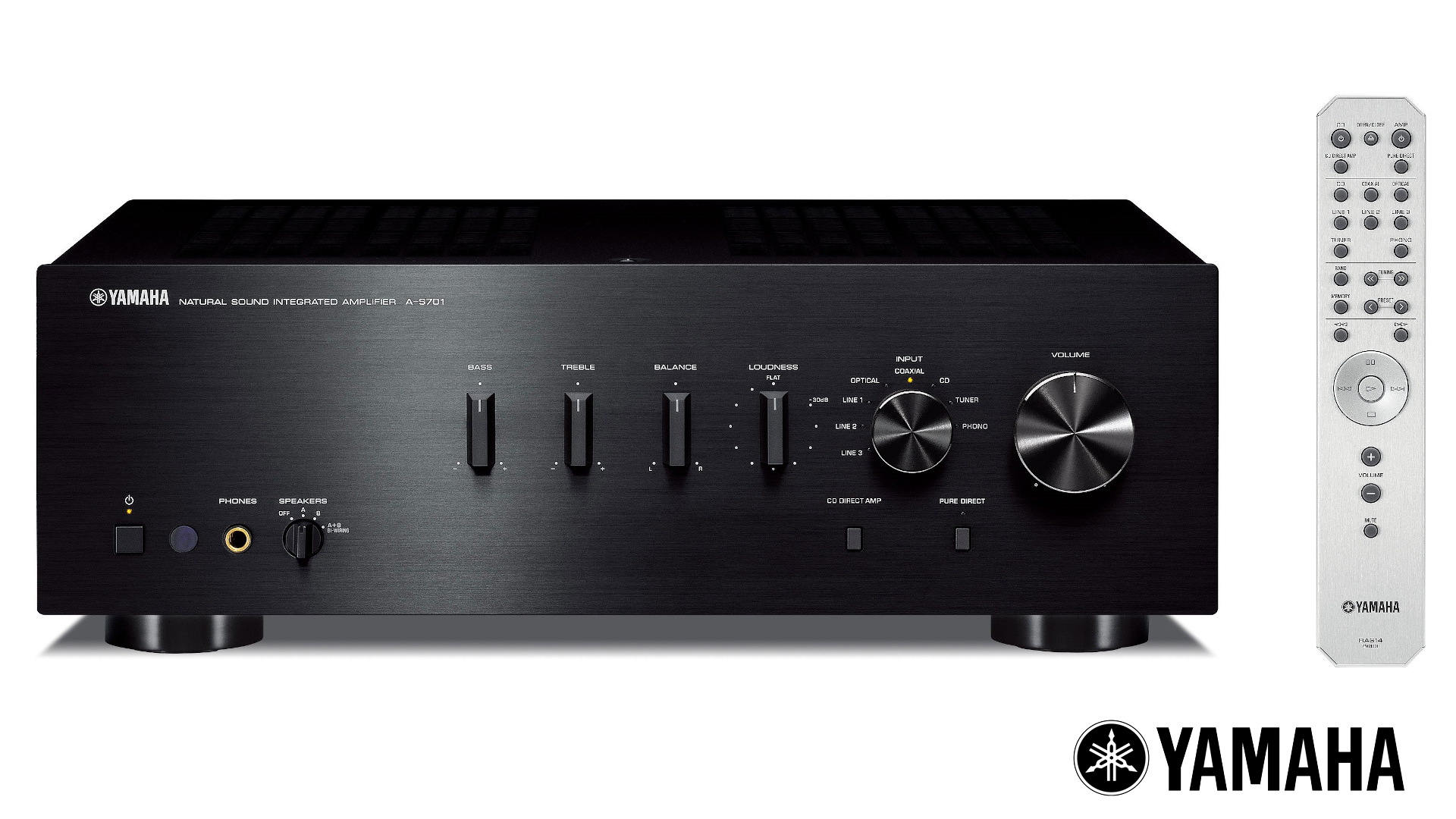

Simple yet Sophisticated Design
With a beautifully simple and unique design inherited directly from Yamaha’s HiFi audio components, this amplifier also boast an easy-to-operate button layout. The aluminium front panel has a richly textured silver hairline finish. The control knobs are also of the same luxurious construction as used on our top-end models.
Remote Control with Clean, Simple Design
The clean, simple design of the remote control provides easy-to-understand one-hand operation. The easy-to-use design makes it simple to adjust song volume and order. The unit has a sophisticated looking hairline finish that matches the design of the amplifiers. You can also use the remote to control a Yamaha CD player.
Rotary Encoder Input Selector with LEDs
The rotary encoder makes it quick and easy to select input sources. The luxury hairline finish material offers a nice tactile feeling. LEDs clearly show which source is selected, so you can easily switch sources even in a dark room.
Auto Power Standby Function
The amplifier has a power management function that detects when it hasn’t been used for a long time (about 8 hours) even though the power is on, and automatically shifts it into standby mode. So even if you forget to turn it off, power consumption will be minimised.
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) 100 W + 100 W (0.019% THD)
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) 160 W + 160 W
High Dynamic Power/Channel (8/6/4/2 ohms) 140/170/220/290 W
Damping Factor 240
Frequency Response 10 Hz-100 kHz +/-1.0 dB
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) 0.019% (50 W/8 ohms)
Signal-to-Noise Ratio (CD) 99dB (input shorted, 200 mV)
Audio In / Out 8 / 2
Digital Input Yes (optical / coaxial)
Subwoofer Out Yes
DC out Yes
Pure Direct Yes
Switchable CD Direct Amplification Yes
Standby Power Consumption 0.5W
Power Management (Auto Power Standby) Yes
Dimensions (W x H x D) 435 x 151 x 387 mm; 17-1/8” x 6” x 15-1/4”
Weight 11.2 kg; 24.7 lbs.
Optical, Sub Pre-Out, Headphone Out
