Highlights

We all know it. Especially when it comes to HD installation.

Time saved in choosing the right combination of HD equipment you know will work is just as important as getting it all up and running as quickly and efficiently as possible so you can leave a satisfied customer and move onto the next job.

We call this system ‘Quick Install’ because that is exactly what you should expect; with great emphasis placed on reduced installation time and an ease of connection that will enable the installer to maximise their productivity on site, avoiding time-consuming compatibility and configuration issues that can unnecessarily prolong a project or in terms of installation time or call-backs.

Specifically developed and manufactured to meet the needs of the installer, the MX0404-QI is a dedicated system of HD distribution and control, combining a 4×4 Matrix and four single cable receivers – all of which of which are designed work seamlessly together for complete compatibility and full management of handshakes, screen resolutions and HD signal distribution to each display point, whether in a residential or commercial environment.

Time is money.  With the WyreStorm Quick Install pack in your set up, you’ll have a little more of both.

NOTE: For longer transmission distances, LAN control and Ethernet pass-through, please see our HDBaseT range of matrices, transmitters, receivers and extender sets.

Features

MX0404-QI

• Quick and easy installation – set up in seconds straight out of the box.
• Simplified ports – Input: HDMI – Output: integrated RJ45 connectors for a single Cat5e/6/7 UTP cable to each display point for ease of installation
• Conforms to IEEE-568B standards
• Each HDMI port also supports DVI signals
• Each Output port can be fed to multiple displays (cascaded)
• Enables up to 4 HDMI video/audio devices to be independently switched through up to 4 HDMI displays or projectors for uncompressed digital distribution
• Each output able to show any connected source simultaneously regardless of whether the input carries HDCP encryption
• Reads and copies EDID from connected devices with additional EDID configuration through customisable DIP switch settings if necessary
• 2k resolution supported
• Fully 3D compatible – Frame packing/sequential 3D (Blu-ray) and interlaced stereoscopic 3D (satellite broadcasts)
• Supports all high definition resolutions up to and including 1080p and standard video formats
• RS232 port
• Choose from 6 switching modes – infrared remote control, front panel buttons, local IR, IR call-back, LAN and RS232
• Simple switching remote control included, which can also be learned into a universal remote handset to allow the control of multiple devices from one handset
• Fully compatible for integration with market leading control systems
• 4 x IR 3.5mm mini-jack ports for each output to link IR from control system to control display
• Additional infrared extension port for longer IR connections
• HDMI v.1.3
• Supports 24Bit Colour depth
• Signalling rate of 6.75 Gbps

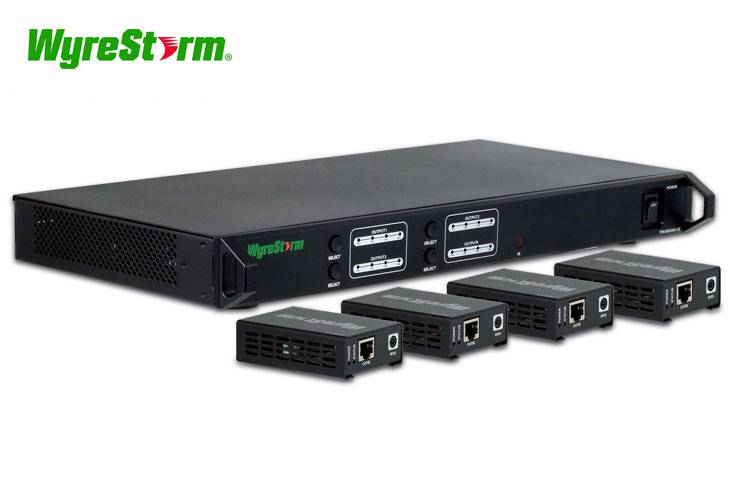

• Pack comes complete with 1 x 4×4 Matrix with 19” rack brackets, 4 x 40m IR receivers with mounting brackets, IR receivers, emitters and a Matrix remote control handset

Additional features included on the RX-1UTP-IR-40

• Transmits one-way signal together with the HDMI signal over a single Cat5e/6/7 cable.
• Receivers capable of 1080p transmissions up to 40m/131ft under ideal conditions*
• For even greater control and fine tuning, each receiver features distance setting adjustment for optimising the transmission signal
• Protection against ESD (electrostatic discharge) included within the unit to further stabilise transmission.
• LED indications for clear power and video signal selection
• 5v mains supply included
• Fully cascadable to further lengthen transmission

*NOTE: ideal conditions denote cable run is within specified distance range of product, no electrical interference, the use of straight cable runs with no bends or kinks and no patch panels or wall outlets used. Please be advised that the presence of any of these factors in your installation may compromise bandwidth and signal strength.

For longer transmission distances, RS232 control and Ethernet pass-through, please see our HDBaseT range of matrices, transmitters, receivers and extender sets.

In The Box

MX-0404-QI

• WyreStorm MX-0404-QI main unit
• Printed instruction manual (Digital copy of manual downloadable from product page)
• Flash USB stick containing PC software and digital copy of instruction manual.  (also downloadable from product page)
• Matrix mounting brackets
• 1 x 12VDC power supply
• 1 x IR Extension cable (IR RX)
• 4 x IR TX IR transmitters for placed at source location to control sources from display zone
• 1 x MX-0404-QI remote control incl. battery (size/type: CR2025 3V)

RX-1UTP-IR-40

• 4 x RX-1UTP-IR-40 HD display receivers
• 4 x Receiver mounting brackets
• 4 x 5VDC power supplies
• 4 x IR RX IR receiver eyes for placed at display location to control sources remotely.

Specifications

Dimensions (WxHxD): MATRIX: 440mm/17.3” x 52mm/2.05” x 235mm/9.25” – RECEIVERS: 60mm/2.4” x 115mm/4.5” x 23mm/0.9”
Weight (Kg): MATRIX: 2 Kg/4.4lbs – RECEIVERS: 0.15 Kg/0.3lbs
Operating Temperature Range: -5 to +35°C (-41 to +95 °F)
Operating Humidity Range: 5 to 90 % RH (no condensation)
Video Amplifier Bandwidth: 6.75Gbps
Input Video Signal: 0.5-1.0 volts p-p
Input DDC Signal: MATRIX: 12 volts p-p (TTL) – RECEIVERS: 5 volts p-p (TTL)
Maximum Single Link Range: 1080p 24bit colour depth
Transmission distance: 1080p signal up to 40m / 131ftft (Under perfect transmission conditions including straight cable runs with no electrical interference, bends, kinks, patch panels or wall outlets.)
Video Format Supported:
VESA: 640×480, 800×600,1024×768, 1280×1024,1600×1200, 1920×1200 DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
Output Video:
HDMI v1.2, HDMI v1.3 + HDCP (Output display mirrors the Input source)
Audio Format Supported: Fully supports Dolby True HD and DTS-HD (mirrors input audio source to the output display)
Power Supply: MATRIX: 100-240V AC – RECEIVERS: 5VDC (mains or USB 5V power adapter)
Power Consumption: MATRIX: 22 Watts (max.) – RECEIVERS: 1.5 Watts (max.)
BTU Rating (British Thermal Unit): 75.02
Rack Space Required: MATRIX: 1U
