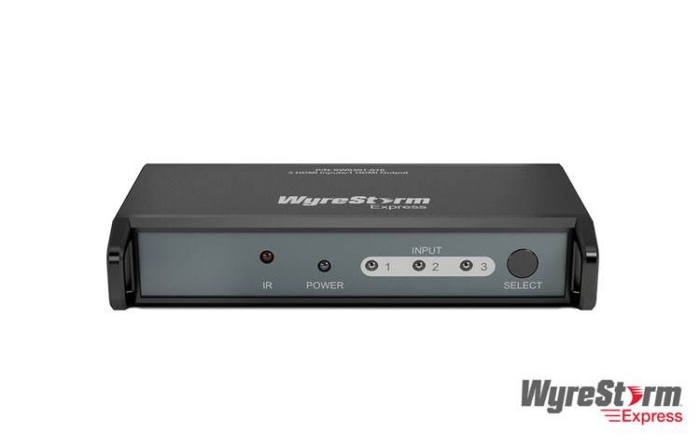

WyreStorm Express 3×1 HDMI Switcher with Remote

74

Call for availability

HDMI switcher, 3 HDMI audio or video sources to a single HDMI display, IR/remote, full HD support, 1080p / 24Hz, 3D compatibility.

Call for availability

SEND EMAIL QUERY
SKU: EXPSW0301 Category:

Description

Whatever the project, if switching between multiple HDMI inputs to a single HDMI output is required, the WyreStorm ESW0301-010 represents a reliable and cost-effective means of quickly and easily achieving your goal.

  • Running out of HDMI ports on your TV, but have multiple entertainment and video sources you want to video on the big screen?
  • Connect up to 3 HDMI devices into the 3×1 Switcher to reduce the input on your TV to one HDMI cable.
  • Capable of full 1080p HD video and HD audio distribution, in addition to 3D content support.
  • Easily select one of the 3 connected source devices with included remote control or Source Select button.

Overview

The WyreStorm Express SW0301-010 is an HDMI Switcher that enables 3 HDMI audio or video sources to be simultaneously distributed to a single HDMI display output with control via front panel or IR/remote handset.  The EXP-SW0301-010 supports High Definition audio and all video formats up to 1080p / 24Hz with full 3D support.

Whether running out HDMI ports on a TV or creating a small AV distribution, connect up to 5 HDMI devices to a single input on a TV, with selection of any of the connected input devices by front panel of with the supplied remote control.

Whatever the application, if switching between multiple HDMI inputs to a single HDMI output is required, the WyreStorm SW0301-010 represents a reliable and cost-effective means of quickly and easily achieving your goal.

WyreStorm Express has been developed as a complete line of plug and play solutions for High Definition connectivity in the home with 3D compatible devices.

The Express range includes simple, inexpensive yet reliable HD switching, distribution and control; ideal for integrating satellite & cable boxes, Blu-Ray and DVD, the latest gaming machines and digital media content stored on HDD with LCD/LED/Plasma displays or digital projectors.

Features

  • Simple plug-and-play connection – no set up / drivers / software required
  • Allows up to 3 HDMI audio/video devices to be switched to one HDMI display device, such as digital signage panel, HDTV or digital projector
  • Automatically negotiates EDID signals from display for seamless communication between devices
  • Supports HD audio
  • Supports high definition HDMI resolutions, including 1080p, 1080i, 720p at 24Hz and other standard video formats
  • Each port supports both HDMI and DVI inputs
  • Supports UXVGA resolutions up to 1920×1200
  • Dual switching control via front panel and IR – infrared handset supplied for remote control switching
  • Fully HDCP compliant
  • HDMI 1.3bv
  • Full 3D support – frame packing/sequential – Blu-Ray and stereoscopic – satellite/cable broadcasts)
  • Signal transmission rate 6.75Gbps

In The Box

  • 1 x SW0301-010 WyreStorm Express 3 to 1 HDMI Switcher
  • 1 x SW0301-010 remote control handset
  • 1 x 5V DC/1A universal power supply
  • Printed Quickstart installation guide



Dimensions (WxHxD): 120mm / 4.7″ x 19mm / 0.75″ x 69mm / 2.7″
Weight (Kg): 0.7Kg / 1.54lb
Operating Temperature Range: -5 to +35°C (-41 to +95 °F)
Operating Humidity Range: 5 to 90 % RH (no condensation)
Video Amplifier Bandwidth: 6.75Gbps
Input Video Signal: 0.5-1.0 volts p-p, Resistance: 75Q
Input DDC Signal: 5 volts p-p (TTL)
Maximum Single Link Range: 1080p 24bit colour depth
Transmission distance: HDMI transmission 15m / 49ft max. (24 AWG HDMI Cable), 10m / 33ft (28 AWG HDMI Cable)
if further distances are required, please use a WyreStorm HDMI repeater or consider a WyreStorm HDMI extender device
Video Format Supported: DTV/HDTV: 1080p/1080i/720p/576p/480p/576i/480i
Output Video: HDMI 1.3b version with full 3D – frame packing/sequential (Blu-Ray). Interlaced Stereoscopic (Satellite/cable)
Audio Format Supported:DTS-HD, Dolby HD
Power Supply: 5VDC – from mains. Max Power: 1.0w
Power Consumption: 4 watts (max.)

Additional information

Brand

Wyrestorm

Product Type

HDMI Switches
