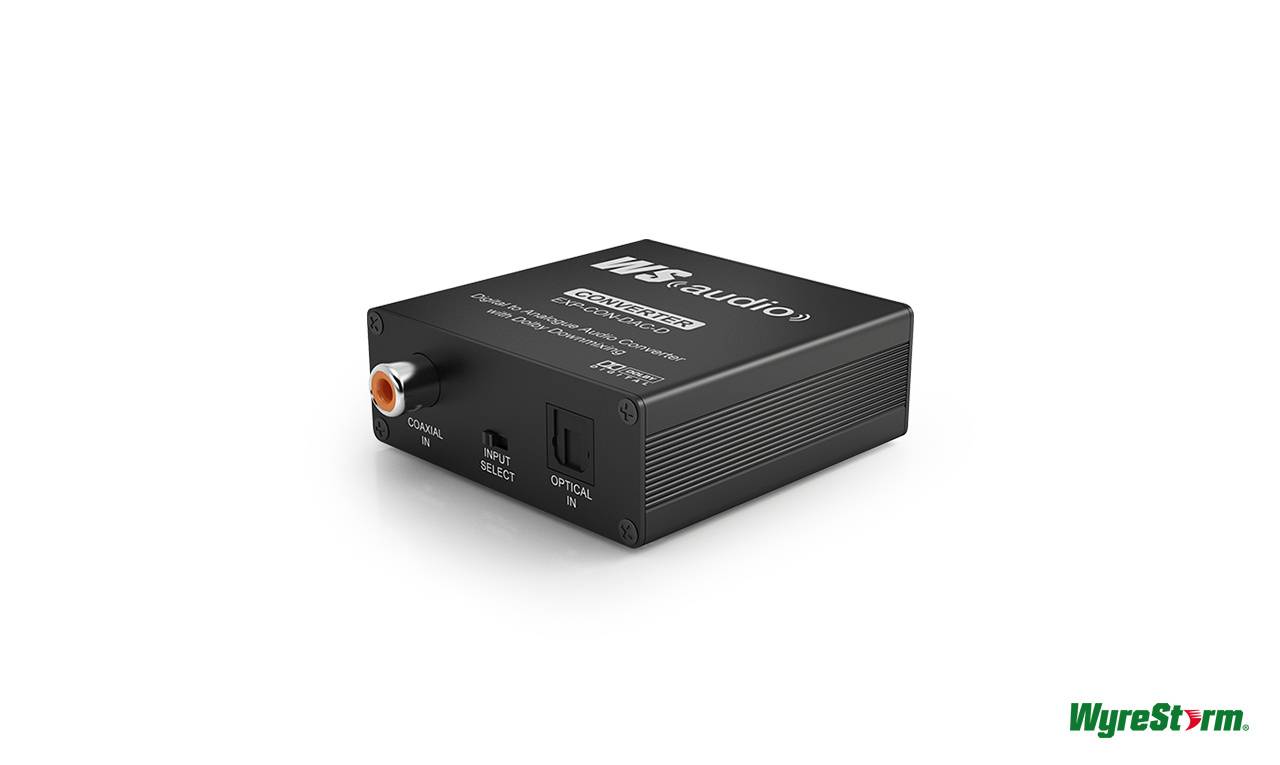

Wyrestorm EXP-CON-DAC-D

152

In stock

Digital to analogue audio converter capable of taking up to 6ch audio encoded as Dolby Digital 5.1 from S/PDIF, coaxial or TOSLINK audio sources and downmixing to analogue stereo.

In stock

SKU: EXPCONDACD Categories: ,

Description

COMPACT DESIGN

WyreStorm Express converters pack a big punch in features, wrapped in a small package; allowing an integrator the freedom to install in the most discreet of locations.

MULTIPLE DIGITAL INPUTS

The EXP-CON-DAC-D has the option to convert a digital signal with S/PDIF coaxial or TOSLINK optical inputs with a simple switch via input select, arming the integrator the ability to cover all digital input basis. A versatile, powerful tool to have in any integrators arsenal!

AUDIO CONVERSION MADE EASY

If quick, reliable and cost-effective conversion of digital audio to analog is a requirement for your project, the EXP-CON-DAC-D is the perfect solution. Converting digital to analog audio from source devices such as Blu-Ray players and AppleTV, to feed legacy analog sound systems, without the need of expensive, bulky conversion equipment.

QUALITY, AFFORDABILITY

Because the EXP-CON-DAC-D falls under the express line, you can expect feature rich quality at an affordable price tag. The EXP-CON-DAC-D is a plug-and-play solution that is comprised of a premium metal chassis, which shows the quality of its construction, matching it’s features.

FEATURES

Residential

  • Converts S/PDIF digital audio (PCM) signals from compatible device to analogue stereo audio
  • Supports up to 6 channels (up to 5.1 Surround) of audio encoded in Dolby Digital
  • Manufactured under license from Dolby Laboratories
  • Auto samples at frequencies of 32, 44.1, 48 KHz
  • Includes digital interpolation filter
  • Accepts uncompressed digital audio input signals
  • Optical & Digital Coaxial inputs

  • Input Select switch

  • LED Power indication
  • Compact design
  • Supports audio signals up to 24-bit with sampling rates up to 192 kHz
  • Low-latency Digital Filtering
  • Dynamic Range: 106 dB A-wt
  • THD+N (Total harmonic distortion plus noise) rating: -93dB

SPECIFICATIONS

Audio and Video

Inputs1x Coaxial In: S/PDIF Coaxial Digital
1x Optical In: TOSLINK (Digital Optical)
Outputs 1x Audio Out: RCA Male Stereo (L/R)
Audio Formats2ch PCM (24bit/192kHz max) | Dolby Digital 5.1
Output Impedance500Ω
Output Voltage1.8V RMS @ Max Input (0dBFS)
Frequency Response20Hz~20kHz <+/-0.5dB
Signal to Noise Ratio> 90dB (20Hz~ 20kHz)
Distortion<0.001% @ 1kHz at 2V RMS

Power

Power Supply5V DC 1A
Max Power Consumption1W

Environmental

Operating Temperature32°F ~ 113°F (0°C ~ 45°C)
10% ~ 90%, non-condensing
StorageTemperature-4°F to ~ 158°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing
Maximum BTU3.4 BTU/hr

Dimensions & Weight

Rack Units/Wall Box<1U
Height24mm/0.95in
Width64mm/2.52in
Depth64mm/2.52in
Weight0.86kg/1.89lbs

Regulatory

Safety and EmissionCE | FCC | RoHS

Accessories

What’s included?1 x WyreStorm EXP-CON-DAC-D Analogue audio converter
1 x Universal 5V DC/1A power supply


Additional information

Brand

Wyrestorm

Product Type

Audio Converters
