Wyrestorm 4K UHD Downscaler and HD Upscaler with Dolby Digital Downmixing.

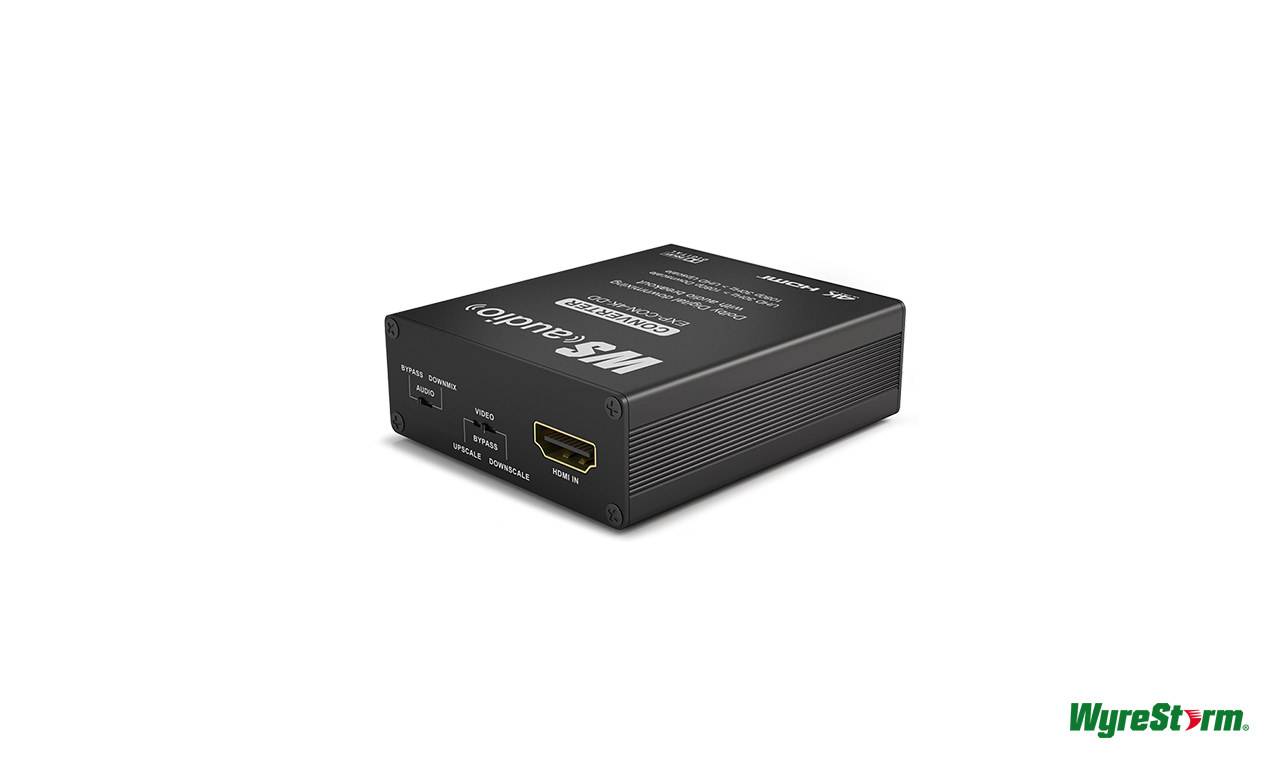

Wyrestorm EXP-CON-4K-DD
€199
In stock
In stock
Description
SCALING
With the EXP-CON-4K-DD, scaling from 1080p to 4K and 4K to 1080p is possible without affecting source resolution, making for a cost-effective solution to mixed resolution displays.
AUDIO DE-EMBED
Furthermore, the EXP-CON-4K-DD has the capability to downmix and de-embed to a stereo PCM signal, or pass it through, making this a versatile tool to have in any integrators arsenal.
COMPACT DESIGN
WyreStorm Express converters pack a big punch in features, wrapped in a small package; allowing an integrator the freedom to install in the most discreet of locations.
DOLBY DOWNMIXING
Both the EXP-CON-4K-DD and EXP-CON-DAC-D have the capability to downmix Dolby Digital 5.1 signals and convert to analogue stereo outputs meaning that these signals can be fed into legacy analog audio systems.
FEATURES
- Affordable in-line scaling solution for installations including 4K and HD displays without compromising source resolution
- 4K/30p > 1080/24p Downscale – to enable 1080p screens to view 4K sources through a 4K matrix system
- 1080/24p > 4K/30p Upscale – for connection to 4K screens
- Supports resolutions up to 4096x2160p @24/25/30Hz
- Full 3D support up to 1080p/24hz
- Downmix incoming Dolby Digital to stereo PCM audio where required through HDMI output
- Supports up to 6 channels (up to 5.1 surround) of audio encoded in Dolby Digital
- Low-latency digital filtering
- Manufactured under license from Dolby Laboratories
- Accepts uncompressed digital audio input signals
- Audio breakout for stereo audio
- Includes digital interpolation filter
- Auto-samples at frequencies of 32, 44.1 and 48KHz
- Supports audio signals up to 24bit with sampling rates up to 192KHz
- THD+N (Total harmonic distortion plus noise) rating: -93db
- Switchable input selection for video/audio scaling or signal pass-through
- Equalizes and boosts HDMI signal for longer distance transmissions
- Compact design
LED power indication
SPECIFICATIONS
Audio and Video
| Inputs | 1x HDMI: 19-pin type A Male |
| Outputs | 1x HDMI: 19-pin type A Male |
| Audio Formats | 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos |
| Output Video Type | AOC |
| Video Resolutions (Max)Â | 1920x1080p @60Hz 16bit 3840x2160p @60Hz 10/12bit HDR 4:2:0 4096x2160p @60Hz 8bit 4:4:4 4096x2160p @60Hz RGB |
| Encoding Data Rate | 18Gbps |
| End to End Latency | Zero |
| Supported Standards | DCI | RGB1080p: 16bit | 4K UHD: 8bit | HDR | HDR10 | Dolby Vision | HLG |@24p: 10bit BT.2020 | BT.2100 |
| Maximum Pixel Clock | 600MHz |
Communication and Control
| HDMI | TMDS | HDCP | EDID | CEC | ARC |
| Audio Return Channel (ARC) | Supported |
Installation Restrictions
| Max Bend Radius | 6cm |
| Max Pull Tension | 15kg |
Power
| Power Supply | Passive 5V DC 1A | 4.5v~5.5v VCC |
| Max Power Consumption | 250mW |
Environmental
| Operating Temperature | 32°F ~ 113°F (0°C ~ 45°C) 10% ~ 90%, non-condensing |
| Storage Temperature | -4°F to ~ 158°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing |
| Maximum BTU | 0.85 BTU/hr |
Dimensions & Weight
| Rack Units/Wall Box | NA |
| Height | 9mm/0.36in |
| Width | 19.8mm/0.78in |
| Depth | 39.5mm/1.56in |
| Weight | NA |

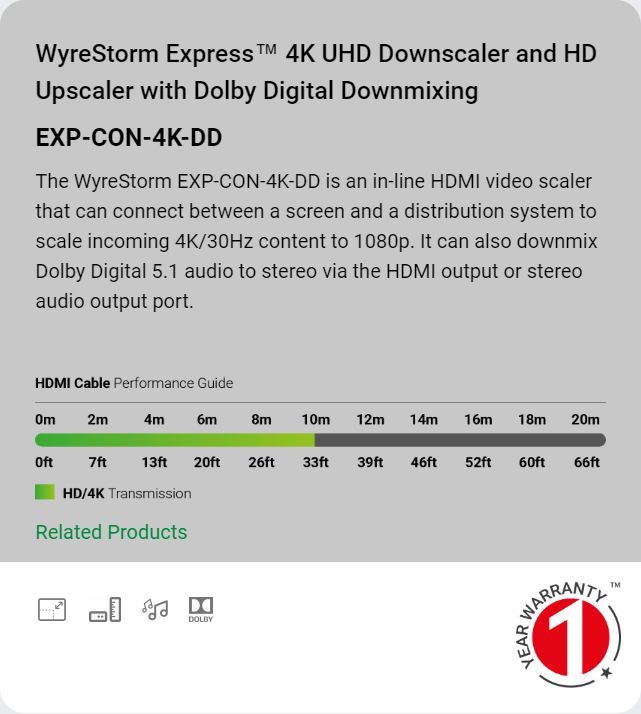

| Cable Length (Connector to Connector) | 20m/65ft |
Regulatory
SPECIFICATIONS
Audio and Video
| Inputs | 1x HDMI In 19-pin HDMI type A female |
| Outputs | 1x HDMI In 19-pin HDMI type A female 1x Stereo Out: 3.5mm (1/8in) TRS Stereo |
| Audio Formats | Input: 2ch PCM | Dolby Digital 5.1 | Downmix Output: 2ch PCMÂ |
| Max. Video Resolution | 1920x1080p @30Hz 12bit (15m/49ft) 3840x2160p @30Hz 4:2:0 8bit (7m/23ft) 4096x2160p @30Hz 4:2:0 8bit (7m/23ft) Note: 1080i and 720p resolutions are not supported. |
| Video Scaling | Up Scales 1920x1200p @30Hz 12bit to 3840x2160p @30Hz 4:2:0 8bit Down Scales 4096x2160p @30Hz 4:2:0 8bit to 1920x1200p @30Hz 12bit |
| Color Depth | 1080p: 12bit | 4K: 8bit |
| Maximum Pixel Clock | 340Mhz |
Communication and Control
| HDMI | HDMI | HDCP 1.4 | HDCP 2.2 Pass Through Only |
Power
| Power Supply | 5V DC 1A |
| Max Power Consumption | 5W |
Environmental
| Operating Temperature | 32°F ~ 113°F (0°C ~ 45°C) 10% ~ 90%, non-condensing |
| StorageTemperature | -4°F to ~ 158°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing |
| Maximum BTU | 17 BTU/hr |
Dimensions & Weight
| Rack Units/Wall Box | <1U |
| Height | 23mm/0.91in |
| Width | 65mm/2.56in |
| Depth | 77mm/3.04in |
| Weight | 1.05kg/2.31lbs |
Regulatory
| Safety and Emission | CE | FCC | RoHS |
Accessories
| What’s Included? | 1 x EXP-CON-4K-DD 1 x Instruction Manual 1 x 5v DC 1A power adapter |
Additional information
| Brand | Wyrestorm |
|---|---|
| Product Type | HDMI Converters |
