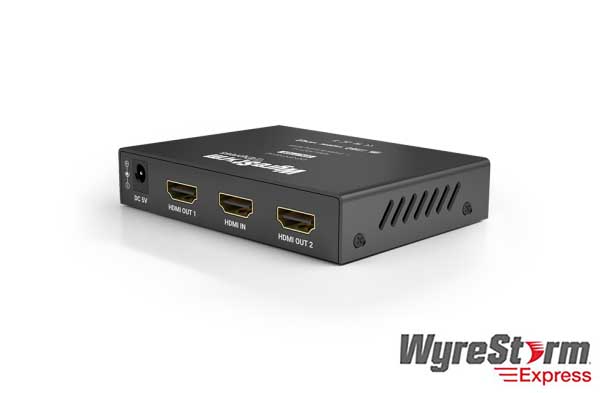

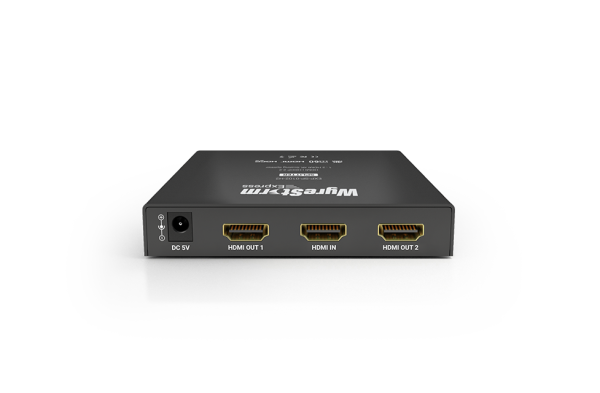

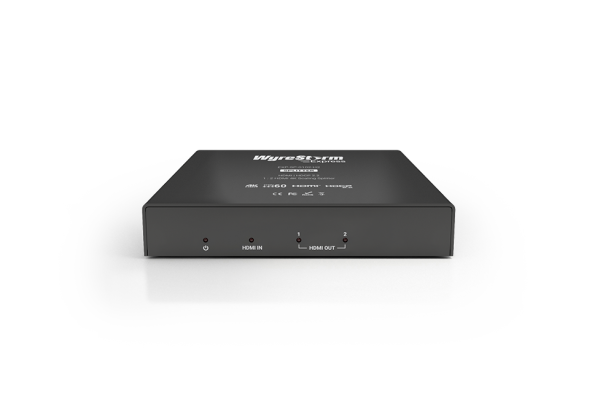

WyreStorm Essentials™ 4K60 1:2 Scaling HDMI Splitter

109

Full 18Gbps bandwidth HDMI 2.0 offers; 2160p@60Hz 4:4:4 and support for Dolby Vision™ included with a powerful built-in scaler, allowing users to simultaneously connect a mix of 4K and 1080p displays.

SEND EMAIL QUERY

Description

FEATURES

  • Allows a transmission from a single HDMI audio/video device to be duplicated and simultaneously distributed to up to two HDMI display devices, such as TV, AVR, digital signage panel or digital projector
  • Supports 4K@60Hz 10bit 4:2:0 | 4:4:4 and HDR@24Hz 10bit BT.2020
  • Fully HDCP 2.2 compliant
  • Data rates up to 18Gbps
  • HDR and Dolby Vision support
  • Each HDMI output supports scaling down to 1080p
  • Automatic input cable equalization for signal regeneration
  • DTS-X and Dolby Atmos™ supported
  • Plug and play set up for easy installation – no set up/drivers/software required
  • Compact, durable design for unobtrusive installation

SPECIFICATIONS

Audio and Video



AUDIO & VIDEO



Inputs

1x HDMI In 19-pin HDMI type A

Outputs

2x HDMI Out 19-pin HDMI type A

Audio Formats

2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos

Video Resolution (Max)

1920x1080p @60Hz 12bit
1920x1080p @60Hz 16bit
3840x2160p @24Hz 10bit 4:2:0 HDR
3940x2160p @30Hz 8bit 4:4:4
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:2:0
4096x2160p @60Hz 8bit 4:4:4

Supported Standards

DCI | RGB |HDR | HDR10 | Dolby Vision up 30Hz | HLG | BT.2020

Maximum Pixel Clock

600Mhz

COMMUNICATION & CONTROL



HDMI

HDCP 2.2 | EDID | DVI-D supported with adapter (not included)

POWER



Power Supply

5V DC 1A

Max Power Consumption

1.8W

Additional information

Brand

Wyrestorm

Product Type

HDMI Converters
