4K HDR content, the EX-70-H2 features dynamic compression technology to enable high frame rate HDR-10 and HLG content to be transmitted over standard 10Gbps.
AUDIO & VIDEO

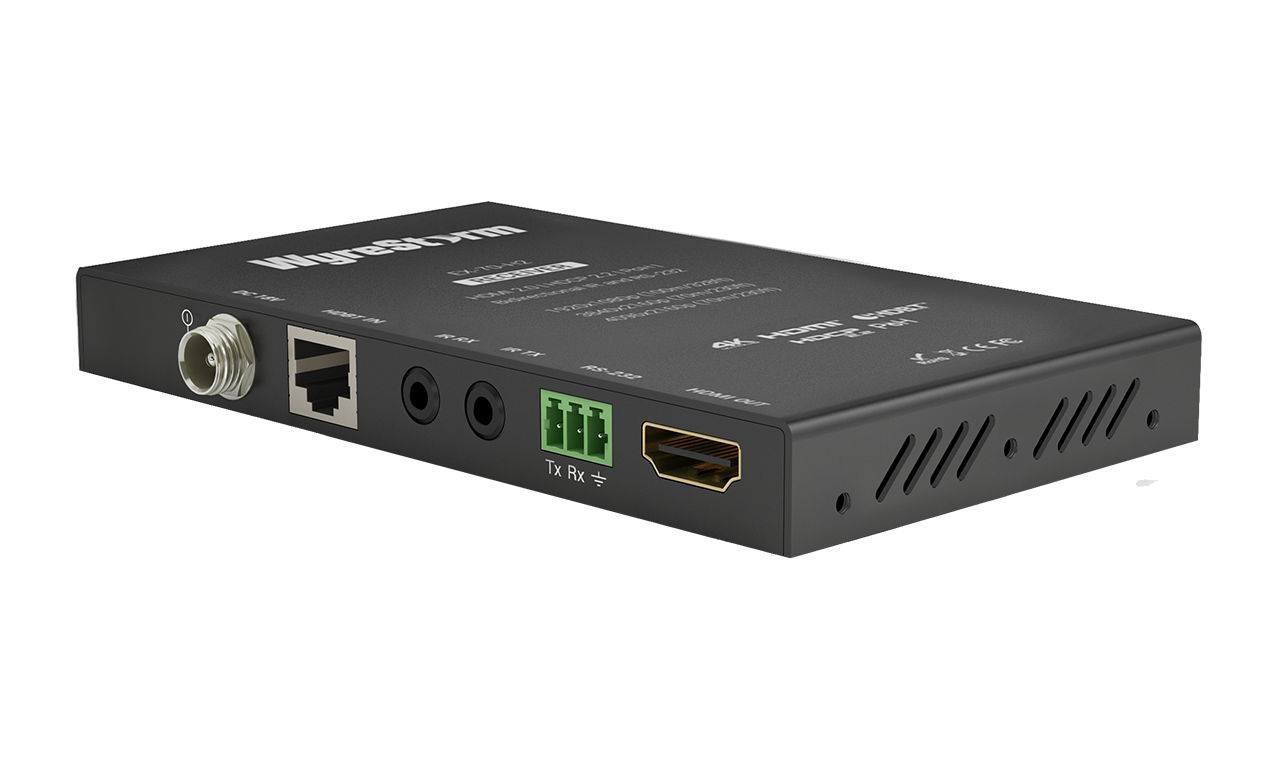

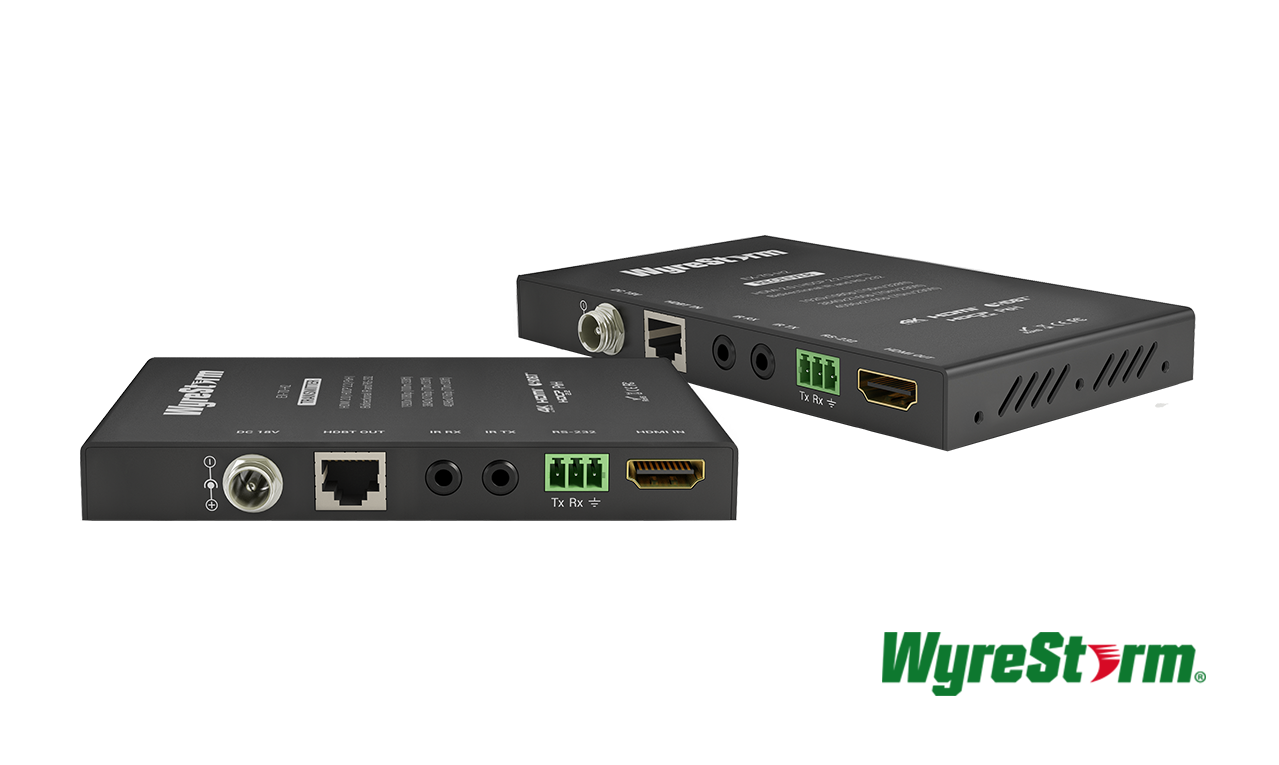

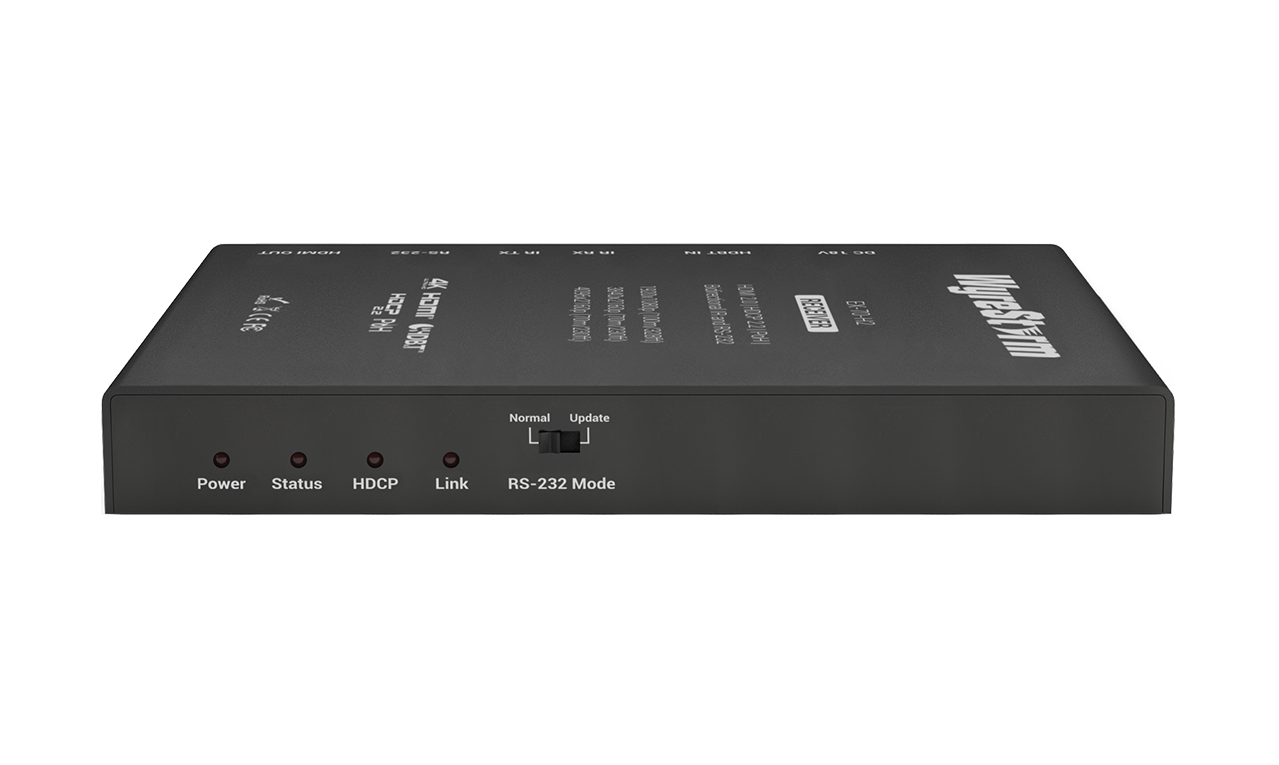

Wyrestorm 70m 4K60 HDBaseT Extender
€648
In stock
In stock
Description
4K60 1:4 HDMI Splitter
HDMI 2.0 MAXED OUT
Knowing the speed at which technology moves, at WyreStorm we’re always looking ahead. That’s why we’ve implemented our VLC chipset (Visualy Lossless Compression) into this model meaning it’s ready for the next shift in content technology: 4K 60Hz 4:4:4 HDR.
HDCP 2.2 COMPLIANT
The latest 4K UHD content arriving via satellite, cable, disc or stream is all heavily encrypted. Being part of the H2 product family, the EX-70-H2 supports the multi-point distribution of this content over HDBaseT.
SIGNAL RE-CLOCKING
Installers shouldn’t experience problems because of source equipment they have no control over. That’s why all extenders in the WyreStorm H2 family automatically “re-clock” the source signal, overcoming clock-stretching issues found in certain source devices.
FLEXIBLE INSTALLS WITH 2-WAY POH
No 2 installs are the same; that’s why we’ve enabled all of the H2 extender line up to be powered from either the TX or RX, meaning maximum flexibility on-site without hunting for a mains outlet.
4K UHD, 4-WAYS
With support for 4K/60 4:4:4 and a powerful backplane capable of “fully-loaded” 18Gbps distribution to four outputs, the SP-0104-H2 is the perfect way to achieve multi-point, single source distribution.
HDCP2.2 COMPLIANCE
The latest 4K UHD content arriving via satellite, cable, disc or stream is all heavily encrypted to protect it from being illegally duplicated. Being part of the H2 product family, the SP-0104-H2 supports the multi-point distribution of this content over HDBaseT™.
EDID ADJUSTMENT
With multiple EDID tables to choose from, the SP-0104-H2 comes with various EDID options to optimise sink-source communication. Built-in EDID’s allow a defined timing signal to be selected or copy mode from port #1 means that a connected screen can be used as the master.
SLIM FORM-FACTOR
Coming complete with mounting brackets, the SP-0104-H2 can be both wall & surface mounted. The 18mm chassis allows for unobtrusive installation.
PRODUCT FEATURES
- HDBaseT™ Class B transmission of 4K HDR up to 70m/230ft and 1080p @60Hz 36bit up to 100m/328ft
- Full UHD 4K transmissions supporting HDMI 2.0 video standards
- Transmits discreet wide-band bidirectional IR/RS-232 control signals together with HDMI over a single Cat5e/6 cable
- Low profile chassis of 15mm for easier, more convenient installations behind screens at display zones
- Supports 2ch PCM and 7.1 multichannel audio up to DTS-X and Dolby Atmos
- Switchable RS-232 function mode on transmitter and receiver for firmware update
- Threaded bushings allow the use of both standard and locking DC power plugs

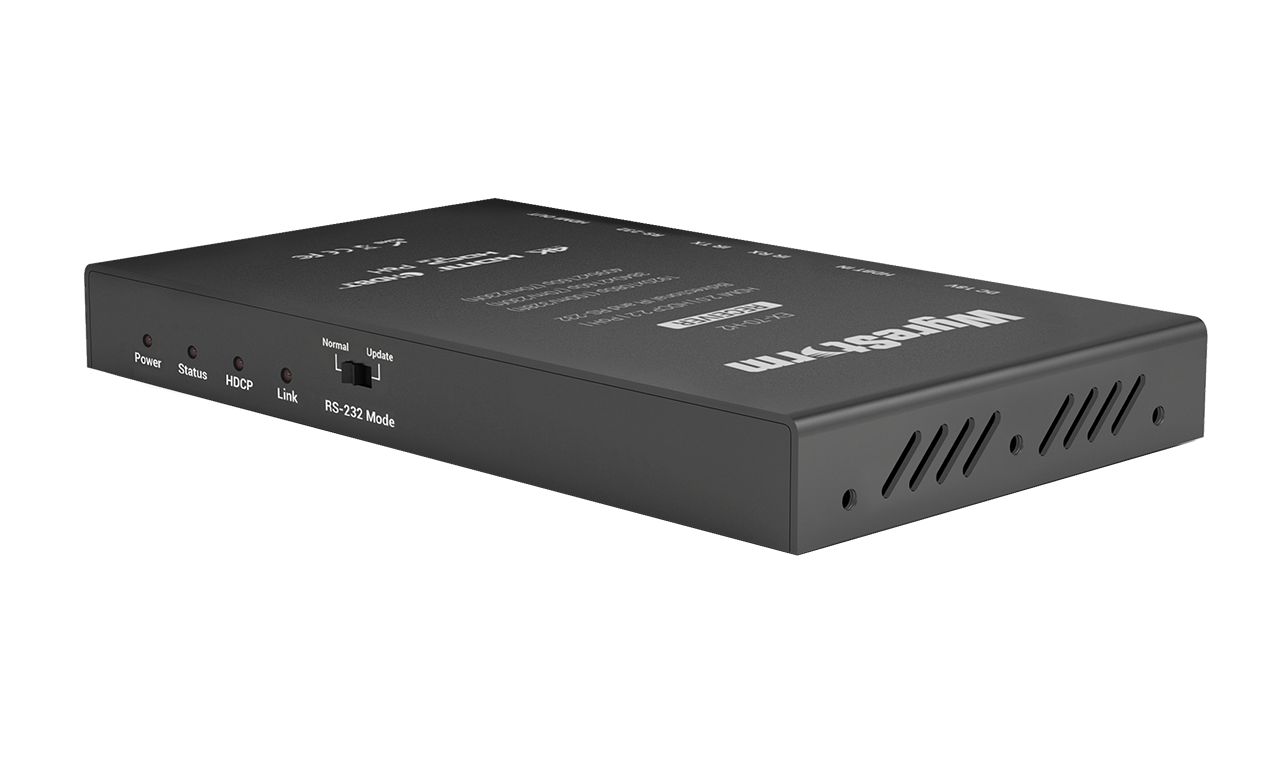

- Visual LED indication for power, display connection signal status, HDBaseT™ link, and HDCP presence in signal
- Cable termination follows IEEE-568B standards
- Automatically adjusts feedback, equalization, and amplification of signal for easy installation
- Energy efficient universal power supply included
SPECIFICATIONS

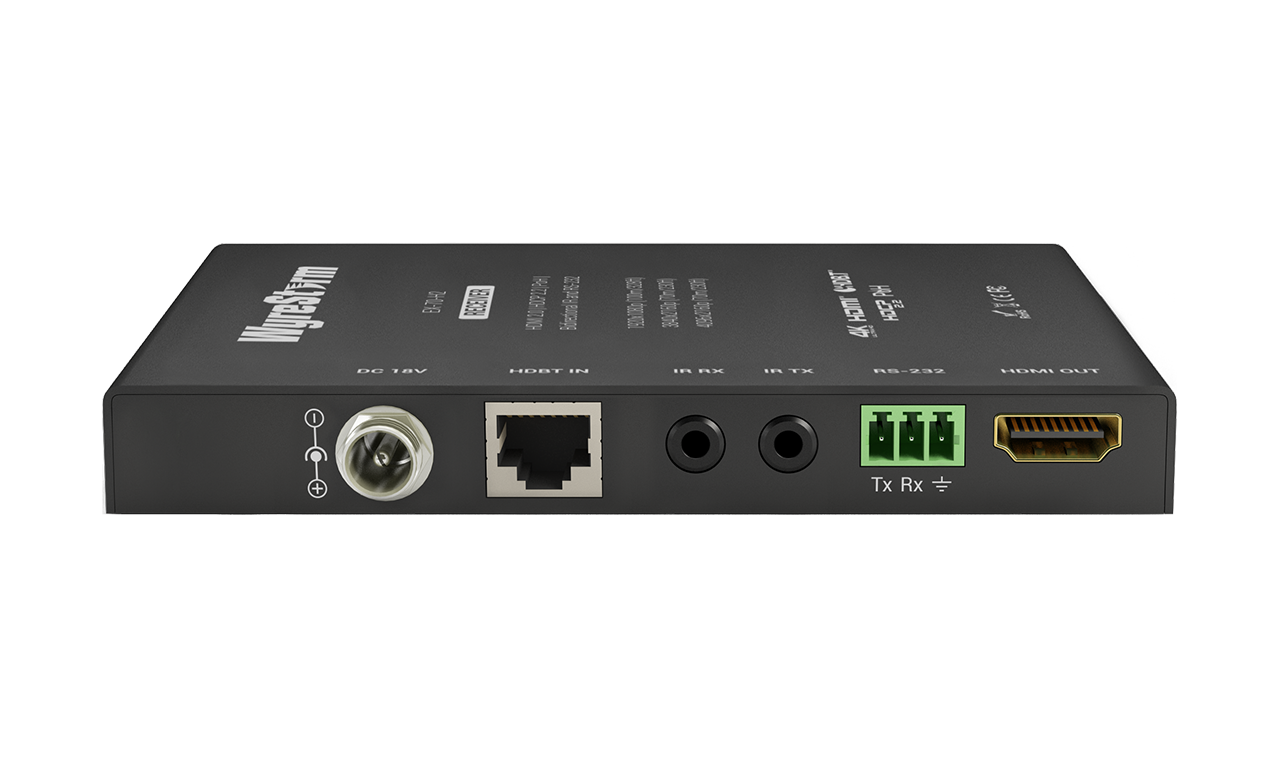

Inputs
TRANSMITTER
1x HDMI: 19-pin type A
RECEIVER
1x HDBaseT 8-pin RJ-45 female
Outputs
1x HDBT: 8-pin RJ-45 Female
1x HDMI Loop: 19-pin type A
1x HDMI: 19-pin type A
Output Video Encoding
HDBaseT™ Class A
Encoding Data Rate
9.2Gbps
End to End Latency
10μs (microseconds)
Audio Formats
2ch PCM | Multichannel up to DTS-X and Dolby Atmos
Video Resolutions (max)
1920x1080p @60Hz 16bit
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:4:4
Supported Standards
DCI | RGB | Dolby Vision @ 30Hz | HLG | HDR-10
Maximum Pixel Clock
HDMI: 600MHz | HDBaseT: 297MHz
COMMUNICATION & CONTROL
HDMI
HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
HDBaseT
HDMI | HDCP 2.2 | EDID | 2-way PoH | Bidirectional IR, and RS-232
CEC
CEC Pass-through – Requires CEC compatibility between source and display
IR
1x IR TX: 3.5mm (1/8in) TS Mono
1x IR RX: 3.5mm (1/8in) TRS Stereo
RS-232
1x RS-232: 3-pin Terminal Block
POWER
Power Supply
18V DC 1A
PoH
IEEE 802.3af 48V 15.4W Max | 2-way
Max Power Consumption
4.68W
Additional information
| Brand | Wyrestorm |
|---|---|
| Product Type | HDMI Splitters |
