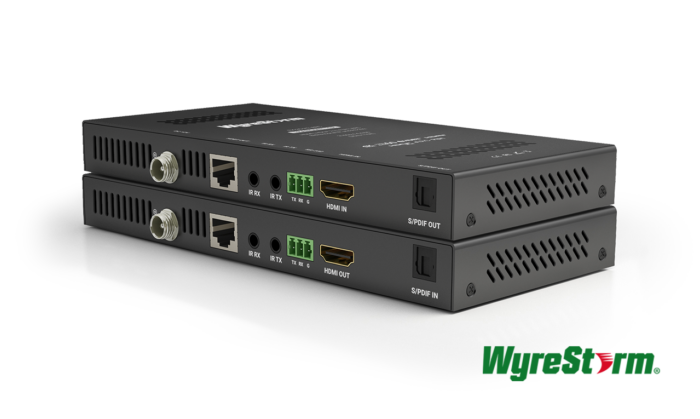

4K extender, EX-35-ARC, delivers 4K/60 4:4:4 HDR content at 17.8Gbps over standard HDBaseT. Lossless, low latency. Supports HDR-10, HLG up to 60Hz, Dolby Vision™ at 30Hz. EX-35-H2-ARC adds True ARC for Smart TV to AVR.
AUDIO & VIDEO
Description
4K60 1:4 HDMI Splitter
HDMI 2.0 MAXED-OUT
Knowing the speed at which technology moves, at WyreStorm we’re always looking ahead. That’s why we’ve included our VLC chipset (Visually Lossless Compression) in this extender meaning not only ARC is supported but also the next shift in content technology: 60Hz HDR and 4:4:4 60Hz.
ON-DEMAND AUDIO
With on-demand content forming the new way of watching TV, free the audio from within a SmartTV with the WyreStorm EX-35-H2-ARC HDBaseT™ extender, supporting both True ARC (via HDMI) or optical audio return.
HIGH FRAME RATE HDR
HDR Content has recently enjoyed an up-shift in refresh rates after starting its life at 24Hz on UHD Blu-Ray discs. High frame-rate HDR is now available at 60Hz on certain discs and via games consoles like the Xbox One X; the EX-35-H2-ARC is ready for this, supporting both HDR-10, HLG and Dolby Vision* (*Dolby Vision at up to 30Hz).
AUDIO DE-EMBED

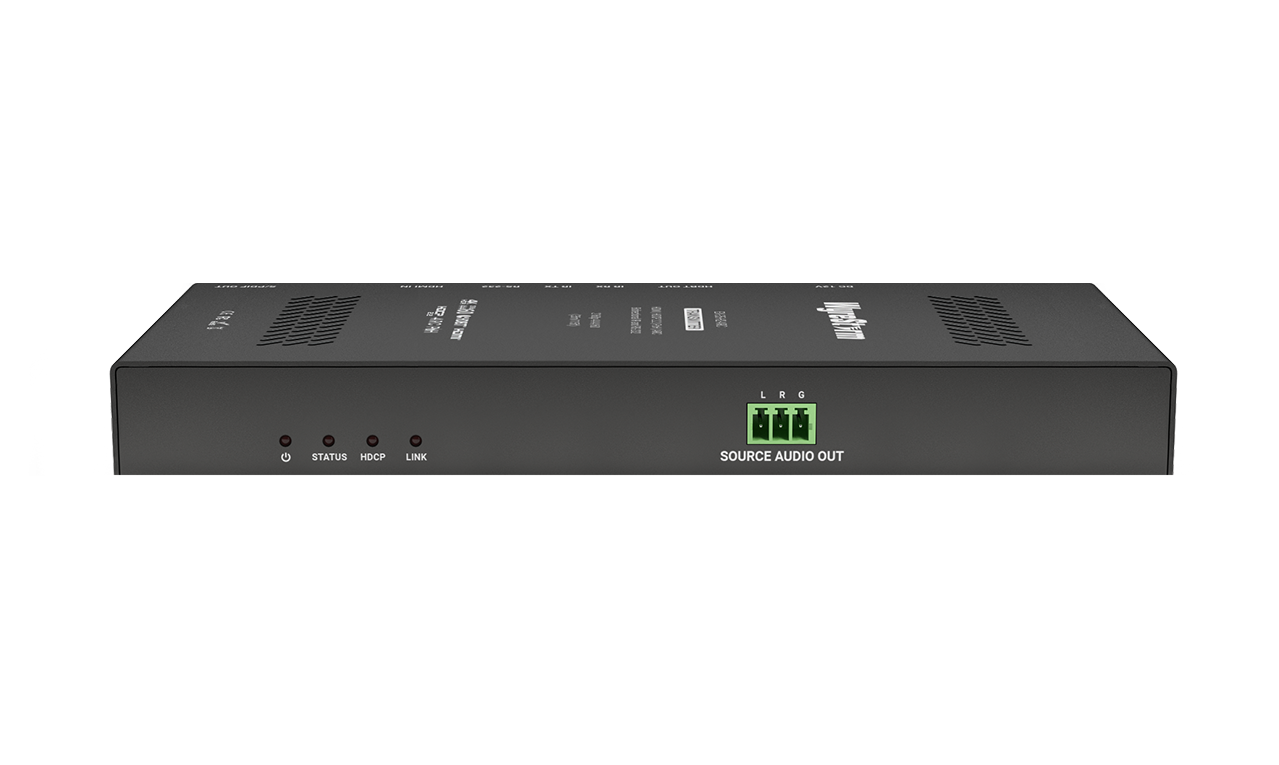

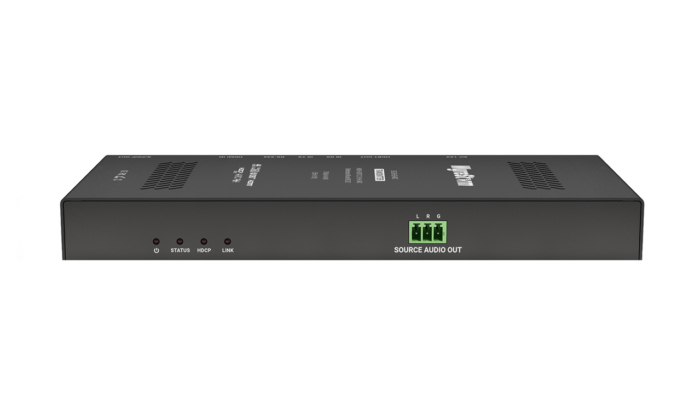

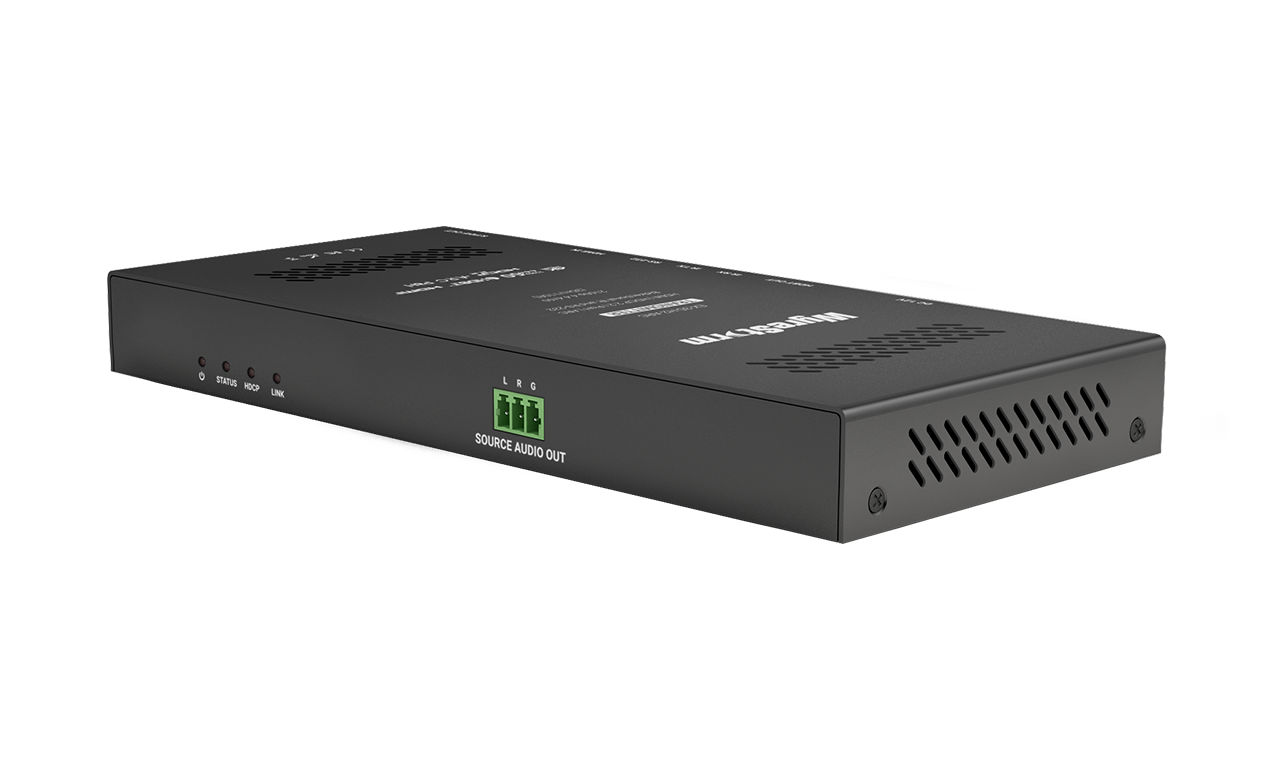

Fully-featured audio performance doesn’t stop at the ability to handle ARC, the transmitter of the EX-35-H2-ARC offers the ability to extract 2ch PCM audio from the source via the 3-pin phoenix port for connection to an audio system.
4K UHD, 4-WAYS
With support for 4K/60 4:4:4 and a powerful backplane capable of “fully-loaded” 18Gbps distribution to four outputs, the SP-0104-H2 is the perfect way to achieve multi-point, single source distribution.
HDCP2.2 COMPLIANCE
The latest 4K UHD content arriving via satellite, cable, disc or stream is all heavily encrypted to protect it from being illegally duplicated. Being part of the H2 product family, the SP-0104-H2 supports the multi-point distribution of this content over HDBaseT™.
EDID ADJUSTMENT
With multiple EDID tables to choose from, the SP-0104-H2 comes with various EDID options to optimise sink-source communication. Built-in EDID’s allow a defined timing signal to be selected or copy mode from port #1 means that a connected screen can be used as the master.
SLIM FORM-FACTOR
Coming complete with mounting brackets, the SP-0104-H2 can be both wall & surface mounted. The 18mm chassis allows for unobtrusive installation.
PRODUCT FEATURES
- HDCP 2.2 compliant, with automatic variable compression supporting full bandwidth HDMI content up to 17.8Gbps
- Class B HDBaseT extends 4K UHD 4:4:4 content to 35m/115ft with IR & RS-232 pass-through

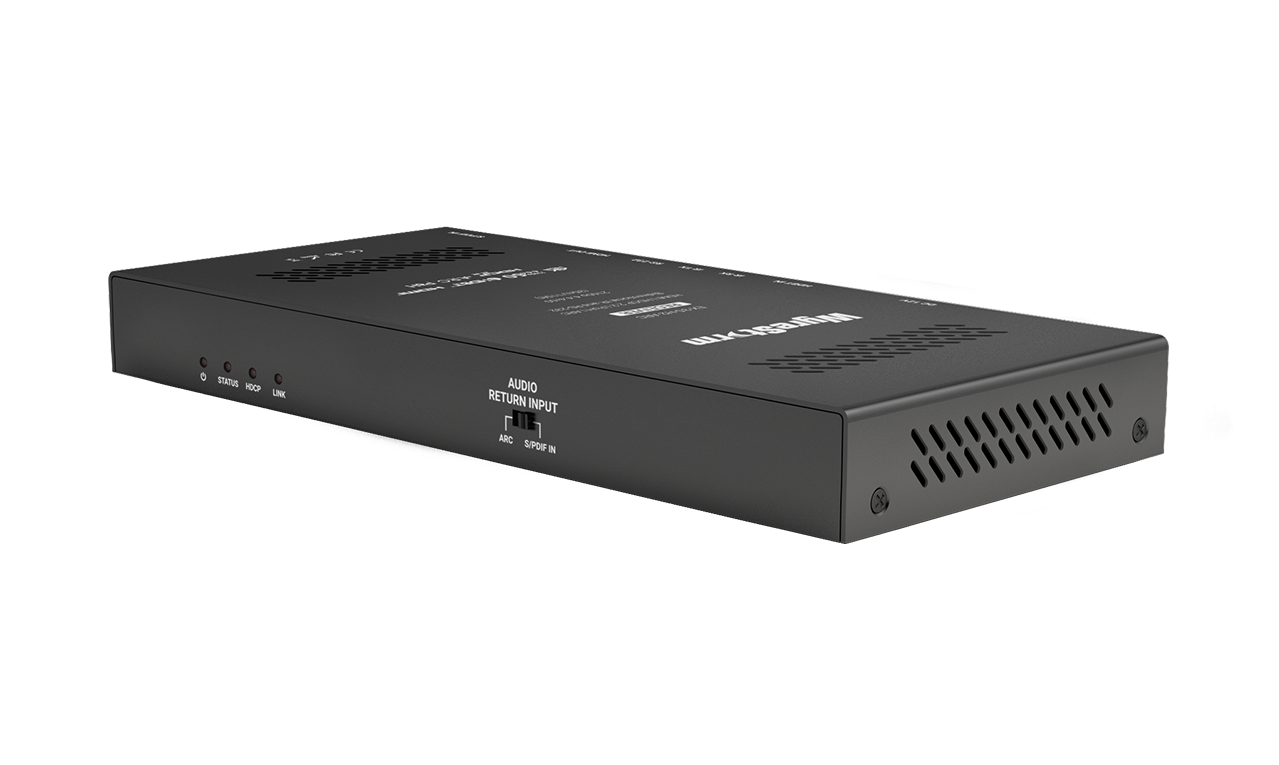

- Toslink input & output allows non-ARC audio to be sent from RX-TX via the selection switch
- Analog stereo audio breakout of source audio on the transmitter
- Advanced re-clocking chipset increases compatibility with new 4K UHD source devices
- 2-way PoH (Power over HDBaseT) enables either transmitter or receiver to be remotely powered by the other unit
- Slimline 21mm chassis for easier, more convenient installation behind displays
- Switchable RS-232 function mode on transmitter and receiver for firmware update
Note: Serial control via RS-232 is only supported when connected to a compatible HDBaseT transmission device with routable RS-232 - Threaded bushings allow the use of both standard and locking 18v DC power plugs

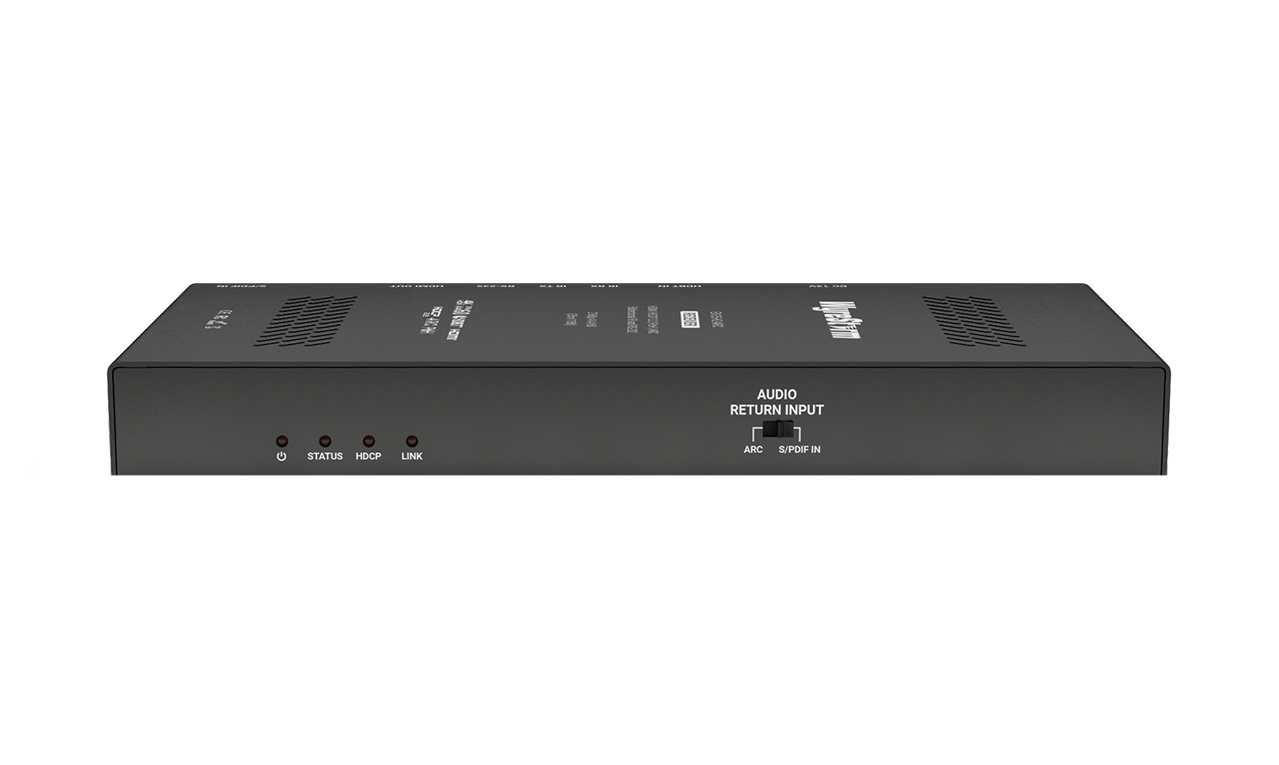

- Visual LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal, and HDBaseT link between devices
- Automatically adjusts equalization and amplification of signal for easy installation
SPECIFICATIONS
Inputs

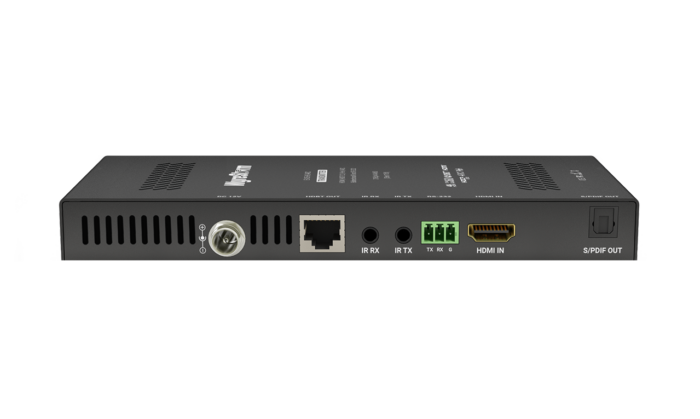

TRANSMITTER
1x HDMI: 19-pin type A

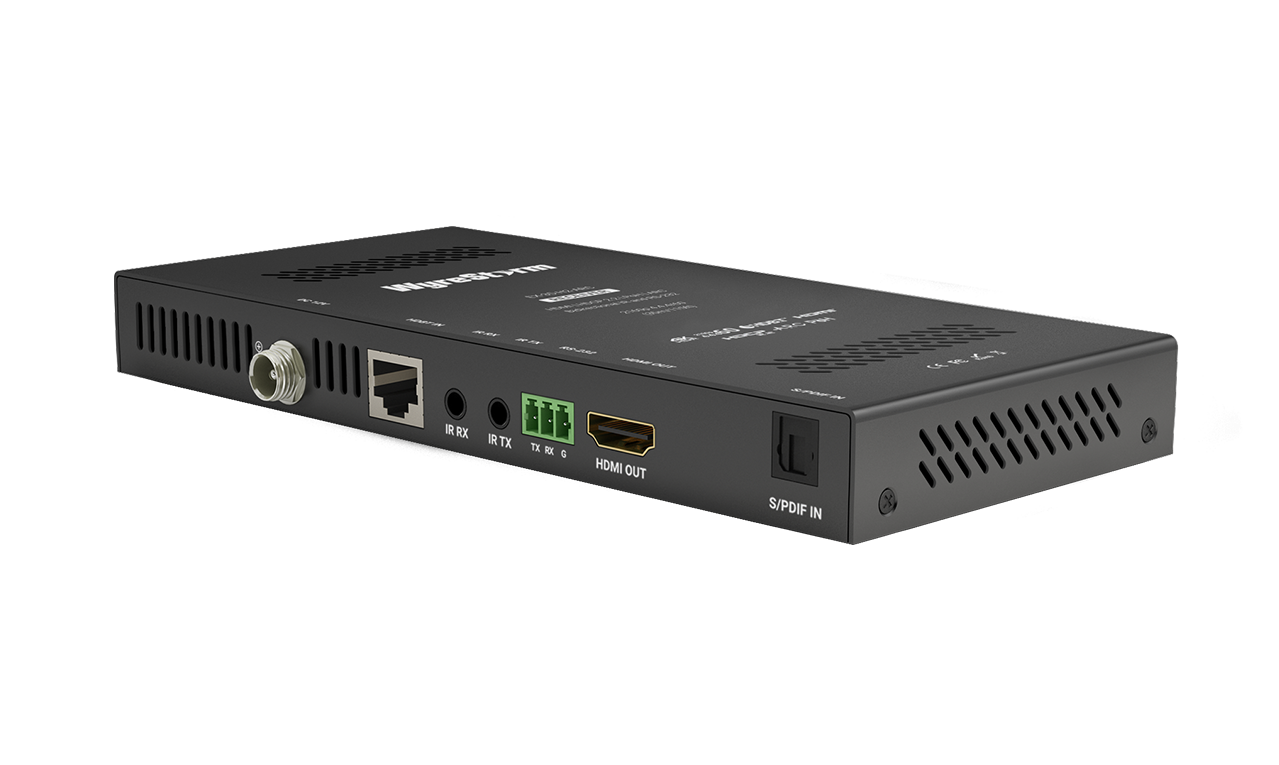

RECEIVER
1x HDBaseT: 8-pin RJ-45 Female
1x S/PDIF: TOSLINK (Digital Optical)
Outputs
1x HDBT: 8-pin RJ-45 Female
1x S/PDIF: TOSLINK (Digital Optical)
1x Source Audio: 3-pin Phoenix
1x HDMI 19-pin type A
Output Video Encoding
HDBaseT™ Class B
Encoding Data Rate
9.2Gbps
End to End Latency
10μs (microseconds)
Audio Formats
2ch Analog/PCM | Multichannel: LPCM up to DTS-X and Dolby Atmos
Video Resolutions (max)
1920x1080p @60Hz 16bit
3840x2160p @24Hz 10bit 4:2:0 HDR
3840x2160p @30Hz 8bit 4:4:4
4096x2160p @60Hz 8bit 4:4:4
Supported Standards
DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
Maximum Pixel Clock
HDMI: 600MHz | HDBaseT: 297MHz
COMMUNICATION & CONTROL
HDMI
HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
HDBaseT
HDMI | HDCP 2.2 | EDID | ARC | 2-way PoH | Bidirectional IR and RS-232
CEC
CEC Pass-through – Requires CEC compatibility between source and display
IR
1x IR RX: 3.5mm (1/8in) TRS Stereo | 1x IR TX: 3.5mm (1/8in) TS Mono (Transmitter and Receiver)
RS-232
1x RS-232: 3-pin Phoenix (Transmitter and Receiver)
Audio Return Channel (ARC)
Supports true ARC from display to the transmitter over HDBaseT
POWER
Power Supply
12V DC 3A
PoH
48V 15.4W | 2-way
Max Power Consumption
8.88W
Additional information
| Brand | Wyrestorm |
|---|---|
| Product Type | HDMI Splitters |
