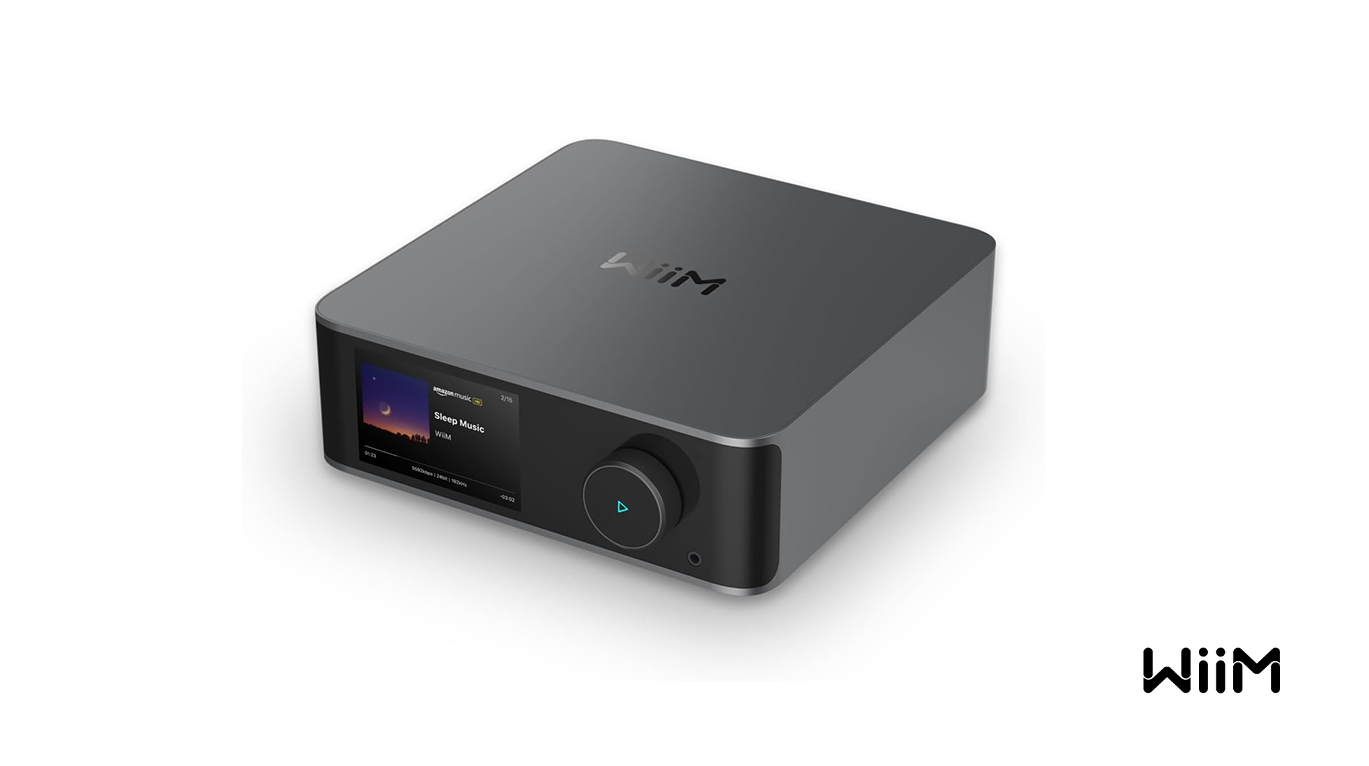

Experience exceptional audio with our sleek aluminum-encased device, featuring a 3.5″ glass-covered touchscreen. It offers a comprehensive suite of audio inputs and outputs and is built with audiophile-grade components for unparalleled sound quality.
| Main Purpose | Connected to amplifier or powered speaker for streaming |

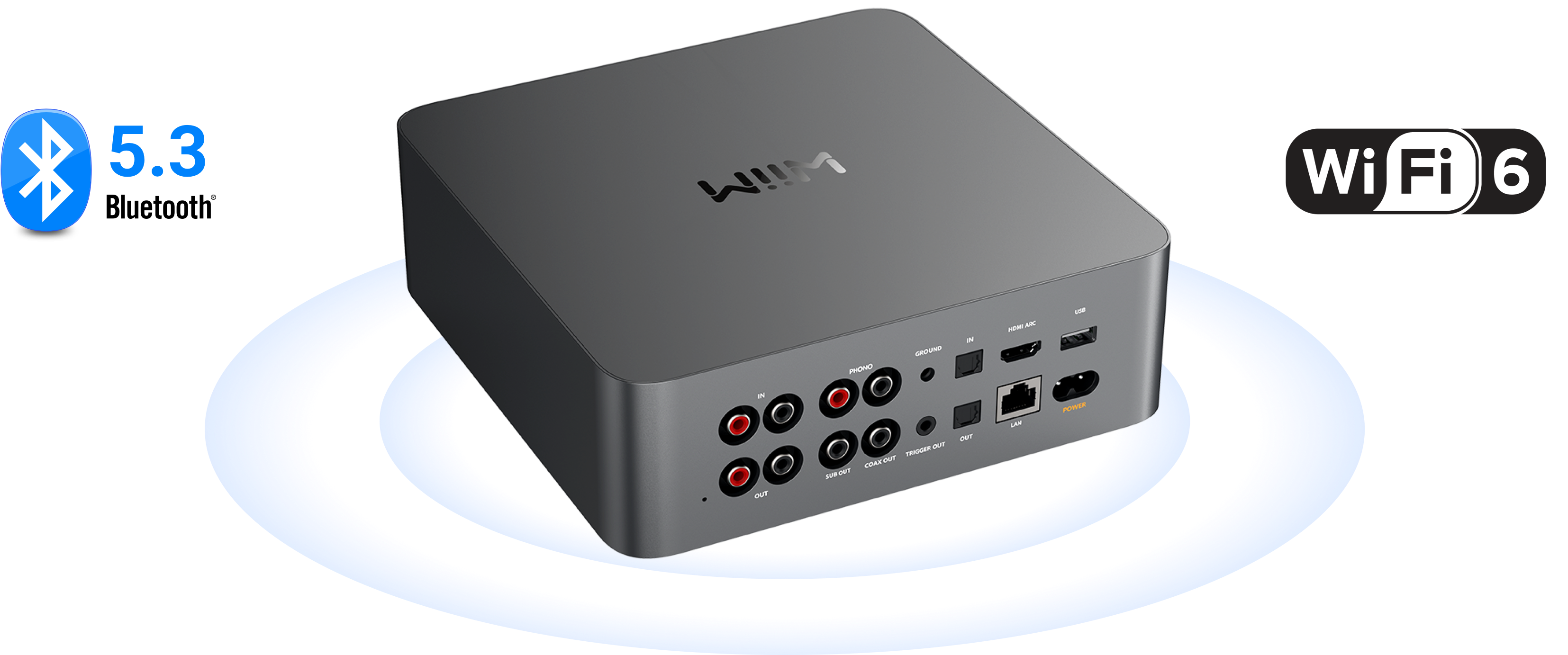

| Wireless Connectivity | Wi-Fi 6, BT 5.3 (Will be upgraded to Wi-Fi 6E via software update.) |
| DAC IC | ESS ES9038 Q2M |
| Analog Out SNR | 121 dB |
| THD+N (Analog Out) | -116 dB (0.00015%) |
| Analog Input (ADC) | Up to 192k, 24 bit |
| CPU | Quad Core A53 |
| DRAM | 512 MB |
| Flash | 512 MB |
| Audio Input Port | HDMI ARC, Optical, Line, Phono, USB Disk |
| Audio Output Port | RCA, Optical COAX, USB, Headset |
| Dimensions | 8.3″ x 7.87″ x 2.83″ (211 mm x 200 mm x 72 mm) |
| Weight | (3.13 lbs) 1.42 kg |
| Power Input | 100-240V AC input, 50/60 Hz, 0.5A Max |
| Touch Display | Glass-covered 3.5″ vibrant touchscreen display: Displays App widgets, large album pictures, playback control, playing queue, presets, EQ, audio input and output, and device settings Guides users through the OOBE and OTA Provides feedback when there’s a change in the play mode Control Interface |
| LED | 4 Color RGBW LED indicates the device status |

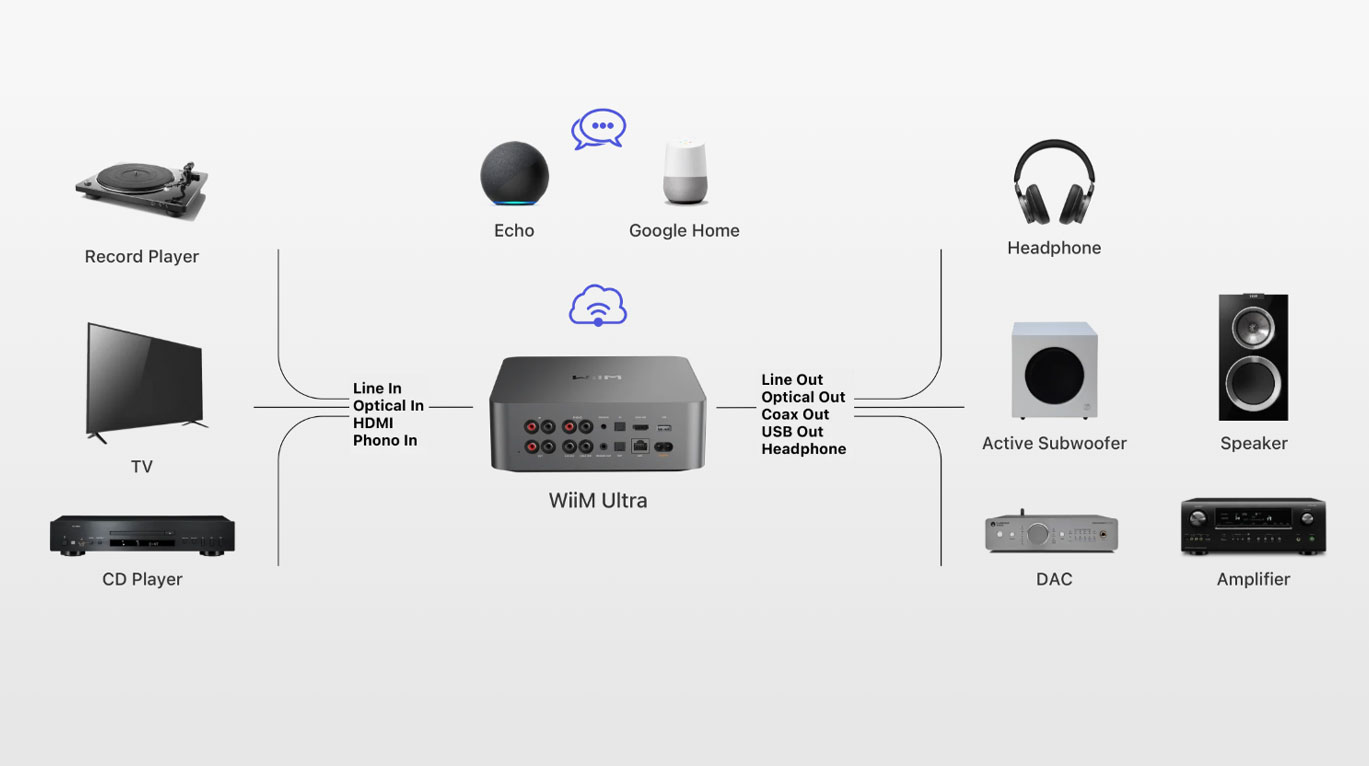

| Input Options | Analog Inputs: Line-In (RCA): Connects to external audio sources like CD players or PCs Phono Input: Dedicated input for turntables without a built-in preamp -Digital Inputs: Optical (TOSLINK): Supports 2-channel PCM stereo up to 24-bit/192kHz HDMI ARC: Receives audio from TVs; supports PCM and Dolby Digital 5.1 formats -Wireless Connectivity: • Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote • Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming USB Port: For connecting USB storage devices (formatted in FAT32, NTFS, or EXT4) |
Output Options | -Analog Inputs: Line-Out (RCA):Maximum output of 2.1V RMS Headphone Out:3.5mm jack for connecting headphones -Digital Outputs: Optical (TOSLINK): Supports up to 24-bit/192kHz Coaxial (S/PDIF): Supports up to 24-bit/192kHz USB Audio Out: Supports up to 24-bit/192kHz; UAC 2.0 compliant Subwoofer Output: Dedicated output for powered subwoofers 12V Trigger Out: Allows automatic power control of connected devices |
Audio Performance | Line out： DAC: ESS ES9038Q2M SABRE DAC Analog Output SNR: 121 dB (A-weighted) THD+N (Analog Out): -115 dB (0.00018%) Supported Audio Formats: AAC, ALAC, FLAC, MP3, WAV, WMA, and more Maximum Sampling Rate: Up to 192kHz/24-bit Headphone out： 300 ohms: SNR (119 dB), THD+N (-99 dB) 32 ohms: SNR (119 dB), THD+N (-92 dB) |
EQ | 24 preset EQ settings, 10-band Graphics EQ, 10-band parametric EQ |
External Storage | Access personal media library and use it as a media server for other WiiM and DLNA devices, |
Supported Streaming Protocol | Spotify Connect, TIDAL Connect, Google Cast Audio (CastLite), Alexa built-in, DLNA, Squeezelite, Roon Ready |
Package Contents | User Guide *1 |
