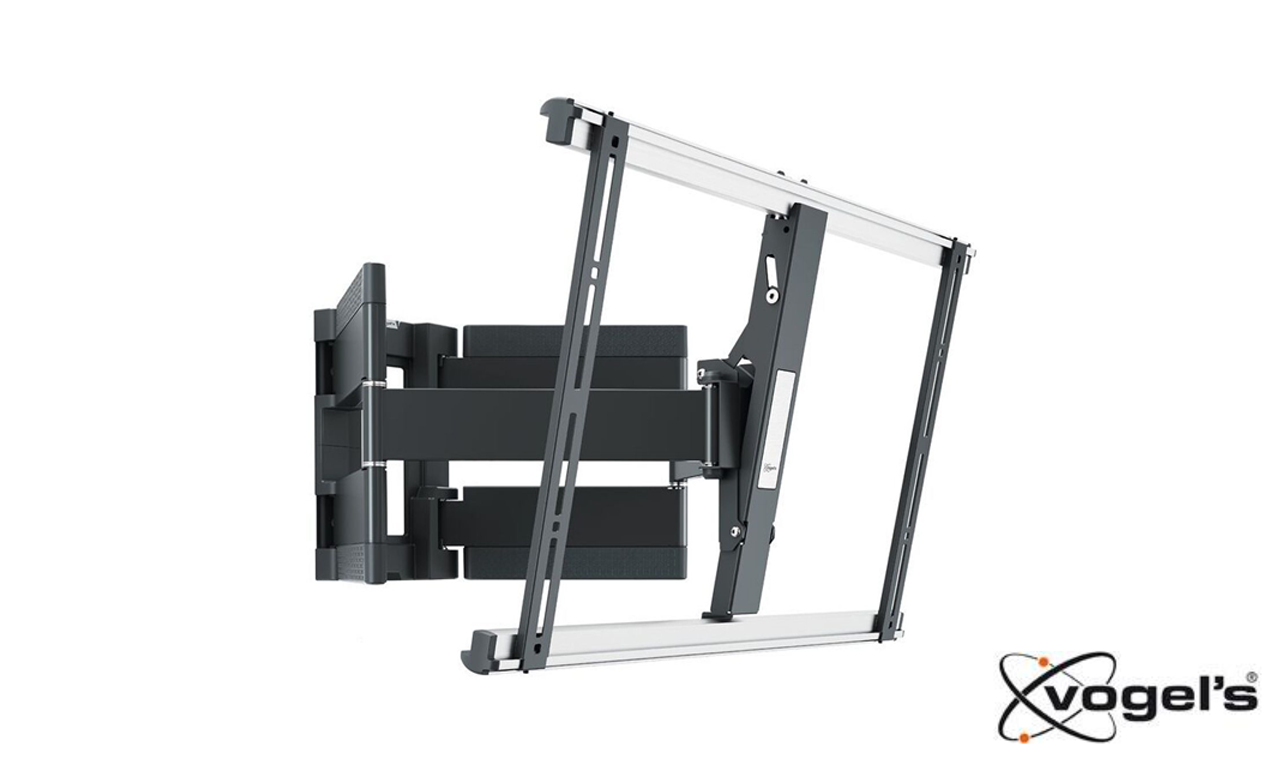

TV wall bracket swivel -70KG, 100″ max – Vogels THIN550


Call for availability

The THIN 550 TV bracket can hold almost any TV up to 70kg, from 40″ to 100″ (102-254 cm), and can be mounted flat against the wall.

Call for availability



  • Colour: Black
  • TÜV certified: Yes
  • Series: THIN
  • Number of pivot points: 3
  • Turn: Forward and turning motion (up to 120°)
  • Tilt angle: 20°
  • VESA mounting interfaces:
    100mm x 100mm, 100mm x 200mm, 200mm x 100mm, 200mm x 200mm, 300mm x 200mm, 300mm x 300mm, 400mm x 200mm, 400mm x 300mm, 400mm x 400mm, 500mm x 200mm, 500mm x 300mm, 500mm x 400mm, 600mm x 200mm, 600mm x 300mm, 600mm x 400mm.
  • Maximum weight: 70kg
  • Minimum screen size compatibility: 40″
  • Maximum screen size compatibility: 100″

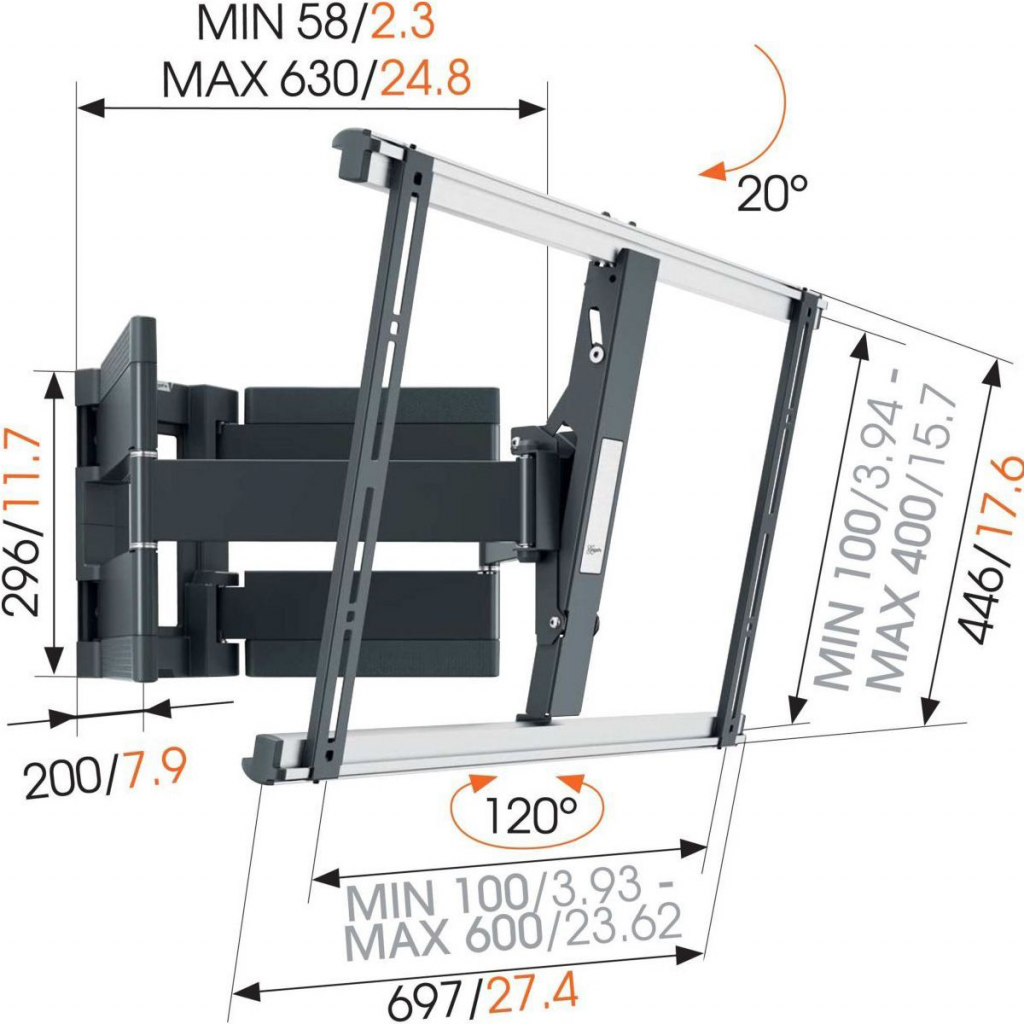

  • Minimum distance to the wall: 58mm
  • Maximum distance to the wall: 630mm
  • Swivel angle: 3°
