Belt-drive mechanism, 2-speed turntable supporting 33- and 45 rpm, Knife-edge, pivot-point tonearm, designed by high-end tonearm manufacturer SAEC

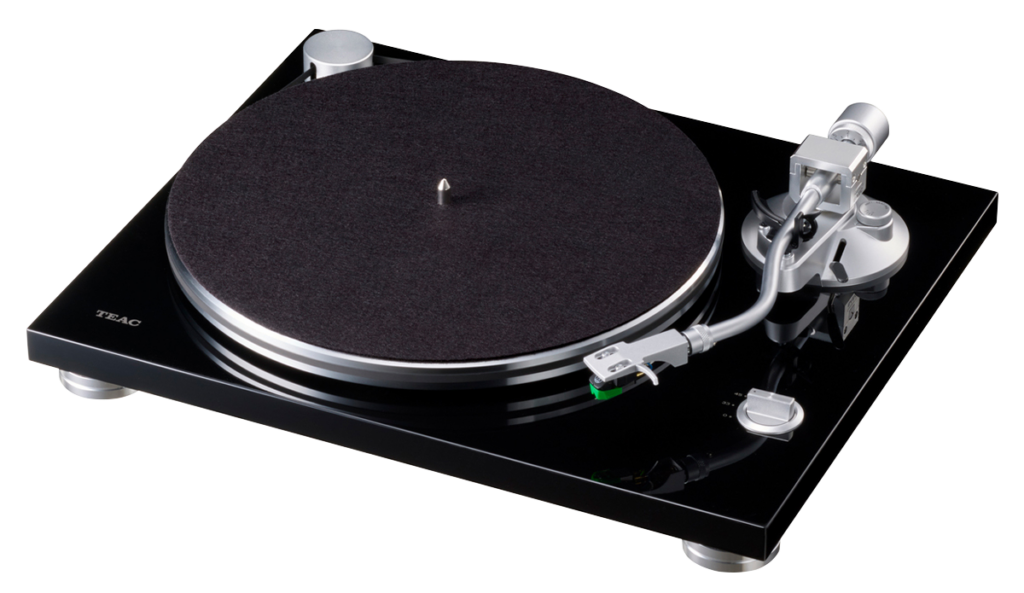

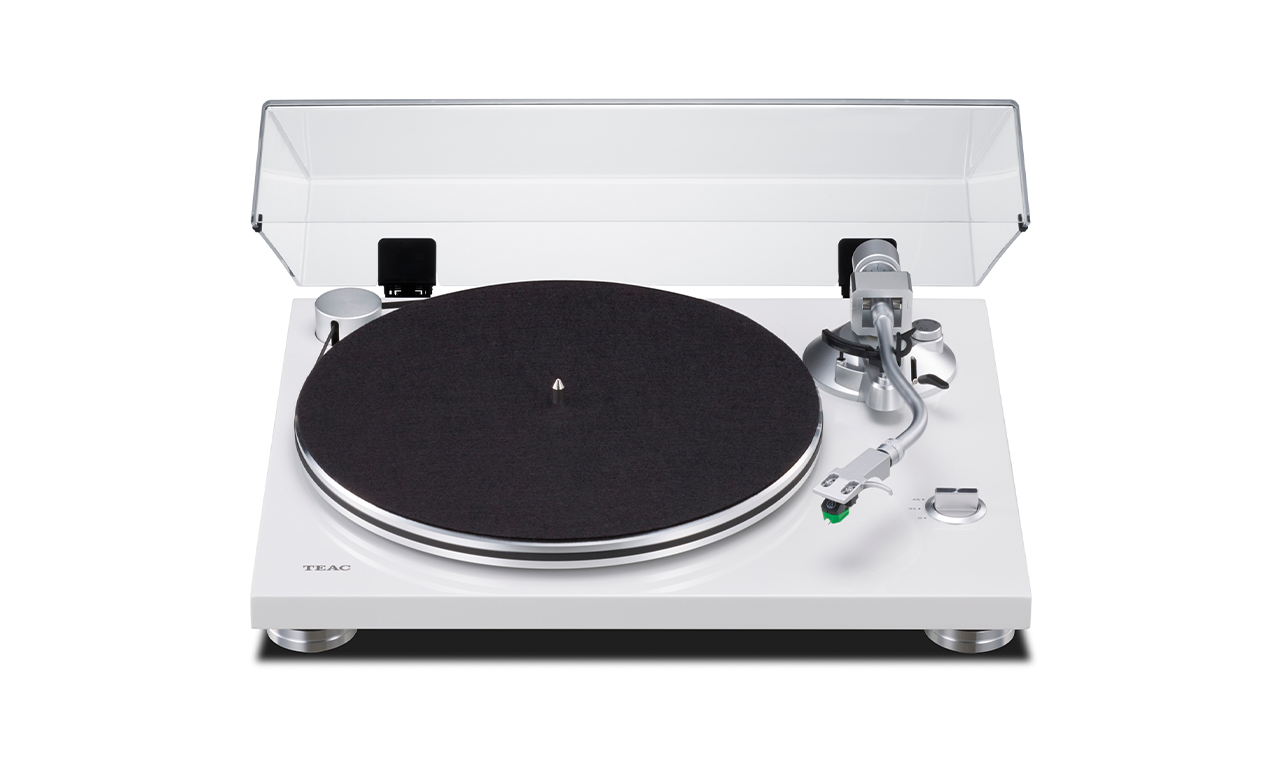

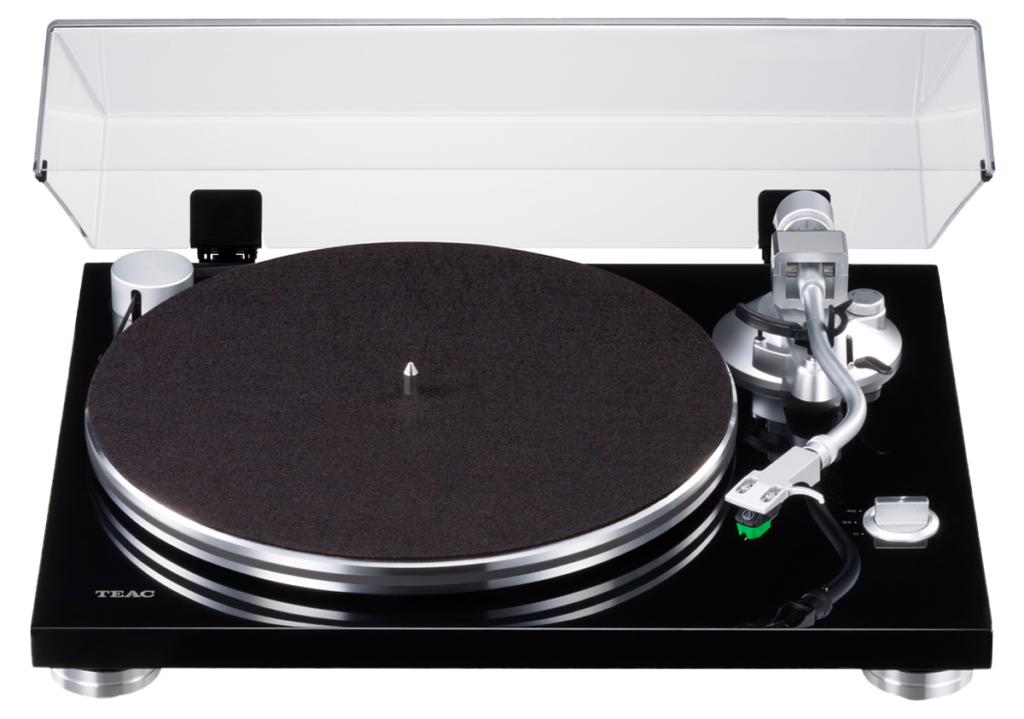

Teac TN 3B SE Analog Turntable
€529
In stock
In stock
Description
Overview
The TN-3B-SE is a sleek belt-driven turntable with a built-in MM-type PHONO EQ amplifier. It features a stable tonearm co-developed with SAEC for superior resolution. With its precise belt-drive mechanism and high-quality NJM8080 op-amp, it delivers natural and balanced sound. Easy to set up, it satisfies both audiophiles and record collectors.
Knife-edge, pivot-point tone-arm bearings
In collaboration with the SAEC Corporation, a world-famous, high-end tonearm manufacturer, the TN-3B-SE’s tonearm employs a knife-edge, pivot-point bearing. Unlike with conventional bearings, subtle movements with this tonearm will help deliver a more dynamic sound with excellent resolution. The S-shaped tonearm also employs a universal headshell fitting, allowing users to quickly and easily swap cartridges (from 14 – 23g / 0.5 – 0.8 oz.) / headshells.
Precision anti-skating and stylus-pressure adjustment
The static-balanced, S-shape tonearm is equipped with a counterweight for precise stylus-pressure adjustment, as well as an anti-skating mechanism for accurate tracking force adjustment, allowing the cartridge to accurately play vinyl discs.
Pre-installed VM-series cartridge
An audio-technica AT-VM95E cartridge with an elliptically shaped stylus tip comes pre-installed on the headshell for convenience. After you’ve opened the box, set up the platter, mount the headshell on the tonearm, and start enjoying your records.
Built-in MM-type phono EQ amplifier
The TN-3B-SE incorporates an MM-type phono EQ amplifier, allowing you to connect the turntable to a conventional amplifier/hi-fi system that lacks a PHONO input. A low-distortion, hi-fi-grade op-amp, the NJM8080 is employed to boost the low-level signals from the phono cartridge to the LINE level.
External belt drive with an aluminum die-cast platter
A belt-drive arrangement is employed to minimize motor-cogging effects by driving the outer rim of the platter (which has a larger diameter, mass, and surface area).
Luxurious, multi-layer lacquer paint finish
All internal components are mounted on a robust and high-density MDF plinth for rigidity and deadening of vibration. Thanks to the sleek and stylish design, the TN-3B-SE looks at home in most domestic environments, creating the perfect setting for listening to vinyl records.
33-1/3 and 45 rpm 2-speed turntable
The TN-3B-SE supports both 33-1/3 and 45 rpm for LP and EP records. Our insistence on quality engineering can even be seen in the construction of the rotary control for start-up/speed selection, formed of machined aluminum.

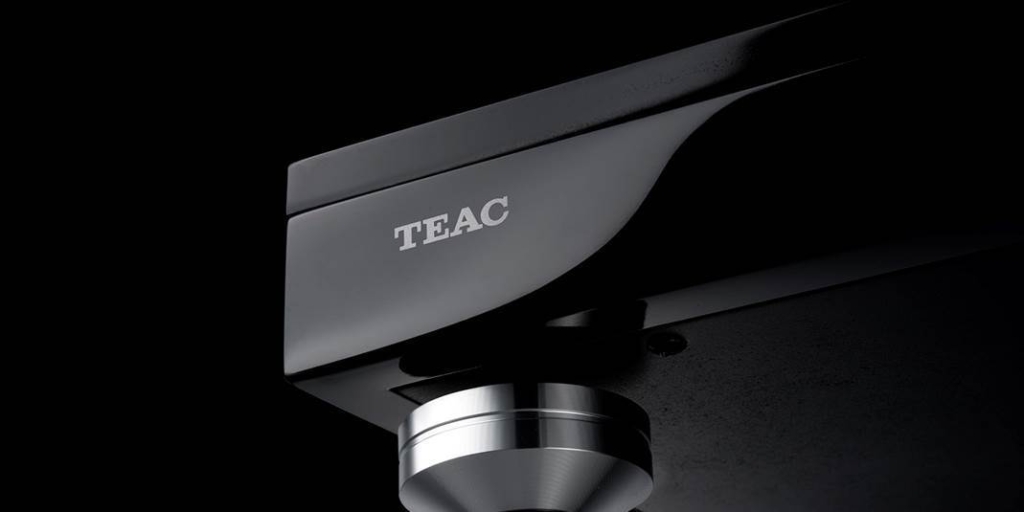

Insulating feet with excellent shock absorption
The insulating feet comprise a machined aluminum shell, topped with a rubber cushion that is fixed to the high-density MDF plinth. Thanks to their excellent shock absorption characteristics, the TN-3B-SE is very resistant to acoustic feedback.
Honeycomb-patterned bottom panel
In order to achieve a sleek cabinet design without compromising rigidity, the bottom panel is imprinted with a honeycomb pattern that minimizes unwanted vibrations.
Features at a glance
- Belt-drive mechanism
- 2-speed turntable supporting 33-⅓ and 45 rpm
- Knife-edge, pivot-point tonearm, designed by high-end tonearm manufacturer SAEC
- Aluminum die-cast platter
- Built-in PHONO EQ amplifier compatible with MM-type cartridges
- Hi-fi grade op-amp, NJM8080, used in PHONO EQ stage
- Anti-skating mechanism
- PHONO/LINE analog output (switchable)
- Gold-plated oxidation-resistant output connectors
- Pre-installed AT-VM95E cartridge supplied by audio-technica
- Rigid, high-density MDF plinth with multi-layered lacquer finish
- Shock-absorbing insulating feet
- GND terminal
- RoHS compliant
Included Accessories
- Felt Mat
- EP Adapter
- Counter Weight, Head-shell (AT-VM95E installed)
- Platter
- Dust Cover
- Hinges × 2
- RCA Audio cable with GND terminal
- AC Adapter (GPE053A-V120050)
- Owner’s Manual (including Warranty Card)
Specifications
PRODUCT ATTRIBUTES
EAN:4907034224104
Manufacturer number: TN-3B-SE/B
Product weight:7.4 kilograms
TURNTABLE FEATURES
Type: Manual
Drive method: Belt-drive
Speed:33 rpm, 45 rpm
Wow & flutter:0.1% or less
Built-in preamp: Yes
S/N ratio:67dB
Cartridge: AT-VMN95E
Cartridge type: MM
Cartridge output:4.0mV (1kHz, 5cm/sec.)
Cartridge weight:6.1g
Including headshell:17.1g
Rec. cartridge weight:3-12g
Rec. cartridge weight (incl. headshell):14-23g
AUDIO OUTPUTS
Output level & impedance phono (MM):4.0mV (1kHz)
RCA:1
ENERGY MANAGEMENT
Power consumption (standby):0.5W
Power consumption:1.5W
DIMENSIONS AND WEIGHT
Product height:11.7cm
Product width:42cm
Product length:35.6cm
Product weight:5kg
Packsize height:21cm
Packsize width:55cm
Packsize length:42cm
Additional information
| Brand | Teac |
|---|---|
| Product Colours | Black |
| Turntable Features | Phono / Line-Out |
